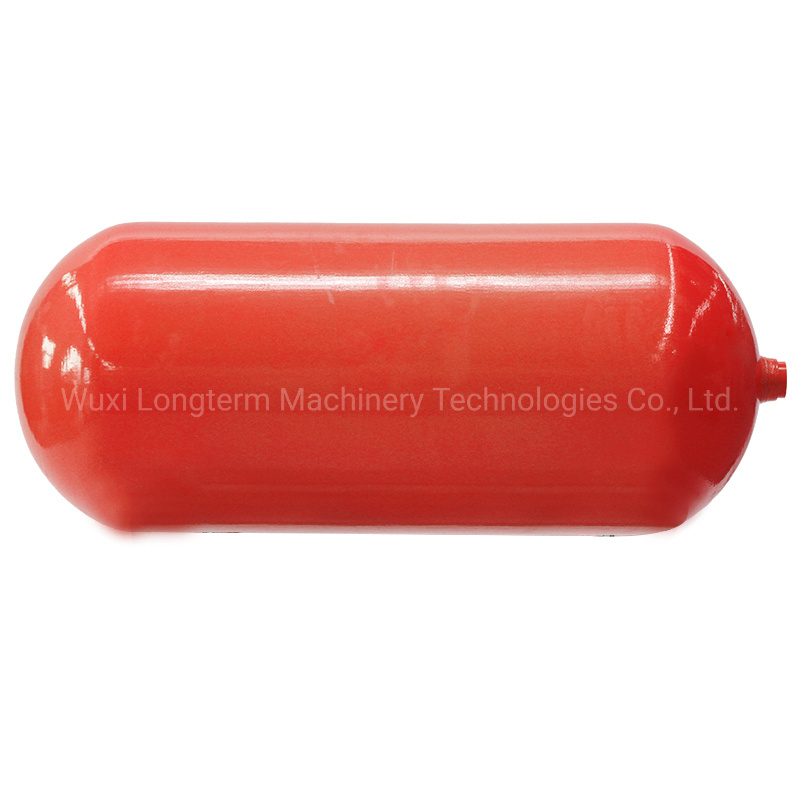

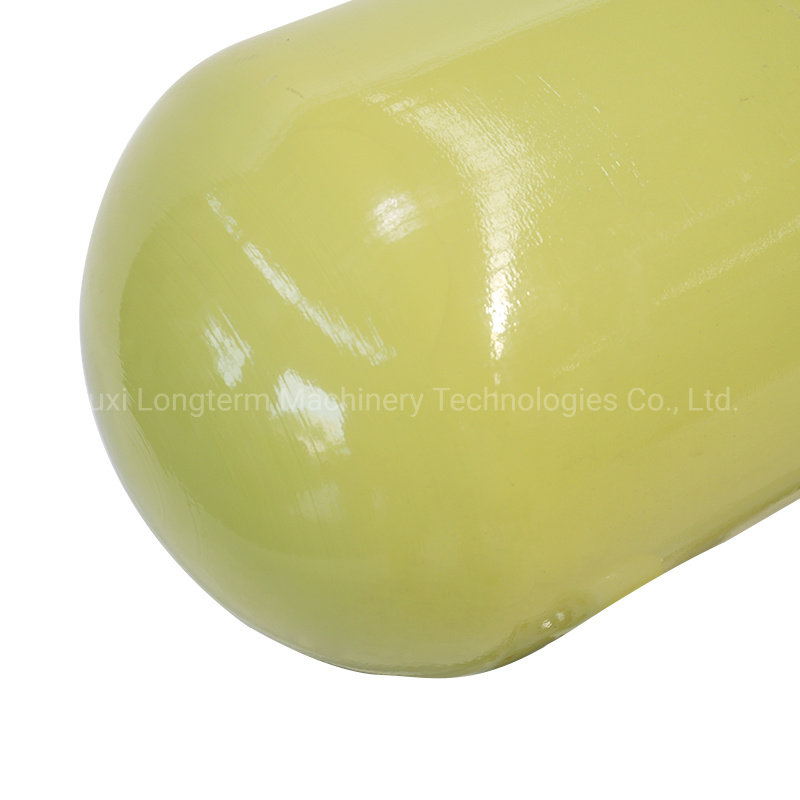

ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles

Quantity:
  • HLT
  • Highly Toxic
  • High Pressure (10.0MPa≤p<100.0MPa)
  • New
  • CNG Type1 Steel Gas Cylinder for Vehicles
  • 65L
  • 20MPa
  • 4.6mm
  • 50kg
  • 985mm
  • 325mm
  • GB/T24160, ISO11439:2013, ECE R110
  • Wooden Box
  • 60L-150L
  • HLT
  • China Jiangsu
  • 73110010
  • 300000PCS/Year
  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles

Product Description
CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 20MPa.
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles

Technical Parameter
Product No. OD
(mm)
Volume
(L)
Design Wall thickness:7.2mm Design Wall thickness:7.4mm Design Wall thickness:8.4mm Working Pressure(MPa) Material
Length
(without valve)
(mm)
Weight
(Kg)
Length
(without valve)
(mm)
Weight
(Kg)
Length
(without valve)
(mm)
Weight
(Kg)
ECER110-200-57-356A
ISO11439-200-57-356A
57 782 61.2 785 63.3 797 72.4
ECER110-200-60-356A
ISO11439-200-60-356A
356 60 816 63.5 818 65.7 830 75.1 20 34CrMo4
ECER110-200-65-356A
ISO11439-200-65-356A
65 871 67.3 874 69.6 887 79.5
ECER110-200-75-356A
ISO11439-200-75-356A
75 982 74.8 986 77.3 1000 88.5
ECER110-200-77-356A
ISO11439-200-77-356A
77 1005 76.3 1008 78.9 1022 90.2
ECER110-200-80-356A
ISO11439-200-80-356A
80 1038 78.6 1041 81.2 1056 92.9
ECER110-200-90-356A
ISO11439-200-90-356A
90 1149 86.2 1153 89.0 1169 101.8
ECER110-200-100-356A
ISO11439-200-100-356A
100 1260 93.7 1264 96.8 1282 110.8
ECER110-200-110-356A
ISO11439-200-110-356A
110 1371 101.3 1376 104.6 1395 119.7
ECER110-200-113-356A
ISO11439-200-113-356A
113 1405 103.5 1409 106.9 1429 122.4
ECER110-200-120-356A
ISO11439-200-120-356A
120 1482 108.8 1487 112.4 1508 128.6
ECER110-200-130-356A
ISO11439-200-130-356A
130 1594 116.4 1598 120.1 1621 137.5
ECER110-200-140-356A
ISO11439-200-140-356A
140 1705 123.9 1710 127.9 1734 146.4
ECER110-200-150-356A
ISO11439-200-150-356A
150 1816 131.5 1821 135.7 1846 155.4

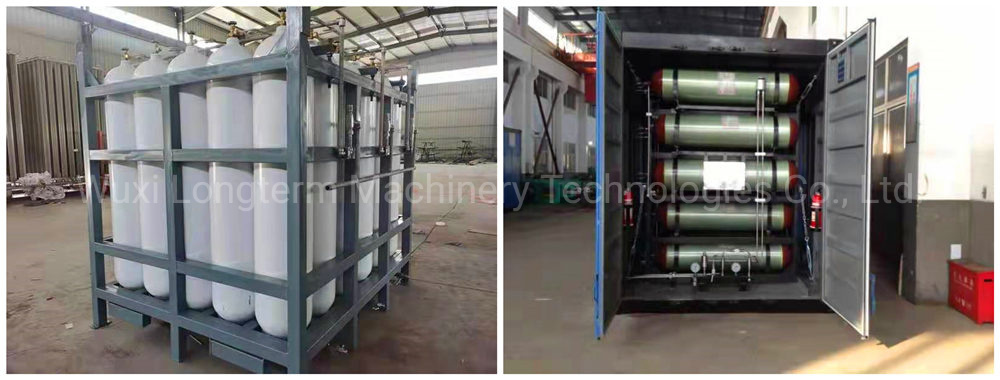

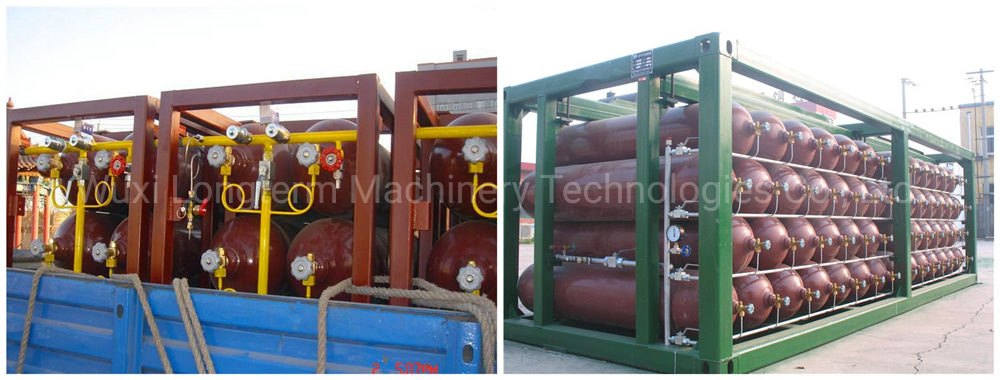

Application
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles

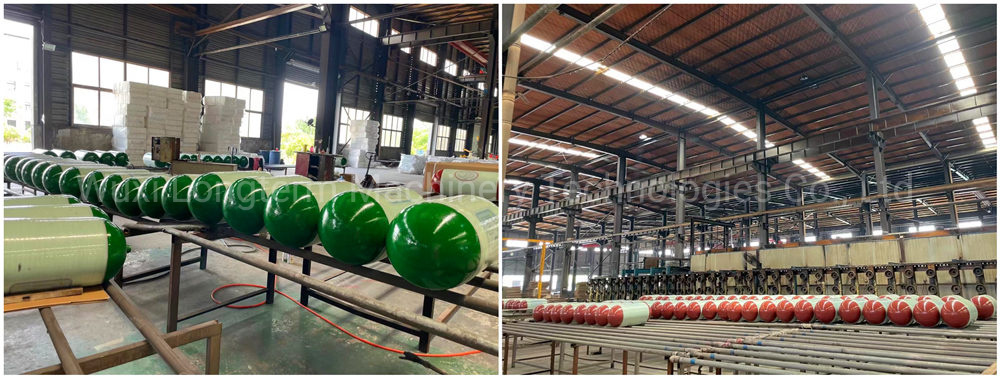

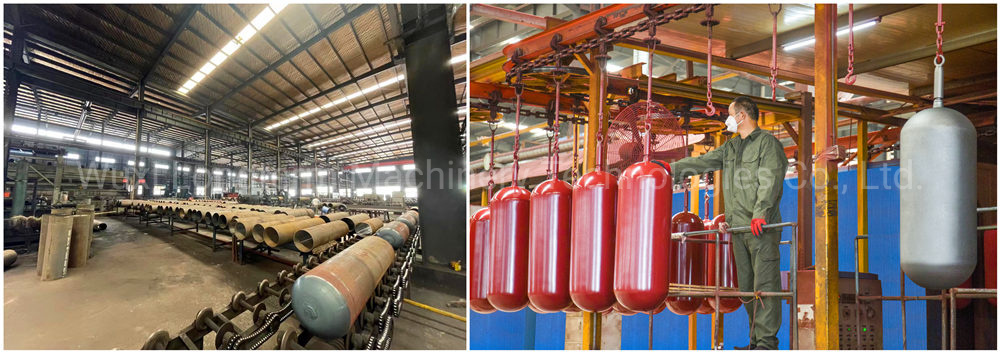

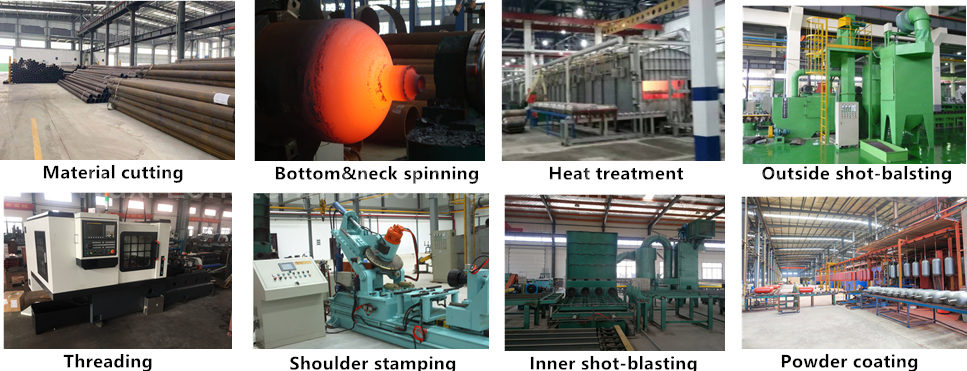

Production Flow
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles
Quality Control
Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Air leakage Test are also 100% guaranteed.
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles

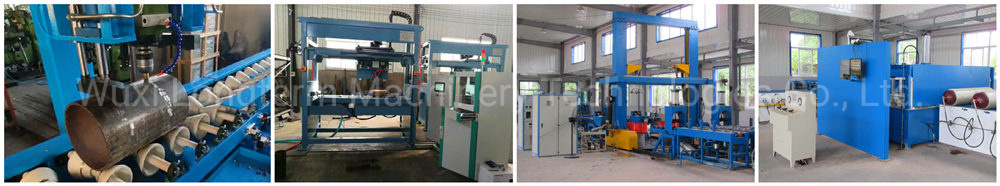

hardness test Ultrasonic test Hydrolic test Air leakage test

Certification
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles

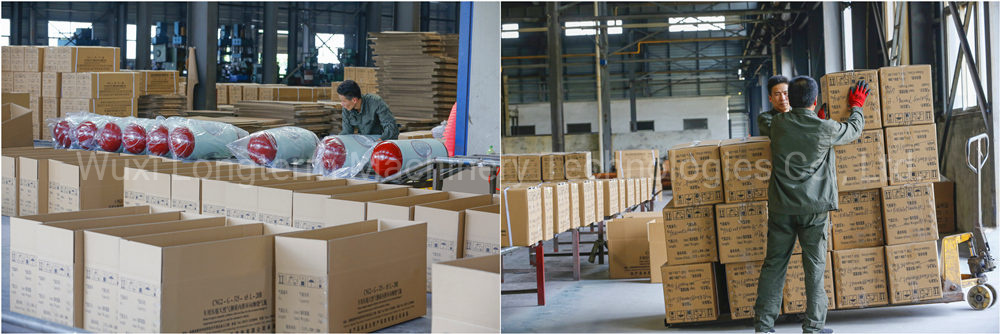

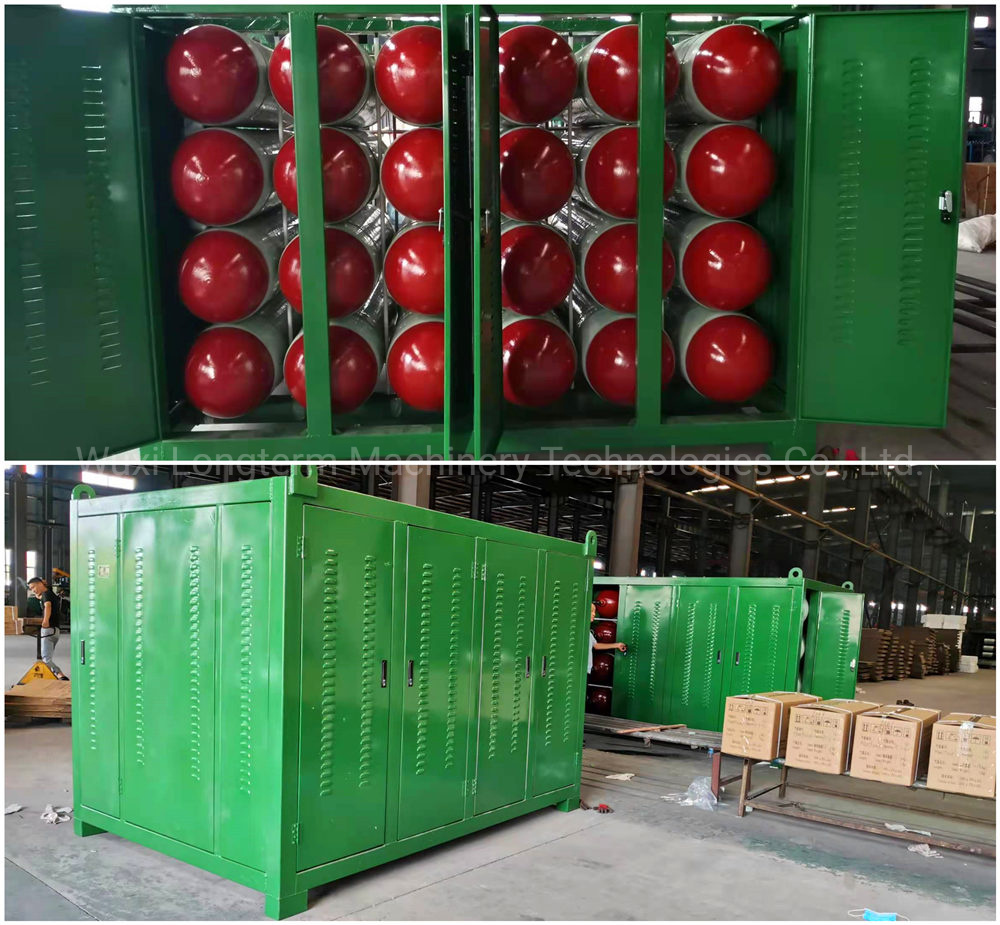

Package & Delivery
We can provide a series of package and logistics solutions according to the customer's requirements, to ensure our goods reach our customers on time and safely
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles
Related Product
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles
Company Info
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
ISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for VehiclesISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for VehiclesISO11439 232mm Diameter CNG Type1 Steel Gas Cylinder for Vehicles

FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 20 years.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
