Design and manufacture in accordance with the national standard GB/T9251-2011 "cylinder hydrostatic test method and GB 5842-2006" liquefied petroleum gas cylinder "and so on.It's main composed of water pressure testing machine, roller conveyer, hydraulic pneumatic system and control system, etc.
high quality hot spinning machine is popular in many industrial, such as CNC cylinder, CCo2 cylinder

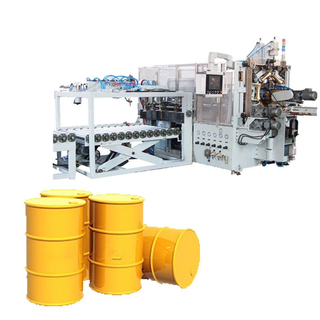

The conveyor will automatically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.

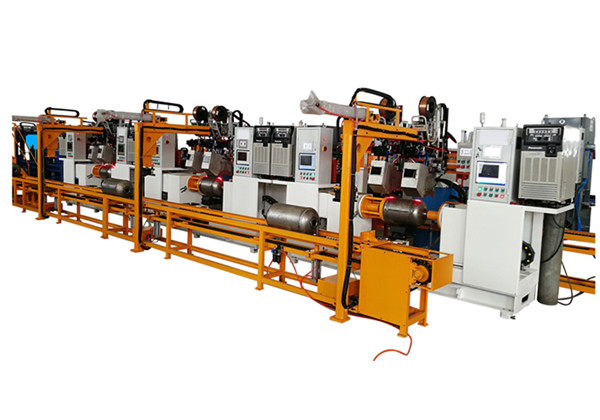

Automated Circumferential Lathe Welders are designed for small to large-scale circumferential welding applications. These machines commonly function to weld seams at the outside surface of tanks. Esp. for liquefied petroleum gas (LPG) cylinder, liquefied natural gas (LNG) cylinder, porcelain enamel tank and large scale cryogenic storage tank MIG welding has highlight advantages, such as high density of current, strong penetrability, smooth welding quality. 5mm SS sheet could be full-penetration welded without groove.
This machine is used for upper/lower cap trimming, edge welding part outer polishing. The main shaft motor is 5.5KW, the polishing motor is 1.5KW.

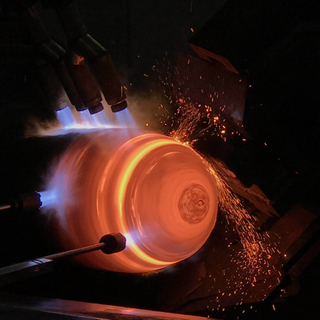

This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.

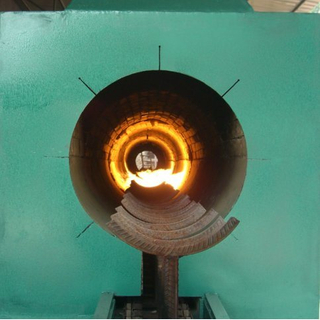

Continuous cylinder heat treatment nature gas heat treatment furnace is widely used for heat treatment of steel cylinder. The heating of the furnace is divided into two sections. One section is the heating section (horizontal); the second section is the high temperature section (horizontal).
1. Cylinder material: 34CrMo4 (35CrMo), 37Mn, 30CrMo, 45#, 20# 2. Specifications for cylinder 2.1. Diameter range: φ76~180mm 2.2. Length range:330~1100mm (The max length of the tube is 1250mm) 2.3. Thickness range:<10mm 2.4. Weight:<80kg 3. Production speed: < 80s 4. Spindle speed: 260~520 r/ min 5. The way host spindle chuck clamping: Did not appear the axial sliding after clamping , clamping force can be adjusted according to the need. Clamping force ≤180KN. 6. Hydraulic station: molding-bottom device. scraping- bottom device ,sliding-table and chuck device adopt independent hydraulic system. Tank cooling use heat transfer.
Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction. Machine size: 3800*900*1700mm Machine weight: 9000kgs Power: 55KW Capacity:>6pcs/min

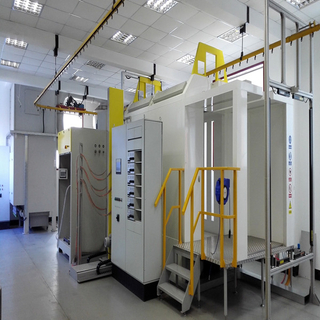

Zinc metalizing line consists of arc spraying zinc machine, spray gun automatic mechanism, automatic transmission and the workpiece rotation speed change mechanism, spraying room, vacuum cleaners, electrical control parts. It is especially used for LPG cylinders' surface. With arc as the heat source, using the high speed gas atomize the melting zinc wire, then high speed spraying to coating the surface of the cylinder. This line combined three arc spraying zinc machines, using three or a plurality spray gun at the same time from different sides of the cylinders.
this machine is popular in many industrials, such as CNG cylinder, Co2 cylinder
The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Used for the recycling of residual gas and liquid in the LPG cylinder. 1. Power:7.5kw 2. Gas & liquid separator:0.4m⊃3; 3. Air source pressure:0.4-0.6Mpa 4. Turnover period:<30s/time 5. One time residual cleaning time:≥2min 6. Overall size:4700*1500*2050mm 7. Working efficiency: 125 cylinders/hour
This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.
