ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders

Quantity:
  • HS
  • Liquefied Gas
  • High Pressure (10.0MPa≤p<100.0MPa)
  • New
  • Liquefied Gas
  • Type 2 CNG Cylinder
  • 45L- 120L
  • 325-406mm
  • 25MPa
  • 43-176kg
  • 5.4-6.8mm
  • GB / ISO / Tped
  • :Compressed Natural Gas
  • Standard Seaworthy Package
  • 225mm, 356mm, 406mm
  • HS
  • China Jiangsu
  • 10000 Piece/Month
  • Available | Customized Request

Product Description

ISO11439 325mm diameter cng type1 gas cylinder
200bar Working Pressure Cylinders
Product Description

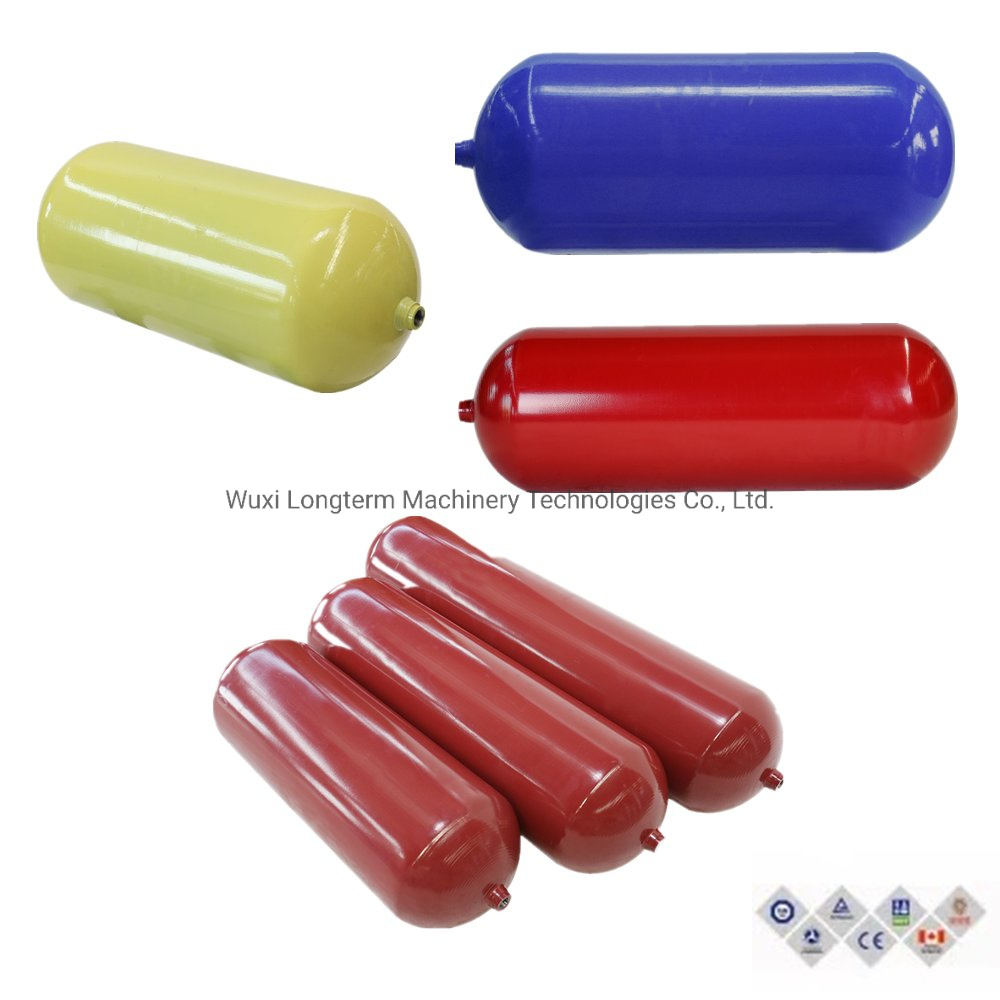

ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders

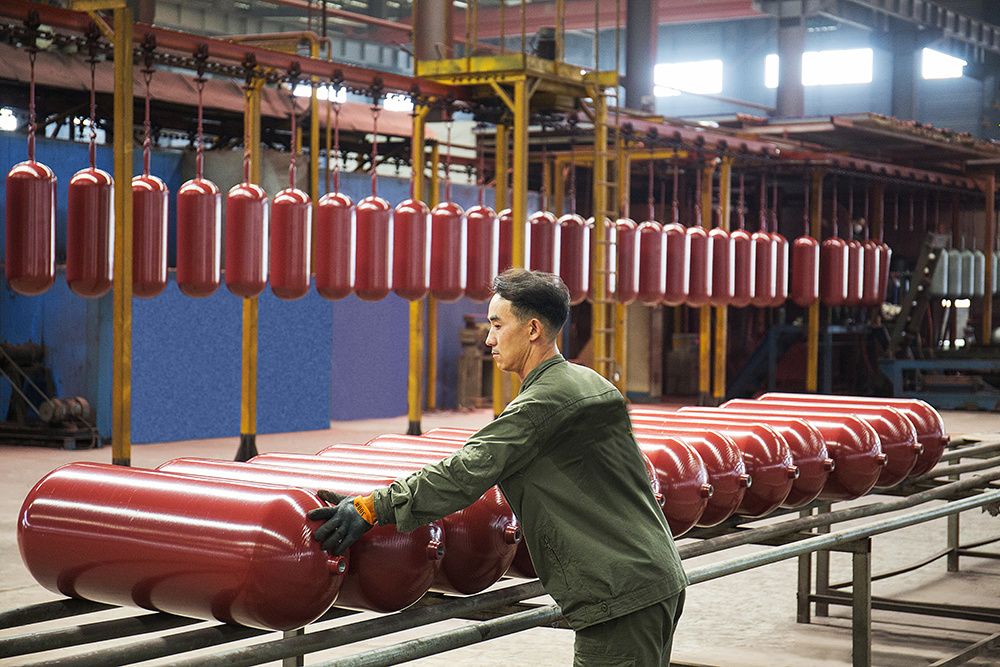

ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders

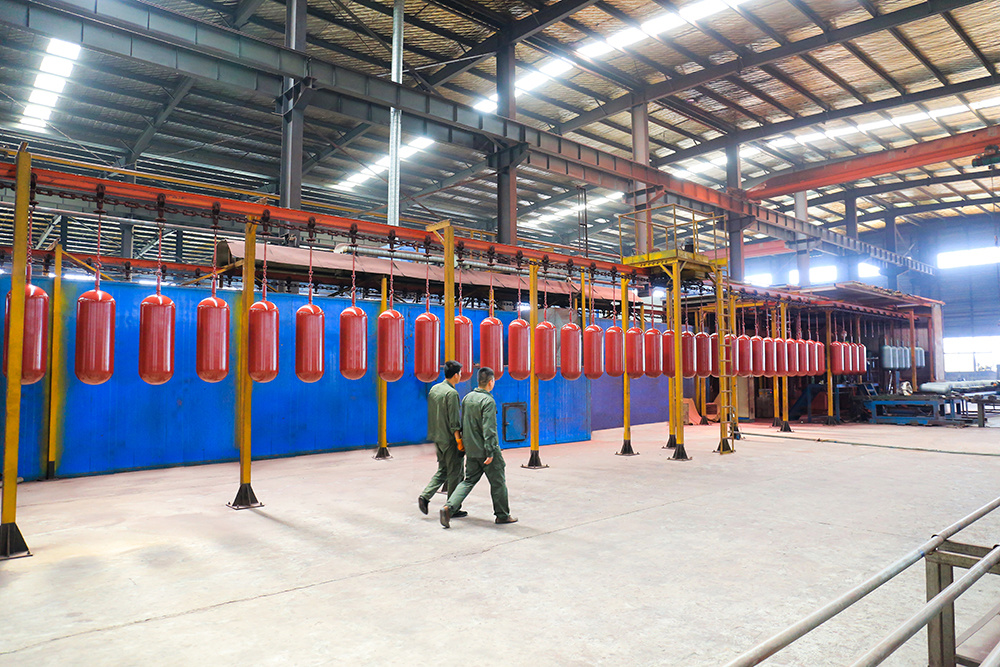

ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders
ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders



CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 25MPa.

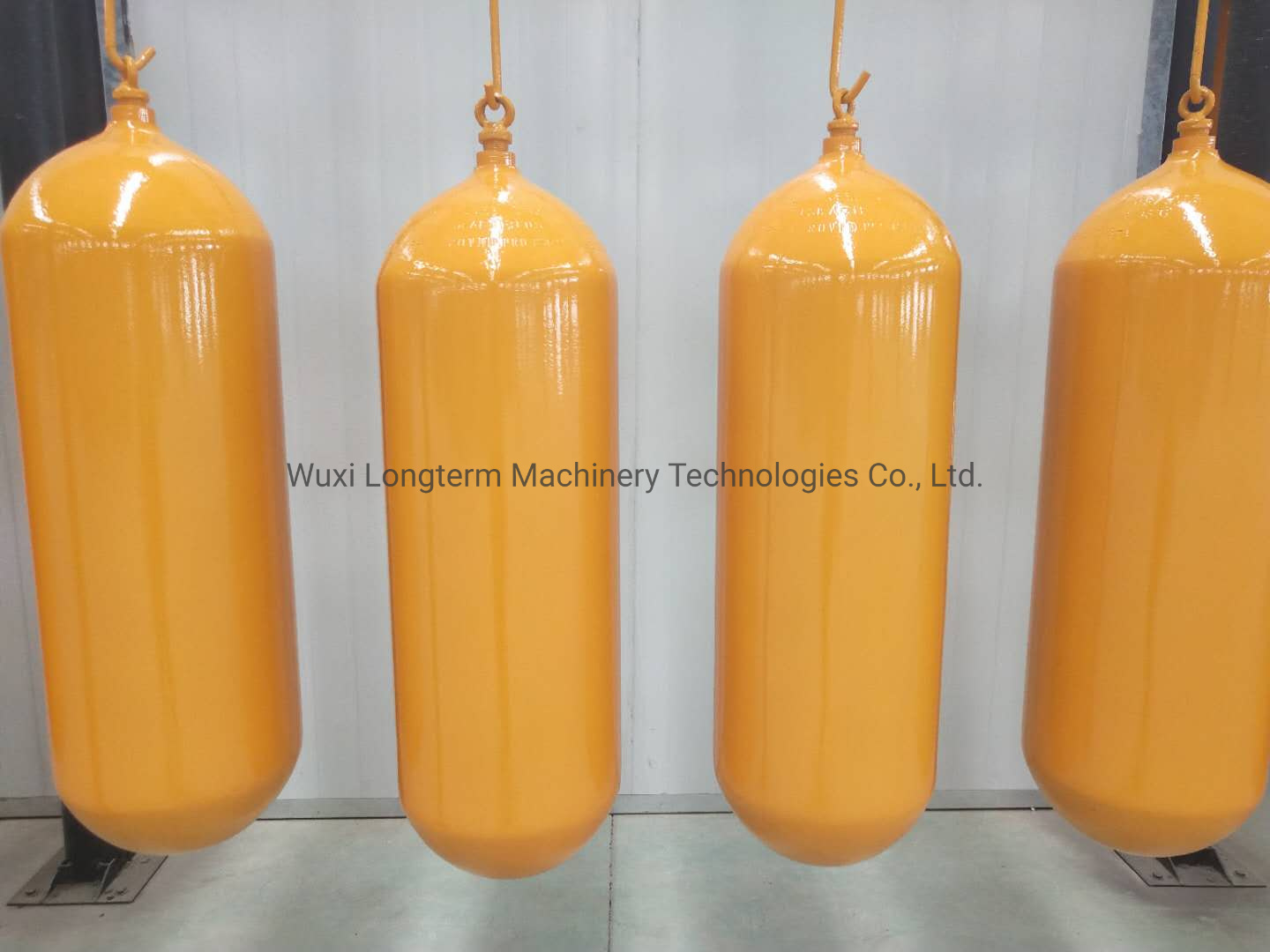

Detailed Photos

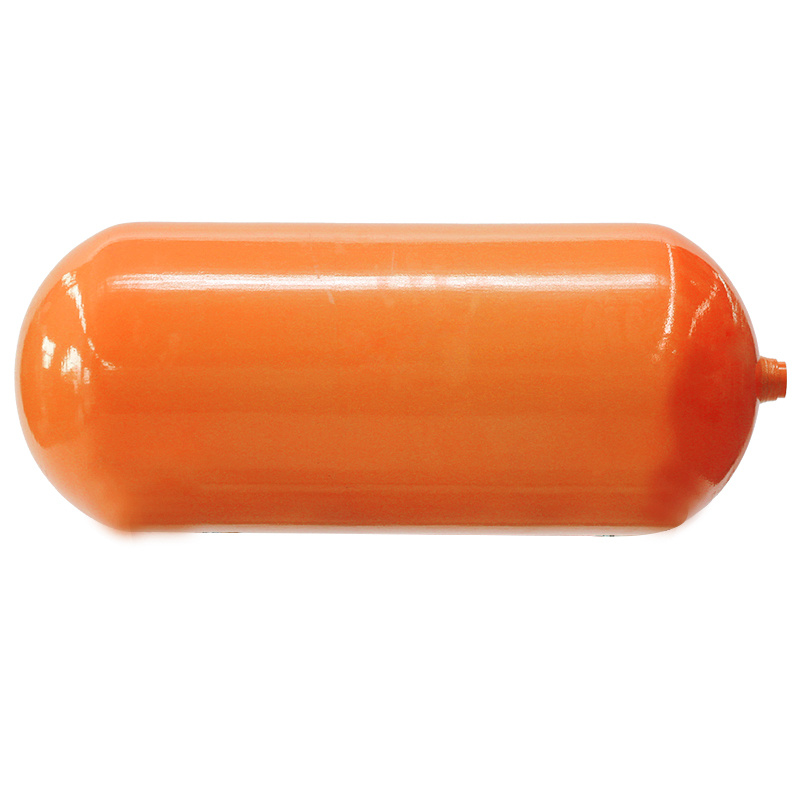

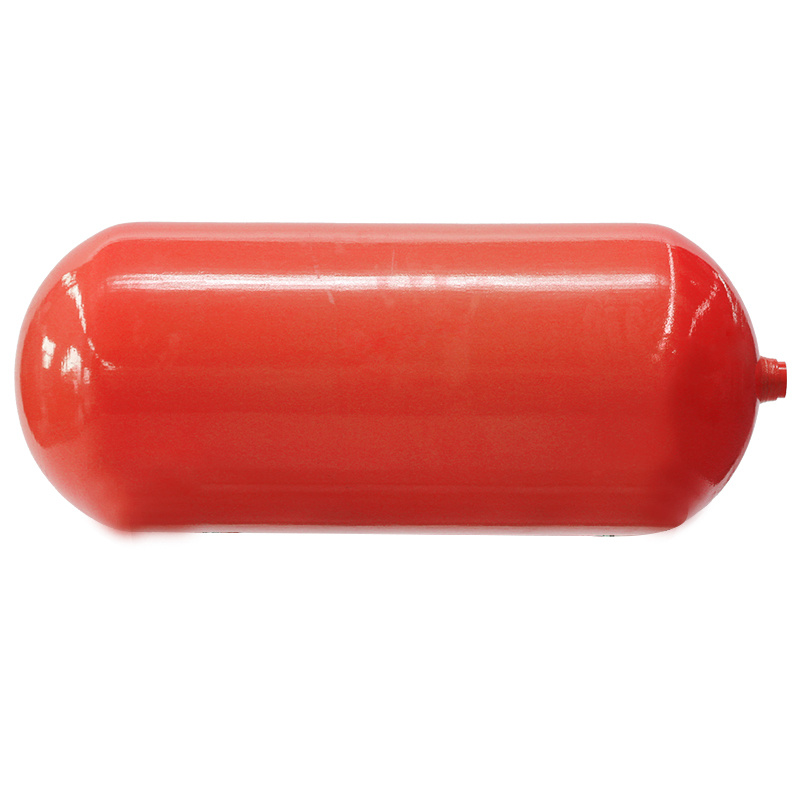

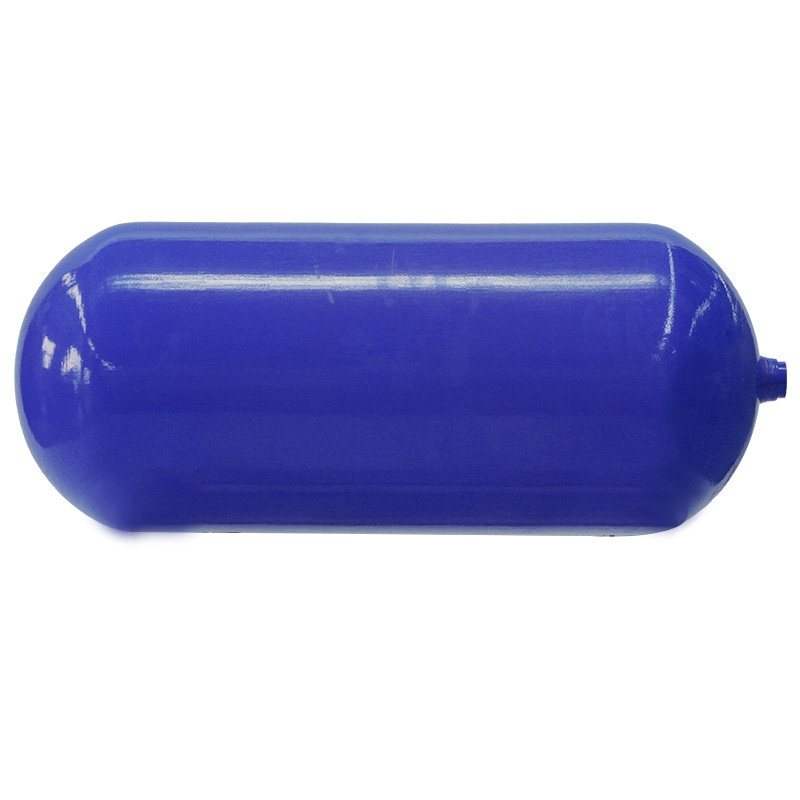

ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders

Technical parameters of CNG vehicles hoop‐wrapped cylinders with steel liners
Product No.
Internal OD (mm)
Volume (L)
Length (mm)
Weight (Kg)
Wall thickness (mm)
Working Pressure (MPa)
Material
CNG2-G-325-45-20B
ø325
45
735
36
4.6
20
30CrMo
CNG2-G-325-50-20B
50
792
40
CNG2-G-325-55-20B
55
857
42
CNG2-G-325-60-20B
60
921
46
CNG2-G-325-65-20B
65
985
50
CNG2-G-325-70-20B
70
1049
52
CNG2-G-325-75-20B
75
1113
55
CNG2-G-325-80-20B
80
1178
59
CNG2-G-325-85-20B
85
1243
61
CNG2-G-325-90-20B
90
1306
67
CNG2-G-325-100-20B
100
1434
71
CNG2-G-325-110-20B
110
1563
78
CNG2-G-325-120-20B
120
1691
85
CNG2-G-356-55-20B
ø356
55
739
46
5.0
20
30CrMo
CNG2-G-356-60-20B
60
790
49
CNG2-G-356-65-20B
65
845
53
CNG2-G-356-70-20B
70
920
56
CNG2-G-356-75-20B
75
966
58
CNG2-G-356-77-20B
77
990
60
CNG2-G-356-80-20B
80
1015
61
CNG2-G-356-82-20B
82
1040
63
CNG2-G-356-85-20B
85
1065
65
CNG2-G-356-90-20B
90
1118
68
CNG2-G-356-95-20B
95
1177
70
CNG2-G-356-100-20B
100
1230
73
CNG2-G-356-110-20B
110
1340
81
CNG2-G-356-120-20B
120
1450
85
CNG2-G-356-130-20B
130
1560
93
CNG2-G-356-140-20B
140
1670
99
CNG2-G-356-150-20B
150
1756
103
CNG2-G-406-80-20B
ø406
80
837
68
5.7
20
30CrMo
CNG2-G-406-82-20B
82
853
69
CNG2-G-406-85-20B
85
878
71
CNG2-G-406-90-20B
90
919
74
CNG2-G-406-95-20B
95
959
77
CNG2-G-406-100-20B
100
1000
80
CNG2-G-406-103-20B
103
1025
82
CNG2-G-406-105-20B
105
1041
83
CNG2-G-406-110-20B
110
1082
86
CNG2-G-406-120-20B
120
1164
92
CNG2-G-406-130-20B
130
1246
98
CNG2-G-406-140-20B
140
1327
105
CNG2-G-406-150-20B
150
1409
111
CNG2-G-406-160-20B
160
1491
117
CNG2-G-406-170-20B
170
1573
123
CNG2-G-406-180-20B
180
1655
129
CNG2-G-406-190-20B
190
1736
136
CNG2-G-406-200-20B
200
1818
142
CNG2-G-406-210-20B
210
1900
148
Certifications

ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders

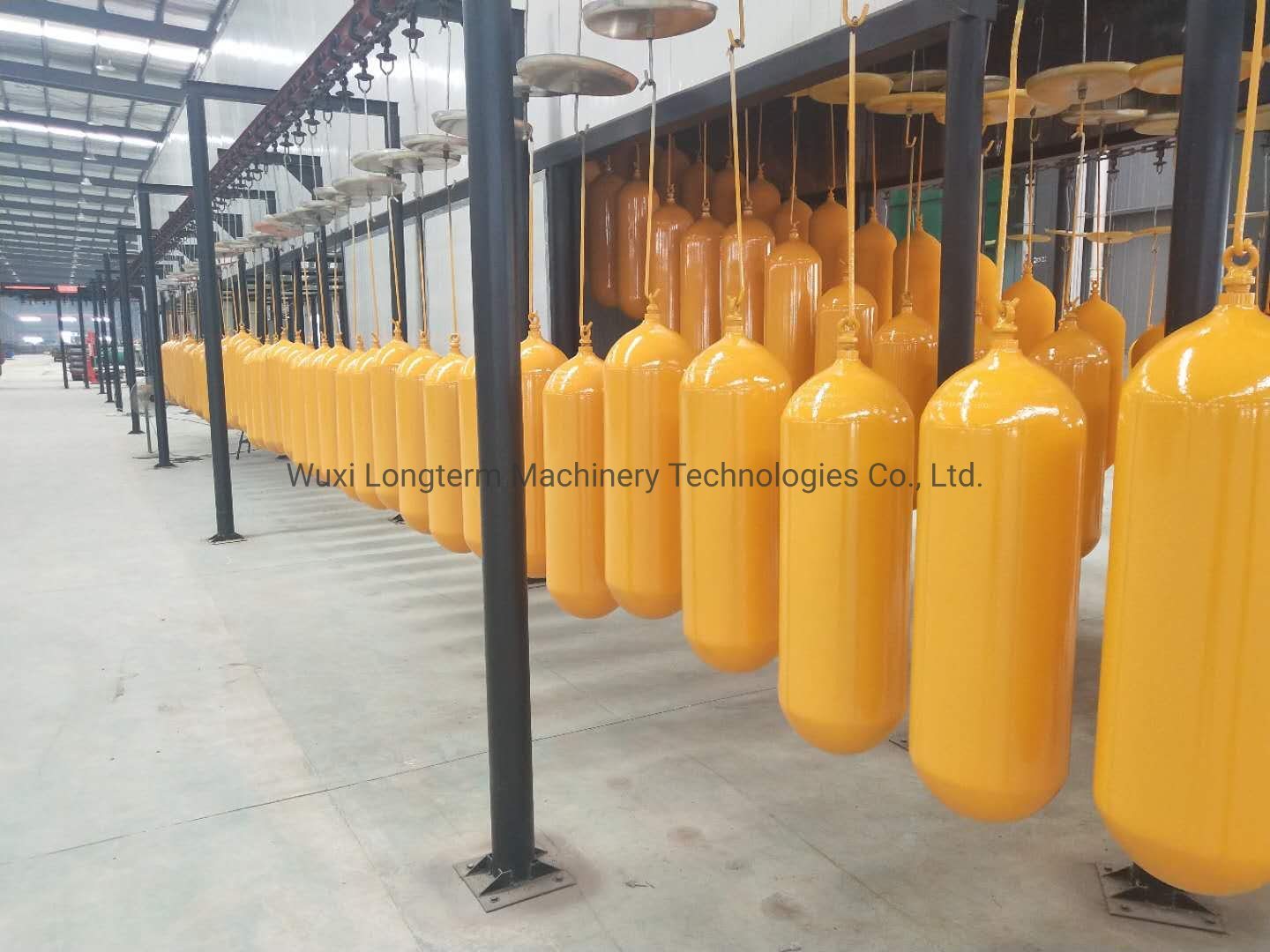

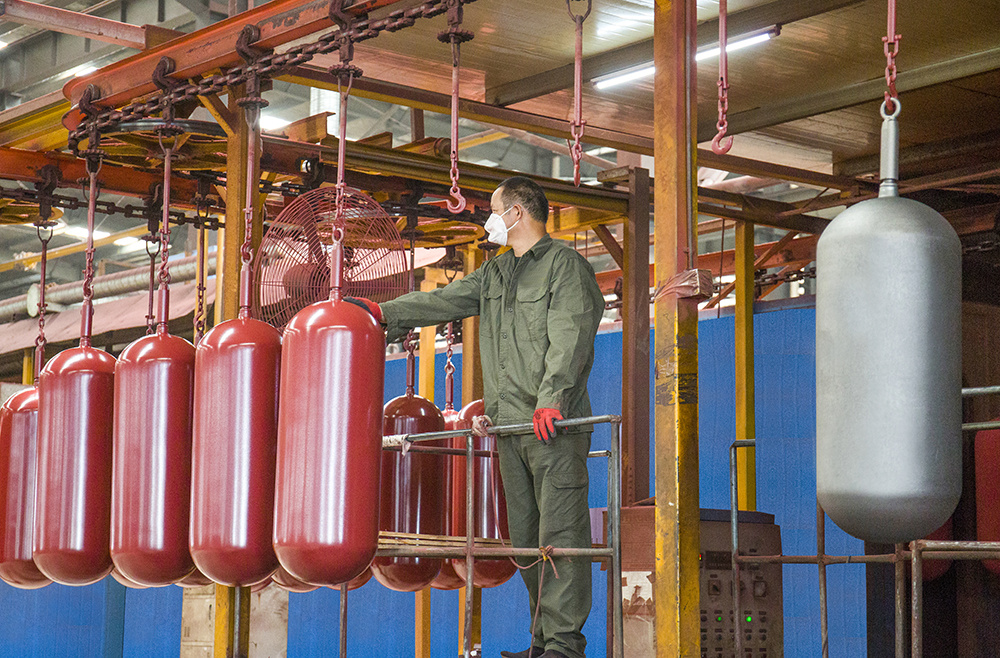

Manufacturing Technique
ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders
ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders
ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders

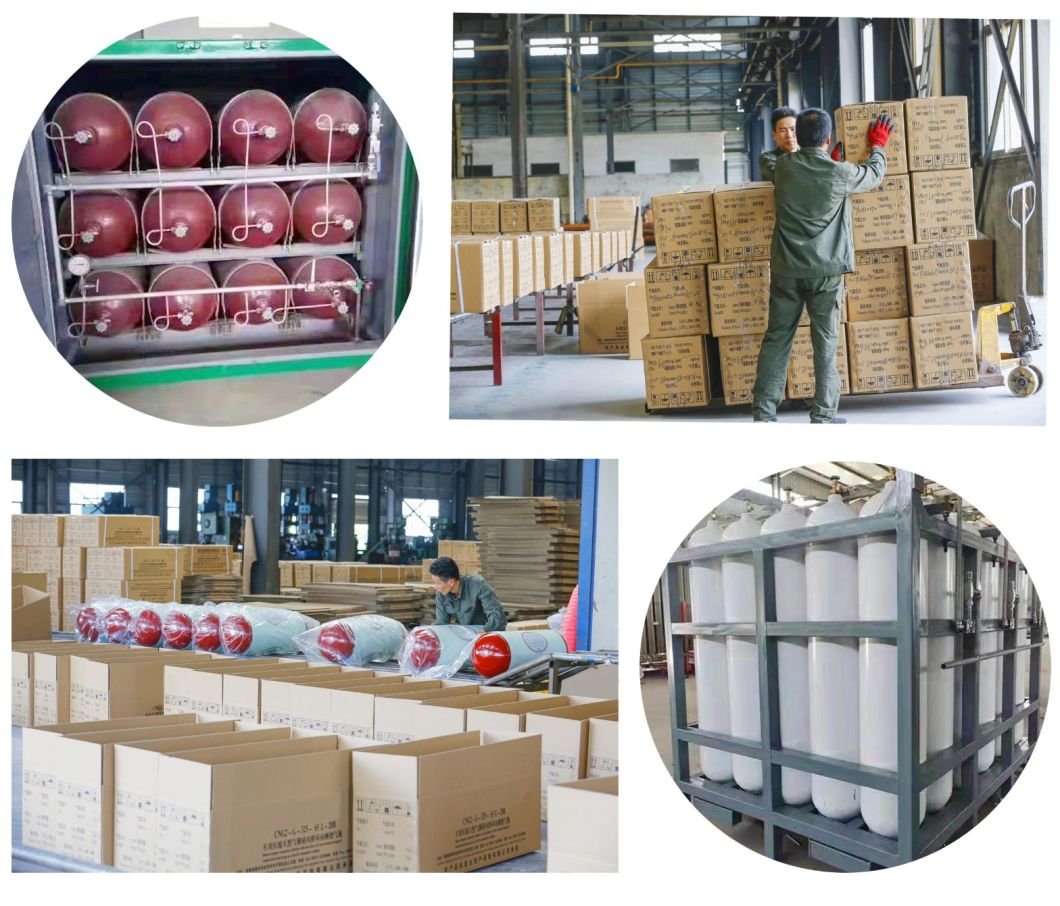

Packaging & Shipping

ISO11439 325mm Diameter CNG Type1 Gas Cylinder 200bar Working Pressure Cylinders

FAQ

Q1: How to ensure your cylinders quality?
A: we have been in this field for more than 20 years. Our products have been sold almost all over the world. We allow 3rd party
inspections before shipment ( on buyer's account) And we can supply certificate of quality accordingly.

Plus we have six machinery equipments to test material and cylinder:
1. spectrum analyzer to detect chemical analysis;
2. mechanical function to make tension test and bending test;
3. X-ray silent detection to inspect circumferential weld;
4. Hydraulic bursting test;
5. Hydraulic testing;
6. Air tightness test.

Q2: About the brand name of the products?
A: In general, We use our own brand, if you have requested, Both OEM and ODM are also available.

Q3:Can you provide a sample?
In our acceptable range, we can offer one free sample for you if you pay for the freight. We will return the freight if you make
an order in future.

Q4: How about your delivery time?
In general, it will take 35-60 days after receiving deposit. The specific delivery time depends on the items and quantity of your
order.

Q5: What is your MOQ?
Small quantity negotiable, one or more containers would be appreciated.
