| Quantity: | |
|---|---|
Liquefied Gas
High Pressure (10.0MPa≤p<100.0MPa)
New
Liquefied Gas
Type 2 CNG Cylinder
45L- 120L
325-406mm
25MPa
43-176kg
5.4-6.8mm
GB / ISO / Tped
:Compressed Natural Gas

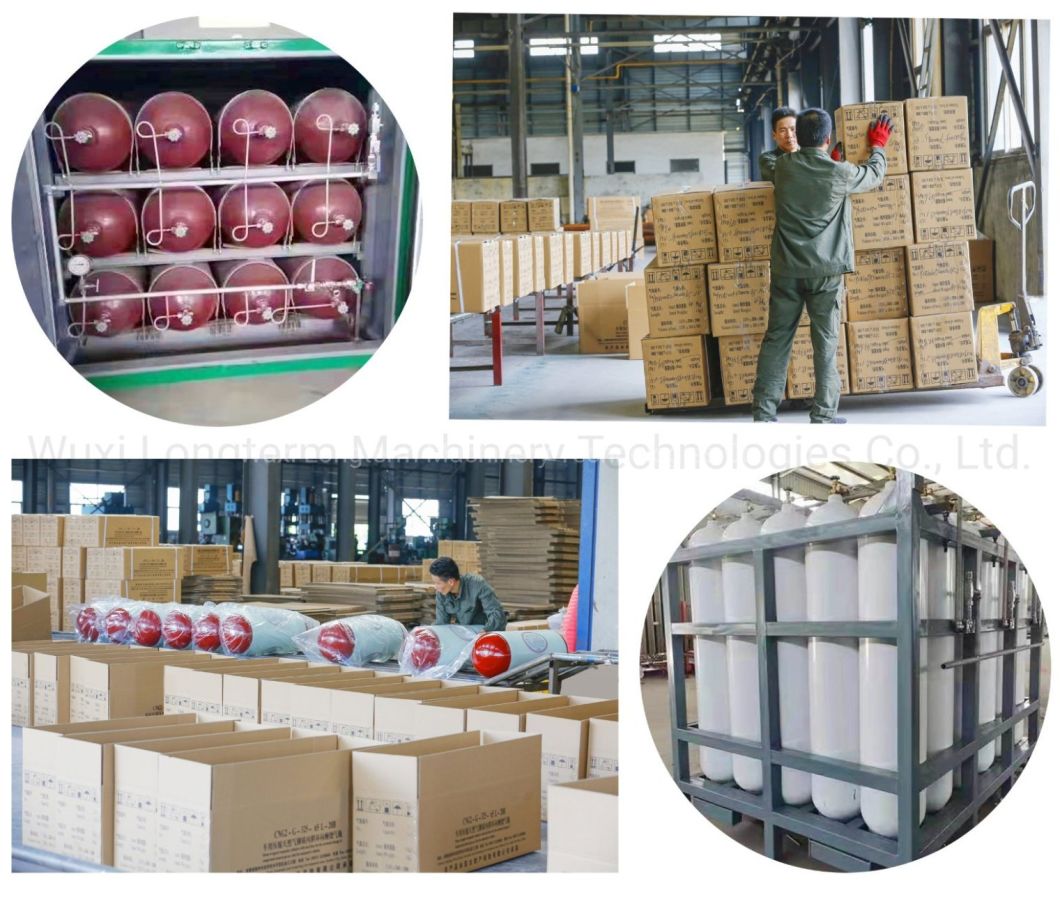

Standard Seaworthy Package
225mm, 356mm, 406mm
HS
China Jiangsu
10000 Piece/Month
Available | Customized Request
Product Description

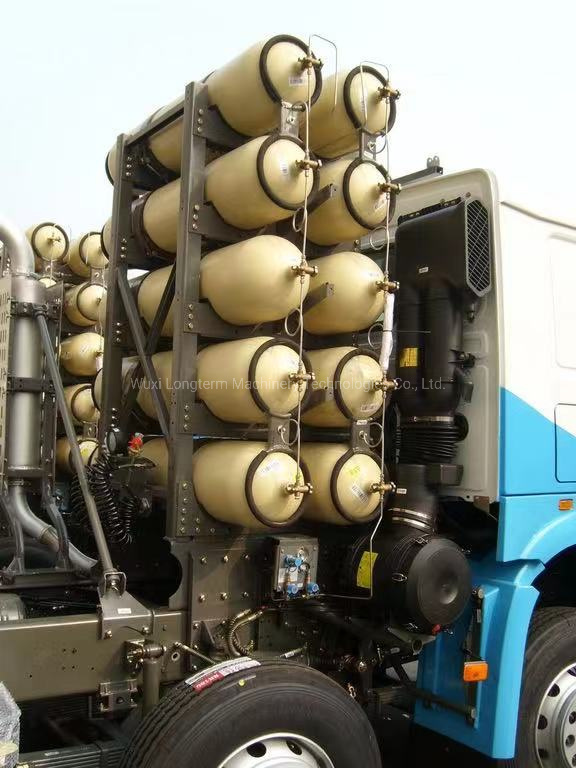

CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 25MPa.
| Product No. | Internal OD (mm) | Volume (L) | Length (mm) | Weight (Kg) | Wall thickness (mm) | Working Pressure (MPa) | Material |
| CNG2-G-325-45-20B | ø325 | 45 | 735 | 36 | 4.6 | 20 | 30CrMo |
| CNG2-G-325-50-20B | 50 | 792 | 40 | ||||
| CNG2-G-325-55-20B | 55 | 857 | 42 | ||||
| CNG2-G-325-60-20B | 60 | 921 | 46 | ||||
| CNG2-G-325-65-20B | 65 | 985 | 50 | ||||
| CNG2-G-325-70-20B | 70 | 1049 | 52 | ||||
| CNG2-G-325-75-20B | 75 | 1113 | 55 | ||||
| CNG2-G-325-80-20B | 80 | 1178 | 59 | ||||
| CNG2-G-325-85-20B | 85 | 1243 | 61 | ||||
| CNG2-G-325-90-20B | 90 | 1306 | 67 | ||||
| CNG2-G-325-100-20B | 100 | 1434 | 71 | ||||
| CNG2-G-325-110-20B | 110 | 1563 | 78 | ||||
| CNG2-G-325-120-20B | 120 | 1691 | 85 | ||||
| CNG2-G-356-55-20B | ø356 | 55 | 739 | 46 | 5.0 | 20 | 30CrMo |
| CNG2-G-356-60-20B | 60 | 790 | 49 | ||||
| CNG2-G-356-65-20B | 65 | 845 | 53 | ||||
| CNG2-G-356-70-20B | 70 | 920 | 56 | ||||
| CNG2-G-356-75-20B | 75 | 966 | 58 | ||||
| CNG2-G-356-77-20B | 77 | 990 | 60 | ||||
| CNG2-G-356-80-20B | 80 | 1015 | 61 | ||||
| CNG2-G-356-82-20B | 82 | 1040 | 63 | ||||
| CNG2-G-356-85-20B | 85 | 1065 | 65 | ||||
| CNG2-G-356-90-20B | 90 | 1118 | 68 | ||||
| CNG2-G-356-95-20B | 95 | 1177 | 70 | ||||
| CNG2-G-356-100-20B | 100 | 1230 | 73 | ||||
| CNG2-G-356-110-20B | 110 | 1340 | 81 | ||||
| CNG2-G-356-120-20B | 120 | 1450 | 85 | ||||
| CNG2-G-356-130-20B | 130 | 1560 | 93 | ||||
| CNG2-G-356-140-20B | 140 | 1670 | 99 | ||||
| CNG2-G-356-150-20B | 150 | 1756 | 103 | ||||
| CNG2-G-406-80-20B | ø406 | 80 | 837 | 68 | 5.7 | 20 | 30CrMo |
| CNG2-G-406-82-20B | 82 | 853 | 69 | ||||
| CNG2-G-406-85-20B | 85 | 878 | 71 | ||||
| CNG2-G-406-90-20B | 90 | 919 | 74 | ||||
| CNG2-G-406-95-20B | 95 | 959 | 77 | ||||
| CNG2-G-406-100-20B | 100 | 1000 | 80 | ||||
| CNG2-G-406-103-20B | 103 | 1025 | 82 | ||||
| CNG2-G-406-105-20B | 105 | 1041 | 83 | ||||
| CNG2-G-406-110-20B | 110 | 1082 | 86 | ||||
| CNG2-G-406-120-20B | 120 | 1164 | 92 | ||||
| CNG2-G-406-130-20B | 130 | 1246 | 98 | ||||
| CNG2-G-406-140-20B | 140 | 1327 | 105 | ||||
| CNG2-G-406-150-20B | 150 | 1409 | 111 | ||||
| CNG2-G-406-160-20B | 160 | 1491 | 117 | ||||
| CNG2-G-406-170-20B | 170 | 1573 | 123 | ||||
| CNG2-G-406-180-20B | 180 | 1655 | 129 | ||||
| CNG2-G-406-190-20B | 190 | 1736 | 136 | ||||
| CNG2-G-406-200-20B | 200 | 1818 | 142 | ||||
| CNG2-G-406-210-20B | 210 | 1900 | 148 |
Q1: How to ensure your cylinders quality?
A: we have been in this field for more than 20 years. Our products have been sold almost all over the world. We allow 3rd party
inspections before shipment ( on buyer's account) And we can supply certificate of quality accordingly.
Plus we have six machinery equipments to test material and cylinder:
1. spectrum analyzer to detect chemical analysis;
2. mechanical function to make tension test and bending test;
3. X-ray silent detection to inspect circumferential weld;
4. Hydraulic bursting test;
5. Hydraulic testing;
6. Air tightness test.
Q2: About the brand name of the products?
A: In general, We use our own brand, if you have requested, Both OEM and ODM are also available.
Q3:Can you provide a sample?
In our acceptable range, we can offer one free sample for you if you pay for the freight. We will return the freight if you make
an order in future.
Q4: How about your delivery time?
In general, it will take 35-60 days after receiving deposit. The specific delivery time depends on the items and quantity of your
order.
Q5: What is your MOQ?
Small quantity negotiable, one or more containers would be appreciated.
