Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

Quantity:



Inquire Add to Basket

Model NO.:
WLT
Storage Medium:
Highly Toxic
Pressure Level:
High Pressure (10.0MPa≤p<100.0MPa)
Condition:
New
Product Name:
CNG Wrapped Cylinder
Volume:
65L
Working Pressure:
20MPa
Wall Thickness:
4.6mm
Weight:
50kg
Length:
985mm
Diameter:
325mm
Certificate:
GB/T24160, ISO11439:2013, ECE R110
Transport Package:
Wooden Box
Specification:
60L-150L
Trademark:
HLT
Origin:
China Jiangsu
HS Code:
73110010
Production Capacity:
300000PCS/Year
Samples:
US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

Alta Calidad 55L 40L 28L TANQUES DE CILINDRO GNV~~

Product Description

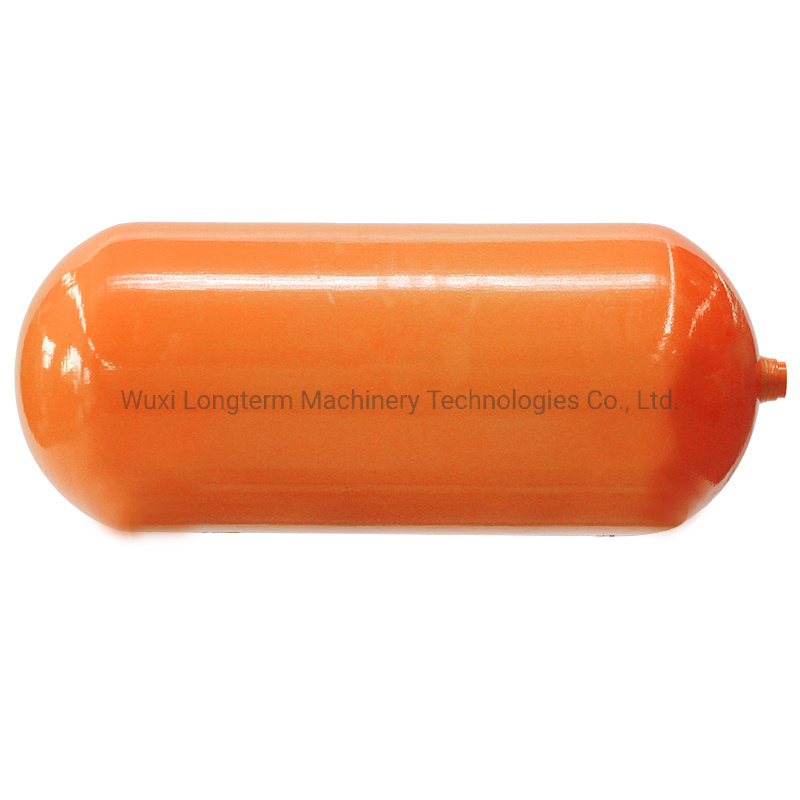

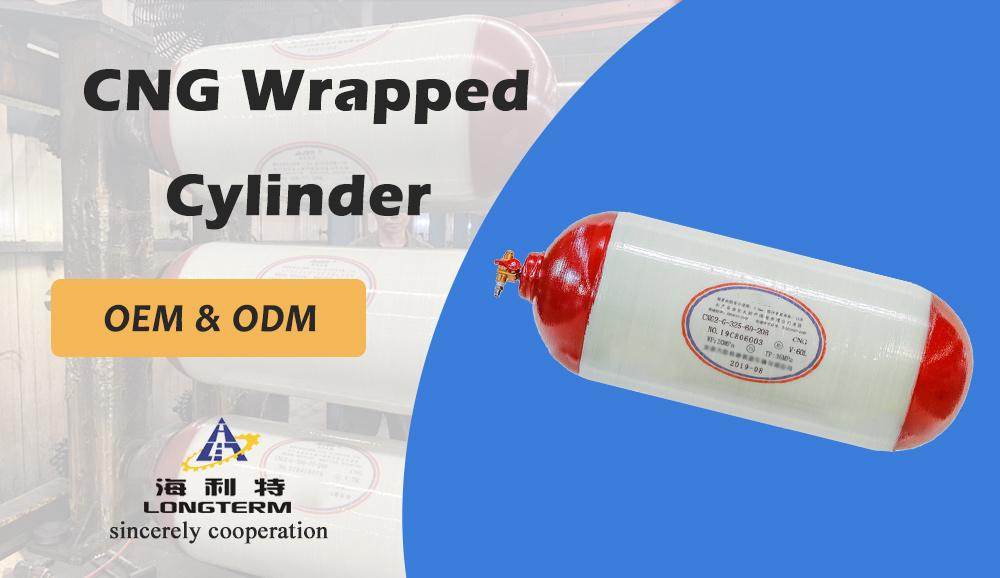

CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 20MPa.
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

Technical Parameter

Technical parameters of CNG vehicles hoop‐wrapped cylinders with steel liners
Standard:GB/T24160,ISO11439:2013,ECE R110
Product No.	Internal OD External OD (mm)	Volume (L)	Length (Without Valve) (mm)	Weight (Kg)	Wall thickness (mm)	Working Pressure (MPa)	Material
CNG2-G-325-45-20B	ø325(Internal) ø334(External)	45	735	36	4.6	20	30CrMo
CNG2-G-325-50-20B		50	792	40
CNG2-G-325-55-20B		55	857	42
CNG2-G-325-60-20B		60	921	46
CNG2-G-325-65-20B		65	985	50
CNG2-G-325-70-20B		70	1049	52
CNG2-G-325-75-20B		75	1113	55
CNG2-G-325-80-20B		80	1178	59
CNG2-G-325-85-20B		85	1243	61
CNG2-G-325-90-20B		90	1306	67
CNG2-G-325-100-20B		100	1434	71
CNG2-G-325-110-20B		110	1563	78
CNG2-G-325-120-20B		120	1691	85
CNG2-G-356-55-20B	ø356(Internal) ø365(External)	55	739	46	5.0	20	30CrMo
CNG2-G-356-60-20B		60	790	49
CNG2-G-356-65-20B		65	845	53
CNG2-G-356-70-20B		70	920	56
CNG2-G-356-75-20B		75	966	58
CNG2-G-356-77-20B		77	990	60
CNG2-G-356-80-20B		80	1015	61
CNG2-G-356-82-20B		82	1040	63
CNG2-G-356-85-20B		85	1065	65
CNG2-G-356-90-20B		90	1118	68
CNG2-G-356-95-20B		95	1177	70
CNG2-G-356-100-20B		100	1230	73
CNG2-G-356-110-20B		110	1340	81
CNG2-G-356-120-20B		120	1450	85
CNG2-G-356-130-20B		130	1560	93
CNG2-G-356-140-20B		140	1670	99
CNG2-G-356-150-20B		150	1756	103
CNG2-G-406-80-20B	ø406(Internal) ø420(External)	80	837	68	5.7	20	30CrMo
CNG2-G-406-82-20B		82	853	69
CNG2-G-406-85-20B		85	878	71
CNG2-G-406-90-20B		90	919	74
CNG2-G-406-95-20B		95	959	77
CNG2-G-406-100-20B		100	1000	80
CNG2-G-406-103-20B		103	1025	82
CNG2-G-406-105-20B		105	1041	83
CNG2-G-406-110-20B		110	1082	86
CNG2-G-406-120-20B		120	1164	92
CNG2-G-406-130-20B		130	1246	98
CNG2-G-406-140-20B		140	1327	105
CNG2-G-406-150-20B		150	1409	111
CNG2-G-406-160-20B		160	1491	117
CNG2-G-406-170-20B		170	1573	123
CNG2-G-406-180-20B		180	1655	129
CNG2-G-406-190-20B		190	1736	136
CNG2-G-406-200-20B		200	1818	142
CNG2-G-406-210-20B		210	1900	148

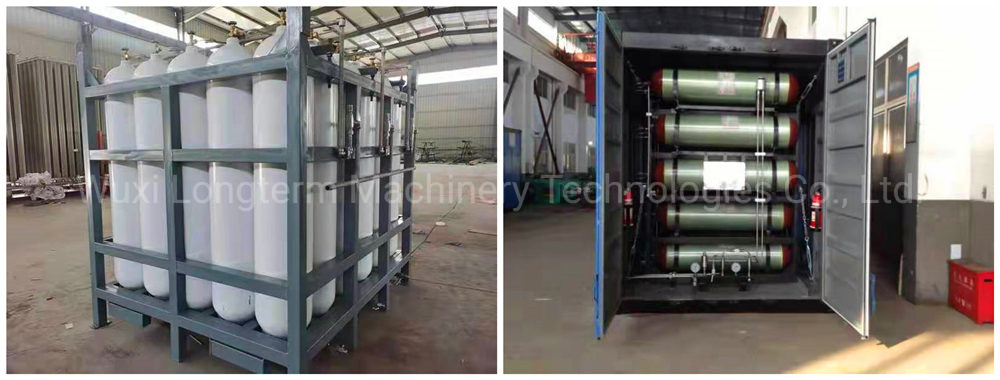

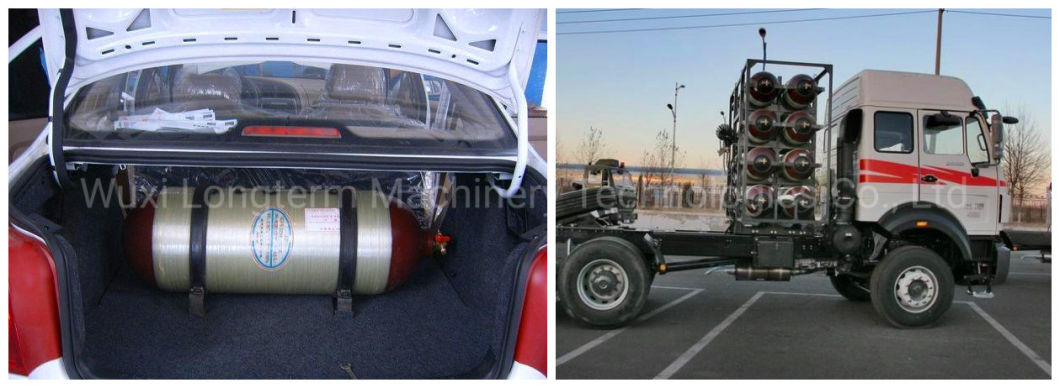

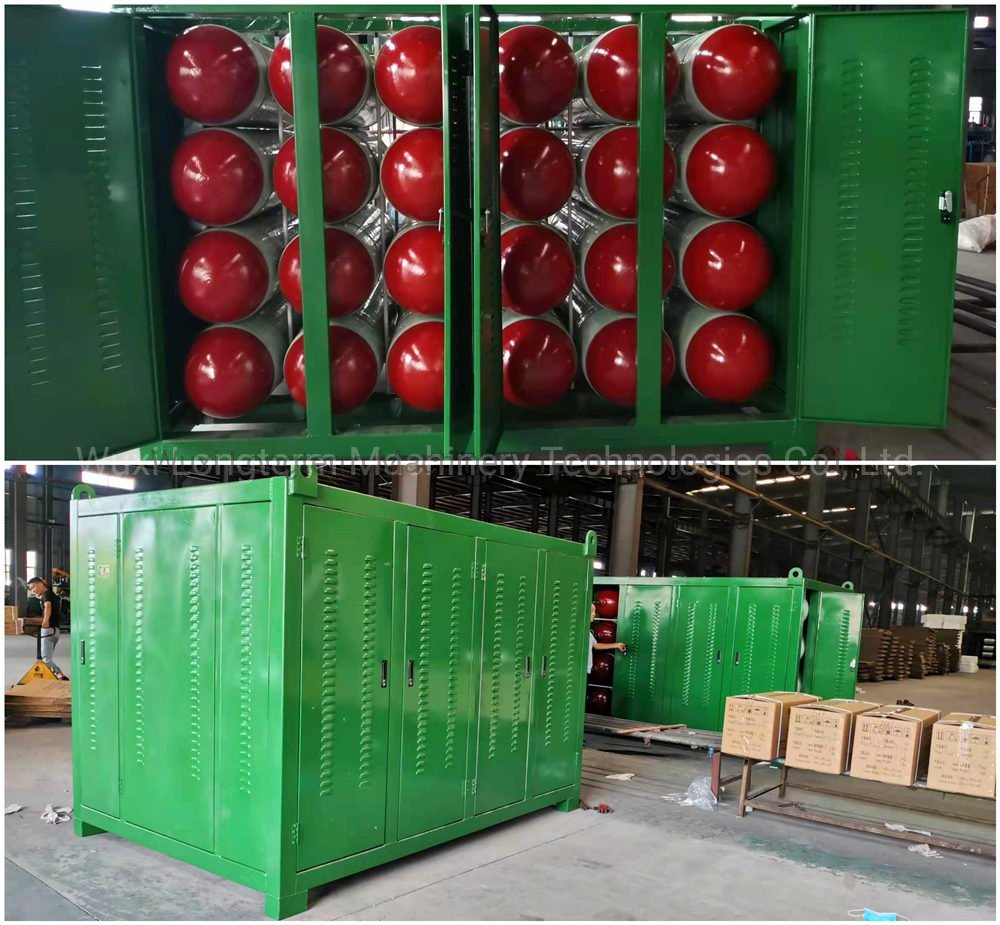

Application
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

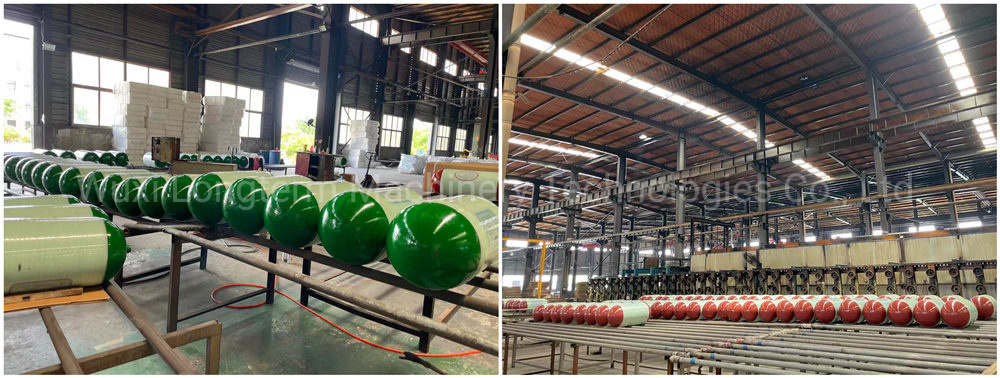

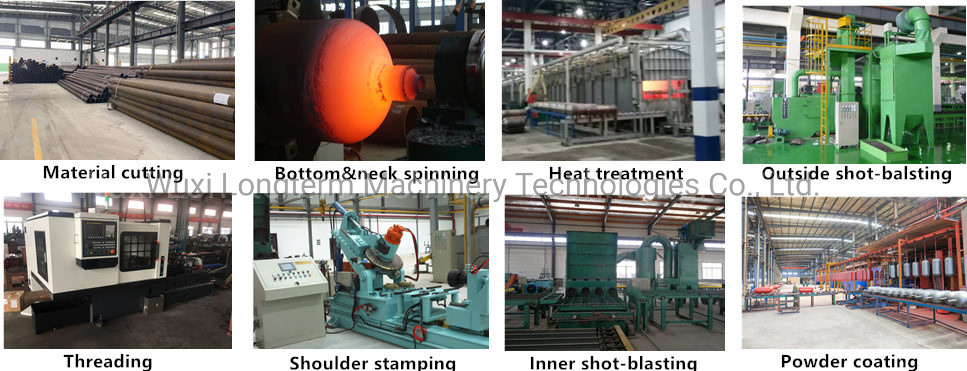

Production Flow
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

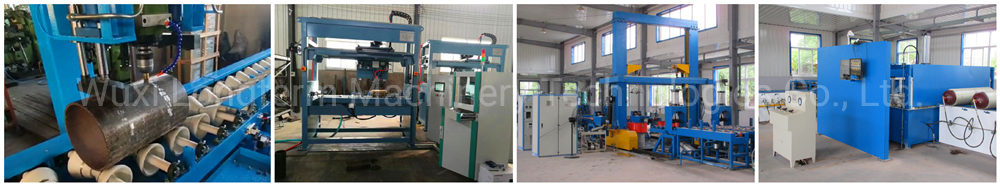

Quality Control
Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Air leakage Test are also 100% guaranteed.
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

hardness test Ultrasonic test Hydrolic test Air leakage test

Certification
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

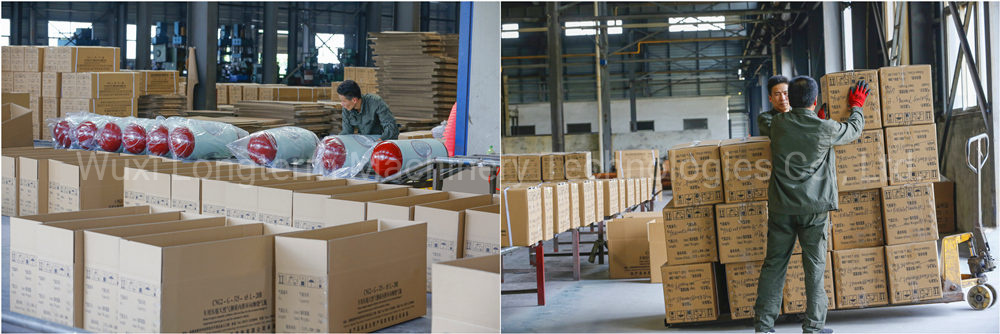

Package & Delivery
We can provide a series of package and logistics solutions according to the customer's requirements, to ensure our goods reach our customers on time and safely
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

Related Product
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

Company Info
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
Alta Calidad 55L 40L 28L Tanques De Cilindro Gnv~

FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 20 years.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
