CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)

Quantity:
  • LTMM406

  • Gas

  • 30CrMo4

  • 10.0MPa≤p<100.0MPa

  • Highly Toxic

  • High Pressure (10.0MPa≤p<100.0MPa)

  • New

  • CNG Wrapped Cylinder

  • 65L

  • 20MPa

  • 4.6mm

  • 50kg

  • 985mm

  • 325mm

  • GB/T24160, ISO11439:2013, ECE R110

  • Wooden Box

  • 60L-150L

  • HLT

  • China Jiangsu

  • 73110010

  • 300000PCS/Year

  • 700.00cm * 232.00cm * 232.00cm

  • 45.000kg

  • Available

  • One Year

  • Storage Pressure Vessel

Product Description

High Pressure CNG-1 Type I Seamless Steel Capacity CNG Gas Cylinder for Car/Truck/Taxi/Bus~
Product Description
CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 20MPa.
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)

Technical Parameter
Technical parameters of CNG vehicles hoop‐wrapped cylinders with steel liners
Standard:GB/T24160,ISO11439:2013,ECE R110
Product No. Internal OD
External OD
(mm)
Volume
(L)
Length
(Without Valve)
(mm)
Weight
(Kg)
Wall thickness
(mm)
Working Pressure
(MPa)
Material
CNG2-G-325-45-20B ø325(Internal) ø334(External) 45 735 36 4.6 20 30CrMo
CNG2-G-325-50-20B 50 792 40
CNG2-G-325-55-20B 55 857 42
CNG2-G-325-60-20B 60 921 46
CNG2-G-325-65-20B 65 985 50
CNG2-G-325-70-20B 70 1049 52
CNG2-G-325-75-20B 75 1113 55
CNG2-G-325-80-20B 80 1178 59
CNG2-G-325-85-20B 85 1243 61
CNG2-G-325-90-20B 90 1306 67
CNG2-G-325-100-20B 100 1434 71
CNG2-G-325-110-20B 110 1563 78
CNG2-G-325-120-20B 120 1691 85
CNG2-G-356-55-20B ø356(Internal) ø365(External) 55 739 46 5.0 20 30CrMo
CNG2-G-356-60-20B 60 790 49
CNG2-G-356-65-20B 65 845 53
CNG2-G-356-70-20B 70 920 56
CNG2-G-356-75-20B 75 966 58
CNG2-G-356-77-20B 77 990 60
CNG2-G-356-80-20B 80 1015 61
CNG2-G-356-82-20B 82 1040 63
CNG2-G-356-85-20B 85 1065 65
CNG2-G-356-90-20B 90 1118 68
CNG2-G-356-95-20B 95 1177 70
CNG2-G-356-100-20B 100 1230 73
CNG2-G-356-110-20B 110 1340 81
CNG2-G-356-120-20B 120 1450 85
CNG2-G-356-130-20B 130 1560 93
CNG2-G-356-140-20B 140 1670 99
CNG2-G-356-150-20B 150 1756 103
CNG2-G-406-80-20B ø406(Internal) ø420(External) 80 837 68 5.7 20 30CrMo
CNG2-G-406-82-20B 82 853 69
CNG2-G-406-85-20B 85 878 71
CNG2-G-406-90-20B 90 919 74
CNG2-G-406-95-20B 95 959 77
CNG2-G-406-100-20B 100 1000 80
CNG2-G-406-103-20B 103 1025 82
CNG2-G-406-105-20B 105 1041 83
CNG2-G-406-110-20B 110 1082 86
CNG2-G-406-120-20B 120 1164 92
CNG2-G-406-130-20B 130 1246 98
CNG2-G-406-140-20B 140 1327 105
CNG2-G-406-150-20B 150 1409 111
CNG2-G-406-160-20B 160 1491 117
CNG2-G-406-170-20B 170 1573 123
CNG2-G-406-180-20B 180 1655 129
CNG2-G-406-190-20B 190 1736 136
CNG2-G-406-200-20B 200 1818 142
CNG2-G-406-210-20B 210 1900 148

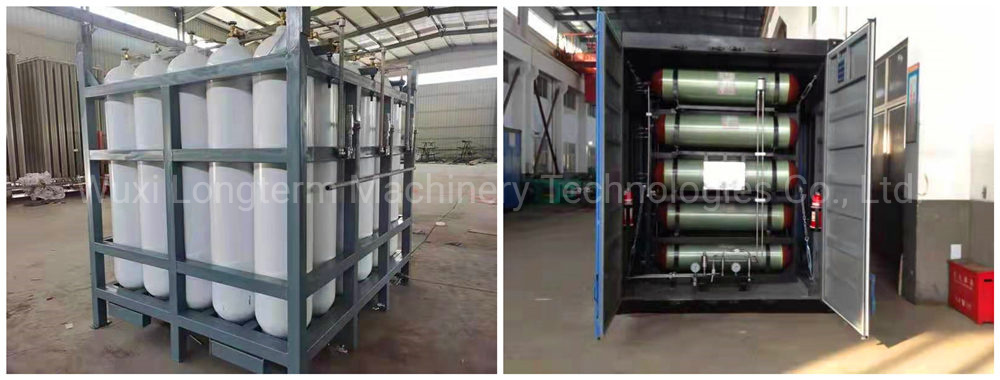

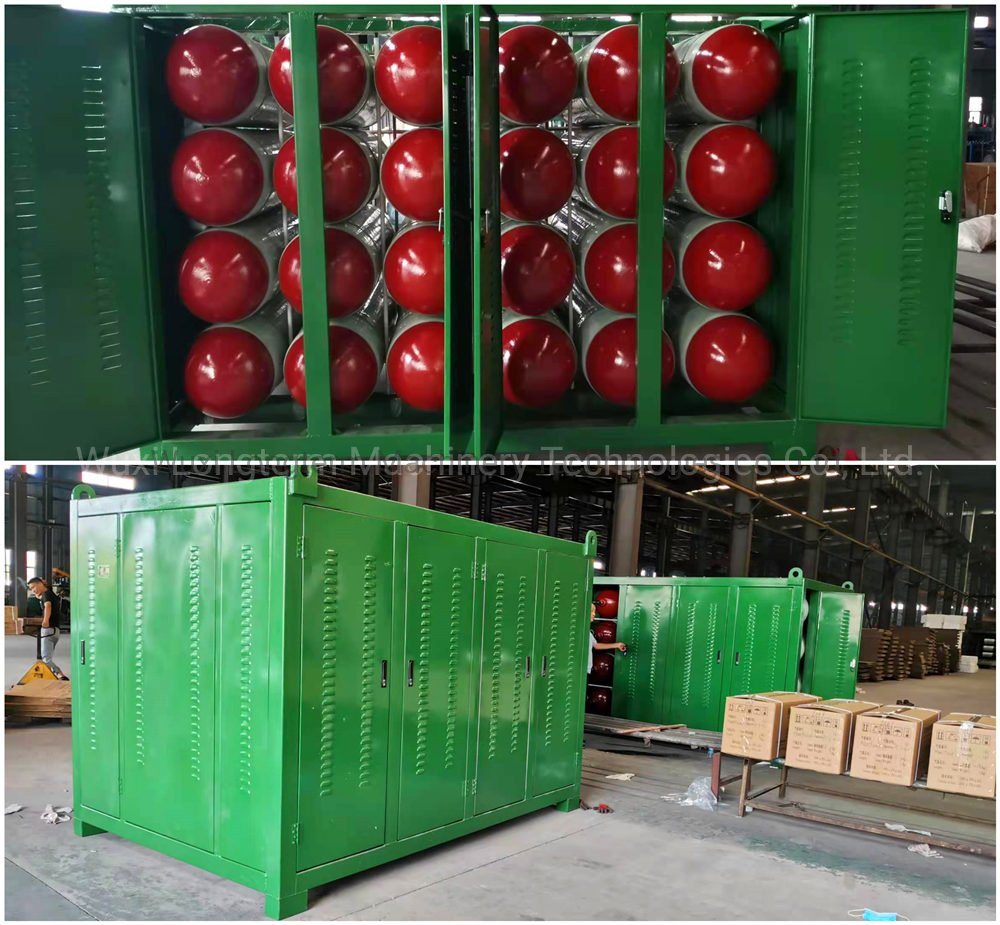

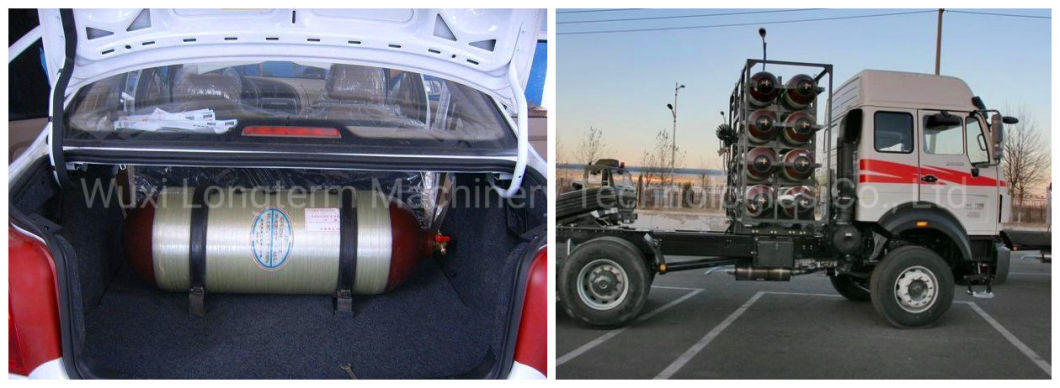

Application
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)

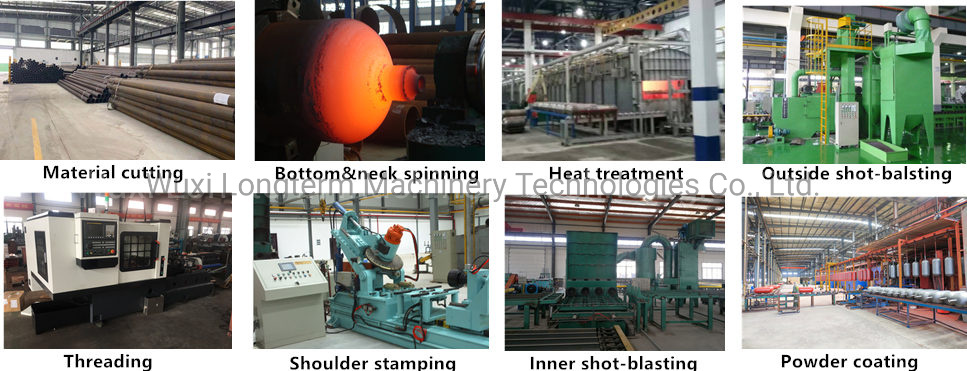

Production Flow
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)

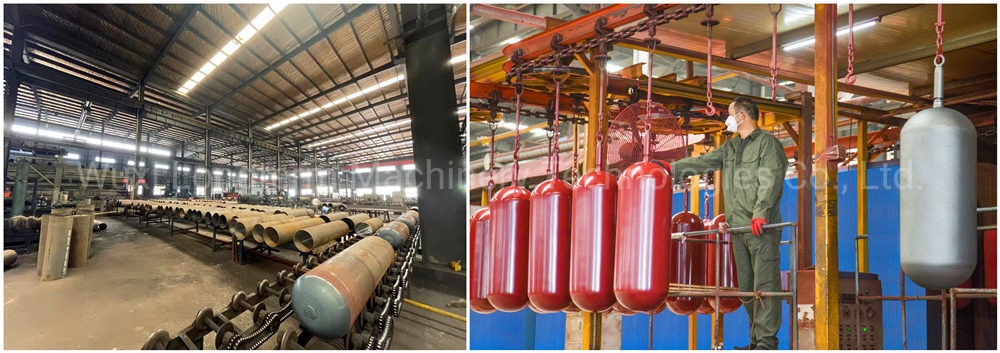

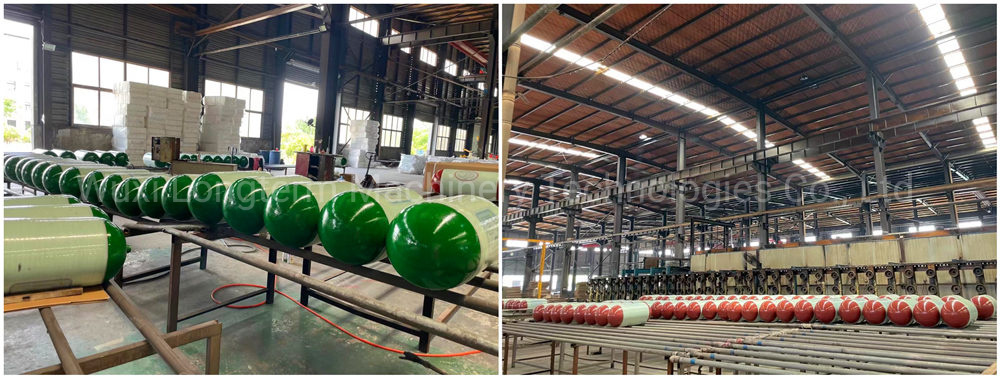

Quality Control
Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Air leakage Test are also 100% guaranteed.
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)
hardness test Ultrasonic test Hydrolic test Air leakage test

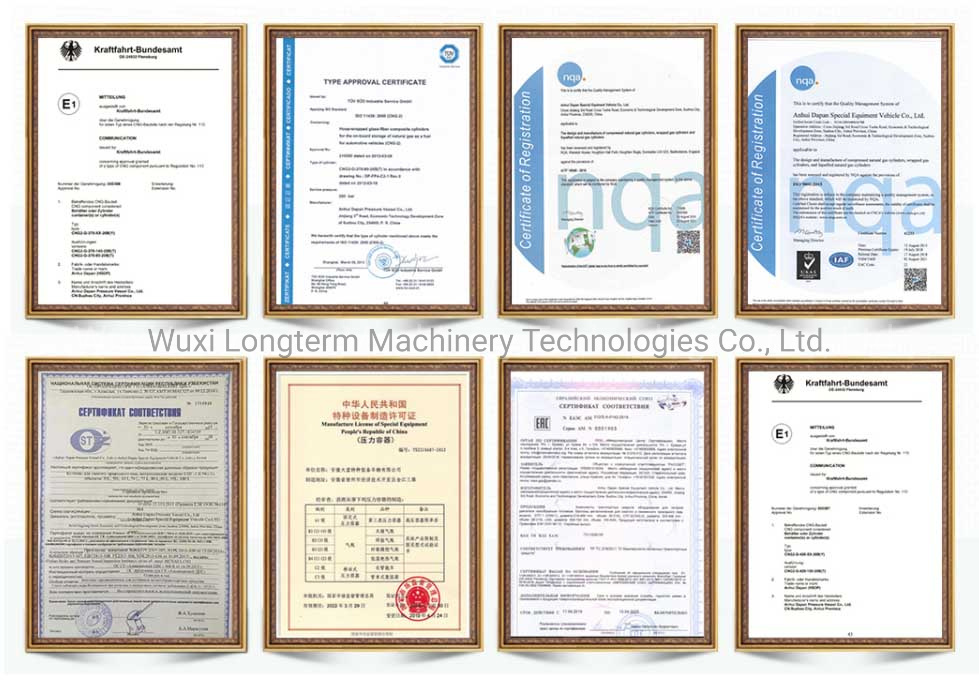

Certification
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)

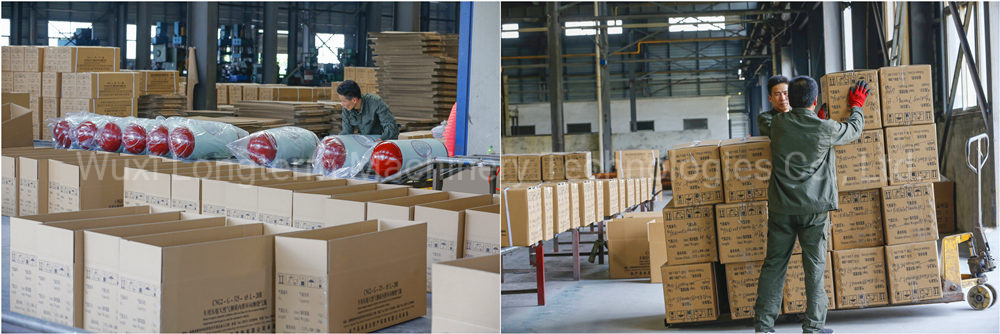

Package & Delivery
We can provide a series of package and logistics solutions according to the customer's requirements, to ensure our goods reach our customers on time and safely
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)
Related Product
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG) CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)
Company Info
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)CNG Type 1 CNG Type 2 CNG Type 3 Cylinders for Compressed Natural Gas (CNG)

FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 20 years.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
