Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~

Quantity:
  • WLT
  • Highly Toxic
  • High Pressure (10.0MPa≤p<100.0MPa)
  • New
  • CNG Wrapped Cylinder
  • 65L
  • 20MPa
  • 4.6mm
  • 50kg
  • 985mm
  • 325mm
  • GB/T24160, ISO11439:2013, ECE R110
  • Wooden Box
  • 60L-150L
  • HLT
  • China Jiangsu
  • 73110010
  • 300000PCS/Year
  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

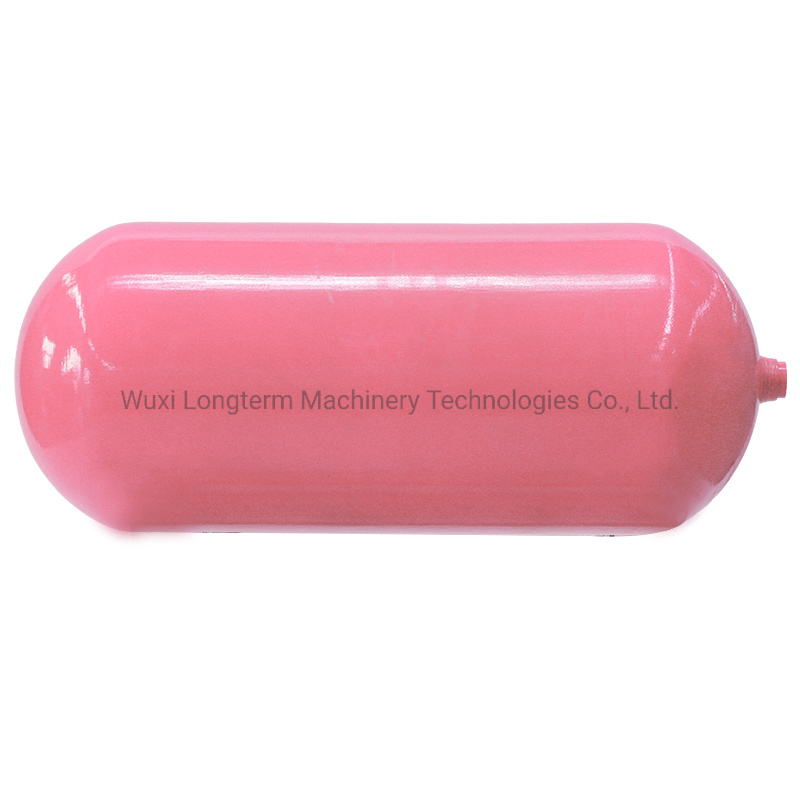

Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~
Product Description
CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 20MPa.
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~

Technical Parameter
Technical parameters of CNG vehicles hoop‐wrapped cylinders with steel liners
Standard:GB/T24160,ISO11439:2013,ECE R110
Product No. Internal OD
External OD
(mm)
Volume
(L)
Length
(Without Valve)
(mm)
Weight
(Kg)
Wall thickness
(mm)
Working Pressure
(MPa)
Material
CNG2-G-325-45-20B ø325(Internal) ø334(External) 45 735 36 4.6 20 30CrMo
CNG2-G-325-50-20B 50 792 40
CNG2-G-325-55-20B 55 857 42
CNG2-G-325-60-20B 60 921 46
CNG2-G-325-65-20B 65 985 50
CNG2-G-325-70-20B 70 1049 52
CNG2-G-325-75-20B 75 1113 55
CNG2-G-325-80-20B 80 1178 59
CNG2-G-325-85-20B 85 1243 61
CNG2-G-325-90-20B 90 1306 67
CNG2-G-325-100-20B 100 1434 71
CNG2-G-325-110-20B 110 1563 78
CNG2-G-325-120-20B 120 1691 85
CNG2-G-356-55-20B ø356(Internal) ø365(External) 55 739 46 5.0 20 30CrMo
CNG2-G-356-60-20B 60 790 49
CNG2-G-356-65-20B 65 845 53
CNG2-G-356-70-20B 70 920 56
CNG2-G-356-75-20B 75 966 58
CNG2-G-356-77-20B 77 990 60
CNG2-G-356-80-20B 80 1015 61
CNG2-G-356-82-20B 82 1040 63
CNG2-G-356-85-20B 85 1065 65
CNG2-G-356-90-20B 90 1118 68
CNG2-G-356-95-20B 95 1177 70
CNG2-G-356-100-20B 100 1230 73
CNG2-G-356-110-20B 110 1340 81
CNG2-G-356-120-20B 120 1450 85
CNG2-G-356-130-20B 130 1560 93
CNG2-G-356-140-20B 140 1670 99
CNG2-G-356-150-20B 150 1756 103
CNG2-G-406-80-20B ø406(Internal) ø420(External) 80 837 68 5.7 20 30CrMo
CNG2-G-406-82-20B 82 853 69
CNG2-G-406-85-20B 85 878 71
CNG2-G-406-90-20B 90 919 74
CNG2-G-406-95-20B 95 959 77
CNG2-G-406-100-20B 100 1000 80
CNG2-G-406-103-20B 103 1025 82
CNG2-G-406-105-20B 105 1041 83
CNG2-G-406-110-20B 110 1082 86
CNG2-G-406-120-20B 120 1164 92
CNG2-G-406-130-20B 130 1246 98
CNG2-G-406-140-20B 140 1327 105
CNG2-G-406-150-20B 150 1409 111
CNG2-G-406-160-20B 160 1491 117
CNG2-G-406-170-20B 170 1573 123
CNG2-G-406-180-20B 180 1655 129
CNG2-G-406-190-20B 190 1736 136
CNG2-G-406-200-20B 200 1818 142
CNG2-G-406-210-20B 210 1900 148

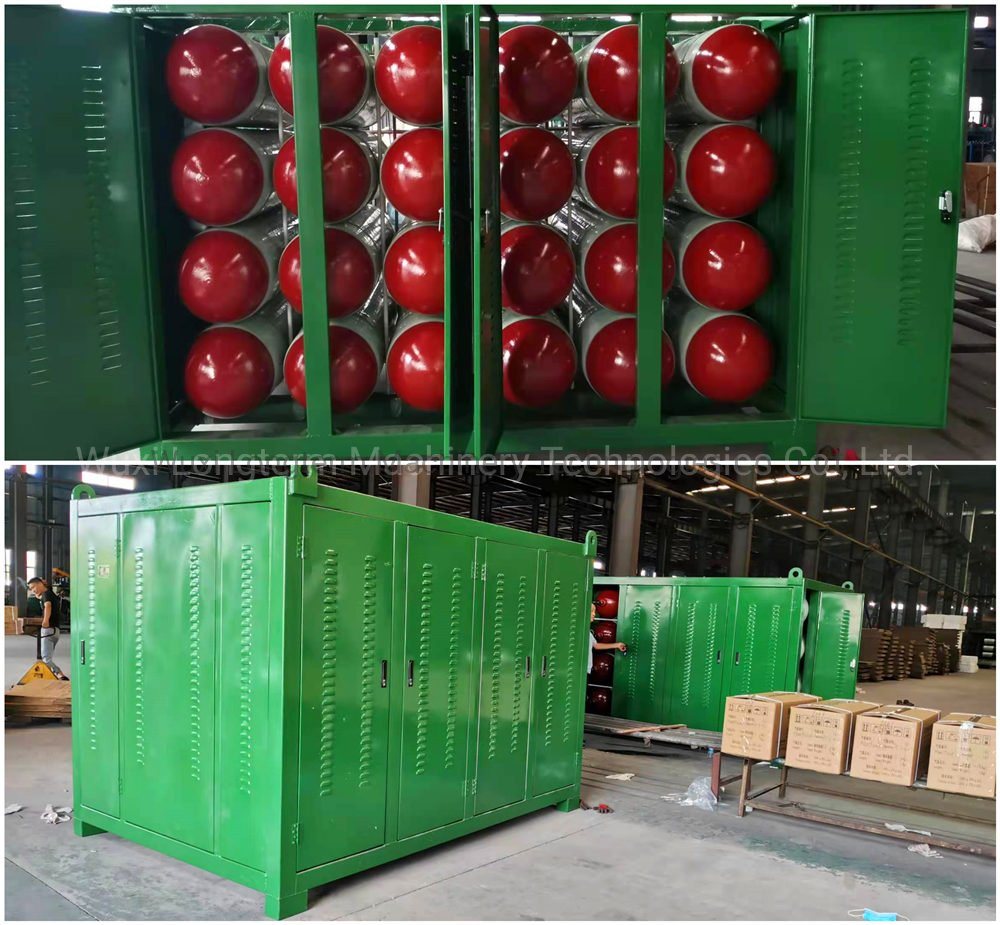

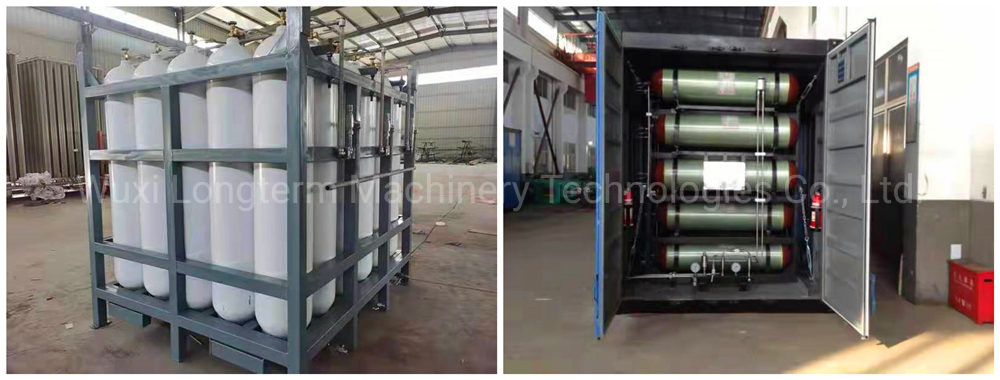

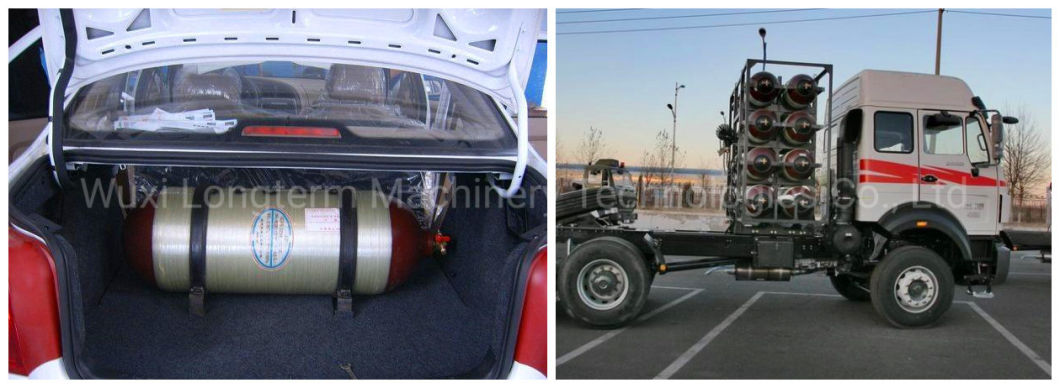

Application
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~

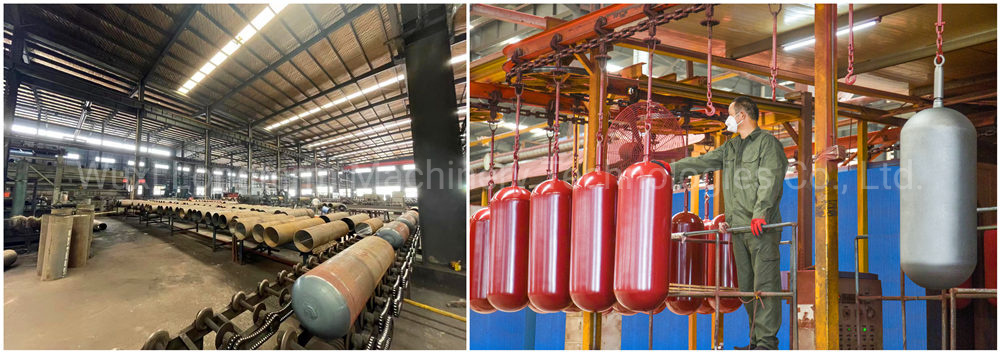

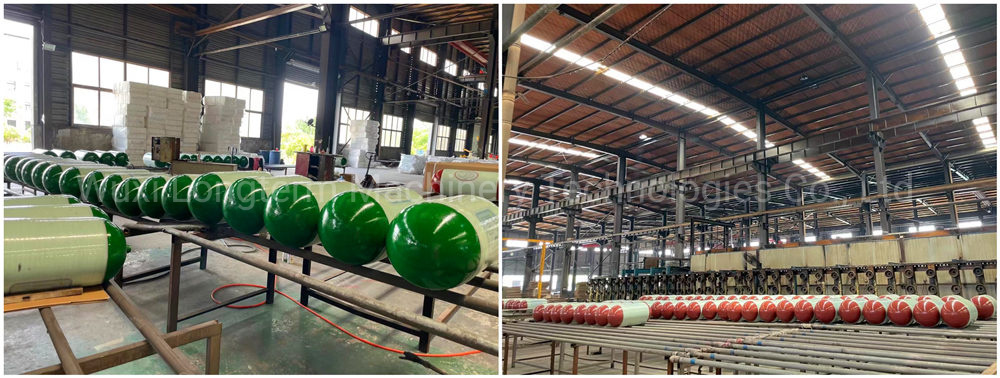

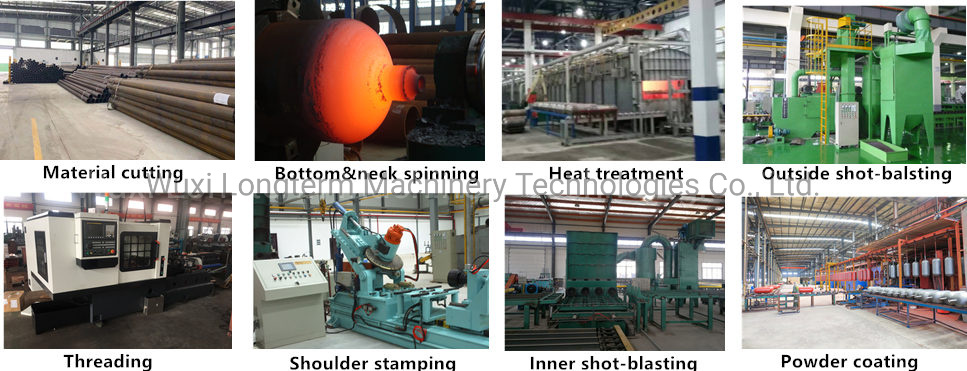

Production Flow
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~

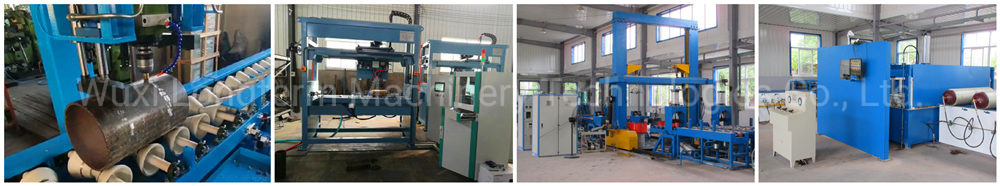

Quality Control
Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Air leakage Test are also 100% guaranteed.
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~
hardness test Ultrasonic test Hydrolic test Air leakage test

Certification
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~

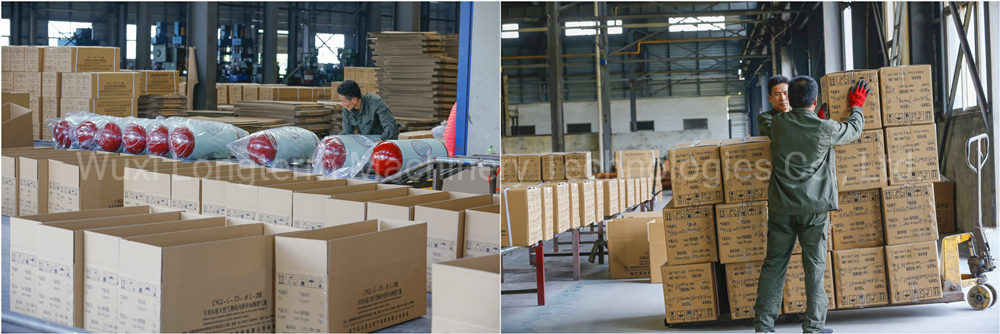

Package & Delivery
We can provide a series of package and logistics solutions according to the customer's requirements, to ensure our goods reach our customers on time and safely
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~
Related Product
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~ Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~
Company Info
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~Vehicle CNG Gas Cylinder 30liter for Cars, Steel CNG Cylinder High Pressure Seamless Steel Gas Cylinder CNG Cylinder for Vehicle~

FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 20 years.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
