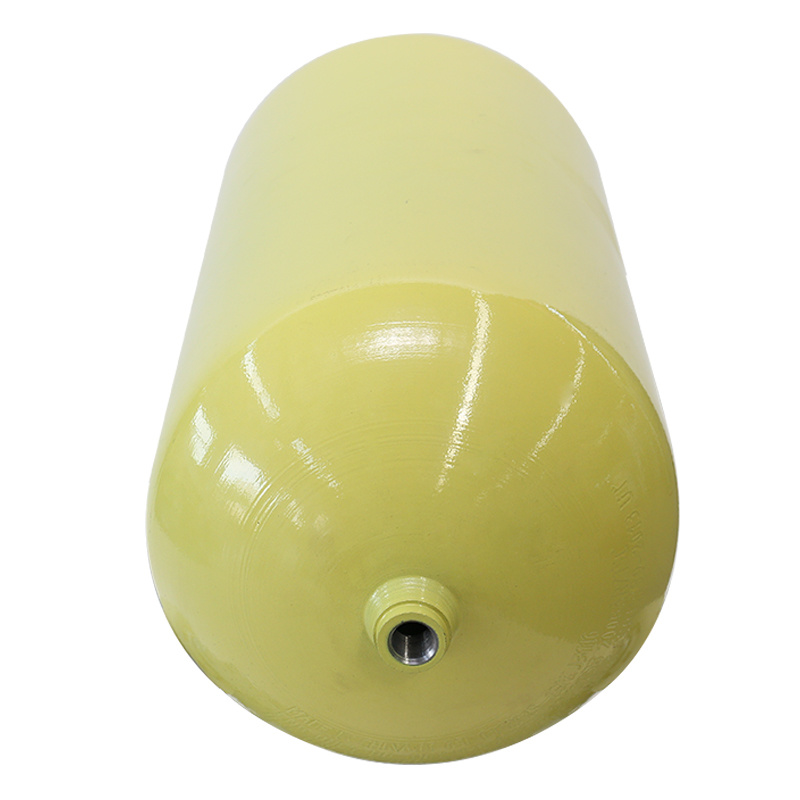

CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers

Quantity:
  • Highly Toxic

  • High Pressure (10.0MPa≤p<100.0MPa)

  • New

  • CNG Type1 Steel Gas Cylinder for Vehicles

  • 65L

  • 20MPa

  • 4.6mm

  • 50kg

  • 985mm

  • 325mm

  • GB/T24160, ISO11439:2013, ECE R110

  • Wooden Box

  • 60L-150L

  • HLT

  • China Jiangsu

  • 73110010

  • 300000PCS/Year

  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

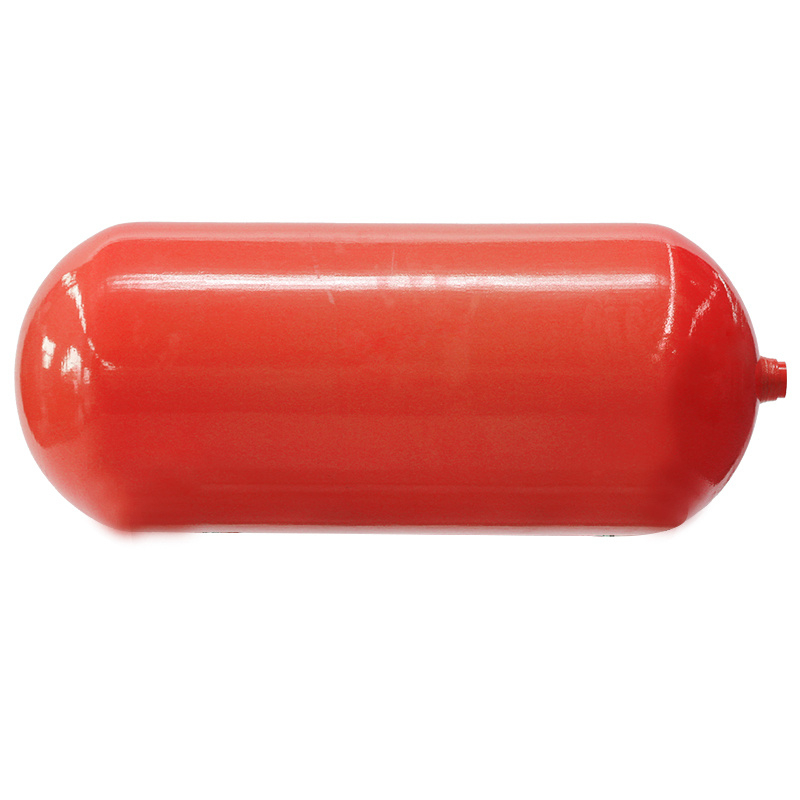

Compact Low Price type-1 CNG Cylinder for Car CNG Cylinder Manufacturers



Product Description
CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 20MPa.
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers

Technical Parameter
Product No. OD
(mm)
Volume
(L)
Design Wall thickness:7.2mm Design Wall thickness:7.4mm Design Wall thickness:8.4mm Working Pressure(MPa) Material
Length
(without valve)
(mm)
Weight
(Kg)
Length
(without valve)
(mm)
Weight
(Kg)
Length
(without valve)
(mm)
Weight
(Kg)
ECER110-200-57-356A
ISO11439-200-57-356A
57 782 61.2 785 63.3 797 72.4
ECER110-200-60-356A
ISO11439-200-60-356A
356 60 816 63.5 818 65.7 830 75.1 20 34CrMo4
ECER110-200-65-356A
ISO11439-200-65-356A
65 871 67.3 874 69.6 887 79.5
ECER110-200-75-356A
ISO11439-200-75-356A
75 982 74.8 986 77.3 1000 88.5
ECER110-200-77-356A
ISO11439-200-77-356A
77 1005 76.3 1008 78.9 1022 90.2
ECER110-200-80-356A
ISO11439-200-80-356A
80 1038 78.6 1041 81.2 1056 92.9
ECER110-200-90-356A
ISO11439-200-90-356A
90 1149 86.2 1153 89.0 1169 101.8
ECER110-200-100-356A
ISO11439-200-100-356A
100 1260 93.7 1264 96.8 1282 110.8
ECER110-200-110-356A
ISO11439-200-110-356A
110 1371 101.3 1376 104.6 1395 119.7
ECER110-200-113-356A
ISO11439-200-113-356A
113 1405 103.5 1409 106.9 1429 122.4
ECER110-200-120-356A
ISO11439-200-120-356A
120 1482 108.8 1487 112.4 1508 128.6
ECER110-200-130-356A
ISO11439-200-130-356A
130 1594 116.4 1598 120.1 1621 137.5
ECER110-200-140-356A
ISO11439-200-140-356A
140 1705 123.9 1710 127.9 1734 146.4
ECER110-200-150-356A
ISO11439-200-150-356A
150 1816 131.5 1821 135.7 1846 155.4

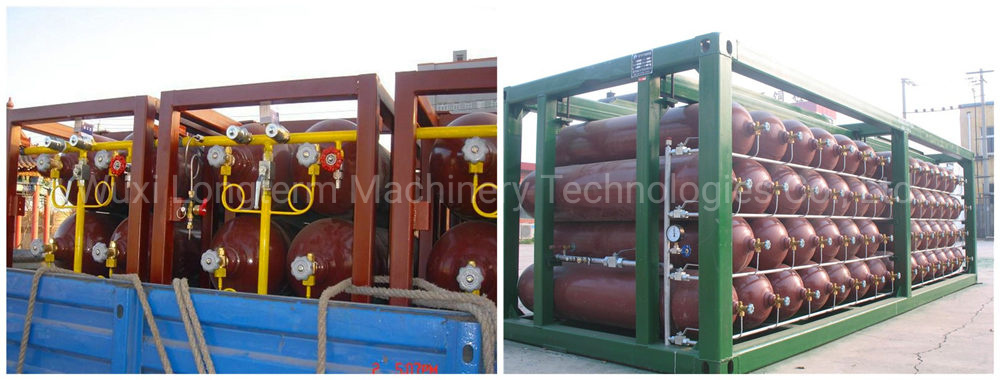

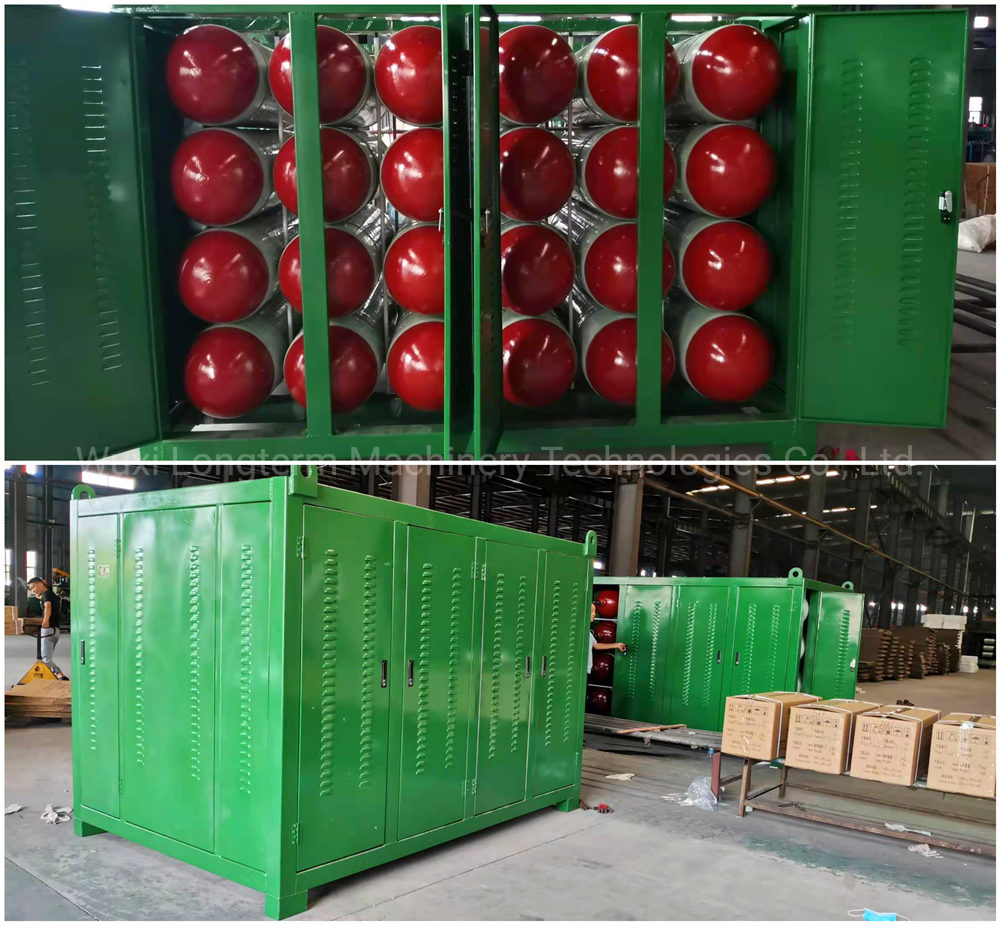

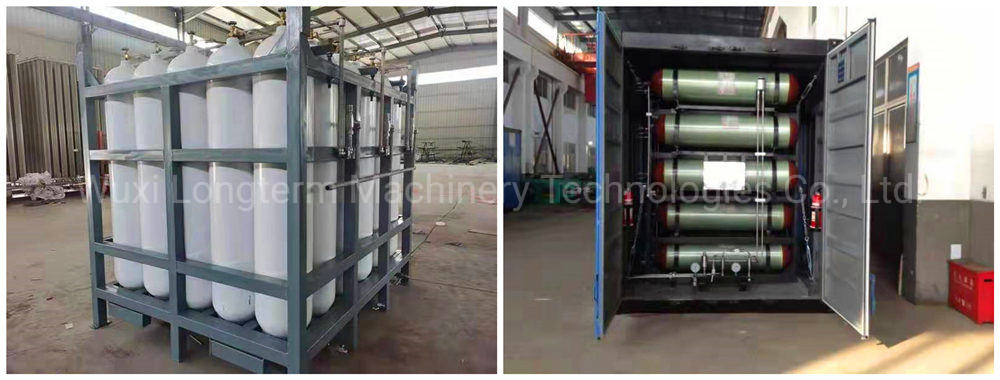

Application
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers

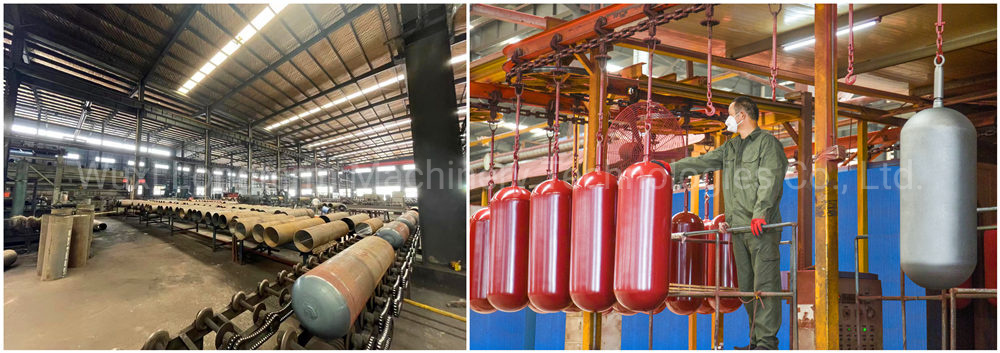

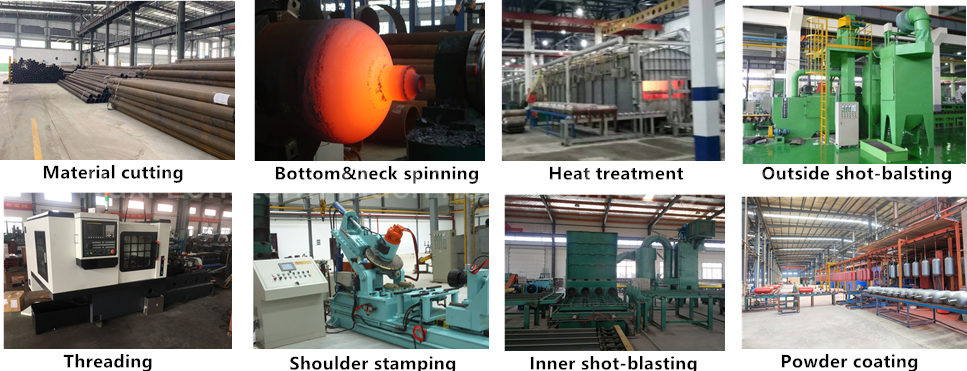

Production Flow
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers

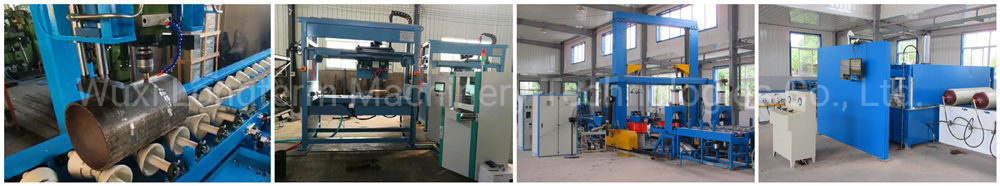

Quality Control
Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Air leakage Test are also 100% guaranteed.
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers
hardness test Ultrasonic test Hydrolic test Air leakage test

Certification
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers

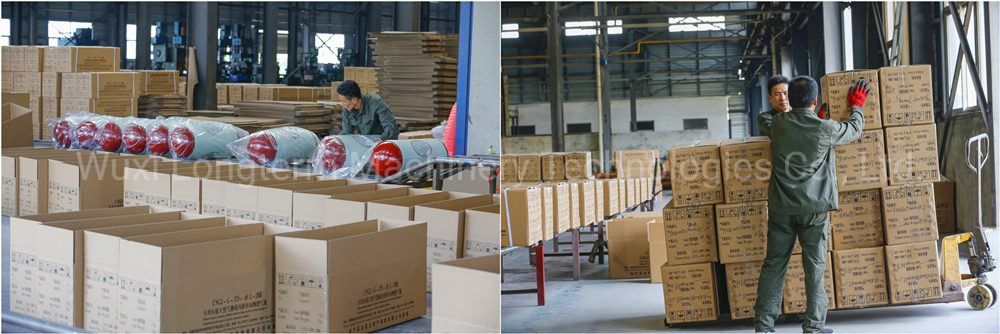

Package & Delivery
We can provide a series of package and logistics solutions according to the customer's requirements, to ensure our goods reach our customers on time and safely
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers
Related Product
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers
Company Info
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
CNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder ManufacturersCNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder ManufacturersCNG1compact Low Price Type-1 CNG Cylinder for Car CNG Cylinder Manufacturers

FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 20 years.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
