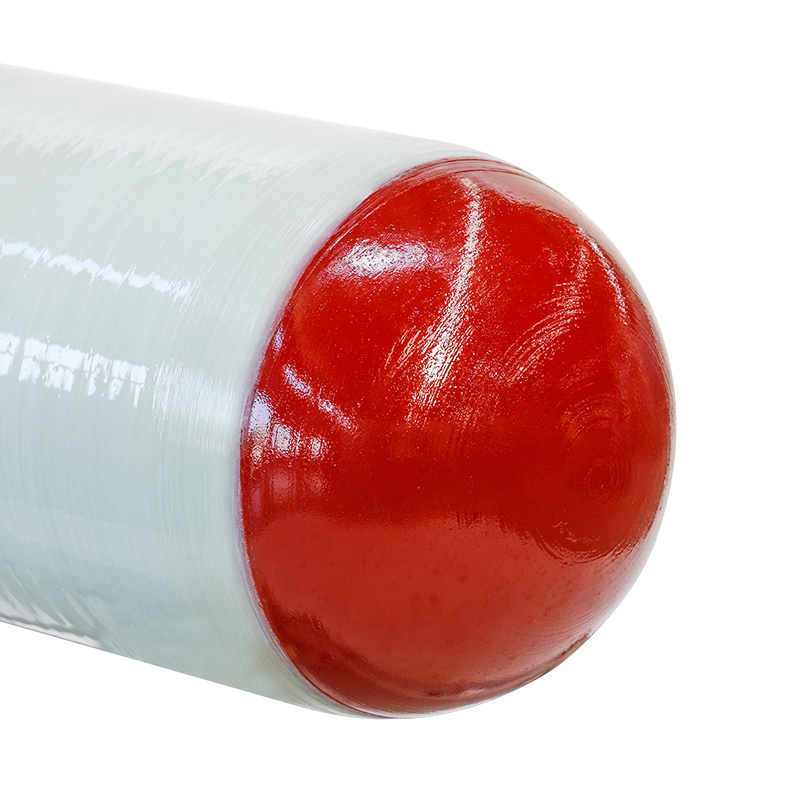

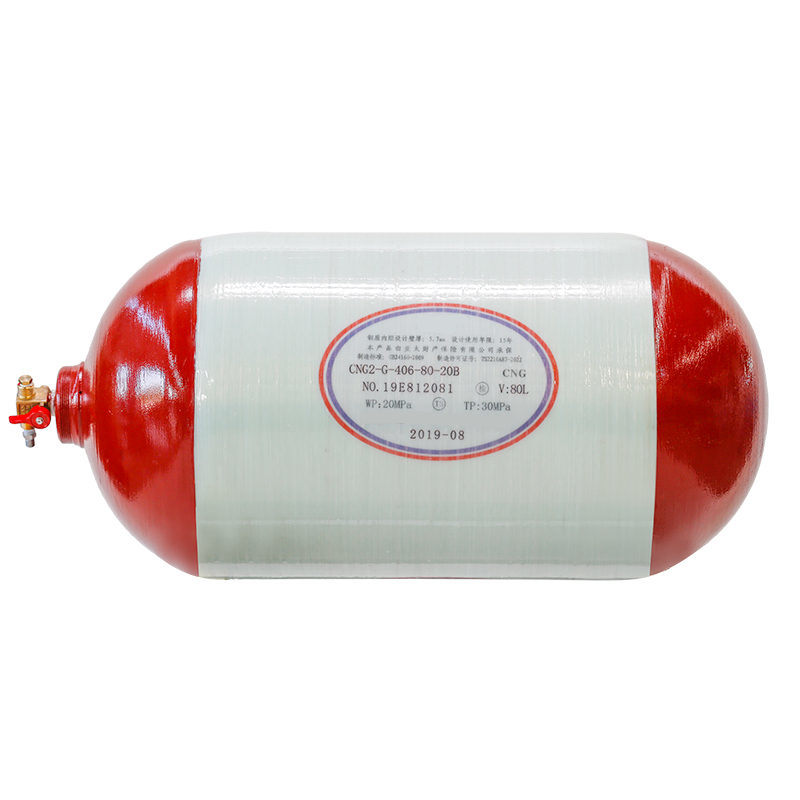

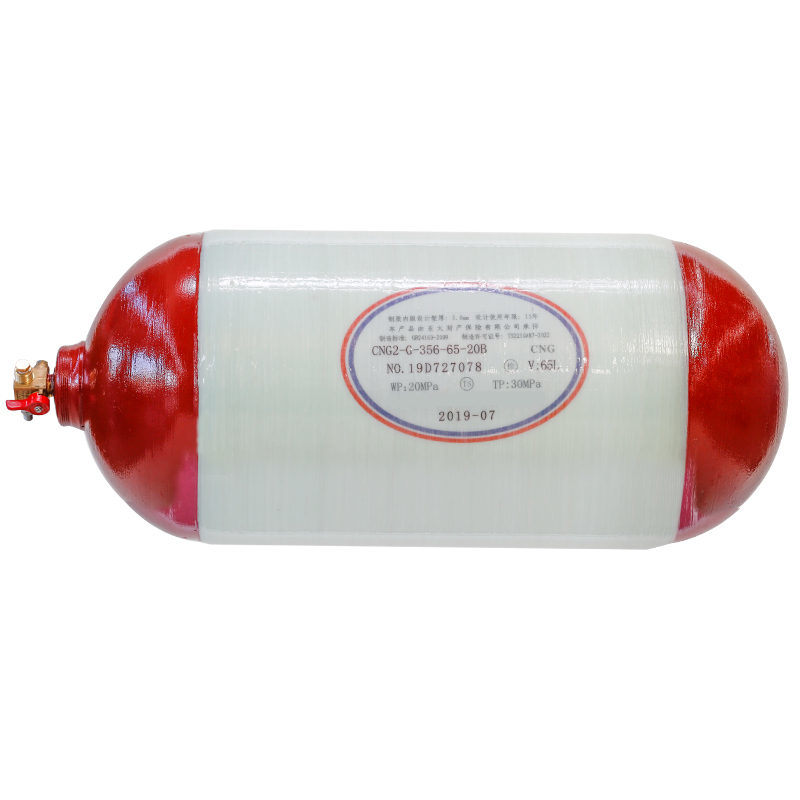

356mm CNG Tank Type-1 Gas Cylinder for Vehical

Quantity:
  • HS-07
  • Highly Toxic
  • High Pressure (10.0MPa≤p<100.0MPa)
  • New
  • CNG Wrapped Cylinder
  • 65L
  • 20MPa
  • 4.6mm
  • 50kg
  • 985mm
  • 325mm
  • GB/T24160, ISO11439:2013, ECE R110
  • Accept
  • T/T
  • Wooden Box
  • 60L-150L
  • HLT
  • China Jiangsu
  • 73110010
  • 300000PCS/Year
  • US$ 1/Piece 1 Piece(Min.Order) | Request Sample

Product Description

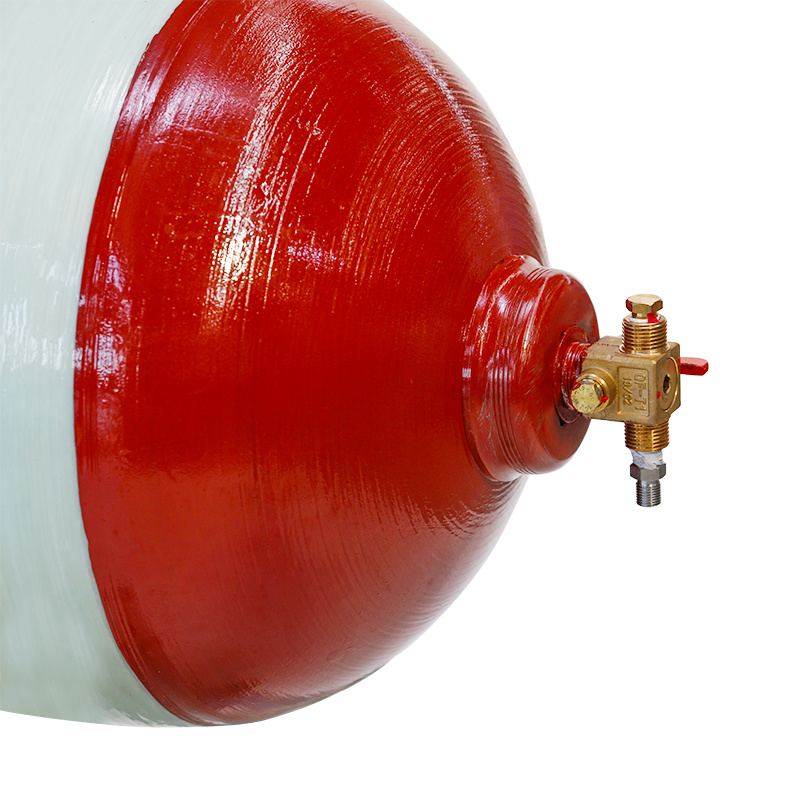

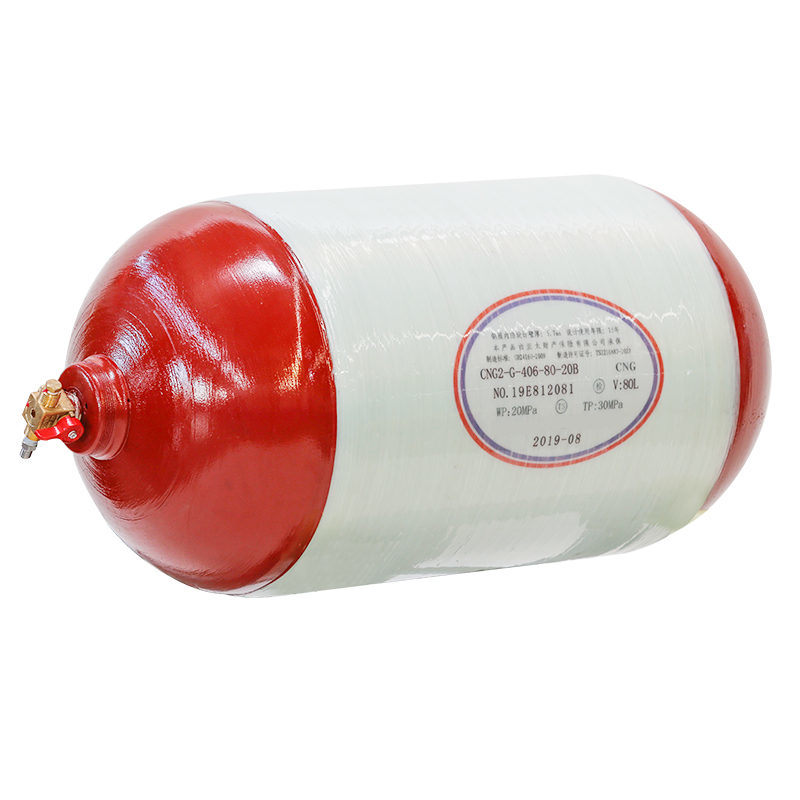

356mm CNG tank type-1 gas cylinder for vehical


Product Description
CNG cylinders are high-pressure containers used to store compressed natural gas. This high-pressure container containing flammable and explosive gas is a pressure container with explosive danger. The gas storage pressure of the vehicle cylinder is 20MPa.
356mm CNG Tank Type-1 Gas Cylinder for Vehical

Technical Parameter
Technical parameters of CNG vehicles hoop‐wrapped cylinders with steel liners
Standard:GB/T24160,ISO11439:2013,ECE R110
Product No. Internal OD
External OD
(mm)
Volume
(L)
Length
(Without Valve)
(mm)
Weight
(Kg)
Wall thickness
(mm)
Working Pressure
(MPa)
Material
CNG2-G-325-45-20B ø325(Internal) ø334(External) 45 735 36 4.6 20 30CrMo
CNG2-G-325-50-20B 50 792 40
CNG2-G-325-55-20B 55 857 42
CNG2-G-325-60-20B 60 921 46
CNG2-G-325-65-20B 65 985 50
CNG2-G-325-70-20B 70 1049 52
CNG2-G-325-75-20B 75 1113 55
CNG2-G-325-80-20B 80 1178 59
CNG2-G-325-85-20B 85 1243 61
CNG2-G-325-90-20B 90 1306 67
CNG2-G-325-100-20B 100 1434 71
CNG2-G-325-110-20B 110 1563 78
CNG2-G-325-120-20B 120 1691 85
CNG2-G-356-55-20B ø356(Internal) ø365(External) 55 739 46 5.0 20 30CrMo
CNG2-G-356-60-20B 60 790 49
CNG2-G-356-65-20B 65 845 53
CNG2-G-356-70-20B 70 920 56
CNG2-G-356-75-20B 75 966 58
CNG2-G-356-77-20B 77 990 60
CNG2-G-356-80-20B 80 1015 61
CNG2-G-356-82-20B 82 1040 63
CNG2-G-356-85-20B 85 1065 65
CNG2-G-356-90-20B 90 1118 68
CNG2-G-356-95-20B 95 1177 70
CNG2-G-356-100-20B 100 1230 73
CNG2-G-356-110-20B 110 1340 81
CNG2-G-356-120-20B 120 1450 85
CNG2-G-356-130-20B 130 1560 93
CNG2-G-356-140-20B 140 1670 99
CNG2-G-356-150-20B 150 1756 103
CNG2-G-406-80-20B ø406(Internal) ø420(External) 80 837 68 5.7 20 30CrMo
CNG2-G-406-82-20B 82 853 69
CNG2-G-406-85-20B 85 878 71
CNG2-G-406-90-20B 90 919 74
CNG2-G-406-95-20B 95 959 77
CNG2-G-406-100-20B 100 1000 80
CNG2-G-406-103-20B 103 1025 82
CNG2-G-406-105-20B 105 1041 83
CNG2-G-406-110-20B 110 1082 86
CNG2-G-406-120-20B 120 1164 92
CNG2-G-406-130-20B 130 1246 98
CNG2-G-406-140-20B 140 1327 105
CNG2-G-406-150-20B 150 1409 111
CNG2-G-406-160-20B 160 1491 117
CNG2-G-406-170-20B 170 1573 123
CNG2-G-406-180-20B 180 1655 129
CNG2-G-406-190-20B 190 1736 136
CNG2-G-406-200-20B 200 1818 142
CNG2-G-406-210-20B 210 1900 148

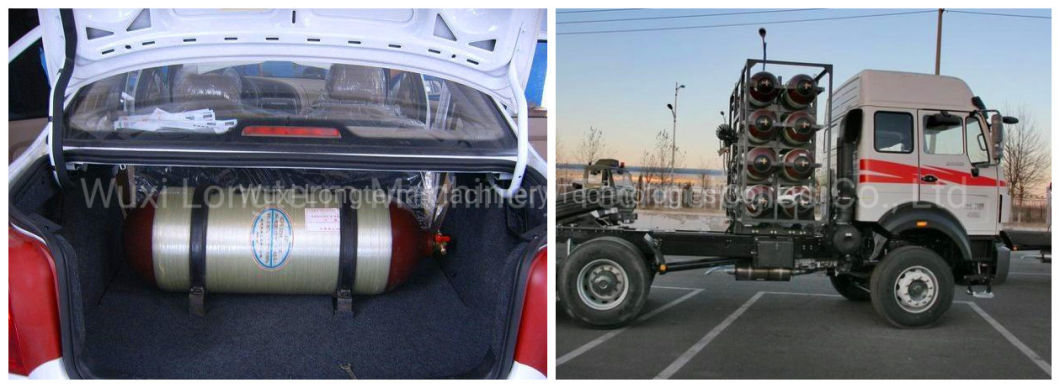

Application

356mm CNG Tank Type-1 Gas Cylinder for Vehical

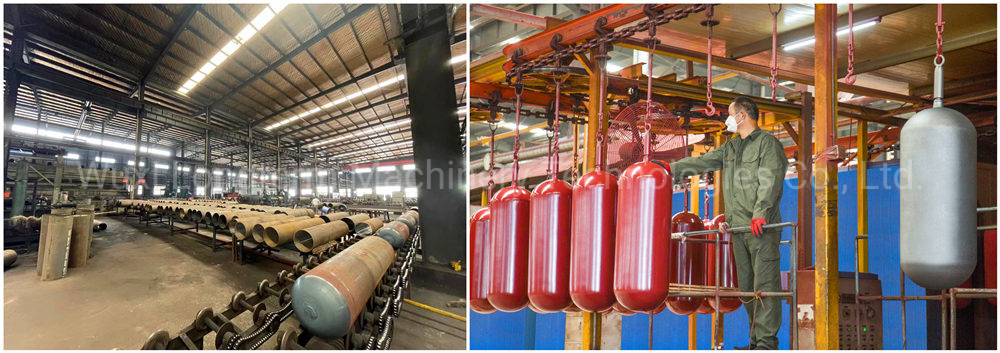

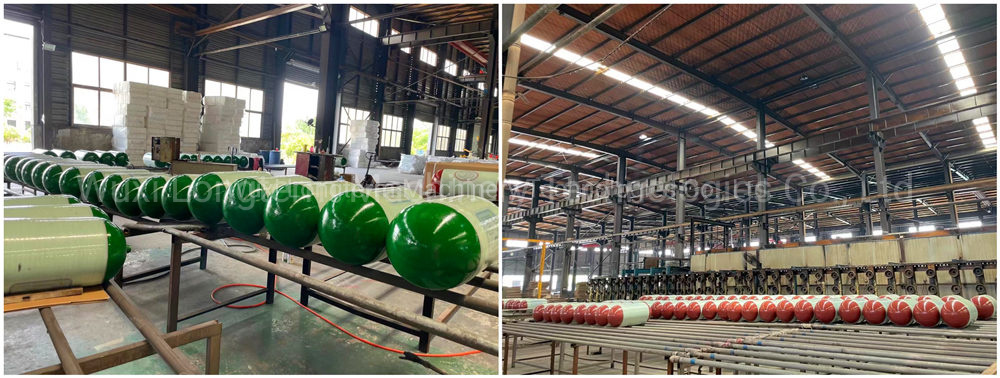

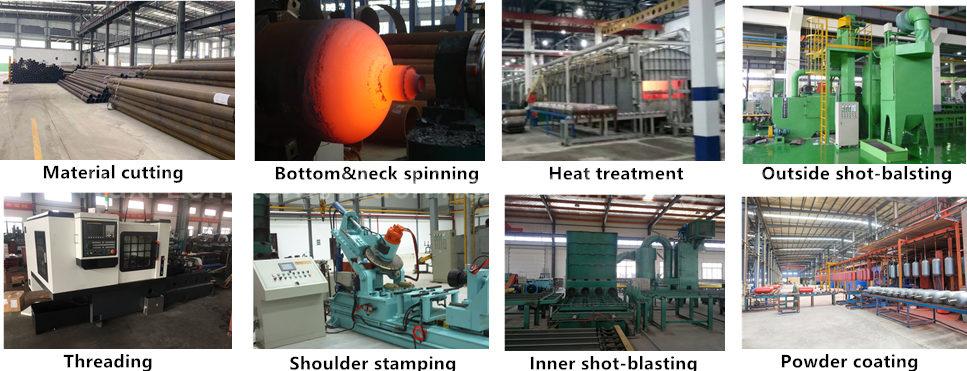

Production Flow

356mm CNG Tank Type-1 Gas Cylinder for Vehical

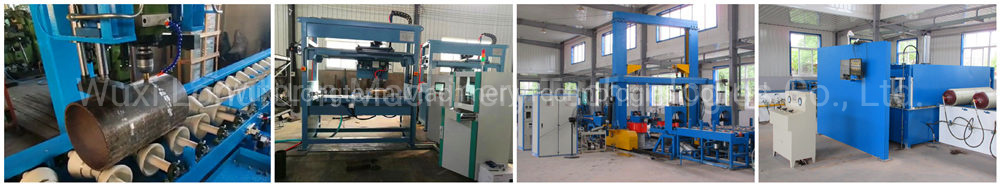

Quality Control

Every cylinder we produced shall be Magnetic Test and Ultrasonic Inspection for 100% NDE check. Hydraulic and Air leakage Test are also 100% guaranteed.
356mm CNG Tank Type-1 Gas Cylinder for Vehical
hardness test Ultrasonic test Hydrolic test Air leakage test

Certification
356mm CNG Tank Type-1 Gas Cylinder for Vehical

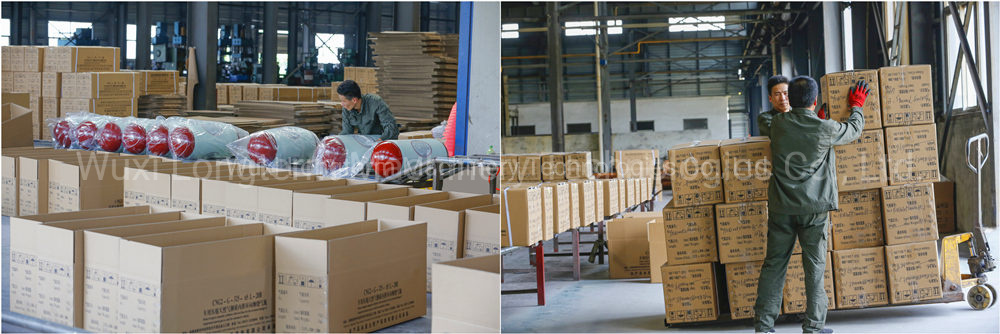

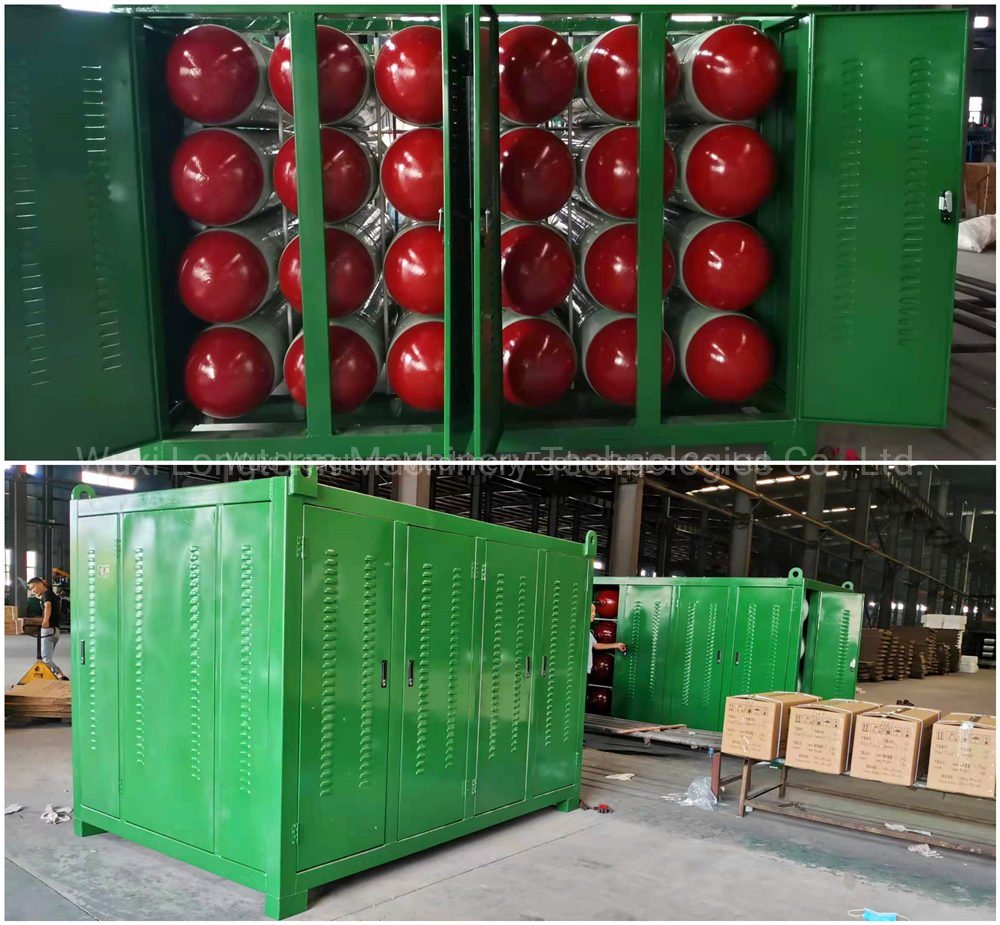

Package & Delivery

We can provide a series of package and logistics solutions according to the customer's requirements, to ensure our goods reach our customers on time and safely
356mm CNG Tank Type-1 Gas Cylinder for Vehical
Related Product
356mm CNG Tank Type-1 Gas Cylinder for Vehical 356mm CNG Tank Type-1 Gas Cylinder for Vehical
Company Info
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
356mm CNG Tank Type-1 Gas Cylinder for Vehical356mm CNG Tank Type-1 Gas Cylinder for Vehical356mm CNG Tank Type-1 Gas Cylinder for Vehical

FAQ
Q1: Are you manufacturer or trade company?
A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 20 years.
Q2: What is your daily production capacity?
A2: Our production capacity everyday is 800~1000 units.
Q3: What is your delivery time?
A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
Q4: What certificates do you have?
A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
Q5: Do you accept OEM production?
A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
Q6: Can you provide samples to us?
A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
Q7: Can you customize the products?
A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
