Wire Extrusion Machine/ Cable Machine PVC Wire and Cable Extrusion Machine Copper Wire Extruder~

Quantity:
  • WLT

  • 0-45degrees

  • Three-Phase 380 Plus or Minus 10%

  • Extruder Compound of PVC, PE, Lshf

  • 0.5~0.7mm

  • Nitrogen Treated

  • Available

  • Standard Seaworthy Package

  • HLT

  • China, Jiangsu

  • 84772090

  • 500/Year

  • Available | Customized Request

Product Description

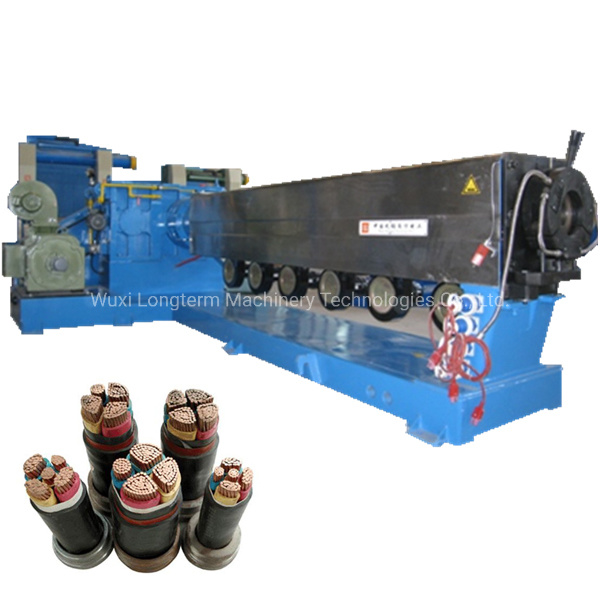

Wire Extrusion Machine/ Cable Machine Pvc Wire And Cable Extrusion Machine Copper Wire Extruder~



Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

Introduction

The unit is used for copper core insulation coating of middle and small section production,
mainly for the soft polyviny chloride(PVC), polyethylene and other thermoplastics
Main Equipments

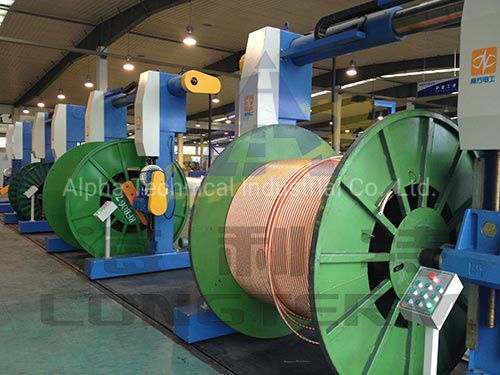

Take up machine
Model XLM2500/4500 XLM3200/5000
Cable OD(mm) φ30~φ80 φ40~φ200
Reel Diameter(mm) φ2500~4500 φ3200~5000
Reel Width(mm) 1900~2500 2300~2800
Max Speed(m/min) 40 30
Load capacity (ton) 60 80

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

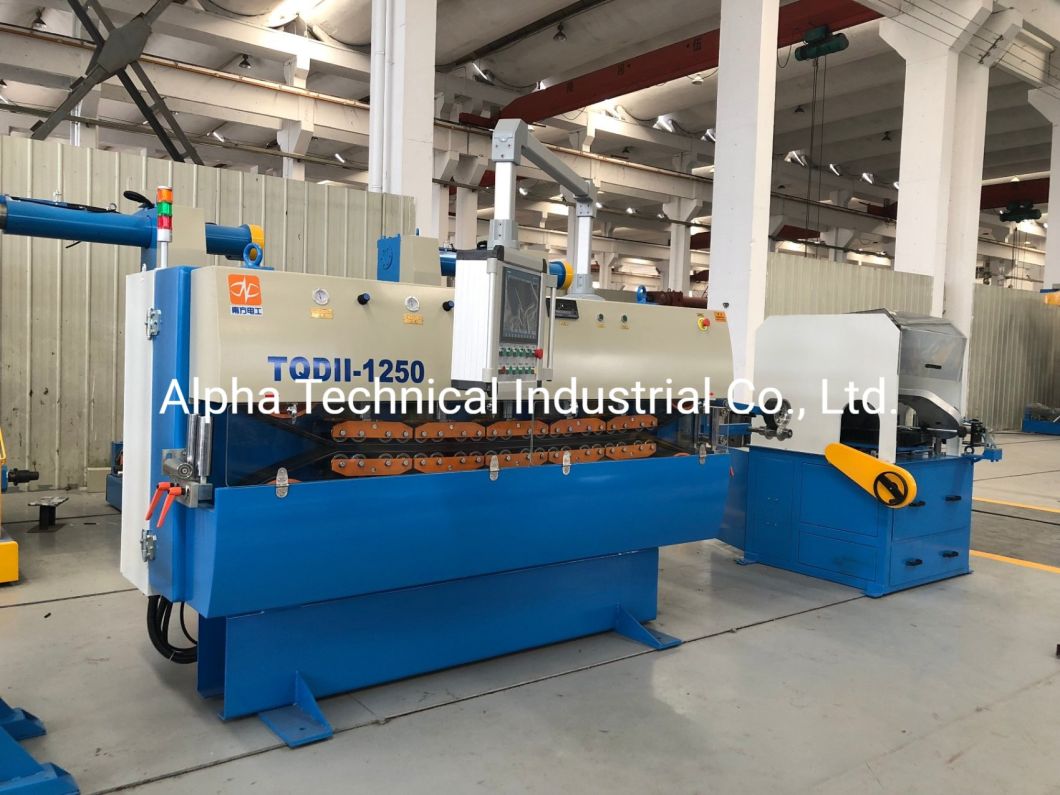

Traction
TQD-4000KG Pneumatic Caterpillar 1set
l Max. traction force 4000kg
l Max. diameter of cable 200mm (max)
l Traction speed 20m/min
l Gripping length of caterpillar belt 2900mm
l Width of caterpillar belt 180mm
l Driving motor Z4-132-4/1- 18.5Kw, 1500rpm
l Number of pairs of cylinder 9 pairs
l Center height of machine 1000mm
l Direction of the machine R - L
l The bearings of main parts Chinese high quality brand: NSK

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

150 Extrusion machine
The screw diameter 150mm
The screw length to diameter ratio 25:01:00
After sheath outside diameter φ35~140mm
Maximum traction 2500kg
The production line speed >40m/min
Steel specification PN1600-PN3150
The line plate specification PN1600-PN3150
Equipment center high 1000mm
Production line direction In the face of the nose left put right

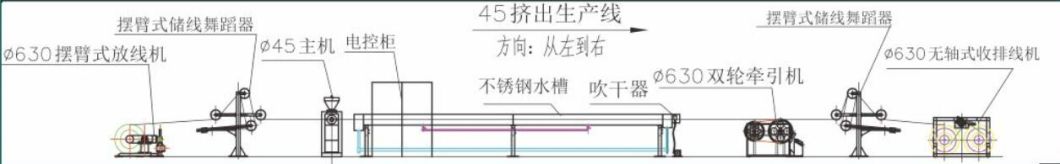

LF1600/3150 gantry rail walking type of passive motorized 1 sets of
TQD-2000kg crawler type pneumatic tractor traction before 1 sets of
SJ-150X25 plastic extruder 1 sets of
Automaic drying feeding device 1 sets of
φ140 square sheathed the nose 1 only
24 m stainless steel water trough(including 4 meters mobile sink) 1 sets of
Cable blow dry device 1 set
TQD-2500kg crawler type pneumatic tractor traction after 1 set
LSP1600 /walk type 3150 gantry rail line frame 1 sets of
Electrical synchronization control system 1 sets of

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

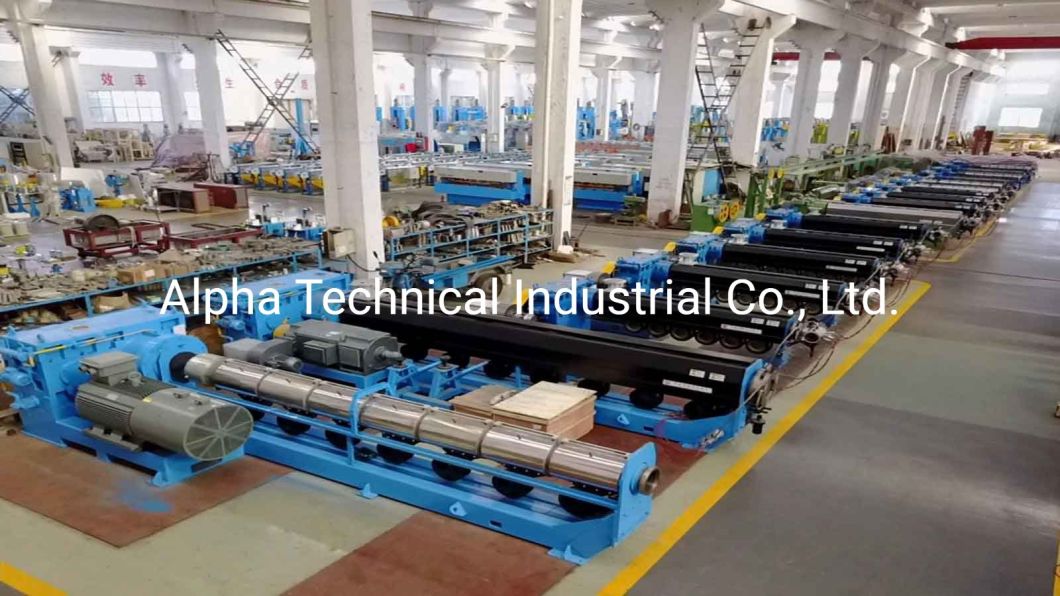

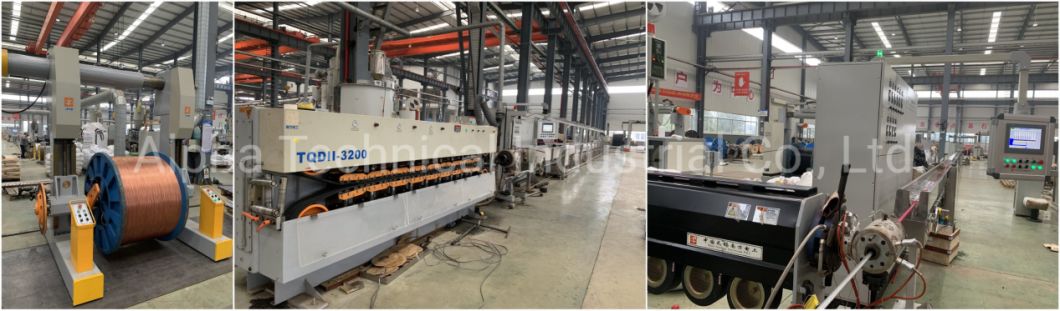

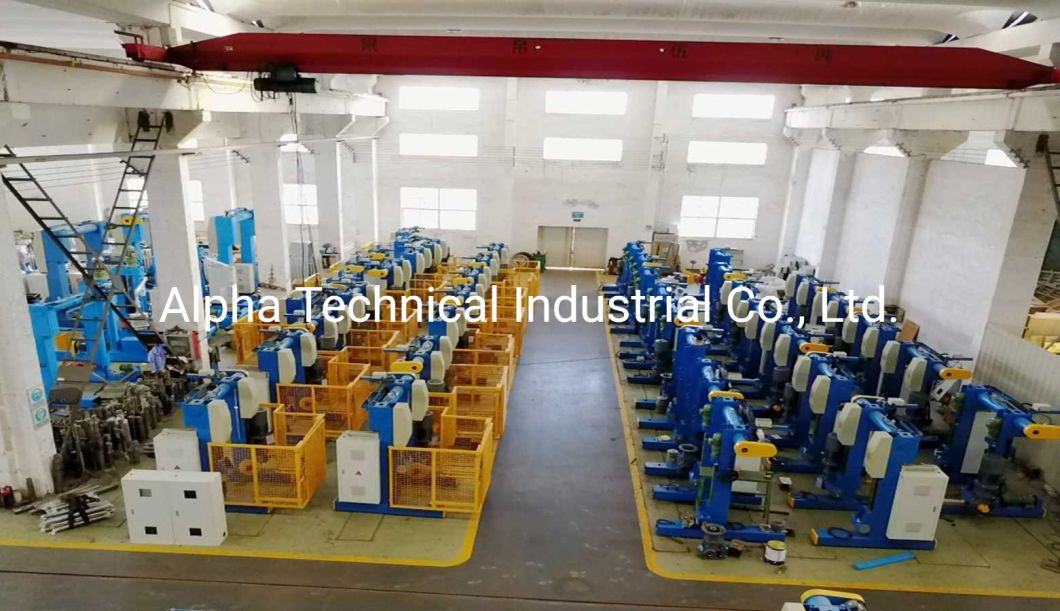

Our Workshop

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

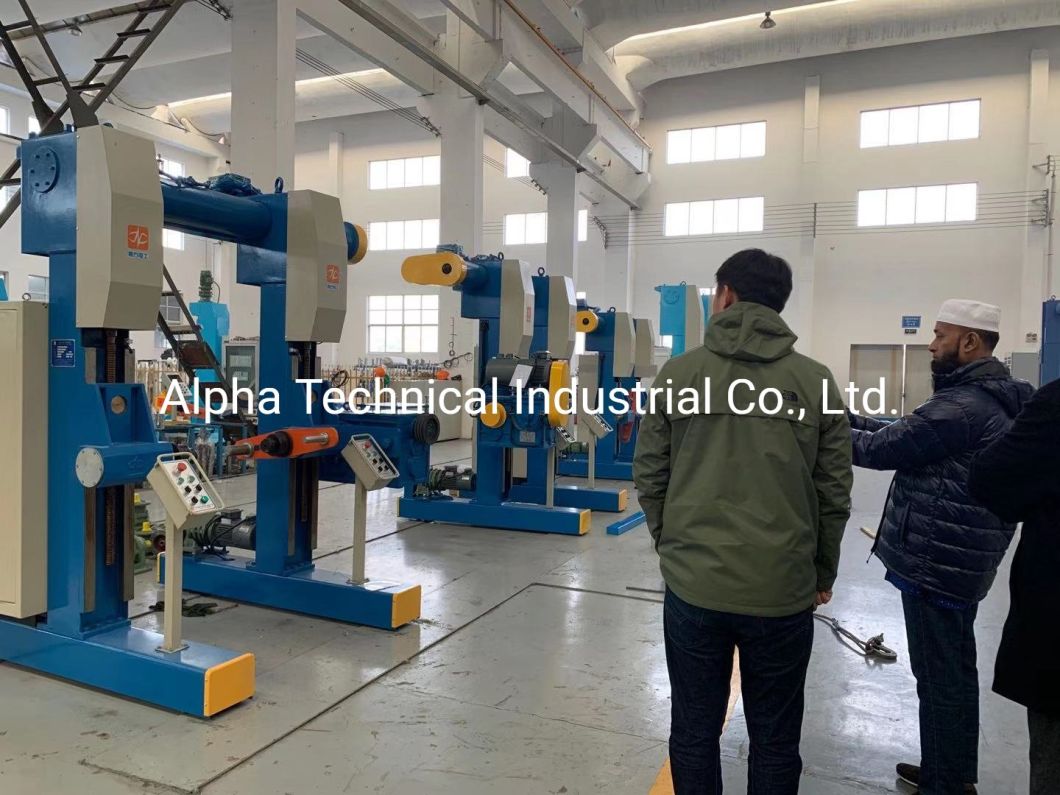

Our Clients

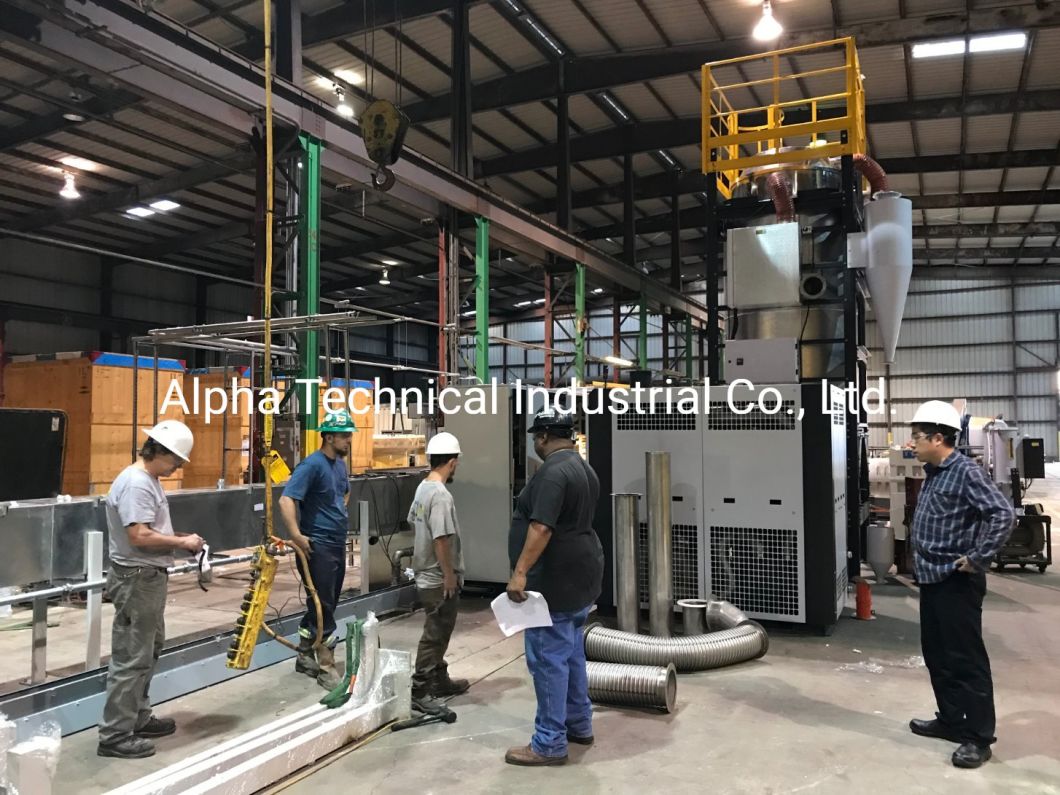

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine

Package

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine



Our Team

Cable Insulation Extruder Machine Sheathing Extrusion PVC Copper, Wire/Building/Electrical Cable Extrusion Machine


RFQ

1,Q: What is your main brand for the electrical and mechanical parts?

A: China famous brand

2, Q:could we appoint the parts brand?

A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.

3, Q: could you please arrange the installation and commissioning ?

A: Yes , we could and the buyer pay the charge

4, Q: could you arrange the production education?

A: Yes , we could and the buyer pay the charge

5, Q: could you do the design for the whole plant

A: Yes , we can.

6, Q: could you offer the production process design

A: Yes , we can.

7, Q: what is the difference with other supplier?

A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

8.Q:What's the payment terms?

A:T/T,30% deposit and 70% balance before delivery.

9, Q:How long the guarantee:

A: one year and charge for repair the whole life.

Enable us to give you a better quotation, please kindly provide the parameter below:
1. Coil diameter (we need to know the take up and pay off machine size)?
2. Extrusion speed?
3. Extrusion thickness?
4. What is material of outer sheath.(PVC or PE or HDPE or MDPE or TPU?
