FTTH Drop Optical Fiber Cable Machine Fiber Optic Cable Production Line, High Quality Flat Flexible Cable Extrusion Machine~

Share to:

FTTH Drop Optical Fiber Cable Machine Fiber Optic Cable Production Line, High Quality Flat Flexible Cable Extrusion Machine~

Quantity:



Inquire Add to Basket

Model NO.:
WLT
Nitrogen Depth:
0.5~0.7mm
Length to Diameter Ratio:
25:1
Hardness:
>940
Take-up Tension:
5n~30n(Adjustable)
Take-up Reel Size:
Pn280/Pn630
Center Height of Production Line:
1000mm
Production Line Structure Speed:
200m/Min
Extrusion Molding Machine:
Sj65-25
Steel Wire Reel Shaft Hole Size:
80mm
Load-Bearing:
600kg
Pay-off Structure Speed:
Max200m/Min
Wire Reel Size:
630~800mm
Optical Fiber Diameter:
0.254mm
Axis Runout Accuracy:
0.05mm
Transport Package:
Standard Seaworthy Package
Specification:
customized
Trademark:
HLT
Origin:
China
HS Code:
847720900
Production Capacity:
400sets/Year
Customization:
Available | Customized Request

Product Description

Product Description

FTTH Drop Optical Fiber Cable Machine Fiber Optic Cable Production Line, High Quality Flat Flexible Cable Extrusion Machine~

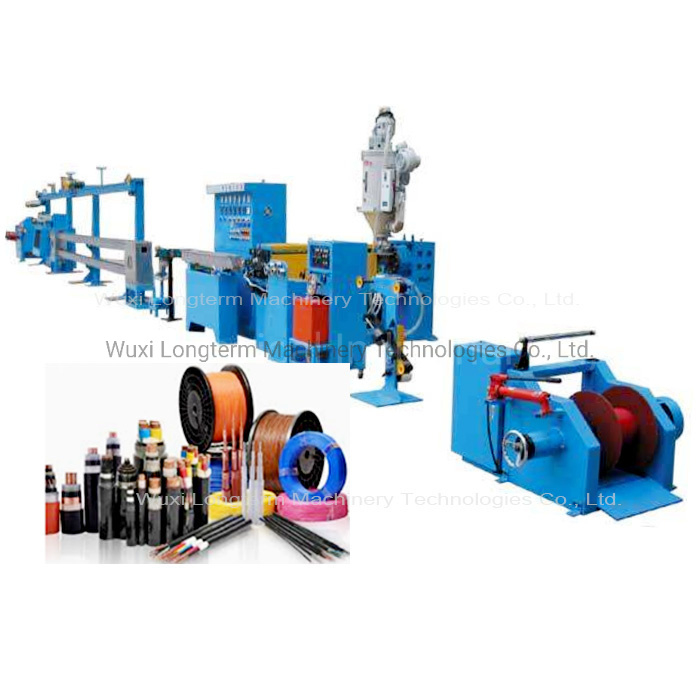

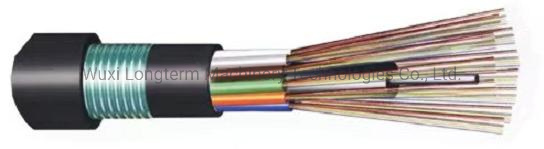

What is Fiber Optic Cable?
Optical fiber cable (optical fiber cable) is manufactured to meet optical, mechanical or environmental performance specifications. It is a communication that uses one or more optical fibers placed in a sheath as a transmission medium and can be used individually or in groups Cable assembly. Optical cables are mainly composed of optical fibers (thin glass filaments such as hair), plastic protective sleeves and plastic sheaths. There are no metals such as gold, silver, copper and aluminum in the optical cables, and generally have no recycling value. An optical cable is a communication line in which a certain number of optical fibers compose a cable core in a certain way, and are covered with a sheath, and some are also covered with an outer sheath to realize the transmission of optical signals. That is: a cable formed by an optical fiber (optical transmission carrier) through a certain process. The basic structure of optical cable is generally composed of several parts such as cable core, reinforced steel wire, filler and sheath. In addition, there are waterproof layer, buffer layer, insulated metal wire and other components as required.

Application:

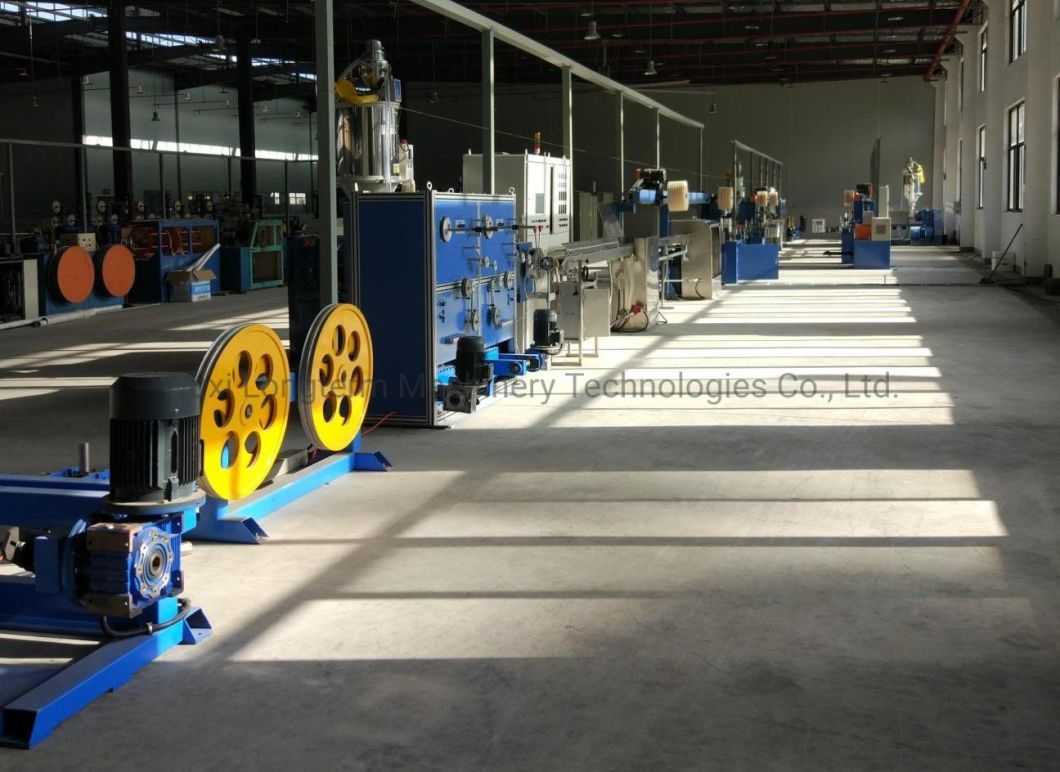

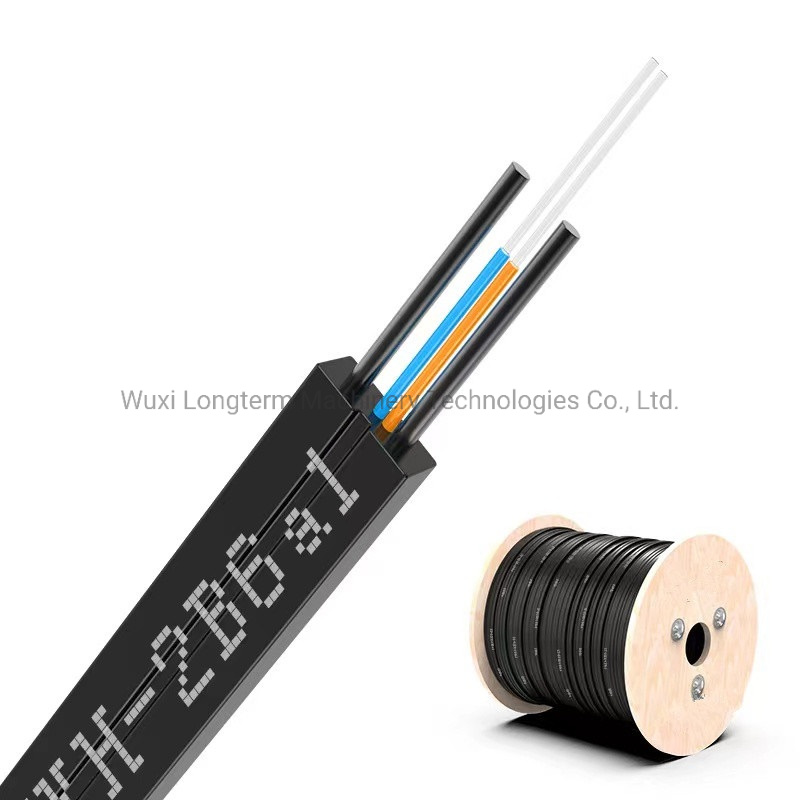

Covered optical cables are mostly single-core and double-core structures, and can also be made into four-core structures. The cross-section is in the shape of a figure. The reinforcement is located at the center of the two circles. Metal or non-metal structures can be used. The optical fiber is located in the geometric center of the figure.

It is used to produce butterfly-shaped optical cables, and the sheath material is LSZH low-smoke halogen-free fuel resistance.

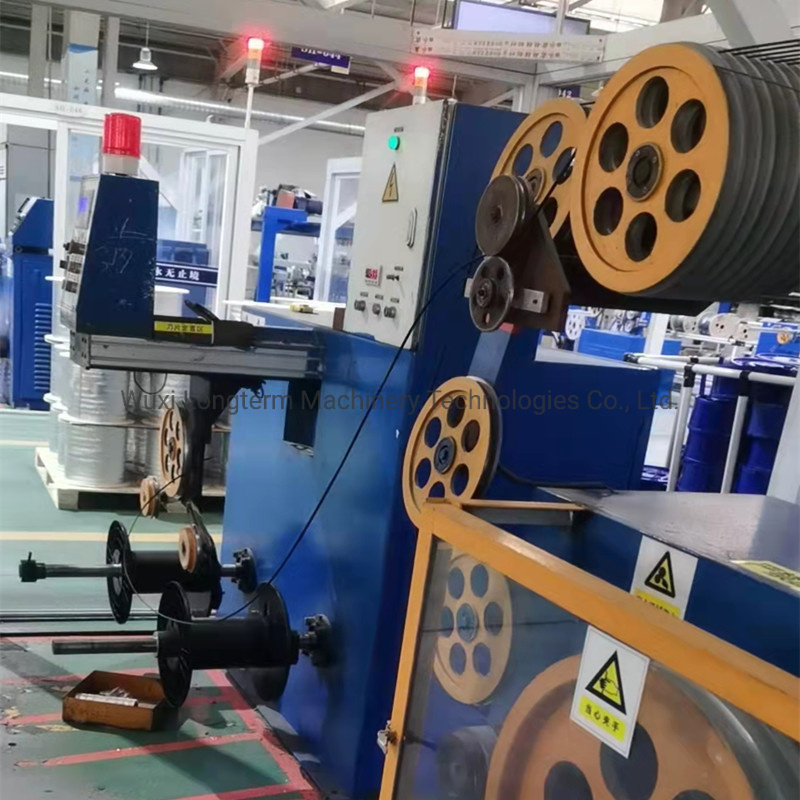

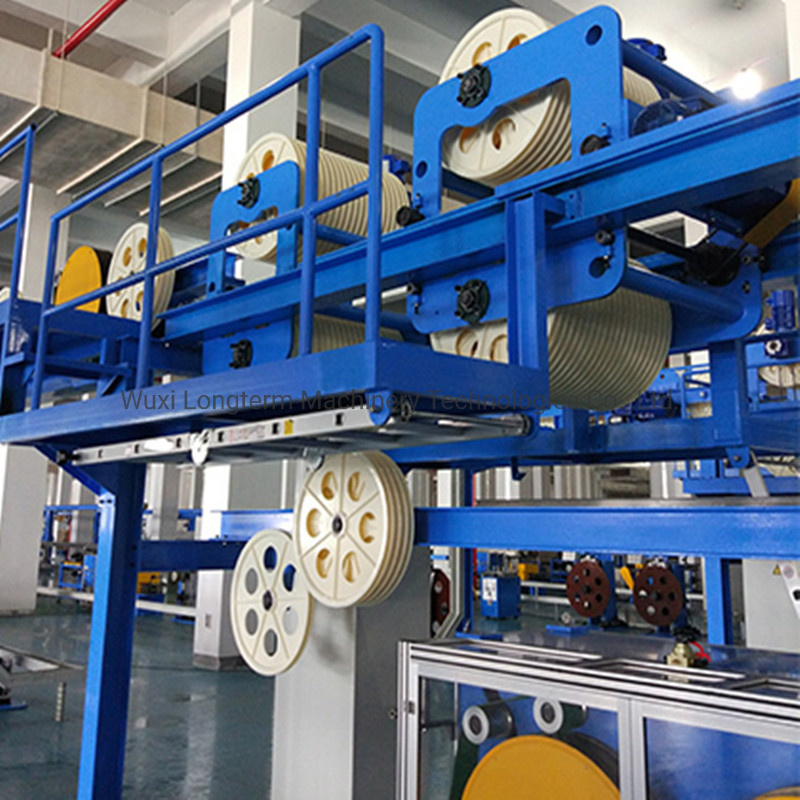

The frame is a cabinet frame structure; it is driven by an AC frequency conversion controller, and a transmission mechanism composed of a frequency conversion motor and a reducer provides the unwinding power; the moving mechanism composed of a lifting motor and a reducer provides the unwinding power; the cylinder top is used for clamping and loosening The pay-off centering mechanism can effectively prevent the jitter caused by the wire obliquely pulled out; the pay-off tension control dance wheel is equipped with the air cylinder and precision pressure regulating valve to control the moving pulley. The moving pulley track adopts high-quality linear slide rails and sliders, and the equipment layout is reasonable and compact; the start and stop of the line are controlled by the local

Technical Parameters:

Geometric size of butterfly optical cable	2mm~2.5mm×3mm~6.5mm
Production line structure speed	200m/min
Production line speed	150m/min (Related to material)
Pay-off reel size	Φ236×Φ25.4×108mm(25KM Reel) Φ265×Φ25.4×180mm(50KM Reel)
Fiber pay-off tension	0.5N~5N(Adjustable)
Extrusion molding machine	SJ65-25
Take-up tension	5N~30N(Adjustable)
Take-up reel size	PN280/PN630
Production line direction	To be determined
Production line color	To be determined
Center height of production line	1000mm

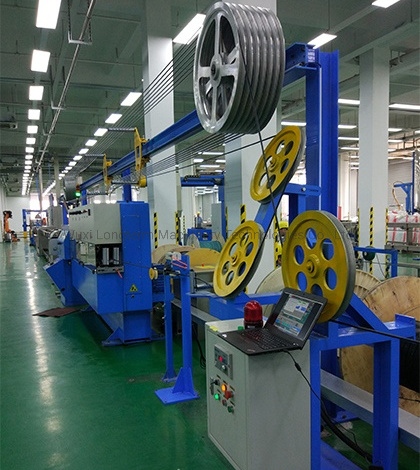

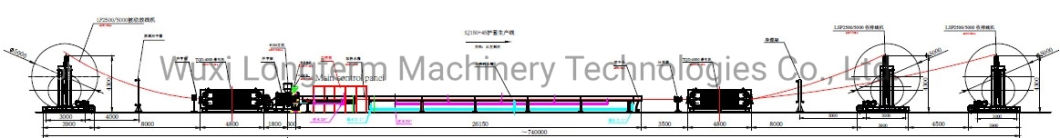

Composition of production line:

PN600-PN800 active swing arm type steel wire active pay-off rack	1set

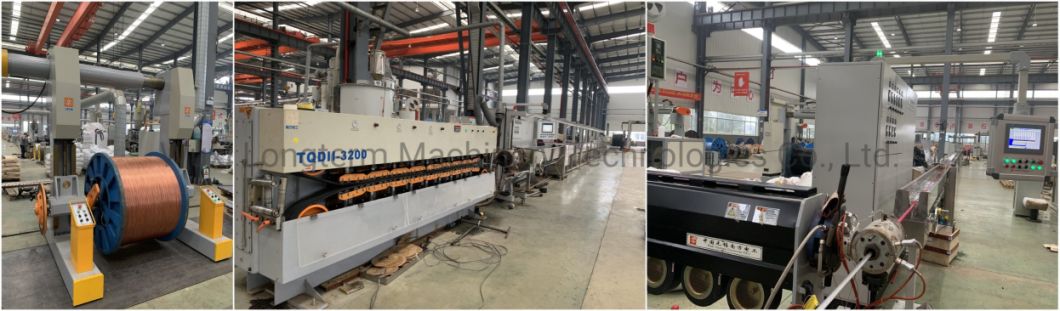

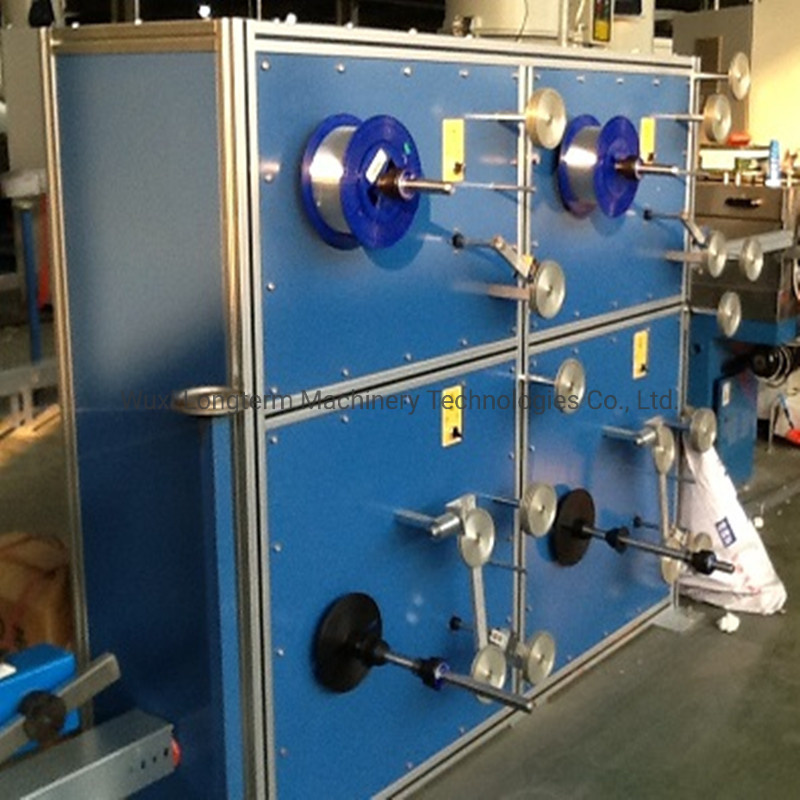

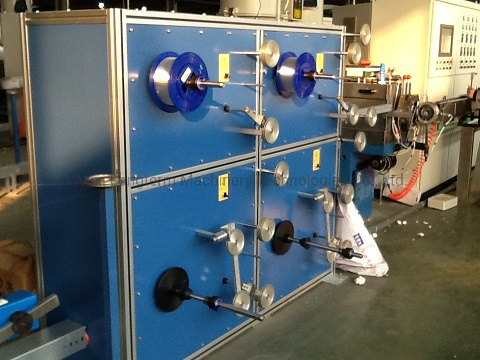

Four-in-one automatic pay-off machine	1set
100kg drying and loading device	1set
SJ65-25 Extruder molding machine Length-diameter ratio 25:1, LSZH screw	1set
Stainless steel double-layer heat preservation and heating mobile sink	4m
Stainless steel double-layer heat preservation and heating water tank 6KW	1set
Stainless steel cold water tank	12m
Water bath type Φ630 wheel tractor (and cold water tank)	1set
Blow dryer	1set
Refrigeration unit 3HP	1set
Two-way diameter measuring instrument (Gongjiu)	1set
150m wire storage rack and tension controller	1set
Meter counting, ink-jet printing anti-shake guide, crimping stop and retreat integrated device	1set
Double reel take-up machine	1set

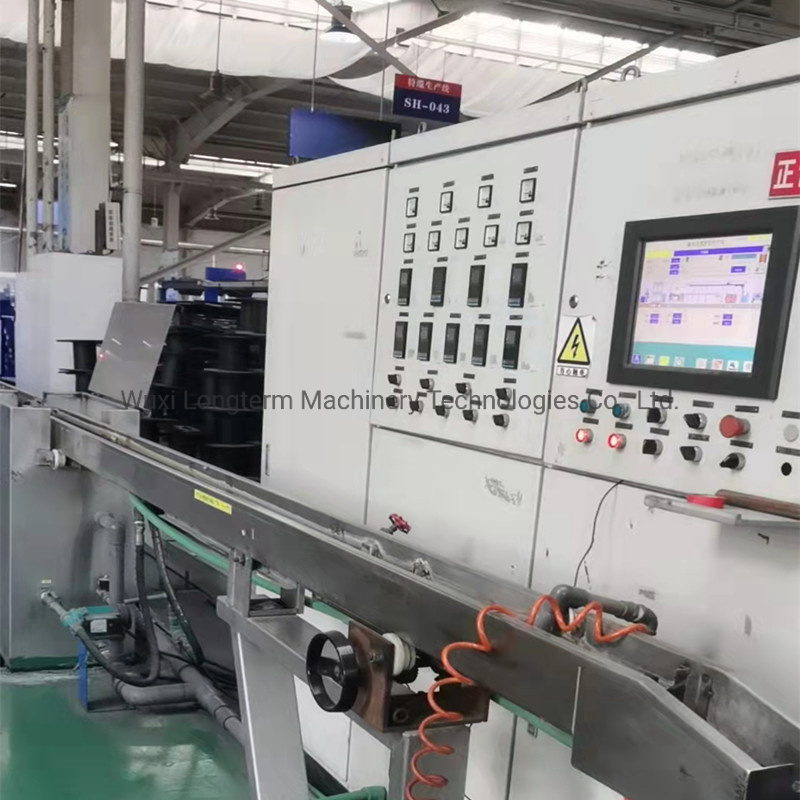

Electric control system	1set

Electronic control configuration

the main motor of the pay-off adopts 2.2KW 4-pole AC variable frequency motor, 2.2KW AC variable frequency controller; adopts 0~10V analog output sensor to control and drive; has PID forward and reverse control
