Fiber Optic Cable Extrusion Sheathing Line Making Machine for Optical Fiber Butterfly
Product Description

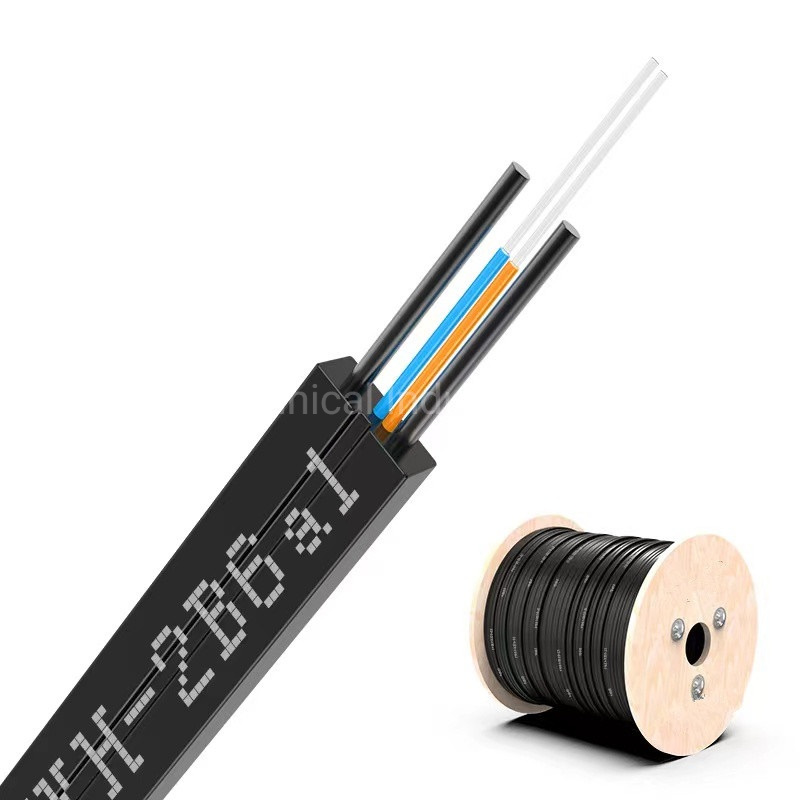

What is Fiber Optic Cable? Optical fiber cable (optical fiber cable) is manufactured to meet optical, mechanical or environmental performance specifications. It is a communication that uses one or more optical fibers placed in a sheath as a transmission medium and can be used individually or in groups Cable assembly. Optical cables are mainly composed of optical fibers (thin glass filaments such as hair), plastic protective sleeves and plastic sheaths. There are no metals such as gold, silver, copper and aluminum in the optical cables, and generally have no recycling value. An optical cable is a communication line in which a certain number of optical fibers compose a cable core in a certain way, and are covered with a sheath, and some are also covered with an outer sheath to realize the transmission of optical signals. That is: a cable formed by an optical fiber (optical transmission carrier) through a certain process. The basic structure of optical cable is generally composed of several parts such as cable core, reinforced steel wire, filler and sheath. In addition, there are waterproof layer, buffer layer, insulated metal wire and other components as required. Application: Covered optical cables are mostly single-core and double-core structures, and can also be made into four-core structures. The cross-section is in the shape of a figure. The reinforcement is located at the center of the two circles. Metal or non-metal structures can be used. The optical fiber is located in the geometric center of the figure.
It is used to produce butterfly-shaped optical cables, and the sheath material is LSZH low-smoke halogen-free fuel resistance.
Technical Parameters: | Geometric size of butterfly optical cable | 2mm~2.5mm×3mm~6.5mm |
| Production line structure speed | 200m/min |
| Production line speed | 150m/min (Related to material) |
| Pay-off reel size | Φ236×Φ25.4×108mm(25KM Reel)
Φ265×Φ25.4×180mm(50KM Reel) |
| Fiber pay-off tension | 0.5N~5N(Adjustable) |
| Extrusion molding machine | SJ65-25 |
| Take-up tension | 5N~30N(Adjustable) |
| Take-up reel size | PN280/PN630 |
| Production line direction | To be determined |
| Production line color | To be determined |
| Center height of production line | 1000mm |

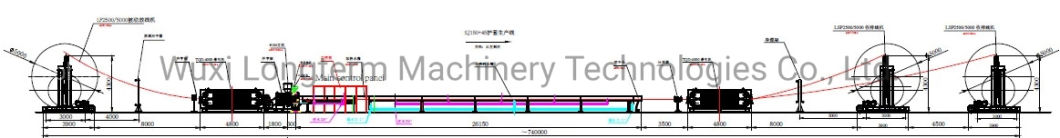

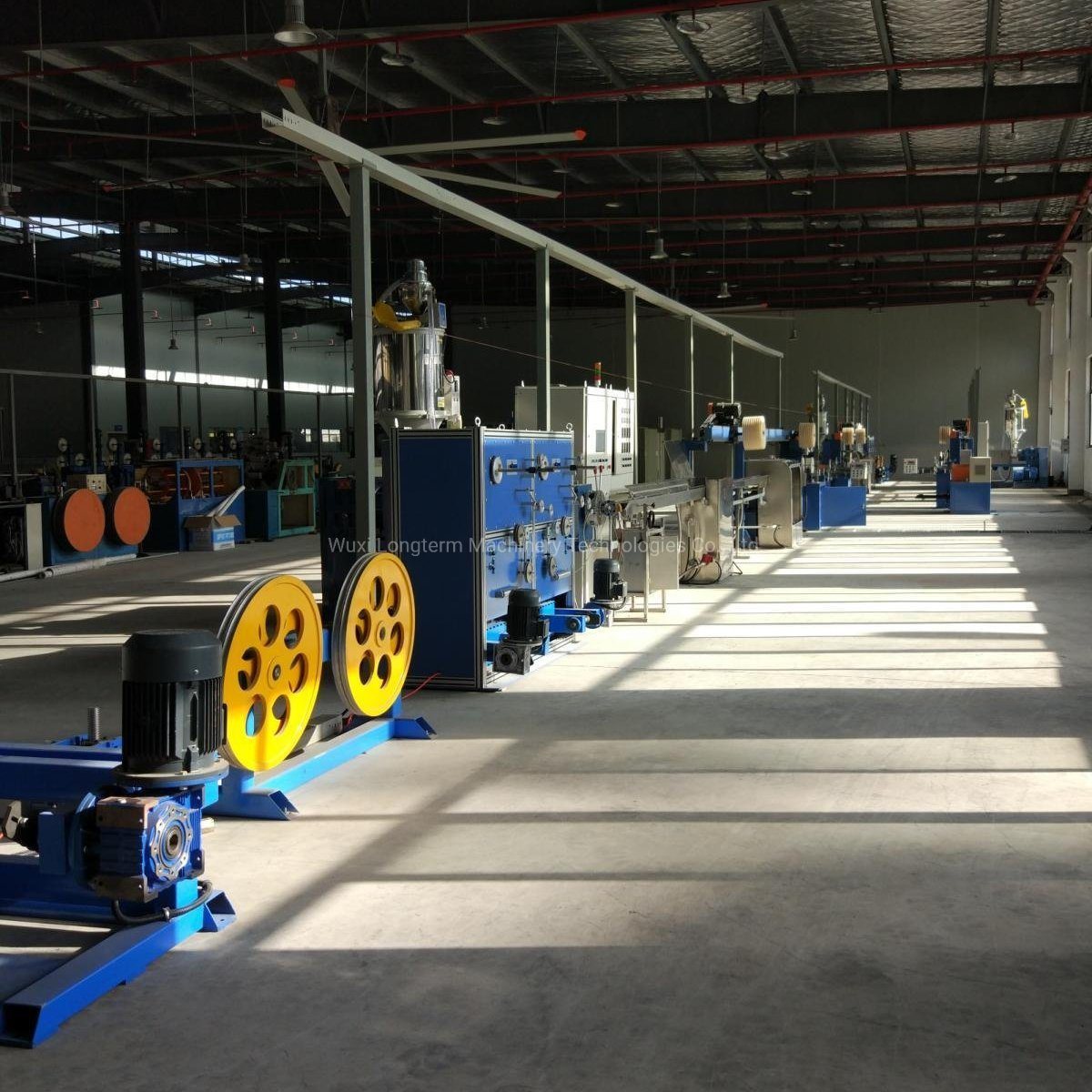

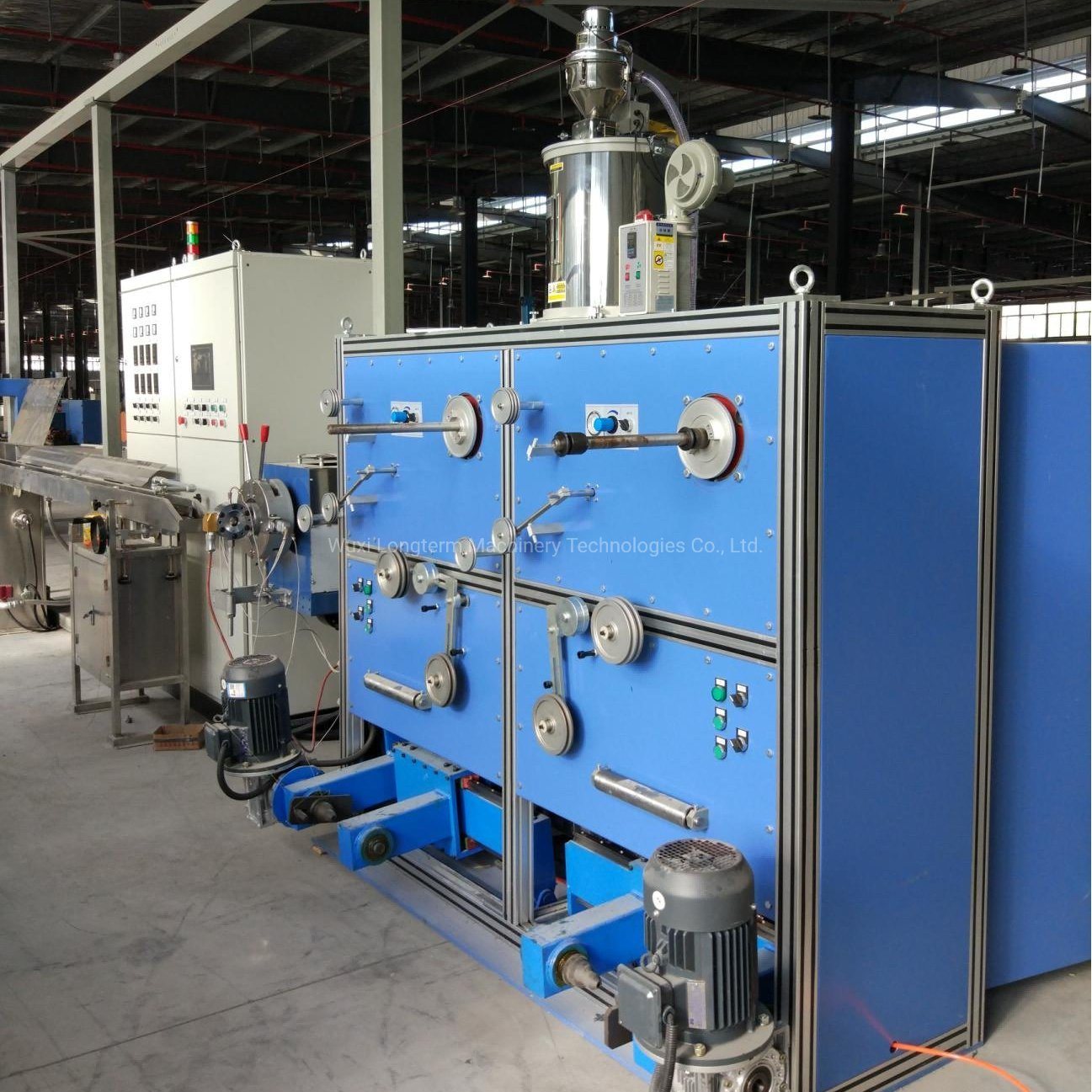

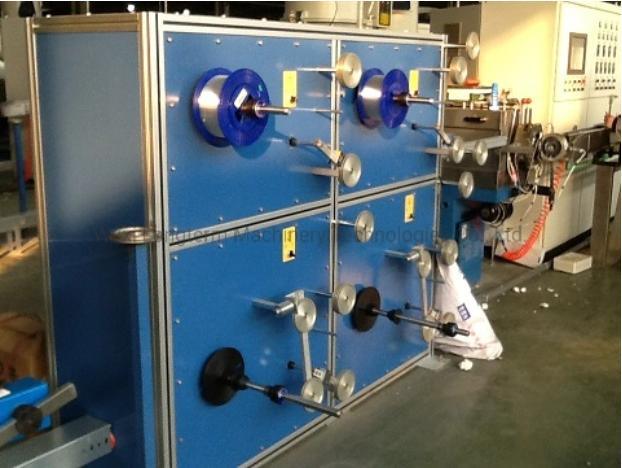

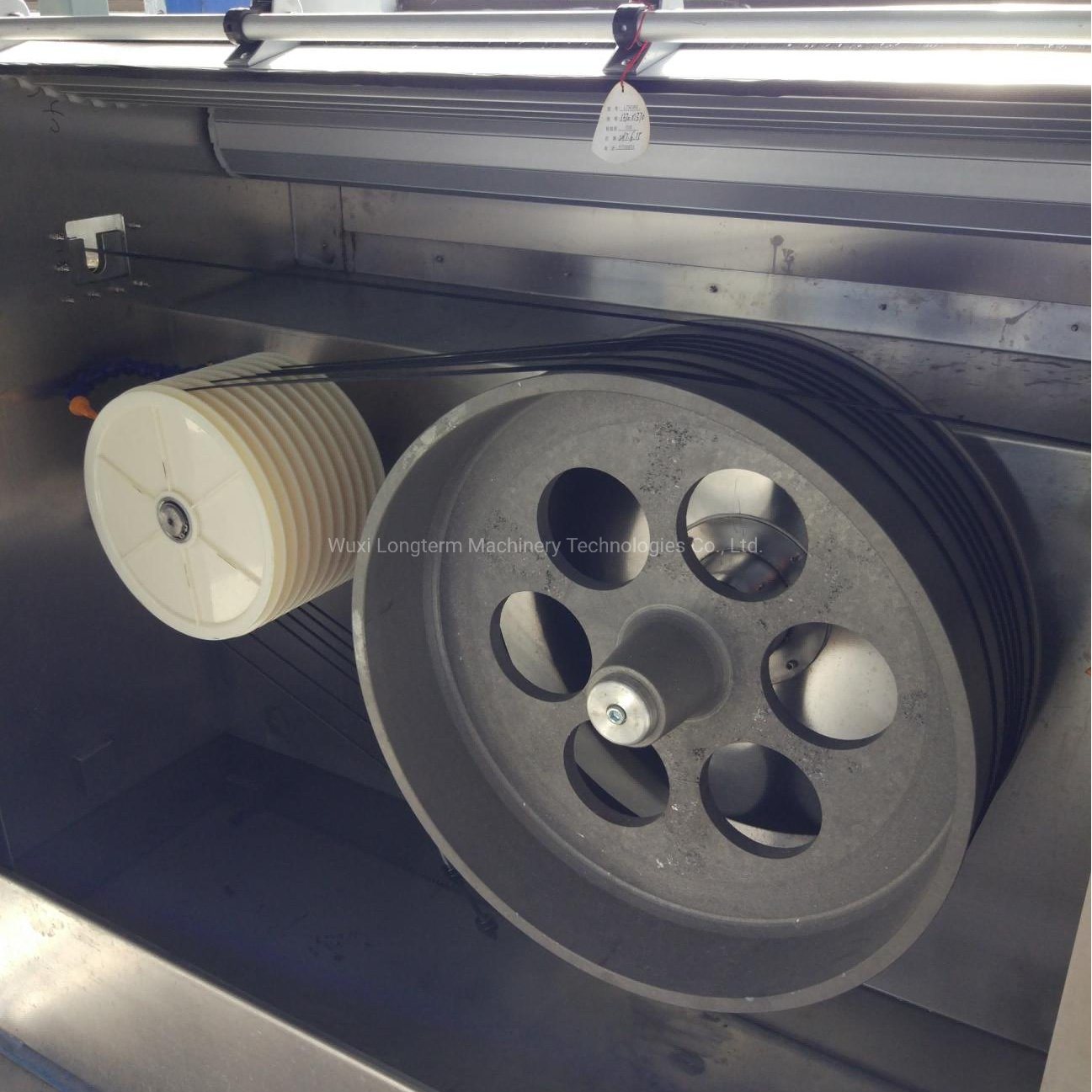

Composition of production line: | PN600-PN800 active swing arm type steel wire active pay-off rack | 1set |
| Four-in-one automatic pay-off machine | 1set |
| 100kg drying and loading device | 1set |
| SJ65-25 Extruder molding machine Length-diameter ratio 25:1, LSZH screw | 1set |
| Stainless steel double-layer heat preservation and heating mobile sink | 4m |
| Stainless steel double-layer heat preservation and heating water tank 6KW | 1set |
| Stainless steel cold water tank | 12m |
| Water bath type Φ630 wheel tractor (and cold water tank) | 1set |
| Blow dryer | 1set |
| Refrigeration unit 3HP | 1set |
| Two-way diameter measuring instrument (Gongjiu) | 1set |
| 150m wire storage rack and tension controller | 1set |
| Meter counting, ink-jet printing anti-shake guide, crimping stop and retreat integrated device | 1set |
| Double reel take-up machine | 1set |
| Electric control system | 1set |

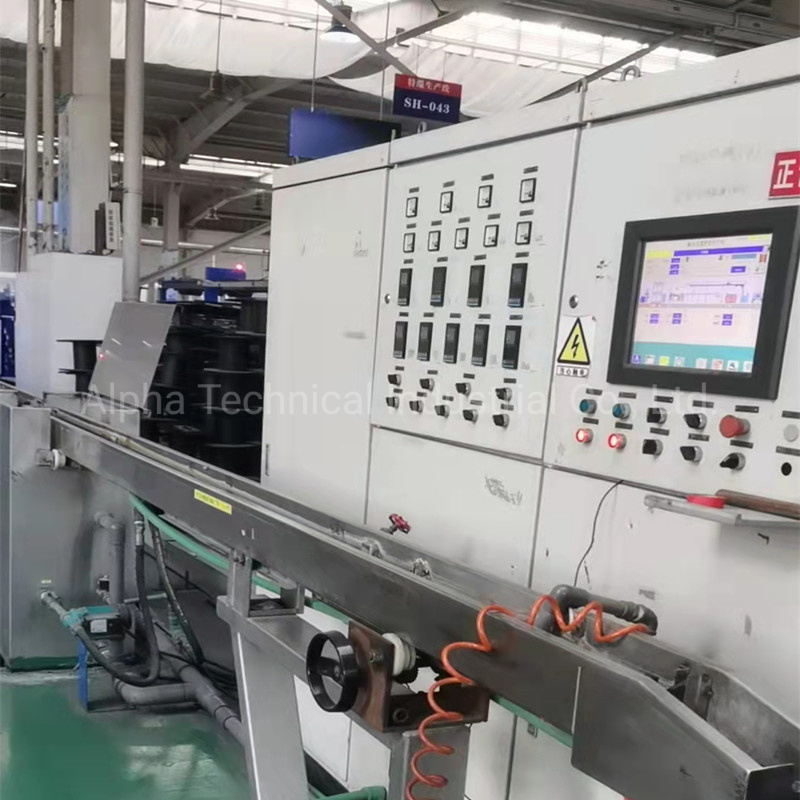

Electronic control configuration
the main motor of the pay-off adopts 2.2KW 4-pole AC variable frequency motor, 2.2KW AC variable frequency controller; adopts 0~10V analog output sensor to control and drive; has PID forward and reverse control
