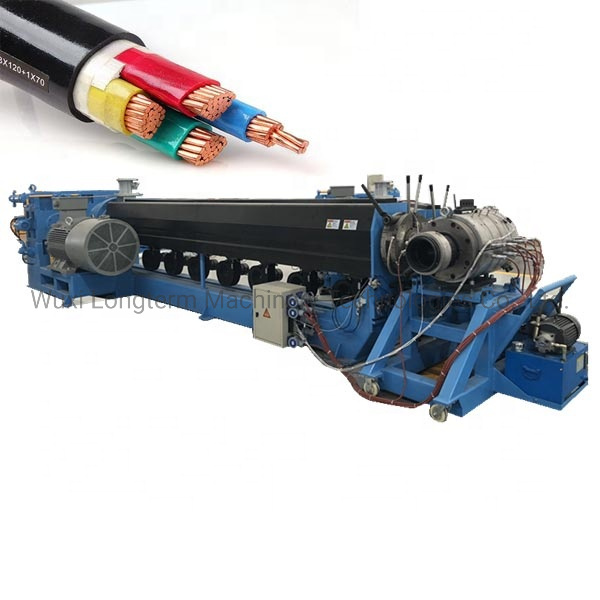

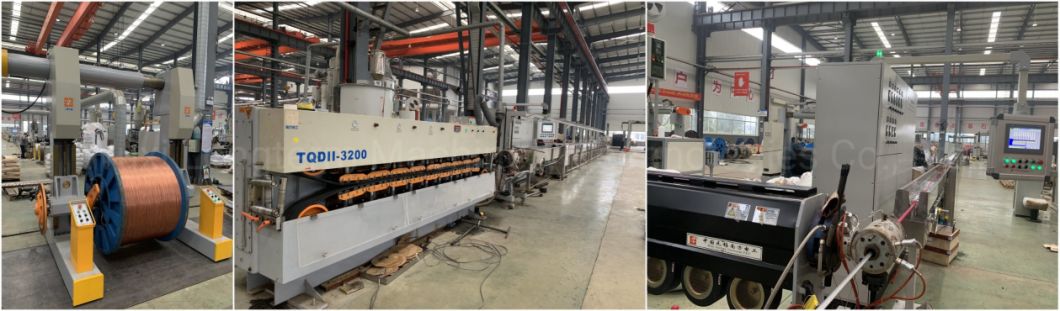

High Speed Double-Layer Cable Extruder

Application

The unit comfortable soft PVC,such as poly(PVC by hot press method to be extruded insulation wire core)

The production line to the requirement of working environment
Temperature:0-45 degrees
Power supply:three-phase 380 plus or minus 10%,50 hz with neutral wire.No impulse voltage,interference.

Technical Parameters

The screw diameter	150mm
The screw length to diameter ratio	25:01:00
After sheath outside diameter	φ35~140mm
Maximum traction	2500kg
The production line speed	>40m/min
Steel specification	PN1600-PN3150
The line plate specification	PN1600-PN3150
Equipment center high	1000mm
Production line direction	In the face of the nose left put right

Equipment Composition

LF1600/3150 gantry rail walking type of passive motorized	1 sets of
TQD-2000kg crawler type pneumatic tractor traction before	1 sets of

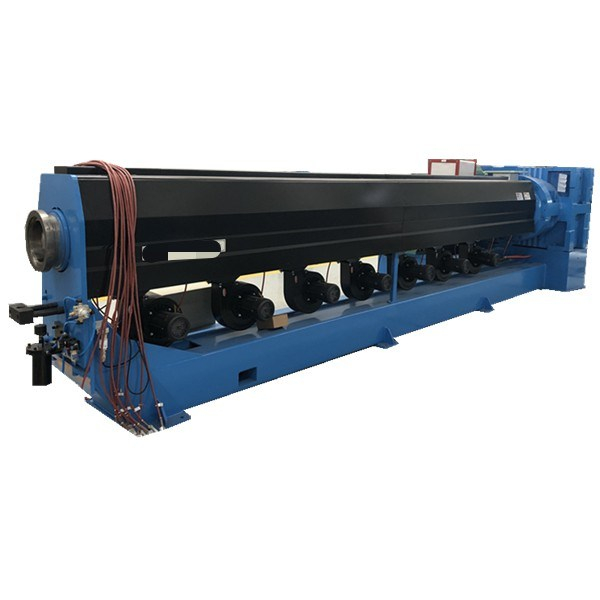

SJ-150X25 plastic extruder	1 sets of
Automaic drying feeding device	1 sets of
φ140 square sheathed the nose	1 only
24 m stainless steel water trough(including 4 meters mobile sink)	1 sets of
Cable blow dry device	1 set
TQD-2500kg crawler type pneumatic tractor traction after	1 set
LSP1600 /walk type 3150 gantry rail line frame	1 sets of
Electrical synchronization control system	1 sets of

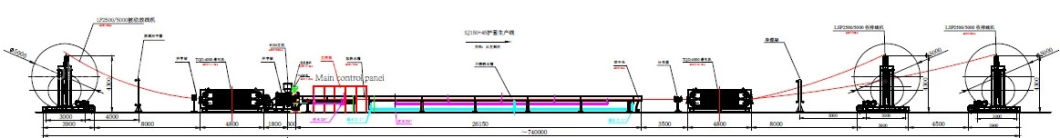

Raw material (PP,PE,PA,PET)-----Pay-off ----Caterpillar--- Extruder head---Water cooling---Drying----Caterpillar ---winder/take -up machine

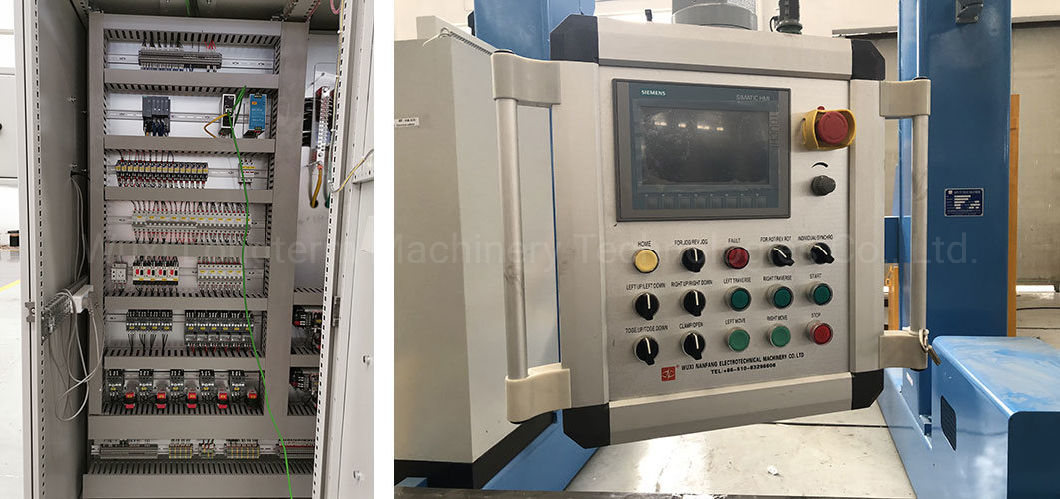

Electrical Part

After-sales Service


FAQ
− Q: Are you the manufacturer or trading company?

A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

− Q: What is your company's main production?

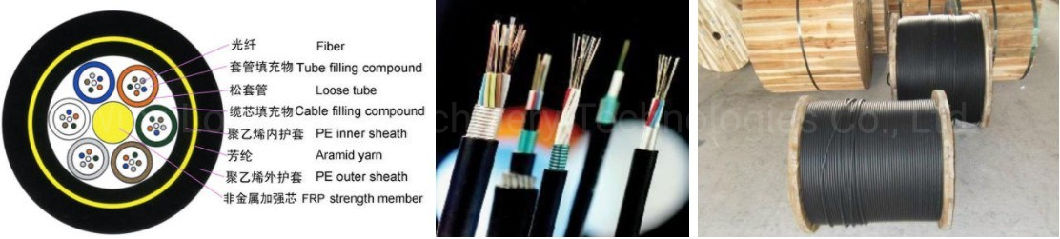

A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

− Q: What can we offer our customers?

A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

We have an experienced team of skilled workers and engineers.

We can support overseas training engineers.

We can customize the design, to accept the customer's sample design.

We can provide customers with after-sales service.
