Product Description

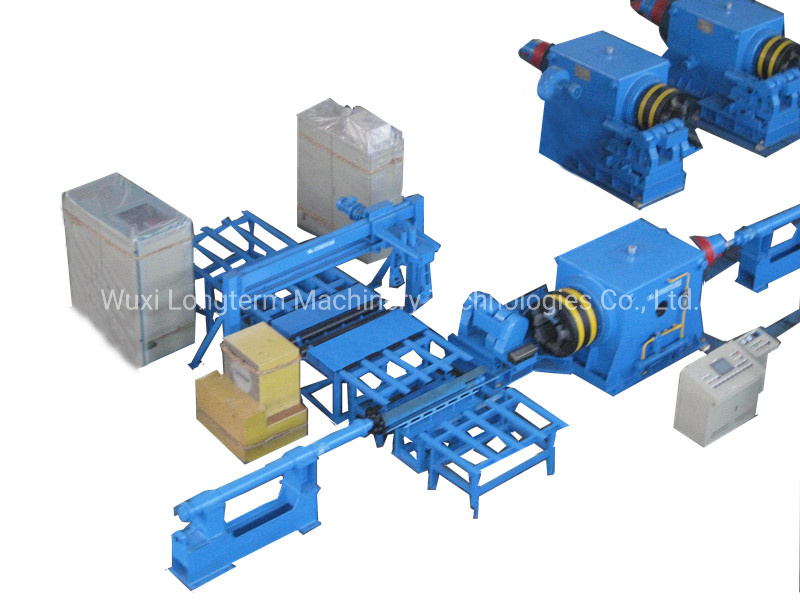

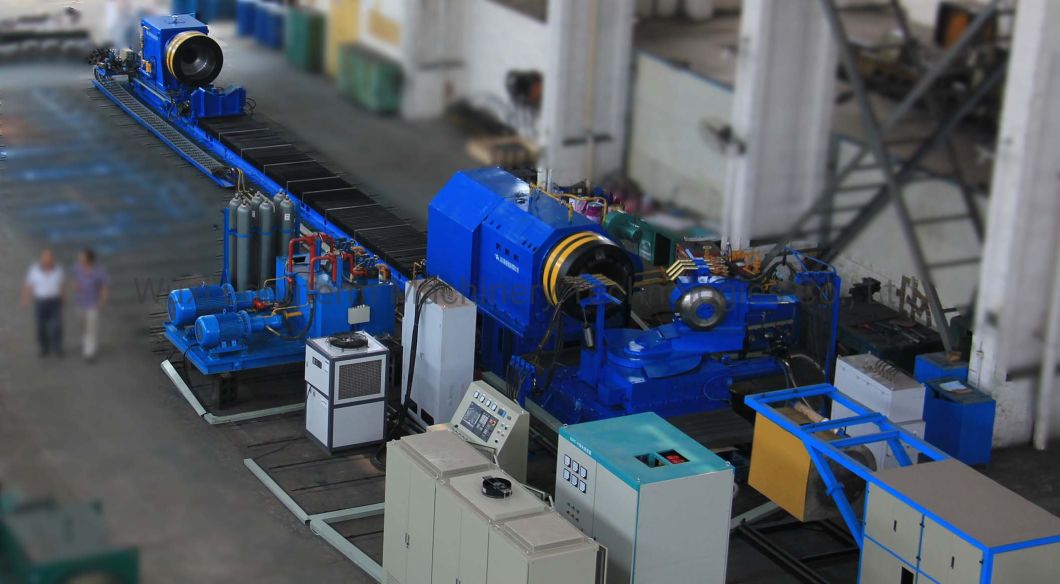

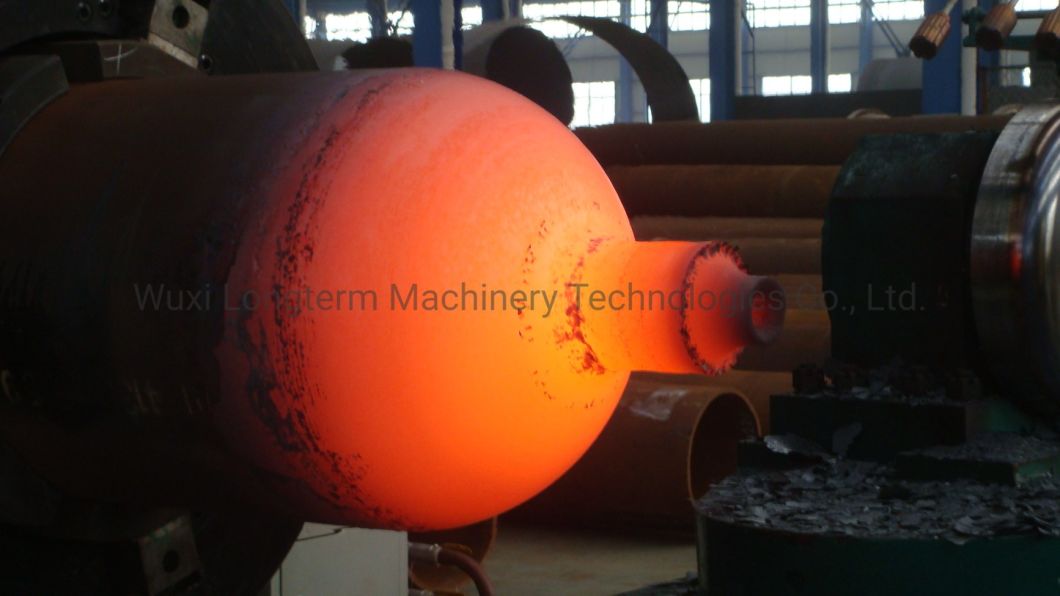

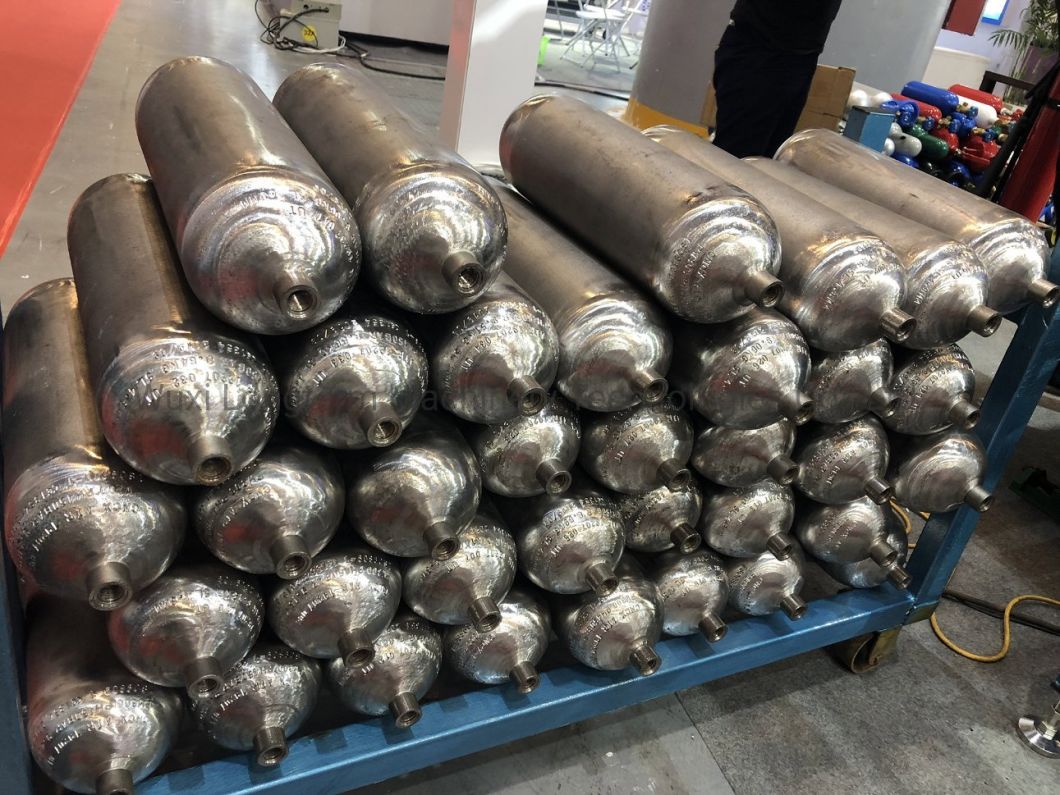

This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.
| Spinning diameter | Max. 406mm |
| Spinning diameter | Min. 325mm |
| Spinning length | Max. 2000mm |
| Spinning length | Min. 800mm |
| Starting wall thickness | Max. 18mm |
| Starting wall thickness | Min. 5mm |
| Spinning cycle (incl. load/unloading/necking-in) | Max. 2.5min |
| Equipment centre height | 900mm |
| Main spindle drive | 90KW |
| Axial stroke of sliding block | 65mm |
| Radial stroke of sliding block | 17mm |
| Radial clamping force | 200KN |
| Main spindle speed (Variable) | 0-320 rpm |
| Mould axial stroke | 321KN |
| Max. mould axial feed-in speed | 30°/s |
| Mould rotating angle | 0-91° |
| Hydraulic motor | 22KW |
| Proportional speed regulated reversing valve | Italy ATOS |
| Control | Siemens |
| Connected electrical load | 3*380V, 50Hz |
| Heating power of the pipe end | 500KW/1000Hz |
| Connected pneumatic load | 6 bar |

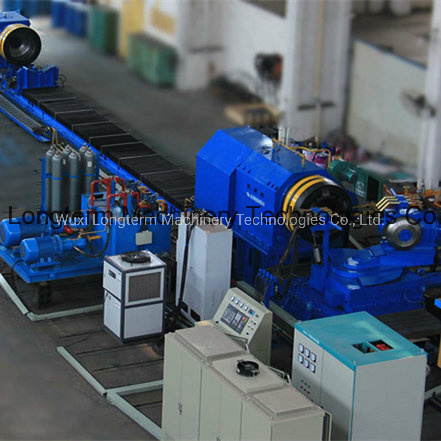

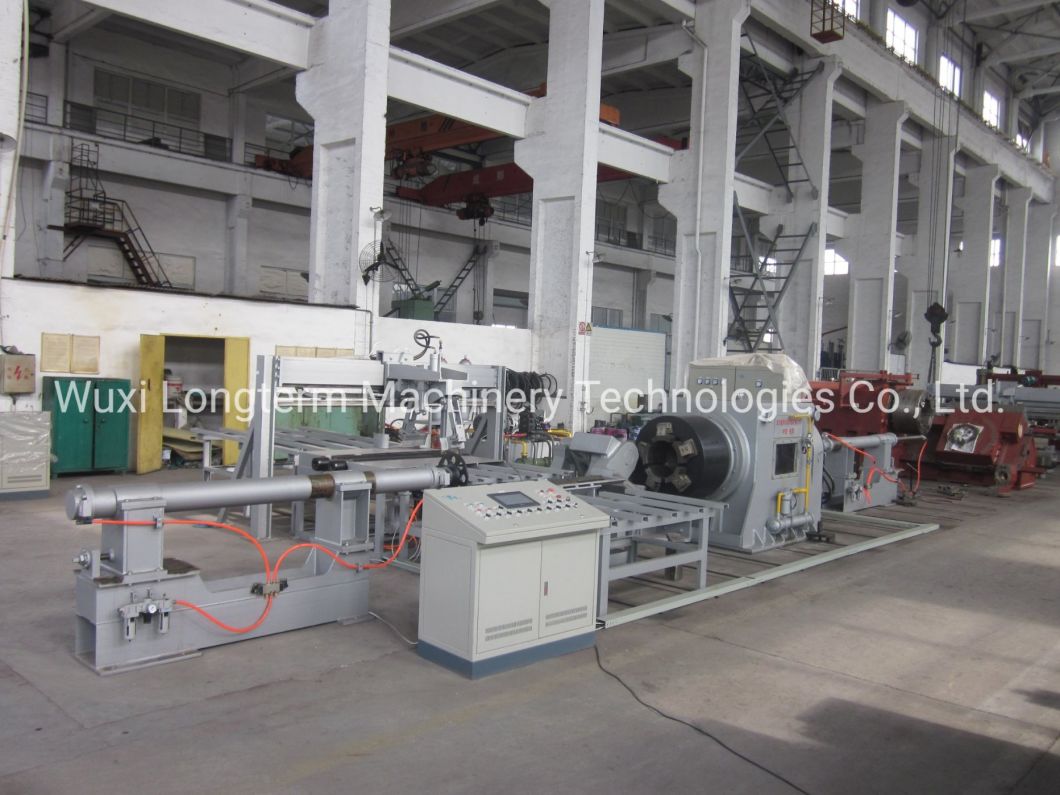

φ219-325mm roller type hot spinning machine

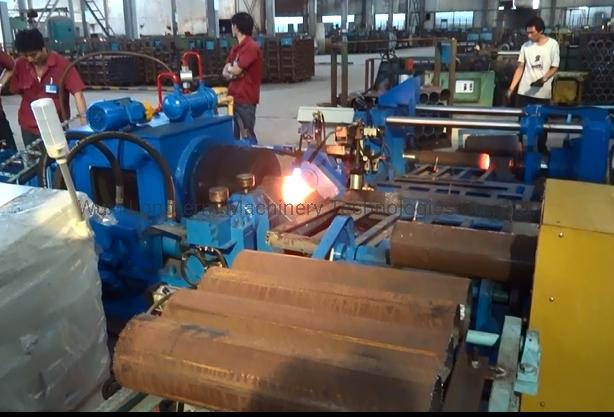

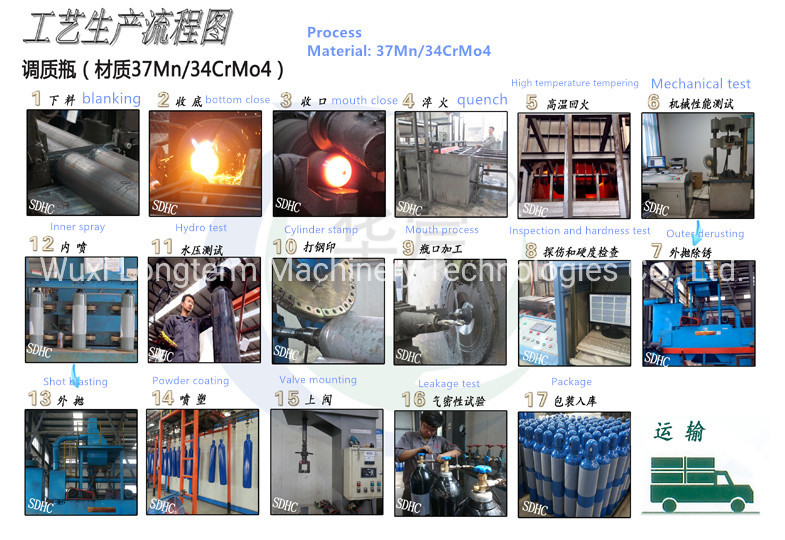

II. Manufacturing process
| Machine Model | THG622 | THG660 | THG720 | THG920 |
| Processing Dia. (mm) | 406~622 | 406~660 | 559~720 | 559~920 |
| Processing Length (mm) | 5500-12500 | 5500-12500 | 5500-12500 | 5500-12500 |
| Processing Thickness (mm) | 10-30 | 10-30 | 10-30 | 10-30 |
| Central Height (mm) | 1300 | 1300 | 1300 | 1300 |
| Main Engine Power (KW) | 200 | 250 | 280 | 355 |
| Rolling wheel swing angle | 90° | 90° | 90° | 90° |
| Control Methods | CNC | CNC | CNC | CNC |
| Processing Dia. (mm) | 219~325 | 325~406 |
| Processing Length (mm) | 800-2000 | 800-2000 |
| Processing Thickness (mm) | 5-18 | 5-18 |
| Central Height (mm) | 1100 | 1200 |
| Main Engine Power (KW) | 90 | 144 |
| Rolling wheel swing angle | 100° | 100° |
| Control Methods | CNC | CNC |

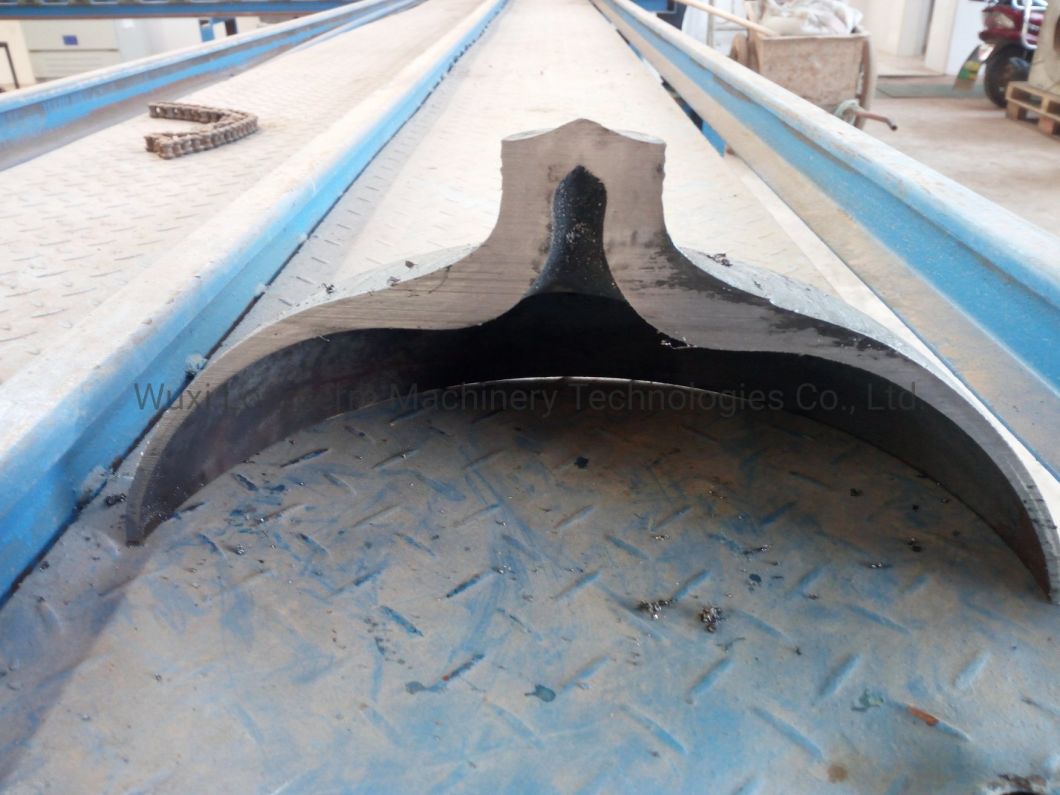

Section view of mouth

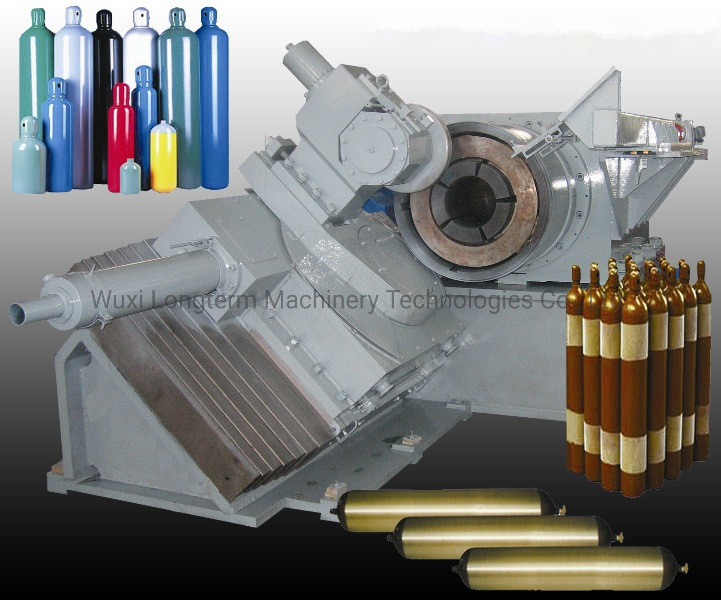

CNC Template TYPR SPINNING MACHINE
| Machine Model | THM232 | THM325 | THM406 |
| Processing Dia. (mm) | 200~232 | 219~325 | 325~406 |
| Processing Length (mm) | 700-1700 | 800-2000 | 800-2000 |
| Processing Thickness (mm) | 3-15 | 5-15 | 5-18 |
| Central Height (mm) | 1000 | 1100 | 1200 |
| Main Engine Power (KW) | 37 | 90 | 110 |
| Rolling wheel swing angle | 90° | 90° | 90° |
| Control Methods | PLC | PLC | PLC |
III. Machinery testing

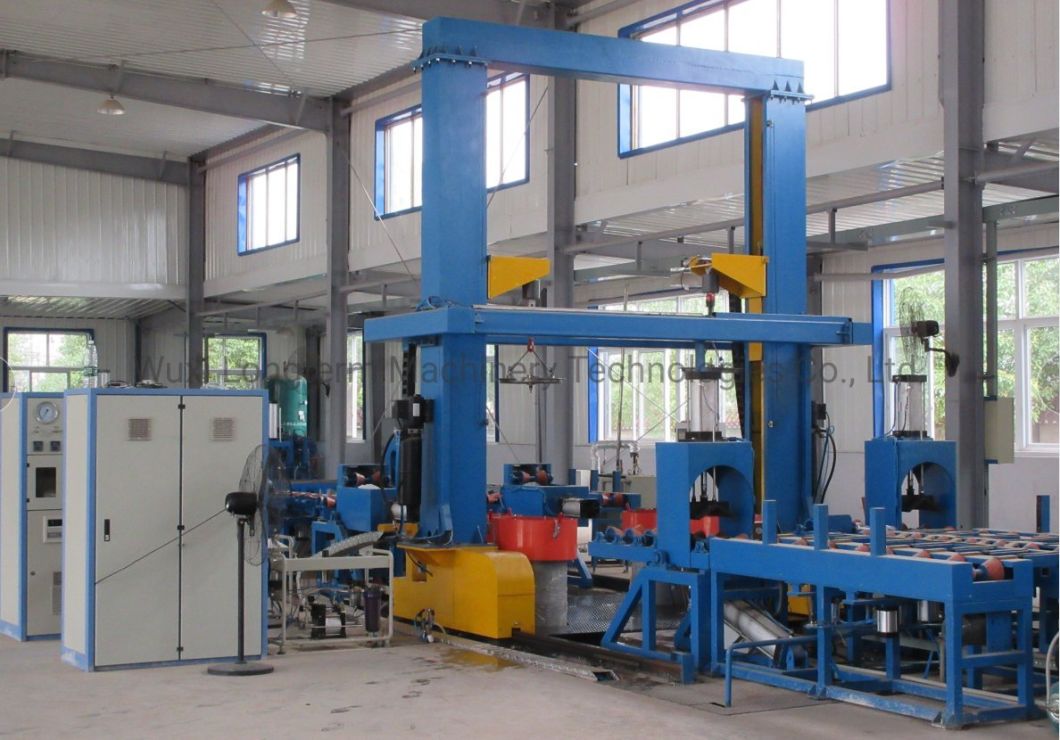

Hydro Pressure Testing Machine
IV. Accessories machine ---Neck threading machine
FAQ
We are professional manufacturer of CNG gas cylinder production line. We need to know following information to quote you correct machineries:
1. What size of CNG cylinder your machine can produce?
2. CNG cylinder technical drawing?
3. Capacity you require, i.e. how many pieces and sizes you want to make per day?
