Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine

Quantity:
  • HLT
  • Stainless Steel
  • Radial Models(JM Series)
  • Hot Spinning
  • Rolling V Type Belt Wheel
  • Triple
  • Fire Extinguisher
  • Cylinder Shape
  • 90 Degree
  • 1300 mm
  • 23000 * 3200 * 2300 mm
  • 406~920 mm
  • 5500~12500 mm
  • Fire Extinguisher Cylinder Making Machine
  • Available
  • Full Automatic
  • 3 Months
  • Standard Seaworthy & Strong Package
  • ISO9001
  • Comflex
  • Wuxi, Jiangsu, China(Mainland)
  • 830710000
  • as Requested
  • Available | Customized Request

Product Description


Fully Automatic Fire Extinguisher Cylinders Production Line
Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine
I. Technical specification of fire extinguisher

1. Cylinder material: 34CrMo4 (35CrMo), 37Mn, 30CrMo, 45#, 20#

2. Specifications for cylinder

2.1. Diameter range: φ76~180mm

2.2. Length range:330~1100mm (The max length of the tube is 1250mm)

Fire extinguisher welding production line is composed of the following parts:
Decoiler ,Stragihting , Blankingcover production linesheet cuttingSheet rollingSeam welding &Double-head joggling Hydro testingPowder coatingFilling

Decoiler ,Stragihting , Blanking machine

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine

Automatic cover production line

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine

160T Press machine

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine
160T Press Machine

Return Force (kN):
1000 kN

Condition:New

Dimension(L*W*H): 1100x650x2500mm

Motor Power (kw): 7.5 kw

Metal sheet cutting machine

Max cutting thickness:6mm, Max sheet metal width: 1000mm

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine


Sheet rolling machine

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine
Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine
No. Item Main parameter(mm)
1 Max rolling diameter 200
2 Min rolling diameter 90
3 Max rolling length 500
4 Max rolling thickness;Min rolling thickness <= 2.5 >=0.5
5 Rated input voltage AC380V three phase
6 Frequency 50HZ
7 Rated Input Capacity 10KW

Seam welding machine
&Double-head joggling machine

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine

No. Item Main parameter(mm)
1 Max diameter of workpiece welding 500
2 Min diameter of workpiece welding 90
3 Max length of workpiece welding 600
4 Max thickness of workpiece;Min thickness of workpiece. <= 2.5 >=0.6
5 Rated input voltage AC220V two phase
6 Frequency 50HZ
7 Rated Input Capacity 1KW



Process flow chart
Cylinder body with seam welding → putting into the welding bracket→Bracket moving →Clamp workpiece→Bracket down,Secede→Start→Ignition welding,Workpiece rotation → Welding one time→Loosen workpiece →Take down workpiece→Followed by recycling.

Equipment Parameter

NO. Item Main parameter(mm)
1 Max welding diameter Φ200
2 Min welding diameter Φ90
3 Max welding length 600
4 Welding 350A
5 Rated input voltage AC220V Two phase
6 Frequency 50HZ
7 Rated Input Capacity 1KW

Hydro testing Equipment

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine1.Process flow chart
Cylinder body of fire extinguisher → Putting in clamp,12 station one time → Compress workpiece→ Start Auto water intake drainage→ exhaust finished,Automatic Hi-pot test pressure maintaining to test the leakage → Finished,Air intake and drainage, After the drainage, Loosen workpiece → Take down workpiece→Followed by recycling
2.Equipment Parameter

No Item Basic parameter(mm)
1 Max diameter of pressure test 200
2 Min diameter of pressure test 90(M30*1.5)
3 Max workpiece length of pressure test 650
4 Testing efficiency 1000pcs/ 8hours
5 Rated input voltage AC380V Three phase
6 Frequency 50HZ
7 Power 5KW

Powder coating production line
&Dry Powder Filling Production Line

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine

Introduction

This is a set of duplex developed by our company for the dry powder filling of fire extinguishers.
Filling machine, conveying line, punching, intubating, tightening and inflating one dry powder filling automatic production line,it is a new filling concept. The entire production line requires only three people to operate and can complete 300 cylinders per hour.

1.Technological Process

Put on the workpieceStartCompress,Vacuum filling→Filling finished, another workpiece fillingFilling finished, Loosen the workpiece,take down workpiece →Followed By Recycling


2.Filling Amount Deviation Requirement

Complete the one-time continuous punching and charging, andFilling Amount Deviation meets the standard requirements:

1-3 kg: ± 3%.
3 kg: ± 2%


3. Technical Parameter
1.Technological Process

Put on the workpieceStartCompress,Vacuum filling→Filling finished, another workpiece fillingFilling finished, Loosen the workpiece,take down workpiece →Followed By Recycling


2.Filling Amount Deviation Requirement

Complete the one-time continuous punching and charging, andFilling Amount Deviation meets the standard requirements:

1-3 kg: ± 3%.
3 kg: ± 2%


3. Technical Parameter

No Item Basic parameter(mm)
1 Max diameter 200
2 Min diameter 90(M30*1.5)
3 Max workpiece of length 700
4 Filling efficiency 300pcs/ 8hours
5 Voltage AC380V Three phase
6 Frequency 50HZ
7 Power 3KW

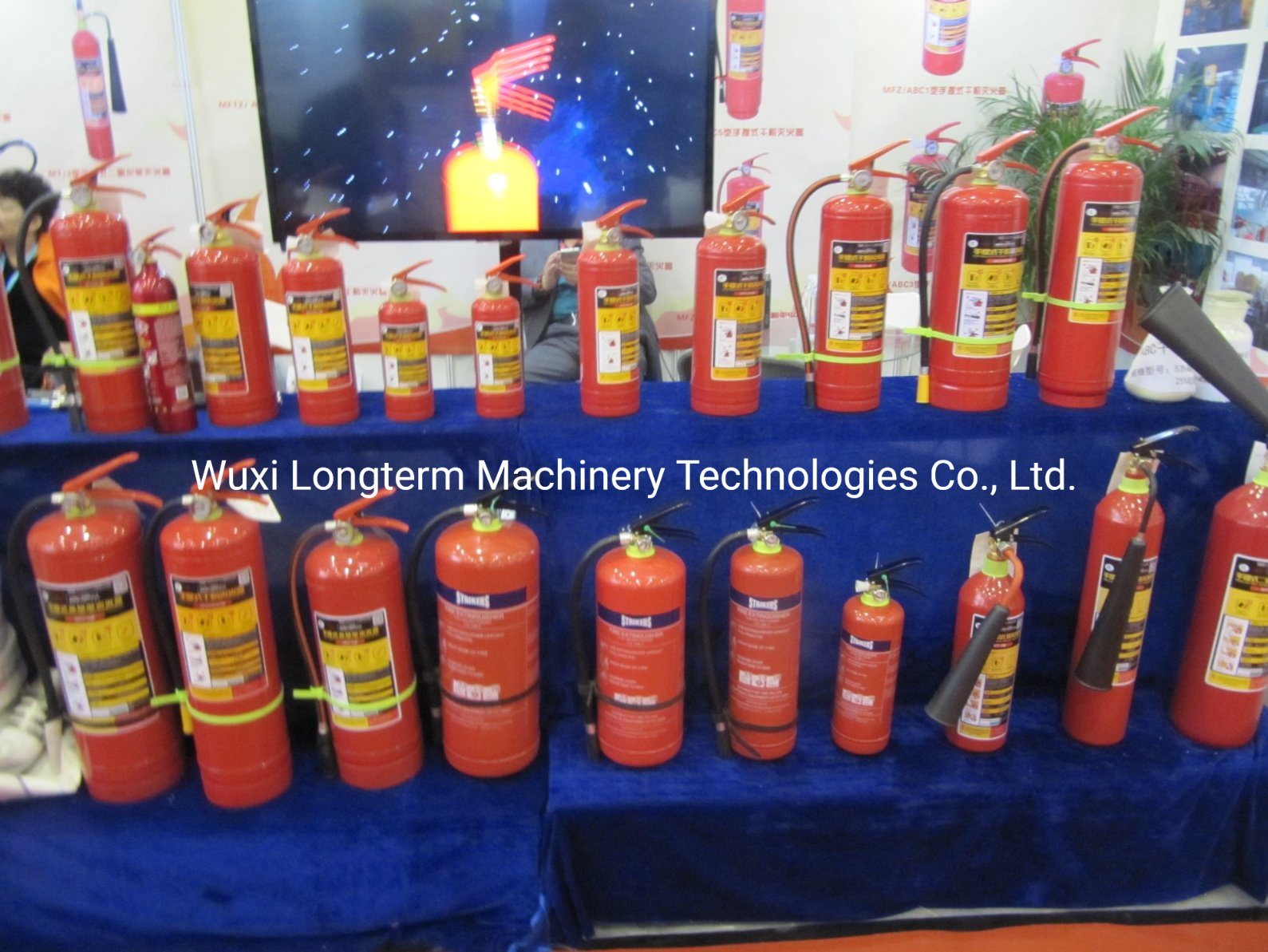

Finish Products
Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine
Our Company

Seamless Fire Extinguisher Cylinder Production Line, 1-12kg Seamless Cylinder Making Machine

Wuxi Longterm Machinery Technologies Co., Ltd. has been engaged in research of welding technology for more than 35 years, we have strong technical strength, rich experience, and mature team. Our machines have been exported to Europe, Asia, and American with good quality and fame. Our company is specialized in designing and producing complete sets of Auto Welding Equipment(TIG, MAG, MIG, PAW), Auto welding system integrations, and related equipment. Widely used in lines of the aerospace industry, chemical industry, mechanical industry, pressure vessel making, water heater making, and stainless steel products. We are developing and innovating new generation complete sets of welding system, we try our best to meet customers' requirements. We warmly welcome you to visit our factory!
