|No. ||Seamless cylinder production line |
|1 ||Cutting machine |
|2 ||Cylinder Bottom Closed Machine |
|3 ||Bottom Leak Testing Machine |
|4 ||Cylinder Head-Shut Machine |
|5 ||Cylinder Automative Drilling Machine |
|6 ||hardening and tempering production line |
|7 ||Threaded Screw Machine |
|8 ||Gantry-type external testing machine (including dryer) |
|9 ||inner shot blasting machine |
|10 ||Outer shot blasting machine |
|11 || Coding Machine |
|12 ||Rivet collar machine |
|13 ||Rivet bottom machine |
|14 ||Spraying line |
|15 ||Valve mounting machine |
|16 ||Cylinder Air Leakage Testing Machine |
Outer shot blasting machine

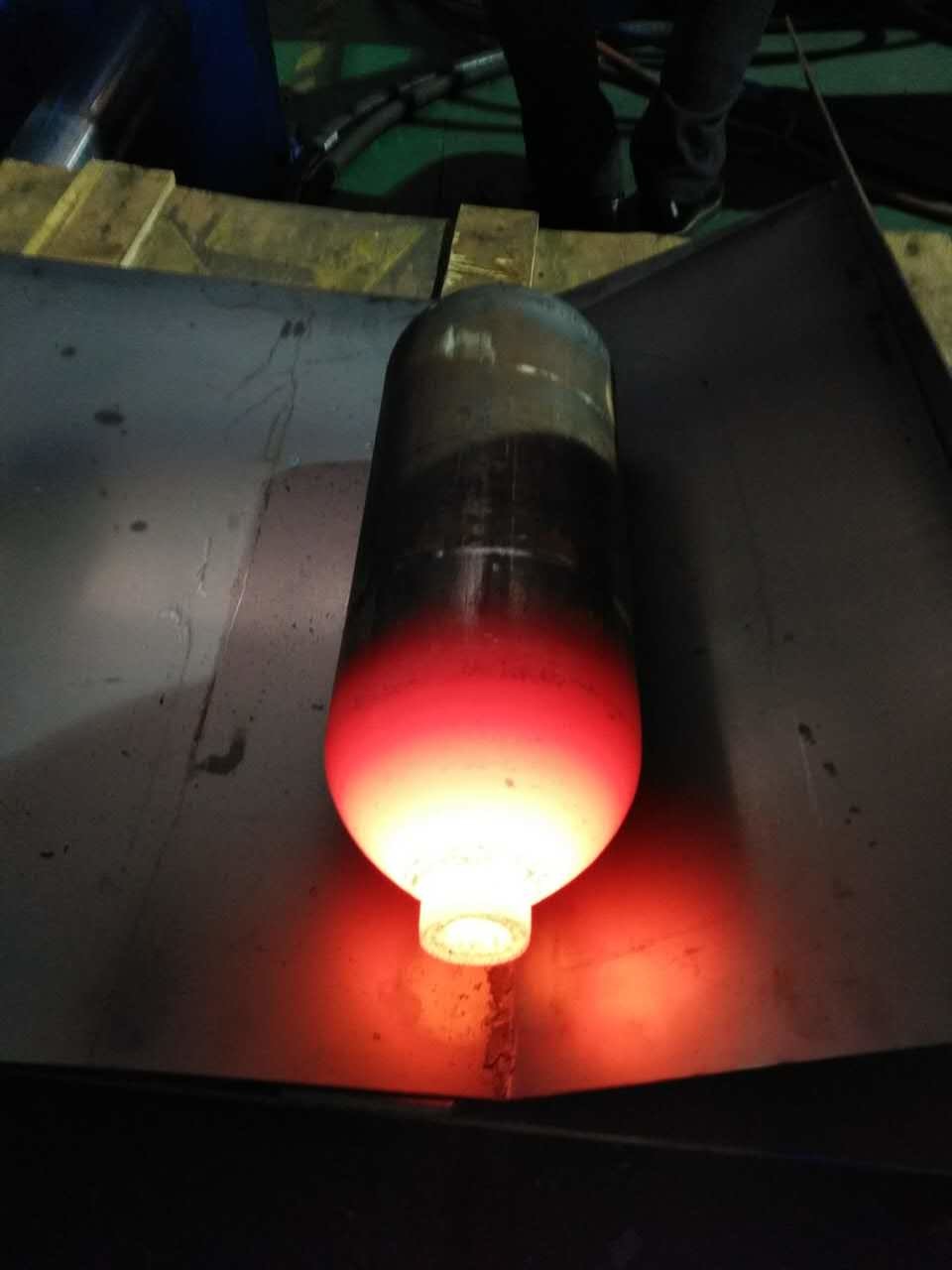

D180 Hot Spinning Machine Technical Parameters
A.Parameters for Cylinder
1-1, Cylinder Material: 34CrMo4 (35 CrMo),37Mn,30 CrMo
1-2, Specification of Cylinder:
- Length: 400--1050mm
- Thickness: 5--12mm
- Weight: <80kg
B. Performance for Hot Spinning Machine
- 2.1, Production rate: <80s/bottle(including the time of input and output material)
2.2, Equipment total power: around 60KW
Main motor: 30KW--6P
2.3, Flap rotation torque: 20KN.m
2.4, Hydraulic system nominal operating pressure:5--8Mpa (Low pressure), 6-15Mpa (High pressure)
2.5, Speed of Mainshaft: 400~450 R/M
2.6, Two optional types for auxiliary heating: Automatic or Manual
C. Structure of Hot Spinning Machine
- 3.1, Hot spinning machine main engine includes main engine chassis, main shaft, jack catch clamping device, grip cylinder, oil dispenser.
3.2, Panel turnover mechanism includes turning plate, turning plate oil cylinder, turning plate bearing(single-boom) and adjusting mechanism, turning plate centre lower than 20mm of main shaft centre, cushion block.
3.3, Equipment includes feeding mechanism, discharge mechanism, air cylinder, removable and adjustable feed frame.
3.4, Steel pipe positioning mode: prelocalization
3.5, Hydraulic system includes high-low pressure pump, control valve and connecting pipeline.
3.6, One set electric control cabinet, one set electric control box.
3.7, Two types for Mould lifting device: Automatic or Manual
D. Component and File Provided
4.1, Jack catch:φ89,φ140,φ180(each diameter one pair)
4.2, Closed bottom die:φ180(one pair)
4.3, Manufacture Certificate, Operation Instruction, Electrical Principle Chart, Hydraulic Principle Chart, Main Component Chart, The Installation Plan, Equipment Shipping List.
