Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

Quantity:



Inquire Add to Basket

Metal Material:
Steel
Spinning Deformation Condition:
Hot Spinning
Spinning Belt Wheel Type:
Rolling V Type Belt Wheel
Spinning Wheel Number:
Double
Finished Product:
Pipe
Finished Product Shape:
Cylinder Shape
Max. Cylinder Diameter:
406mm
Mini Cylinder Diameter:
232mm
Max. Cylinder Length:
2000mm
Mini. Cylinder Length:
750mm
Wall Thickness of Steel Pipe:
5-15mm
Spindle Motor:
144kw (DC)
Axial Stroke of The Slider:
65mm
Radial Stroke of The Slider:
17mm
Radial Clamping Force:
1200kn
Spindle Speed (Adjustable):
0-600rpm
Axial Stroke of The Mold:
450mm
DC Drive:
Siemens
Maximum Axial Force:
246kn
Maximum Axial Feed Speed of The Die:
200mm/S
Maximum Rotary Wheel Torque:
65kn.M
Transport Package:
Plywooden Box or Steel Tray
Specification:
4027*1980*2450
Trademark:
LTM
Origin:
Jiangsu, China
HS Code:
8463900020
Production Capacity:
5000PCS/Year
Customization:
Available | Customized Request

Product Description

Product Description

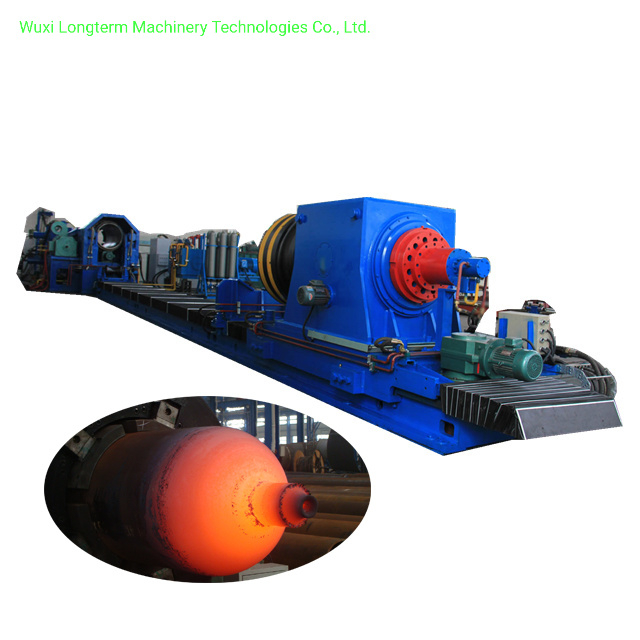

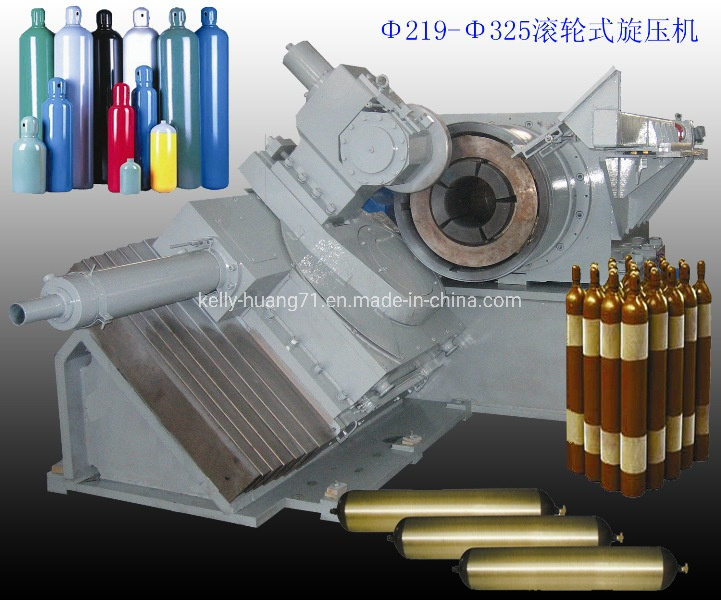

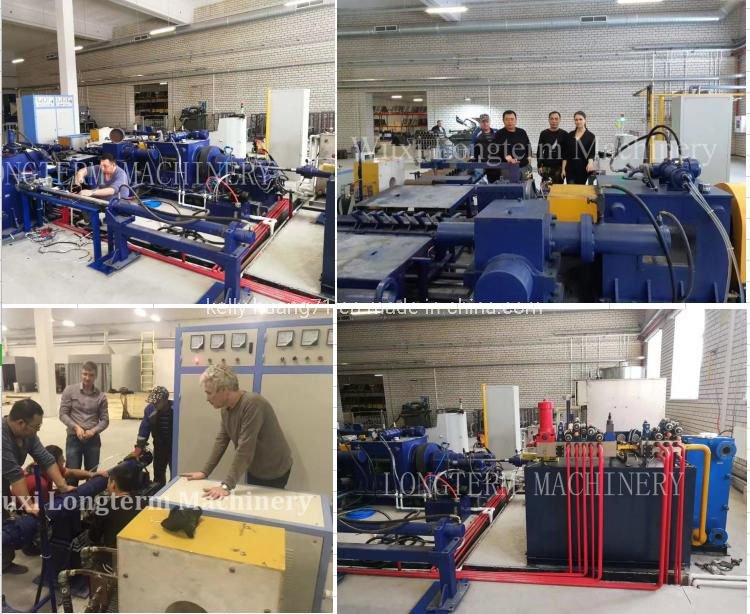

THG406 CNC roller hot spinning machine is based on our company's years of rich experience in manufacturing thermal cyclone, combined with foreign advanced equipment technology, the original technology for a number of technical improvement and developed.
Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

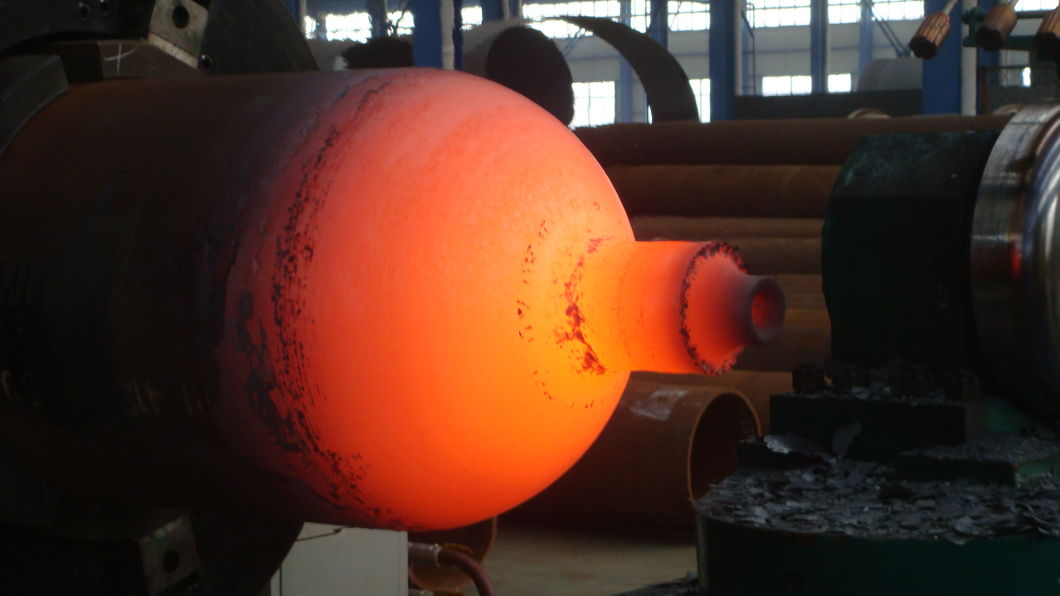

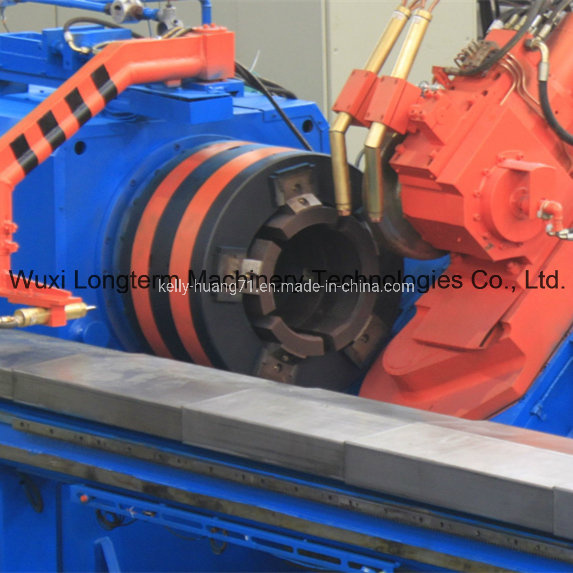

The equipment is mainly used for the formation of high pressure gas cylinder, through the equipment to the pipe at both ends of the bottom, so that the pipe end into a standard spherical, ellipsoidal shape and a simple section of straight line and arc, made into the shoulder section of equal thickness and non-equal thickness high pressure cylinder.

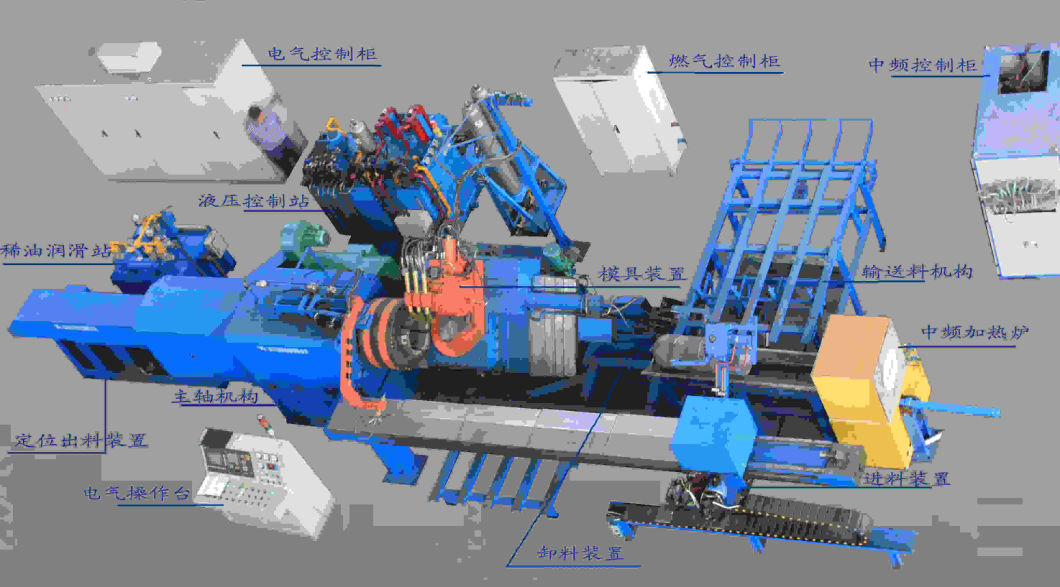

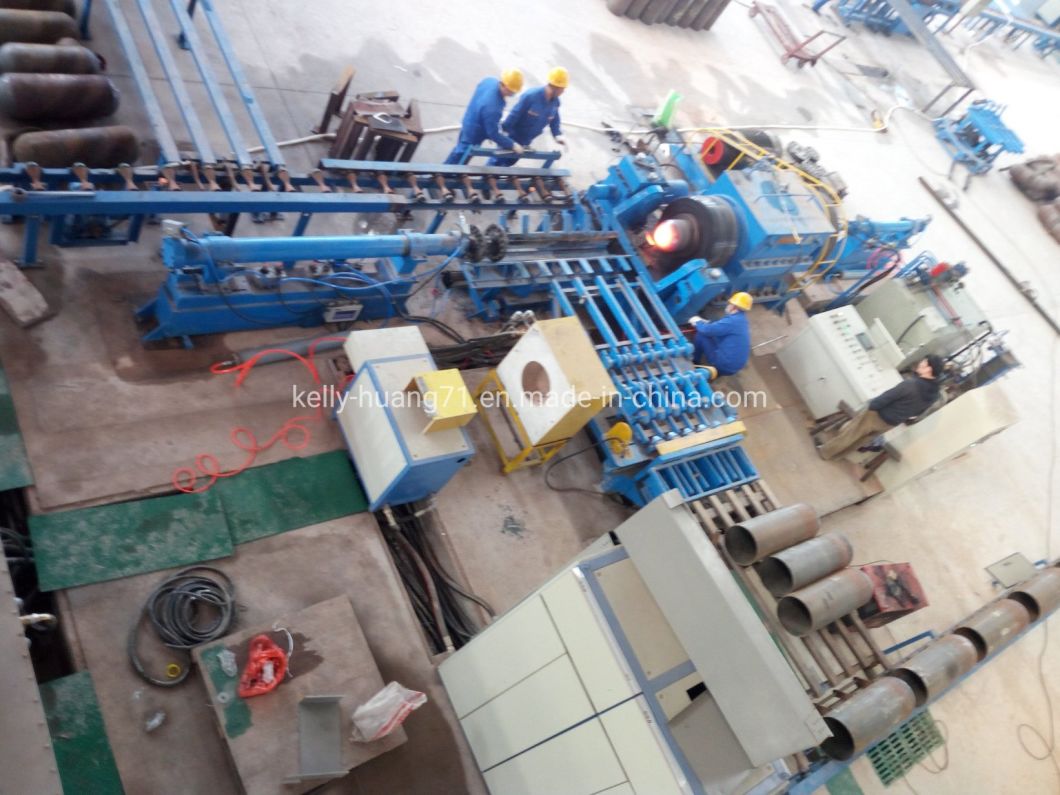

It is mainly composed of conveying mechanism, medium frequency heating system, feeding device, spindle mechanism, rotary mold device, turning device, automatic heating device, feeding device and discharge thrust head, hydraulic system, electrical system, dilute oil lubrication system, etc
Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

Specification of 232 to 406mm roller type neck and bottom hot spinning Machine

Equipment center height	1250 mm (spindle center from the bottom plane of the fuselage)
Spindle motor	144KW (DC)
Axial stroke of the slider	65mm
Radial stroke of the slide	17mm
Radial clamping force	1200KN
Spindle speed	0-600rpm adjustable
DC Drive	Siemens
Maximum axial force	246kn
Maximum axial feed speed of the die	200mm / s
Maximum speed of rotary wheel rotation angle	30° / s
Maximum rotary wheel torque	65KN
Wave Angle	0-100
Hydraulic motor	90kw
Scale speed reversing valve	Italian ATOS
Electronic control system	Siemens 828D
Heating power at the pipe end	500KW / 1000Hz
Pneumatic load	6bar

Hot spinning Making Progress
Pipe delivery- feeding --rotation heating ---unloading-- feeding--hot spinning--unloading.

Machine model	LTG325	LTG406
Processing diameter	DN219-325	DN325-406
Processing length	800-2000mm	800-2000mm
Processing thickness	5-15mm	5-18mm
Central height	1100mm	1200mm
Main engine power	90kW	144kW
Rolling wheel swing angle	100°	100°
Spindle speed	700rpm	700rpm
Control methods	CNC	CNC
Machine dimension	1600x2000x1420mm	1800x2000x1600mm

Medium frequency heating system
Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

The intermediate frequency heating system mainly heated the rotary part of the end of the pipe to the forging temperature (less than 1250ºC) to facilitate the metal flow and plastic deformation. The working principle of medium-frequency heating system is one of the practical applications of electromagnetic induction law.The system uses the induction coil as a primary coil and the steel pipe in the furnace as a secondary coil.When the induction coil on the alternating magnetic flux, most of the flux chain with the steel pipe in the furnace, so the induction potential in the steel pipe, and because the steel pipe is a conductor and closed circuit, under the action of the induction current I, and due to the current surface effect and steel pipe resistance R, so produce a large number of joule heat, so that the furnace heating. The medium frequency heating system is mainly composed of heating furnace body and medium frequency power supply cabinet.

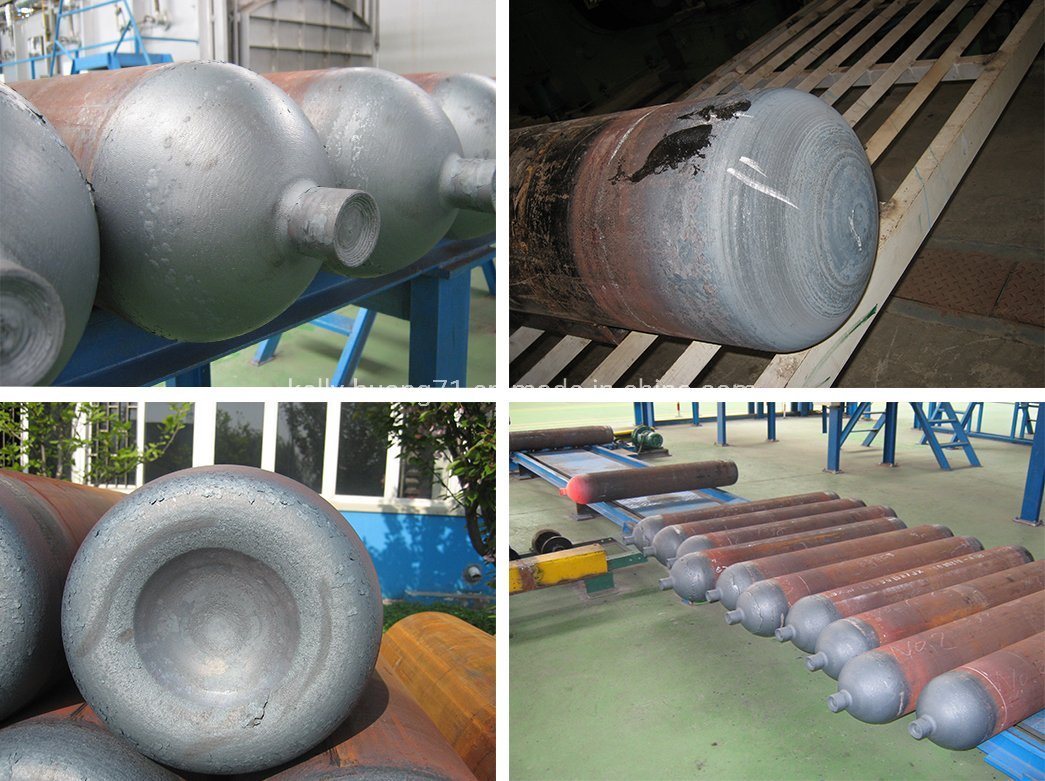

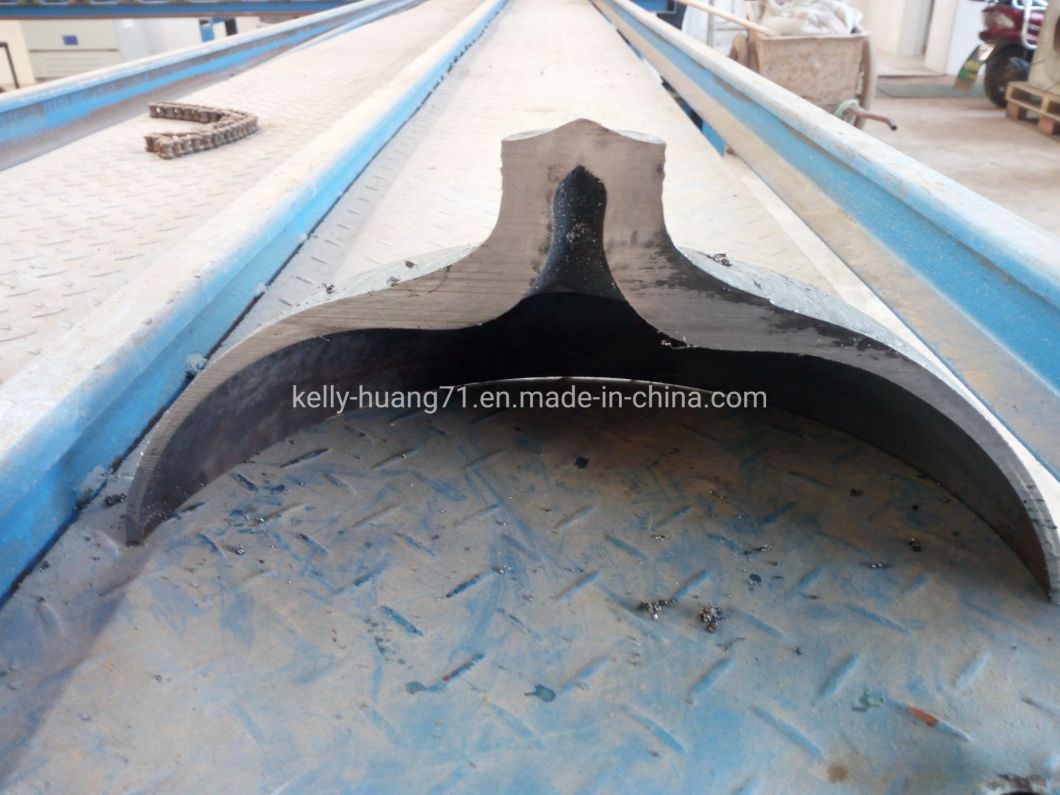

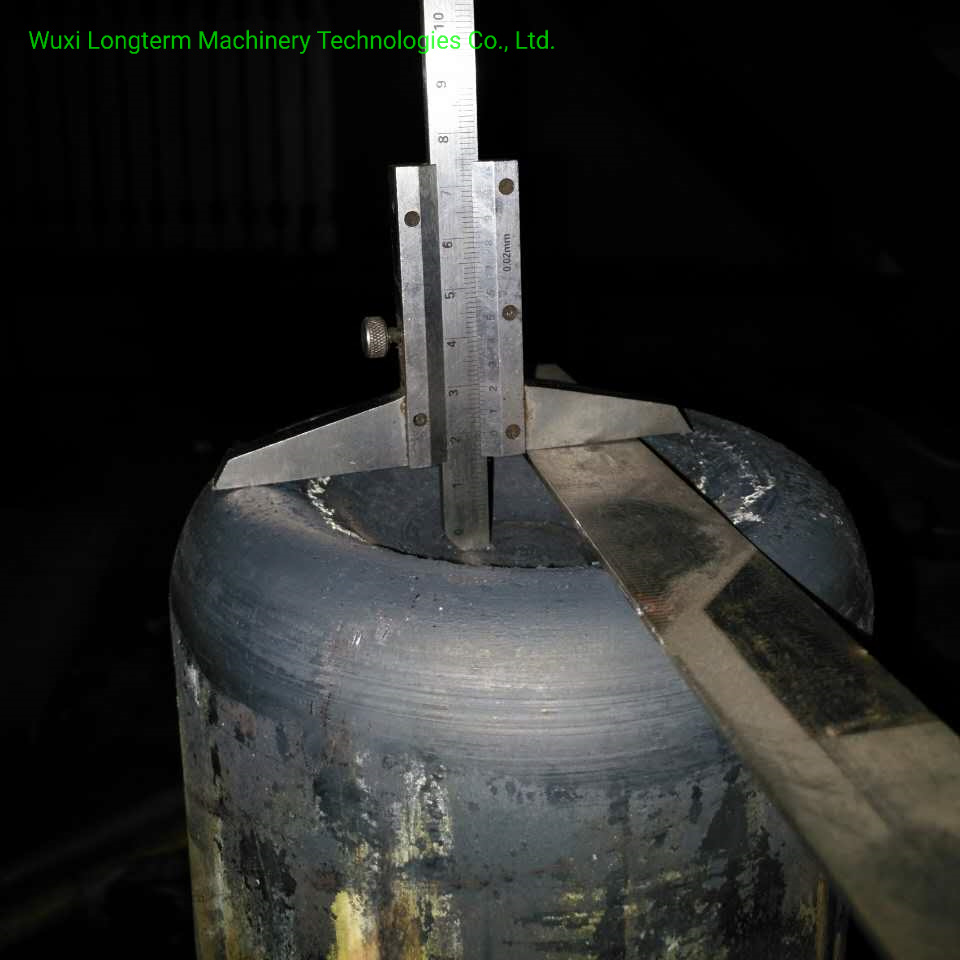

Finished Cylinder
Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

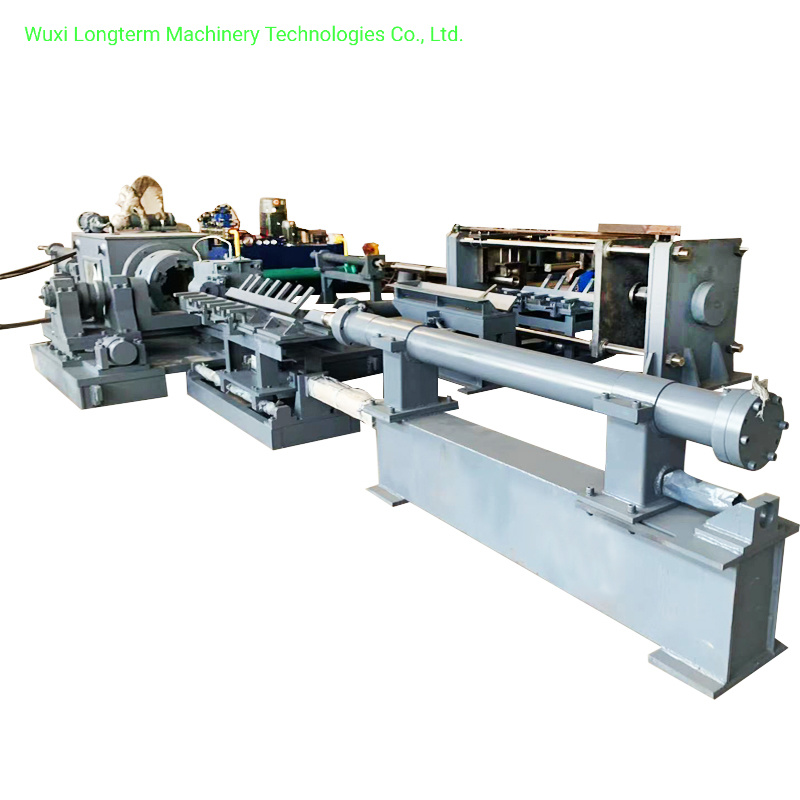

Machine Package

Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

Service

Company

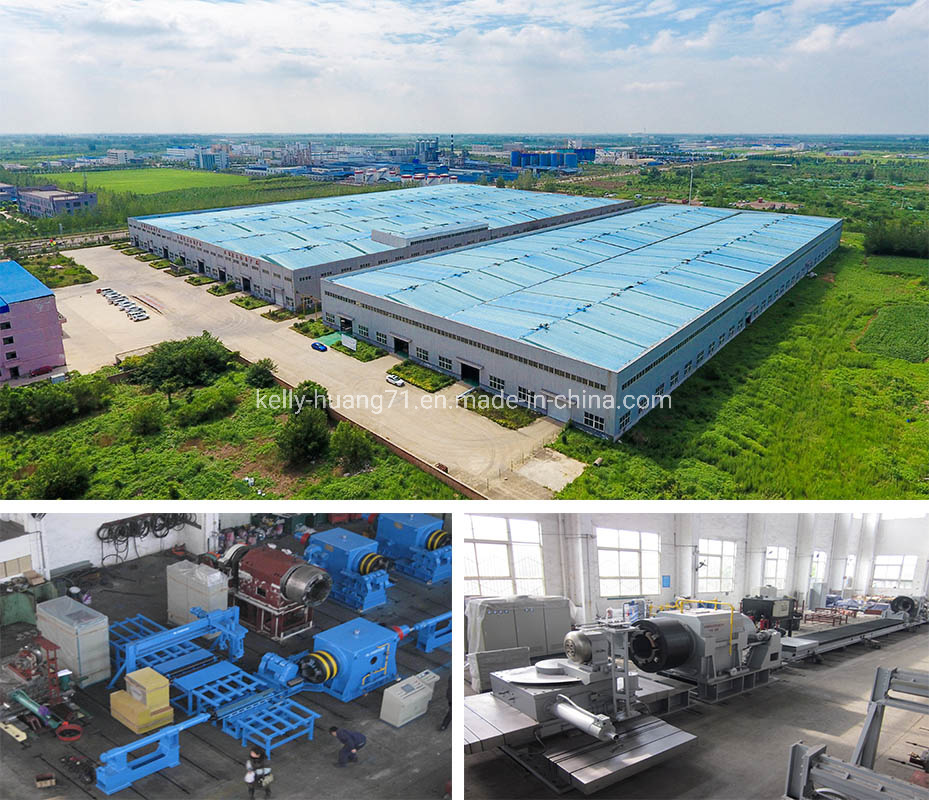

We are professional manufacturer of CNG/LPG/LNG cylinders manufacturing machine for over 30 years. our machines have been exported to Russia, Ukraine, USA, UK, Turkey, Australia, Kenya, Egypt, India etc...
Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

FAQ

Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;

Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.

Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team

Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...

We need to know the following information to make the quotation to you:1. The diamater and technical drawing of the cylinder.
2. Daily capacity.
