Roller/Template Type Hot Spinning Tube Necking Machine

Quantity:
  • LTM
  • Radial Models(JM Series)
  • Hot Spinning
  • Rolling V Type Belt Wheel
  • Triple
  • Cylinder
  • Cylinder Shape
  • 90 Degree
  • 1300 mm
  • 23000 * 3200 * 2300 mm
  • 82mm~180mm
  • Customized
  • Hot Spinning Tube Necking Machine
  • Available
  • Full Automatic
  • 3 Months
  • Template / Roller
  • Automatic
  • Fire Extinguisher, Seamless Cylinder
  • Included
  • Inculded
  • Standard Seaworthy & Strong Package
  • ISO9001
  • Comflex
  • Wuxi, Jiangsu, China(Mainland)
  • 830710000
  • as Requested
  • Available | Customized Request

Product Description

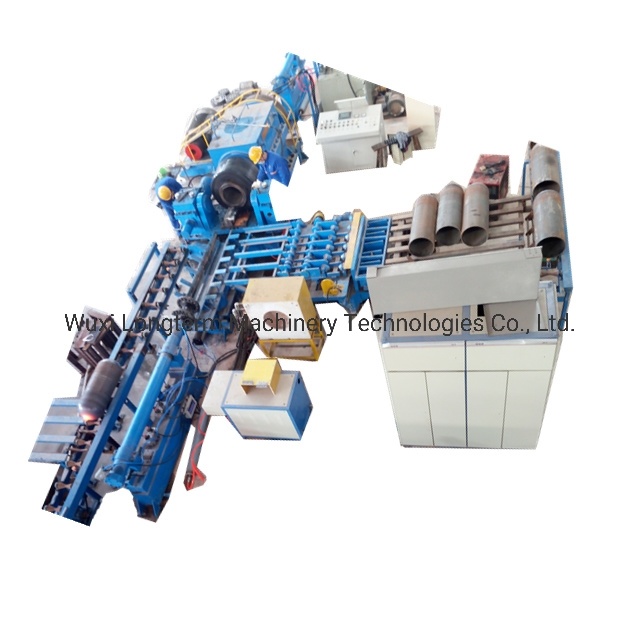

Roller/Template type hot spinning tube necking machine

Roller/Template Type Hot Spinning Tube Necking Machine
I. Technical specification

1. Cylinder material: 34CrMo4 (35CrMo), 37Mn, 30CrMo, 45#, 20#

2. Specifications for cylinder

2.1. Diameter range: φ76~180mm

2.2. Length range:330~1100mm (The max length of the tube is 1250mm)

2.3. Thickness range:<10mm

2.4. Weight:<80kg

3. Production speed: < 80s

4. Spindle speed: 260~520 r/ min

5. The way host spindle chuck clamping: Did not appear the axial sliding after clamping , clamping force can be adjusted according to the need. Clamping force ≤180KN.

6. Hydraulic station: molding-bottom device. scraping- bottom device ,sliding-table and chuck device adopt independent hydraulic system. Tank cooling use heat transfer.

7. Electric control parts adopt famous brand products The frequency converter and PLC are adopted in the corresponding products of Delta Electronics.

8. Mould(die) material: 3Cr2W8V.

9. The swing mould to form bottom have water cooling device.

10. The sliding table with scraper (mould) have thickening function .the scraper can run more than once at horizontal and vertical on the basis of setting parameters in the touch screen at any time

11. Location mode of workpiece adopts the back of the positioning for product conformance The positioning length can be manually adjusted according to the requirements .

12. By replacement of the tooling, mould and adjusting the process parameters, can be quickly implemented different specification products.

13. That machine is for bottom forming and bottom pushing. If you want to save cost, you can also use the machine to form the mouth when you change the moulds. But it is inconvenient to change moulds.

Bottom pressing machine

1. The max pressure for bottom pressing: 150Ton

2. The max traveling distance for bottom pressing: 150mm

3. Main structures: the bottom pressing machine consists of the main frame, inner mould driving

and reversing device, auxiliary tightening device, rotating V-frame etc...

4. Main features: machine main body adopts 4-column structure; the moulds are made from

3Cr2W8V; different sizes of cylinder requires different thickness V-frame, sleeves, and inner and outer mould.

5. The max length of the tube can be 1250mm.

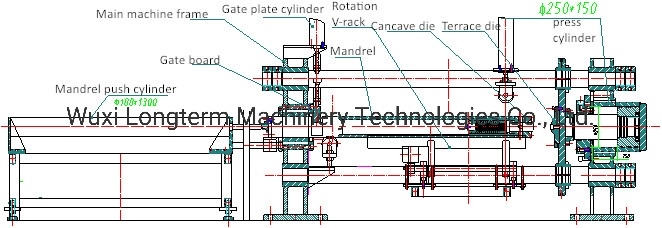

Roller/Template Type Hot Spinning Tube Necking Machine

The main structure can be seen as above. The machine is used to press the bottom after the bottom is formed. Working process: workpiece will enter the V-frame from last process, mandrel pushing cylinder will push the workpiece to the front by pushing the mandrel, the slide actuating cylinder push the gate to the opening of the mandrel, after that, the oil cylinder push slide block to drive the out-die work,and return after forming the bottom. slide actuating cylinder make the gate open,mandrel-push&pull-cylinder drive the mandrel to reset,then the flip cylinder rise up ,the flip V-rack flips through the flip hinge frame,the last,the workpiece is sent to the feeding rack.

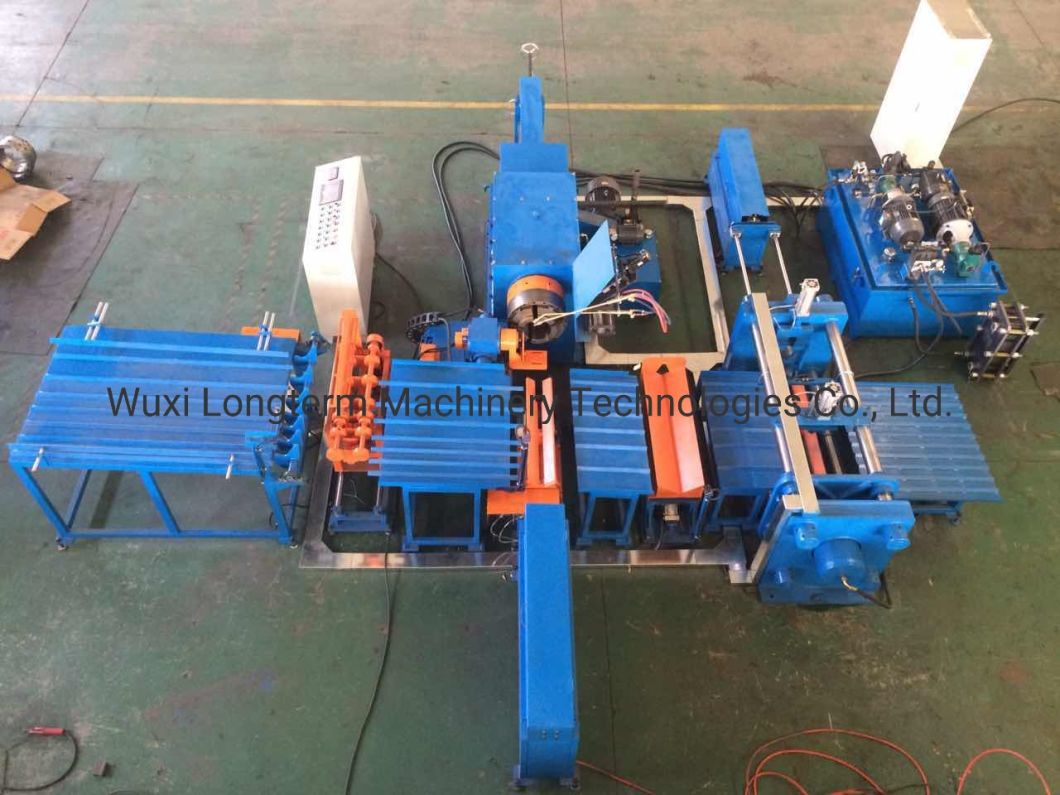

Roller/Template Type Hot Spinning Tube Necking Machine

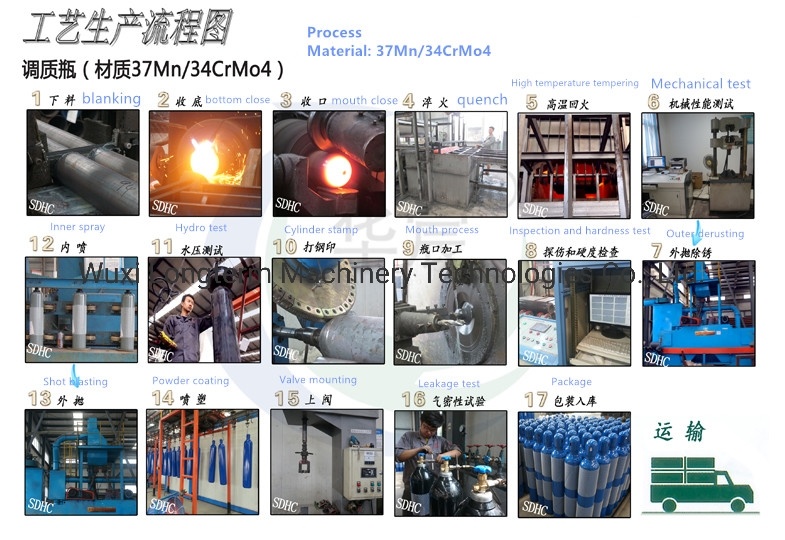

II. Manufacturing process

Roller/Template Type Hot Spinning Tube Necking Machine

III. Machinery testing

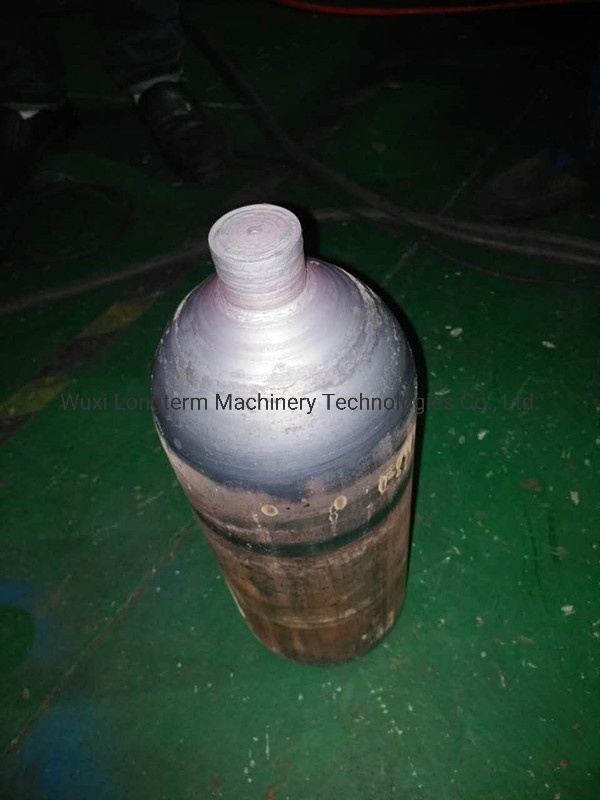

Mouth closing

Roller/Template Type Hot Spinning Tube Necking Machine

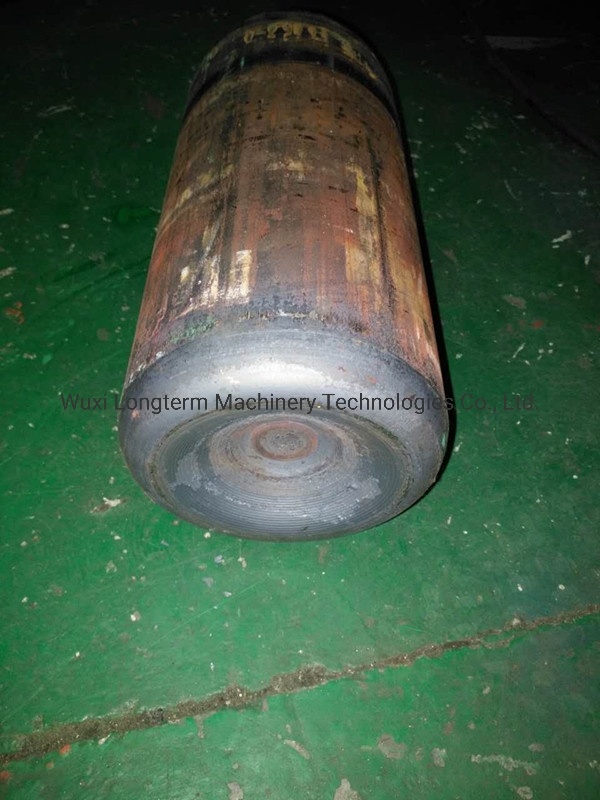

Bottom pressing

Roller/Template Type Hot Spinning Tube Necking Machine

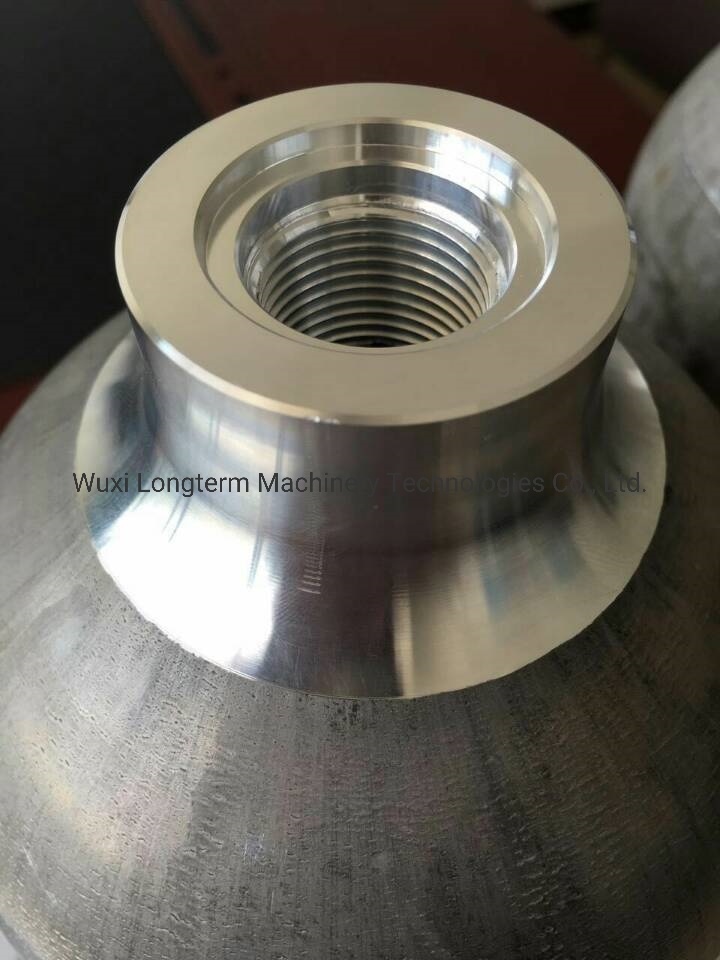

IV. Accessories machine - CNC threading machine

Roller/Template Type Hot Spinning Tube Necking Machine

V. Our equipemtn for different size

CNC ROLLER TYPR SPINNING MACHINE

Machine Model THG622 THG660 THG720 THG920
Processing Dia. (mm) 406~622 406~660 559~720 559~920
Processing Length (mm) 5500-12500 5500-12500 5500-12500 5500-12500
Processing Thickness (mm) 10-30 10-30 10-30 10-30
Central Height (mm) 1300 1300 1300 1300
Main Engine Power (KW) 200 250 280 355
Rolling wheel swing angle 90° 90° 90° 90°
Control Methods CNC CNC CNC CNC
Machine Model THG325 THG406
Processing Dia. (mm) 219~325 325~406
Processing Length (mm) 800-2000 800-2000
Processing Thickness (mm) 5-18 5-18
Central Height (mm) 1100 1200
Main Engine Power (KW) 90 144
Rolling wheel swing angle 100° 100°
Control Methods CNC CNC

CNC Template TYPR SPINNING MACHINE
Machine Model THM232 THM325 THM406
Processing Dia. (mm) 200~232 219~325 325~406
Processing Length (mm) 700-1700 800-2000 800-2000
Processing Thickness (mm) 3-15 5-15 5-18
Central Height (mm) 1000 1100 1200
Main Engine Power (KW) 37 90 110
Rolling wheel swing angle 90° 90° 90°
Control Methods PLC PLC PLC
