Plastic and Steel Bobbin for Wire and Cable

Quantity:
  • Cable/Rope/Strand
  • Ok
  • T/T
  • 25 Days
  • 10 PCS
  • Standard Seaworth Package
  • can be customized
  • HLT
  • China Jiangsu
  • 3926909090
  • 5000PCS/Year
  • US$ 30/Piece 1 Piece(Min.Order) | Request Sample

Product Description

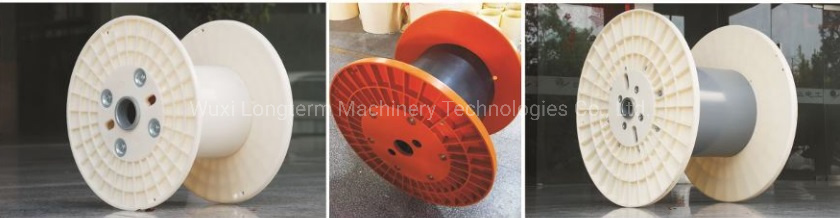

Plastic and Steel Bobbin for Wire and Cable

Product Description
Plastic and Steel Bobbin for Wire and Cable

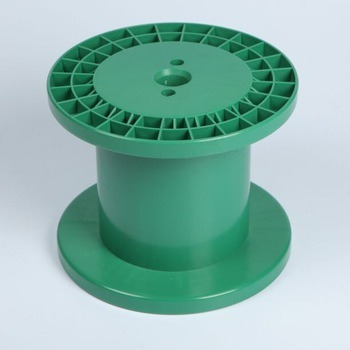

PP plastic spool for wire packing
PA-757KABS engineering plastic. For high speed stranding, fiber, optical cable, communication cables...
1. perfect for electric cable wire.
2. for wire shipping ,not recycle use
3. black pp flange + pvc tube
4. we can advise suitable spool size for u according to your cable OD or meter
5. assembled with screws structure
6. special size custom-made.

Specification
Type
Specification
D1
S
D2
L2
L1
D4
R
E
Plastic Barrel
300
300
12
160
160, 200, 250
185, 225, 275
30, 36, 40
7.5
76-97
400A
400
16
200
120, 250, 263, 265, 280
155, 282, 300, 312
40, 56
10
60-74.5
400B
400
20
200
160, 200, 250
200, 240, 290
40, 56
7.5
75-90
500A
500
20
250
250, 315
300, 375
40, 56, 80
12.5
70.5-98
500B
500
25
250
250, 270, 280, 315
300, 320, 375
56, 80
10.5
70.5-98
Steel Barrel
500C
500
27.5
250
250, 270, 280, 315
300, 320, 375
56, 80
10.5
70.5-98
630A
630
25
250
250, 315, 400
300, 375, 475
56, 80
12
70.5-98
800
800
35
400
400, 500
500, 600
80, 127
15
115-158
1000
1000
40
500
630
750
80, 127
20
114-166

Related Products

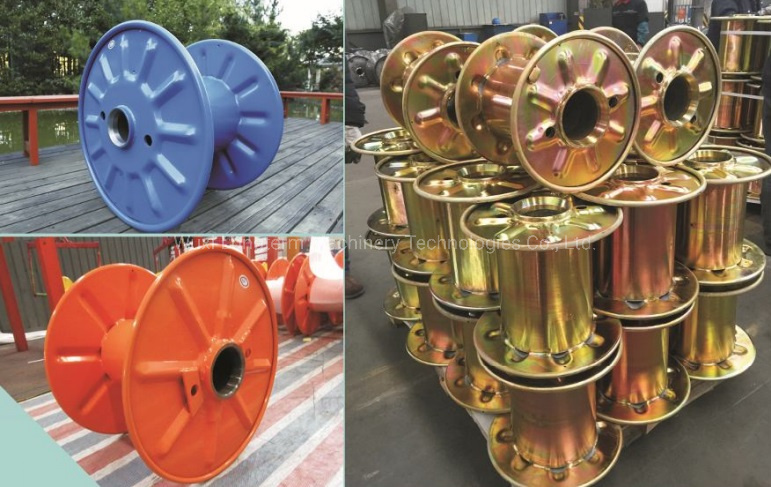

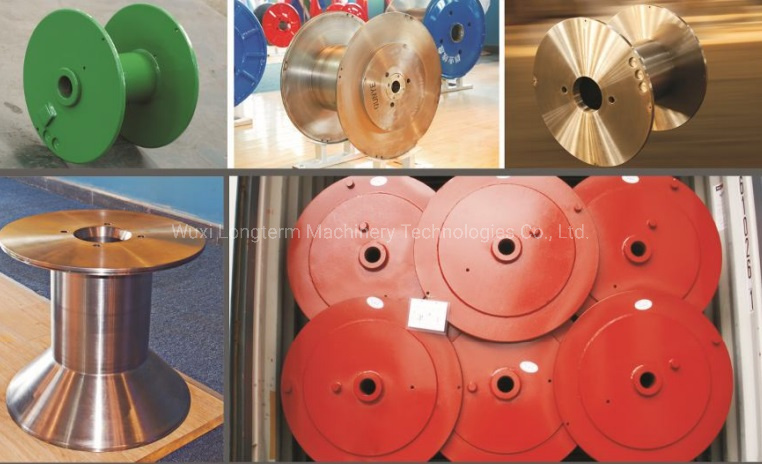

1. Double Layer High Speed Bobbin
Pressed steel flanges. Dimension either according to customer's specification or standard. Dynamic balanced speed from 25m/s to 50m/s. For cable, ferroous and non-ferrous wire. For drawing, stranding and bunching machines.
Plastic and Steel Bobbin for Wire and Cable

2. Flat High Speed Bobbin
Steel bobbin with massive flanges, barrel, bore and hub. Dimension either according to customer's specification or standard. Dynamic balanced speed from 25m/s to 50m/s. For cable, ferroous and non-ferrous wire. For drawing, stranding and bunching machines.
Plastic and Steel Bobbin for Wire and Cable

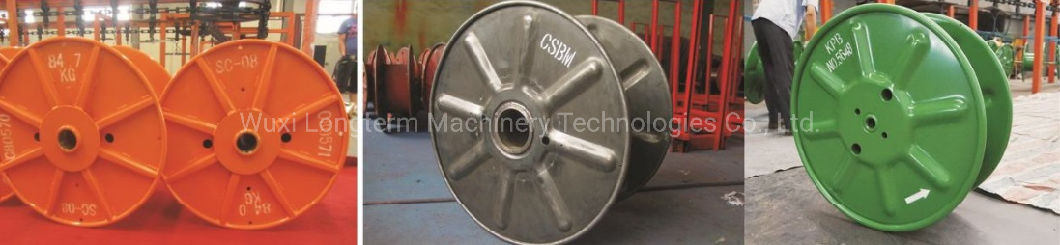

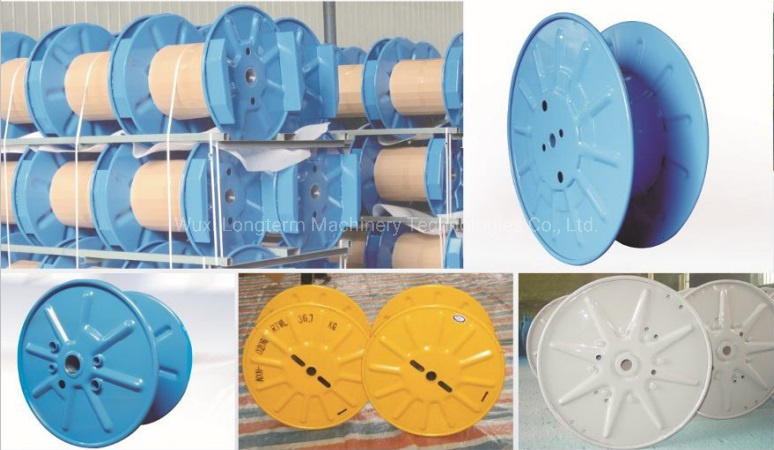

3. PN Punching Bobbin
Pressed steel bobbin. Dimension either according to customer's specification or standard. FOr cable, steel wire, steel rope, copper, aluminium and welding wire, press, one-way or shipping bobbin.
Plastic and Steel Bobbin for Wire and Cable

4. PND Punching Bobbin
Pressed steel bobbin. Dimension either according to customer's specification or standard. For cable, steel wire, steel rope, copper, aluminium and welding wire, press, one-way or shipping bobbin.
Plastic and Steel Bobbin for Wire and Cable

5. Metal Flange Process Bobbin Pressed steel bobbin. Dimension either according to customer's specification or standard. FOr cable, steel wire, steel rope,
copper, aluminium and welding wire, press, one-way or shipping bobbin.
Plastic and Steel Bobbin for Wire and Cable

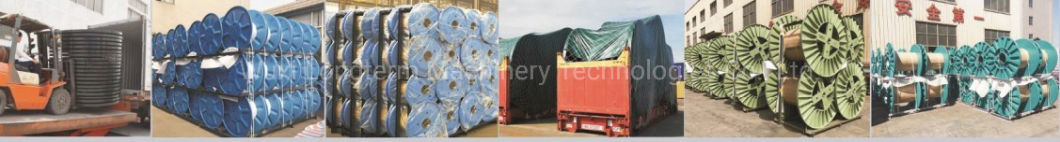

Packing & Delivery
Plastic and Steel Bobbin for Wire and Cable
Plastic and Steel Bobbin for Wire and Cable

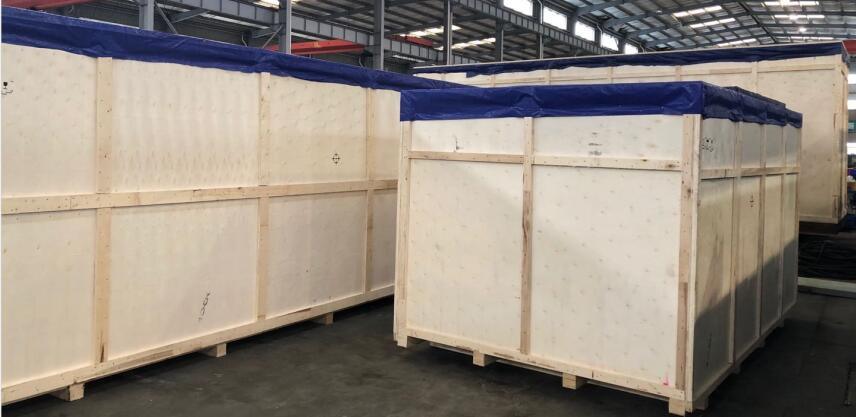

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profie
Plastic and Steel Bobbin for Wire and Cable
Wuxi Longterm Machinery Technologies Co., Ltd., a specialized spools manufacturer and become Chinese leader for quality and service in decade years. We currently have three factories with total land area of 60,000sqm, built in area of 35,000sqm.Our high standard workshops and office, first class equipment lines and complete inspect facilities, advanced management and quality control philosophy to fulfill all customer's requirements. In 1993, we approved ISO9001-2000 and LONGTERM rewarded the title of FAMOUS BRAND in Jiangsu Province. At the meantime the standardization and metrology confirmation provides our user with a full range of technical support and services. Our produces are widely used in the field of high voltage, middle and low voltage, XLPE, power cables, optical fiber cables, telecommunication cables, steel wires and ropes as well as in the textile industry. Bobbins have been exported to Europe and the United States, Australia, Southeast Asia, Middle East and win high reputation from our customer continuously. We hold the idea of 'Pursue and Produce Outstanding, Customer First' to give best servise to the customers and lead national reels industry throughout the whole world.

Certifications
Plastic and Steel Bobbin for Wire and Cable

Our team & customers
Plastic and Steel Bobbin for Wire and Cable

FAQ
Q1. Are you manufacture or trade company?
A: We are manufacture.
Q2. What kind of payment do you accept?
A: Trade assurance, T/T, L/C, Weston Union are all accepted.
Q3. What is normal lead time?
A: Average 7-25days for tooling, bulk orders should be depends on quantity.
Q4. What is your standard package?
A: In general we use ziplock bag or bubble film plus cardboard boxes, wooden pallets or wooden cased will be used if necessary. Special packing method is available if needed.
Q5. What is the working life of the mould?
A: It depends on the parts we made. Besides, we will maintain or replace the mould by ourselves.
Enable us to make a quotation for you. pls kindly revert to us for the below information:
1) Technical drawing of the bobbin
2) Material of the cables
3) Working pressure
