Dr-8-a Military Telephone Wire Army Communication Electrical Cable Reel

Quantity:



Inquire Add to Basket

Condition:
New
Products:
Cable Wire Bobbin
Advantage:
Long Life Service
Application:
Cable/Rope/Strand
Free Sample:
Ok
Payment Term:
T/T
Delivery Time:
25 Days
MOQ:
10 PCS
Transport Package:
Standard Seaworth Package
Specification:
can be customized
Trademark:
HLT
Origin:
China Jiangsu
HS Code:
3926909090
Production Capacity:
5000PCS/Year
Package size per unit product:
35.00cm * 30.00cm * 25.00cm
Gross weight per unit product:
15.000kg
Type:
Bobbin
Certification:
CCC, ISO
Customized:
Customized

Product Description

Product Description

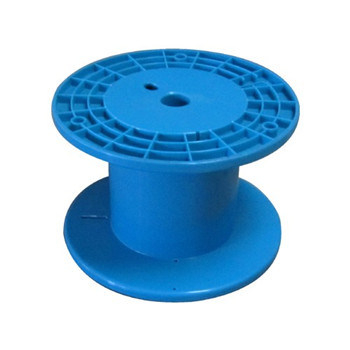

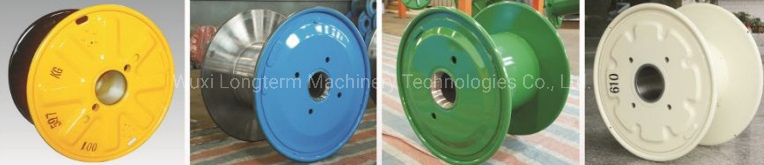

Dr-8-a Military Telephone Wire Army Communication Electrical Cable Reel

Product Description

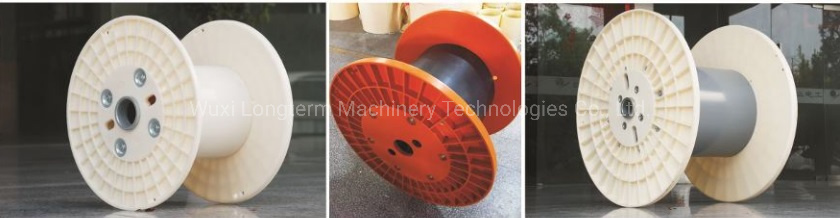

PP plastic spool for wire packing

PA-757KABS engineering plastic. For high speed stranding, fiber, optical cable, communication cables...
1. perfect for electric cable wire.
2. for wire shipping ,not recycle use
3. black pp flange + pvc tube
4. we can advise suitable spool size for u according to your cable OD or meter
5. assembled with screws structure
6. special size custom-made.

Specification

Type	Specification	D1	S	D2	L2	L1	D4	R	E
Plastic Barrel	300	300	12	160	160, 200, 250	185, 225, 275	30, 36, 40	7.5	76-97
	400A	400	16	200	120, 250, 263, 265, 280	155, 282, 300, 312	40, 56	10	60-74.5
	400B	400	20	200	160, 200, 250	200, 240, 290	40, 56	7.5	75-90
	500A	500	20	250	250, 315	300, 375	40, 56, 80	12.5	70.5-98
	500B	500	25	250	250, 270, 280, 315	300, 320, 375	56, 80	10.5	70.5-98
Steel Barrel	500C	500	27.5	250	250, 270, 280, 315	300, 320, 375	56, 80	10.5	70.5-98
	630A	630	25	250	250, 315, 400	300, 375, 475	56, 80	12	70.5-98
	800	800	35	400	400, 500	500, 600	80, 127	15	115-158
	1000	1000	40	500	630	750	80, 127	20	114-166

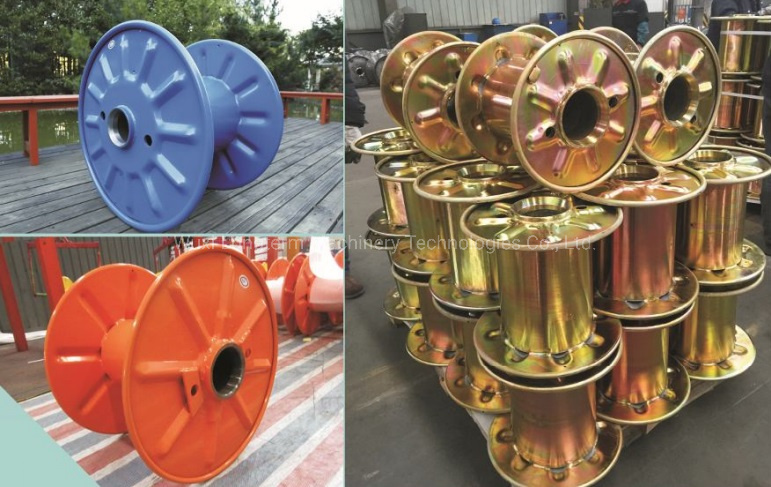

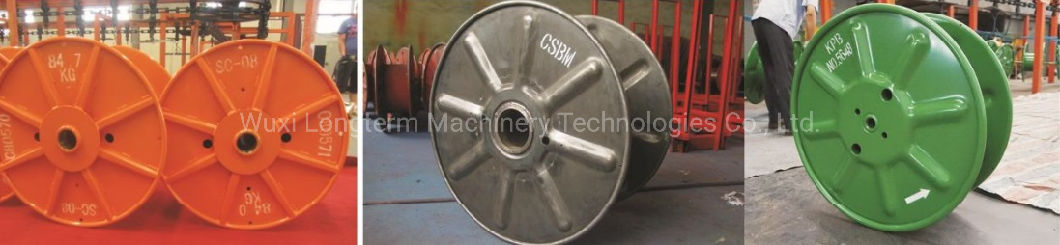

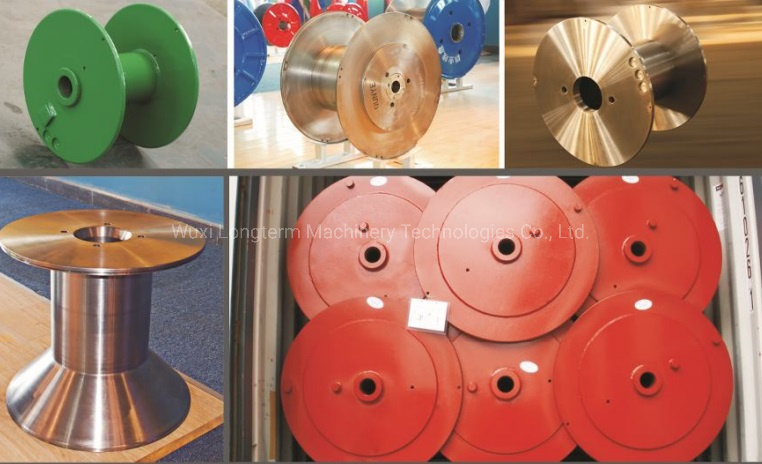

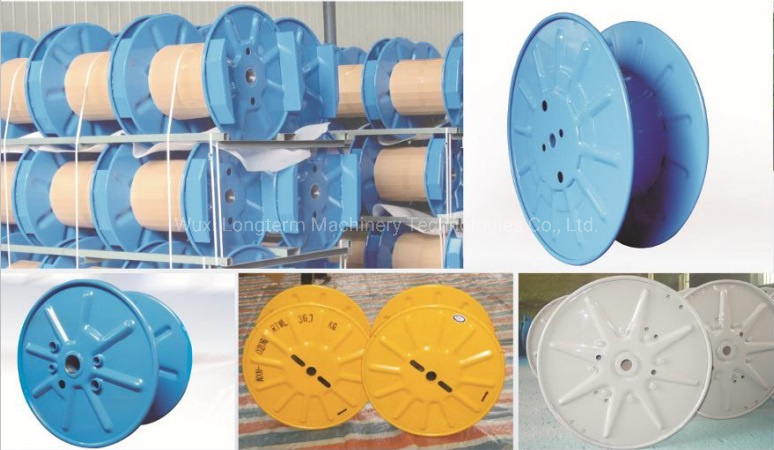

Related Products
1. Double Layer High Speed Bobbin

Pressed steel flanges. Dimension either according to customer's specification or standard. Dynamic balanced speed from 25m/s to 50m/s. For cable, ferroous and non-ferrous wire. For drawing, stranding and bunching machines.

2. Flat High Speed Bobbin

Steel bobbin with massive flanges, barrel, bore and hub. Dimension either according to customer's specification or standard. Dynamic balanced speed from 25m/s to 50m/s. For cable, ferroous and non-ferrous wire. For drawing, stranding and bunching machines.

3. PN Punching Bobbin

Pressed steel bobbin. Dimension either according to customer's specification or standard. FOr cable, steel wire, steel rope, copper, aluminium and welding wire, press, one-way or shipping bobbin.

4. PND Punching Bobbin

Pressed steel bobbin. Dimension either according to customer's specification or standard. For cable, steel wire, steel rope, copper, aluminium and welding wire, press, one-way or shipping bobbin.

5. Metal Flange Process Bobbin Pressed steel bobbin. Dimension either according to customer's specification or standard. FOr cable, steel wire, steel rope,
copper, aluminium and welding wire, press, one-way or shipping bobbin.

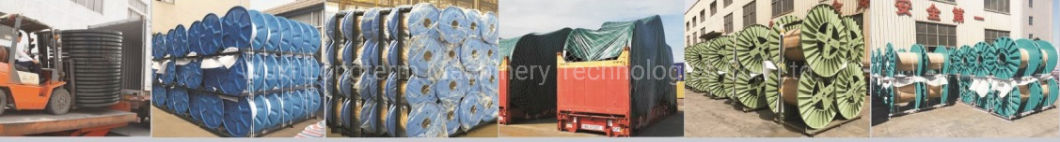

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profie
Dr-8-a Military Telephone Wire Army Communication Electrical Cable Reel

Wuxi Longterm Machinery Technologies Co., Ltd., a specialized spools manufacturer and become Chinese leader for quality and service in decade years. We currently have three factories with total land area of 60,000sqm, built in area of 35,000sqm.Our high standard workshops and office, first class equipment lines and complete inspect facilities, advanced management and quality control philosophy to fulfill all customer's requirements. In 1993, we approved ISO9001-2000 and LONGTERM rewarded the title of FAMOUS BRAND in Jiangsu Province. At the meantime the standardization and metrology confirmation provides our user with a full range of technical support and services. Our produces are widely used in the field of high voltage, middle and low voltage, XLPE, power cables, optical fiber cables, telecommunication cables, steel wires and ropes as well as in the textile industry. Bobbins have been exported to Europe and the United States, Australia, Southeast Asia, Middle East and win high reputation from our customer continuously. We hold the idea of 'Pursue and Produce Outstanding, Customer First' to give best servise to the customers and lead national reels industry throughout the whole world.

Certifications
Dr-8-a Military Telephone Wire Army Communication Electrical Cable Reel

Our team & customers

FAQ

Q1. Are you manufacture or trade company?

A: We are manufacture.

Q2. What kind of payment do you accept?

A: Trade assurance, T/T, L/C, Weston Union are all accepted.

Q3. What is normal lead time?

A: Average 7-25days for tooling, bulk orders should be depends on quantity.

Q4. What is your standard package?

A: In general we use ziplock bag or bubble film plus cardboard boxes, wooden pallets or wooden cased will be used if necessary. Special packing method is available if needed.
