Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools

Quantity:
  • HLT

  • Cable, Steel Wire, Steel Rope, Copper, Aluminium

  • 30 Days

  • 250-1250mm

  • GB4004-83, Jb/T8997.4-1999, DIN46395

  • Can Be Customized

  • Pressed

  • Available

  • Standard Seaworthy Package

  • ISO9001

  • HLT

  • Jiangsu, China

  • 7326909000

  • 500000PCS Per Year

  • US$ 220/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Factory Price Corrugated Cable Bobbin/Reel/Spool Flat High Speed Bobbin^
Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools

Strandard GB4004-83,JB/T8997,4-1999, DIN46395/DIN46397

Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools

Application

Steel bobbin with massive flanges/barrel/bore and hub.
Dimension either according to customers specification
Dynamically balanced for speed from 25m/s--50m/s
For cable,ferrous and non-ferrous wire.
For drawing, stranding and bunching machines
Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools
Specification
Type
Specification
D1
S
D2
L2
L1
D4
R
E
Plastic Barrel
300
300
12
160
160, 200, 250
185, 225, 275
30, 36, 40
7.5
76-97
400A
400
16
200
120, 250, 263, 265, 280
155, 282, 300, 312
40, 56
10
60-74.5
400B
400
20
200
160, 200, 250
200, 240, 290
40, 56
7.5
75-90
500A
500
20
250
250, 315
300, 375
40, 56, 80
12.5
70.5-98
500B
500
25
250
250, 270, 280, 315
300, 320, 375
56, 80
10.5
70.5-98
Steel Barrel
500C
500
27.5
250
250, 270, 280, 315
300, 320, 375
56, 80
10.5
70.5-98
630A
630
25
250
250, 315, 400
300, 375, 475
56, 80
12
70.5-98
800
800
35
400
400, 500
500, 600
80, 127
15
115-158
1000
1000
40
500
630
750
80, 127
20
114-166

Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools
Specification

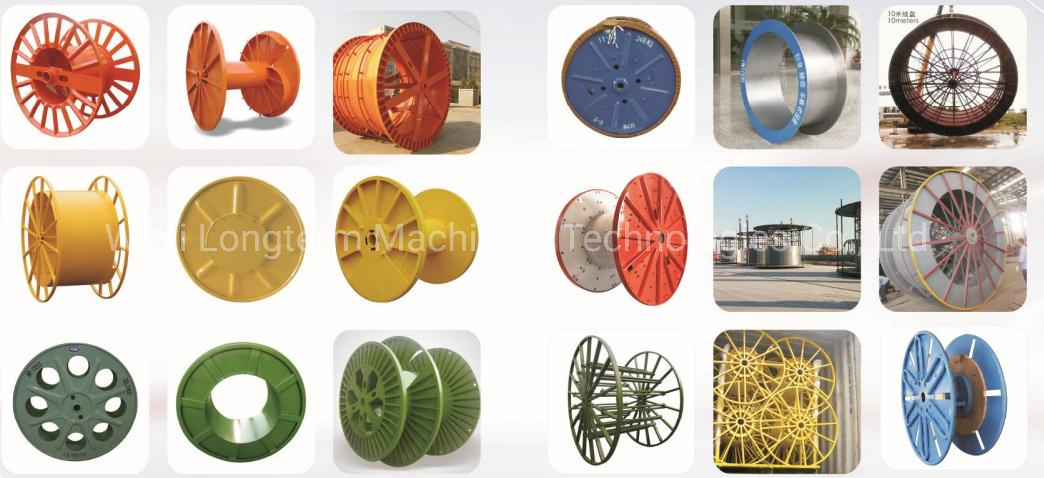

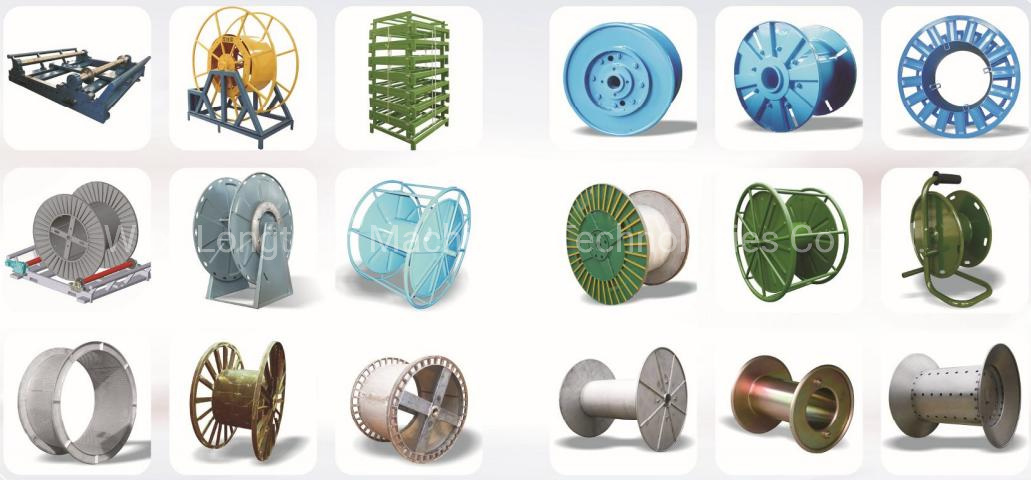

Other relevant bobbins that we can supply, such as double layer high speed bobbin, flat high speed bobbin, PN punching bobbin, PND punching bobbin, Metal flange process bobbin, enhanced type machine bobbin, corrugated bobbin, reinforced corrugated bobbin etc...
Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools

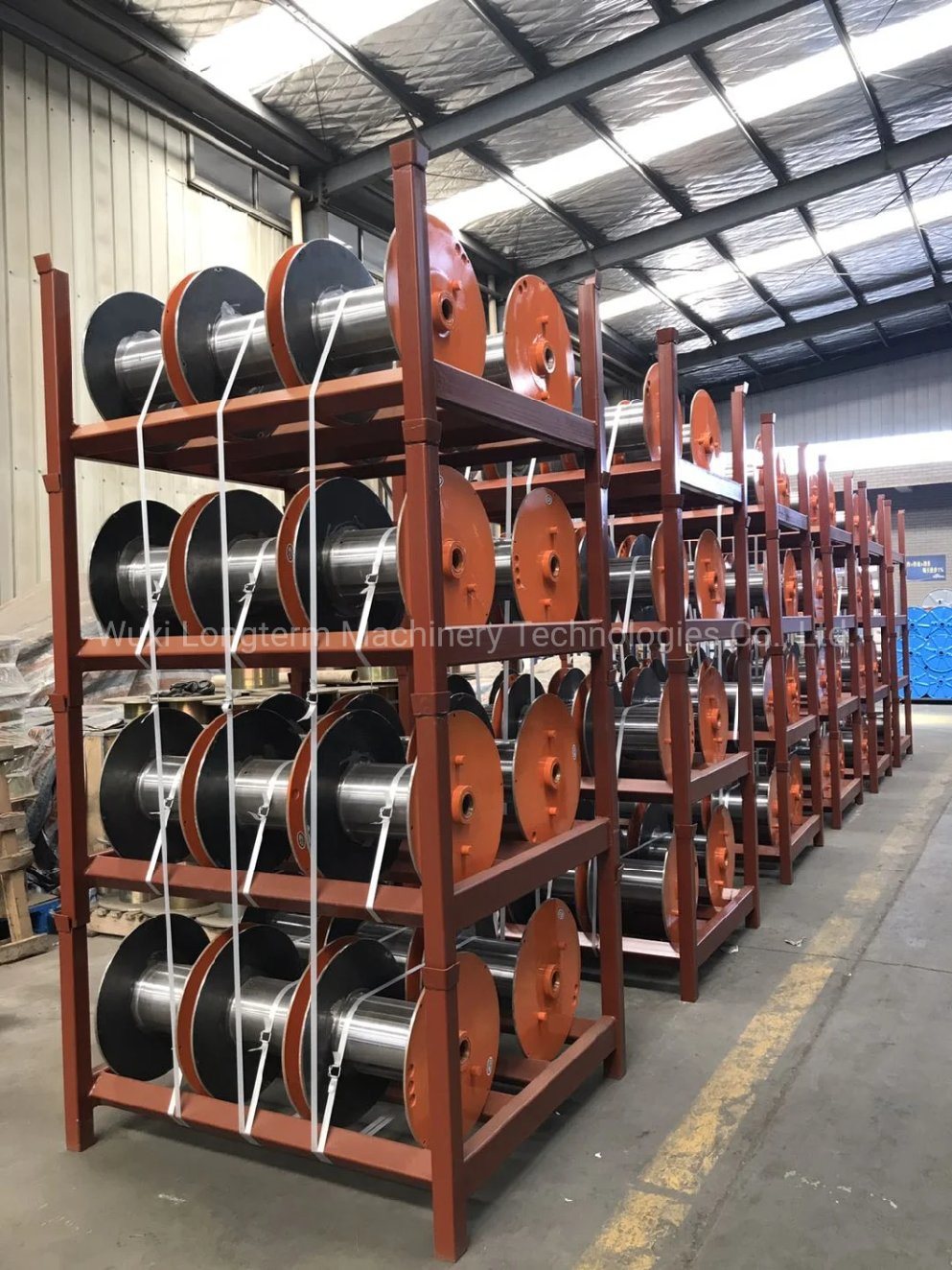

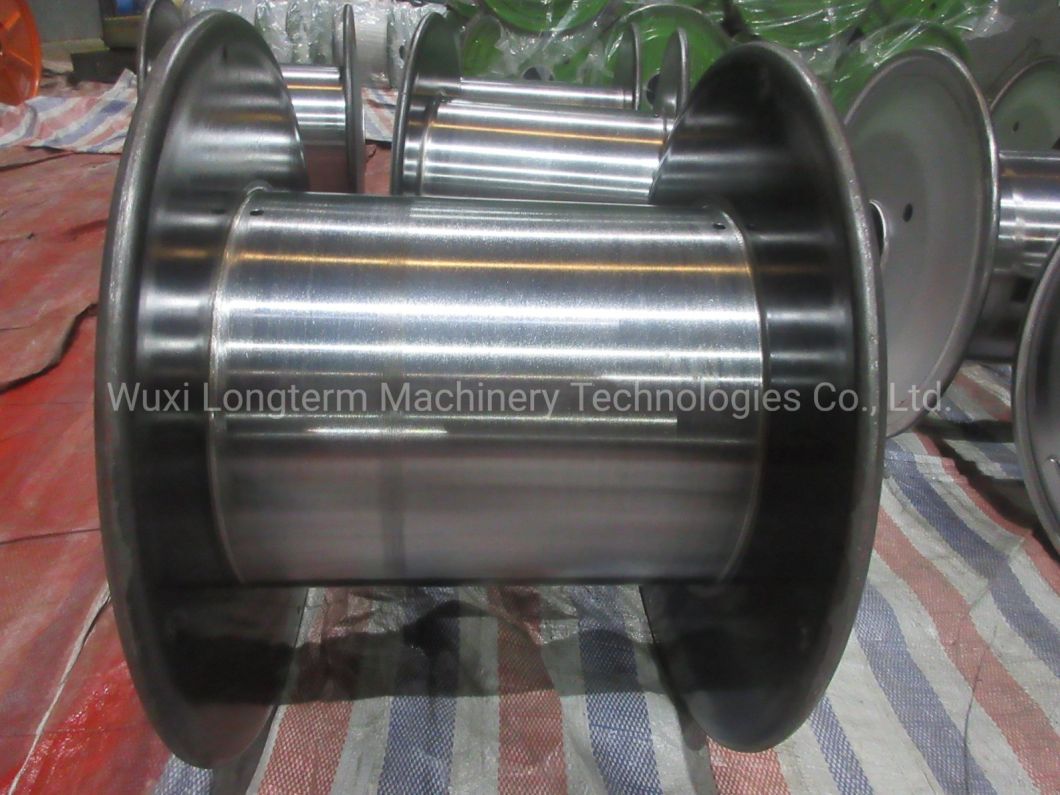

Steel reel/bobbin exported to USA

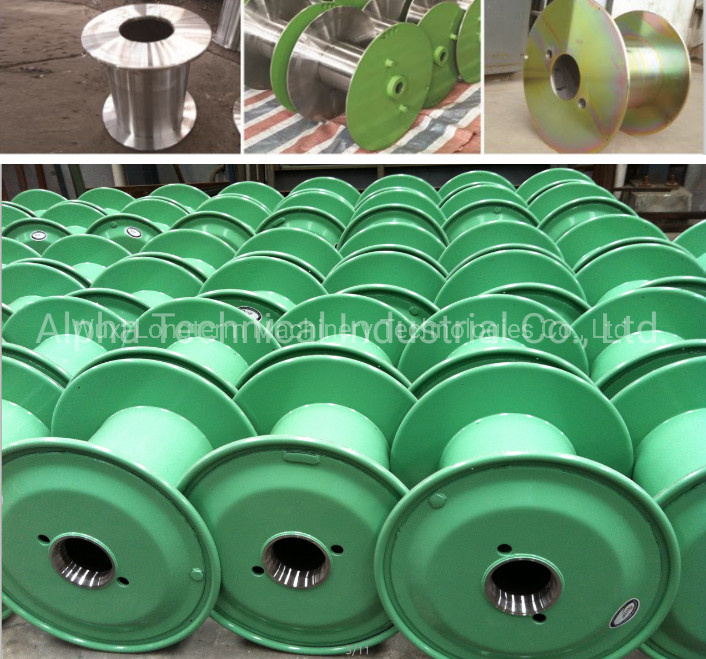

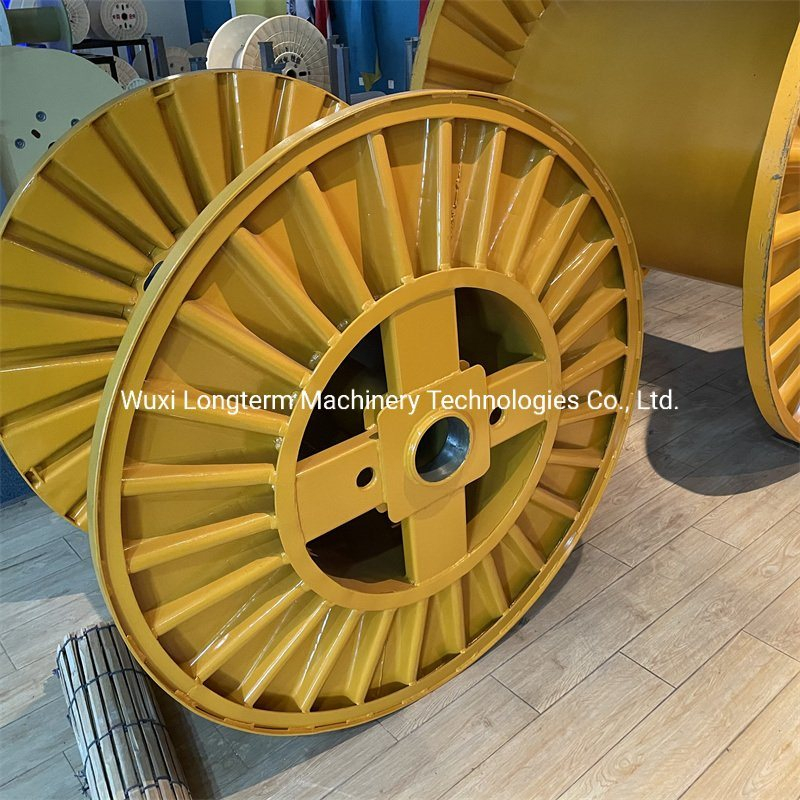

High Performance Metal Material Punching Steel Wire Cable Bobbin/Drum/Reel

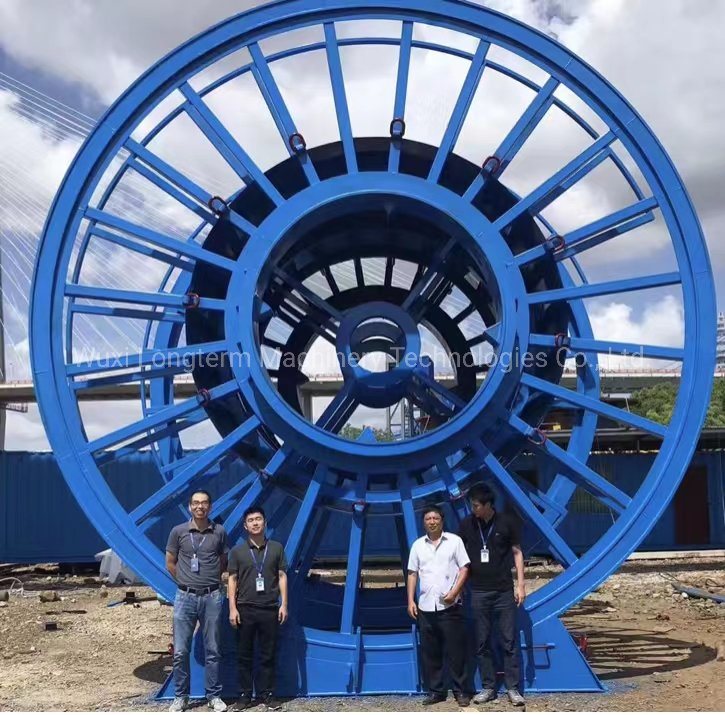

Cable Spool

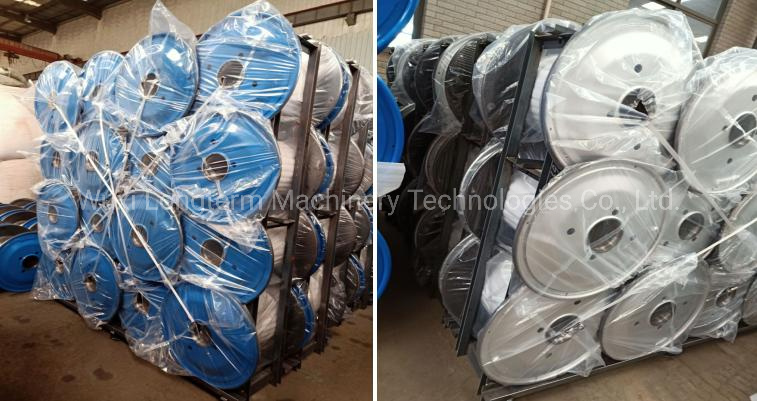

Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools

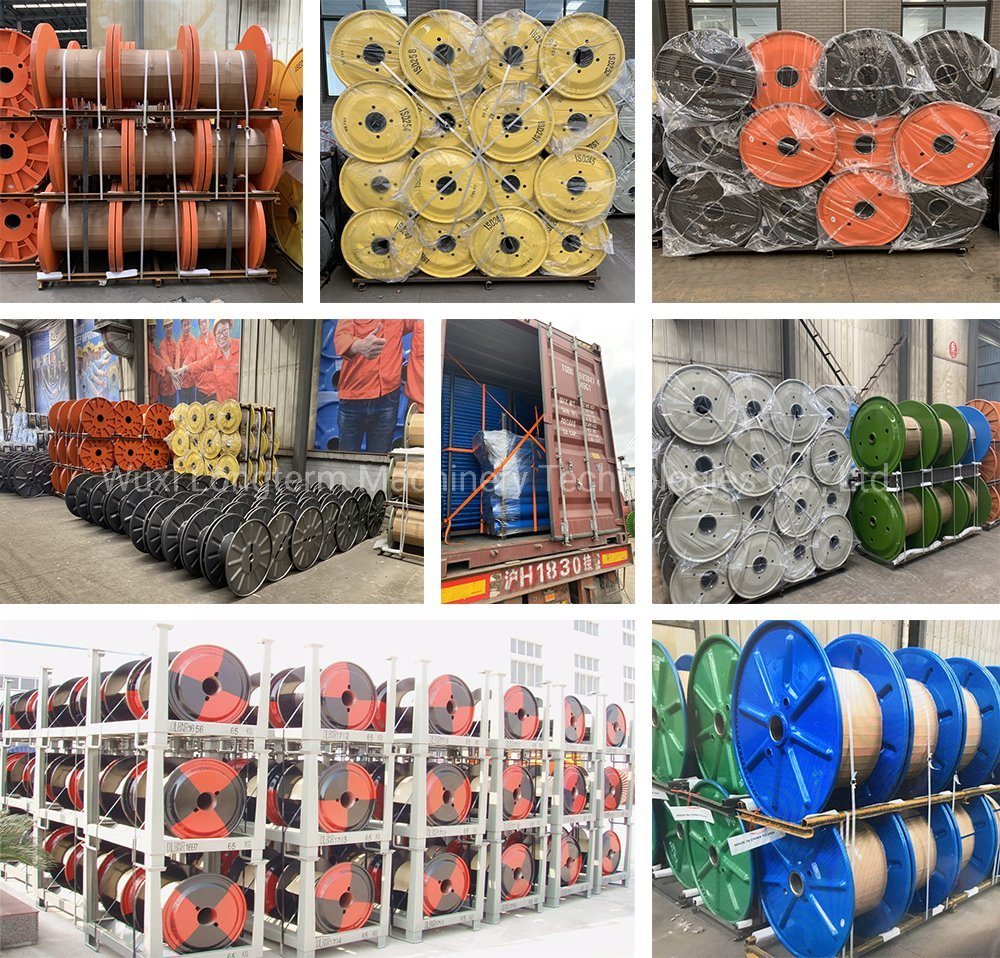

Bobbins Delivery for Australia customer.
Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools
Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools

Our company & service:

We are professional bobbin manufacturer with more than 25 years experience.Our company has a technical administration team whom engages bobbin/reel industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile,South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand,etc. Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools

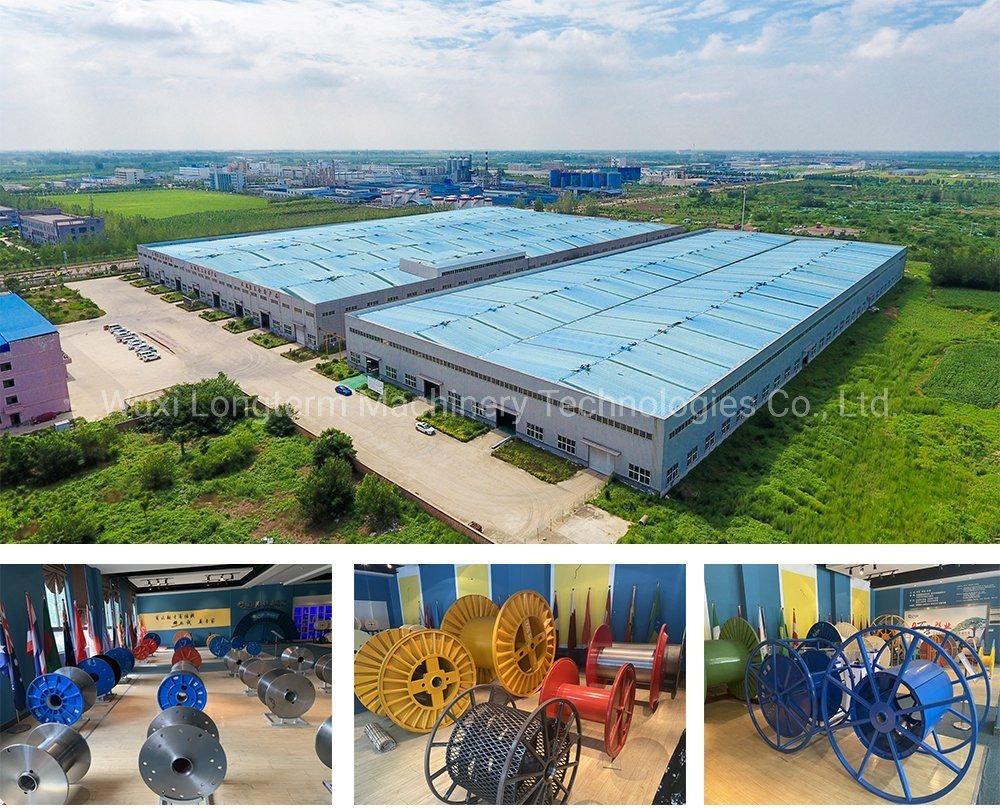

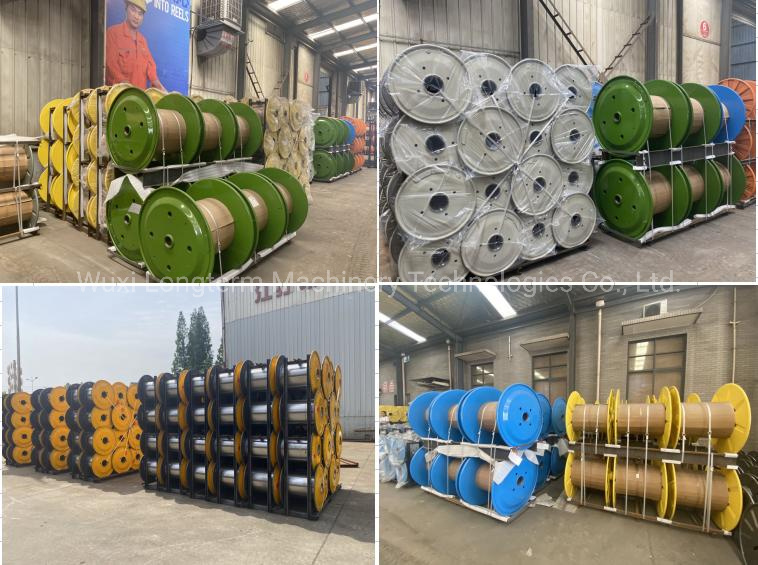

Factory corner
Plastic Empty Spool Reel Cable Drum Bobbin Packing Spools
FAQ
Q1: Can you accept customization?
A1:Yes.
Q2. What kind of payment do you accept?
A2
: Trade assurance, T/T, L/C, Weston Union are all accepted.
Q3. What is normal lead time?
A3: Average 7-25 days for tooling, bulk orders should be depends on quantity.

Q4. What is your standard package?
A4: In general we use ziplock bag or bubble film plus cardboard boxes, wooden pallets or wooden cased will be used if necessary. Special packing method is available if needed.

Q5. What is the working life of the mould?
A5: It depends on the parts we made. Besides, we will maintain or replace the mould by ourselves.


Enable us to make a quotation for you. Pls kindly revert to us for the below information:
1) Technical drawing of the bobbin
2) Material of the bobbin
3) On which machine cab be use for this bobbin?
4) Winding speed
