400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

Share to:

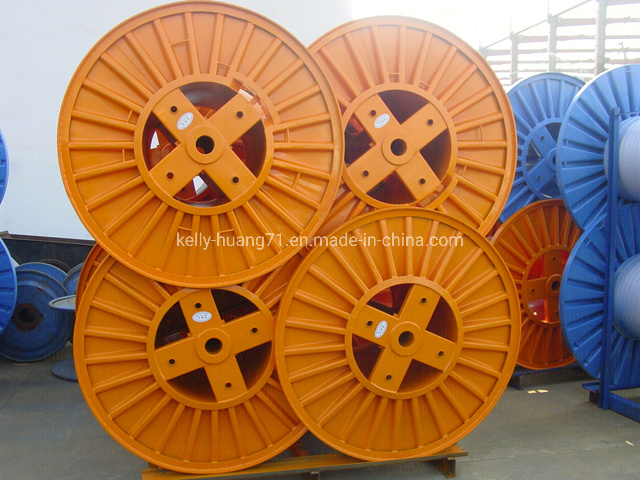

400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

Quantity:



Inquire Add to Basket

Material:
Cable, Steel Wire, Steel Rope, Copper, Aluminium
Lead Time:
30 Days
Diameter:
250-1250mm
Standard:
GB4004-83, Jb/T8997.4-1999, DIN46395
Bobbin Color:
Can Be Customized
Forming Method:
Pressed
Sample:
Available
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
HLT
Origin:
Jiangsu, China
HS Code:
7326909000
Production Capacity:
500000PCS Per Year
Samples:
US$ 220/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

Strandard GB4004-83,JB/T8997,4-1999, DIN46395/DIN46397

400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

Application

Steel bobbin with massive flanges/barrel/bore and hub.
Dimension either according to customers specification
Dynamically balanced for speed from 25m/s--50m/s
For cable,ferrous and non-ferrous wire.
For drawing, stranding and bunching machines 400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

Specification

Type	Specification	D1	S	D2	L2	L1	D4	R	E
Plastic Barrel	300	300	12	160	160, 200, 250	185, 225, 275	30, 36, 40	7.5	76-97
	400A	400	16	200	120, 250, 263, 265, 280	155, 282, 300, 312	40, 56	10	60-74.5
	400B	400	20	200	160, 200, 250	200, 240, 290	40, 56	7.5	75-90
	500A	500	20	250	250, 315	300, 375	40, 56, 80	12.5	70.5-98
	500B	500	25	250	250, 270, 280, 315	300, 320, 375	56, 80	10.5	70.5-98
Steel Barrel	500C	500	27.5	250	250, 270, 280, 315	300, 320, 375	56, 80	10.5	70.5-98
	630A	630	25	250	250, 315, 400	300, 375, 475	56, 80	12	70.5-98
	800	800	35	400	400, 500	500, 600	80, 127	15	115-158
	1000	1000	40	500	630	750	80, 127	20	114-166

Specification

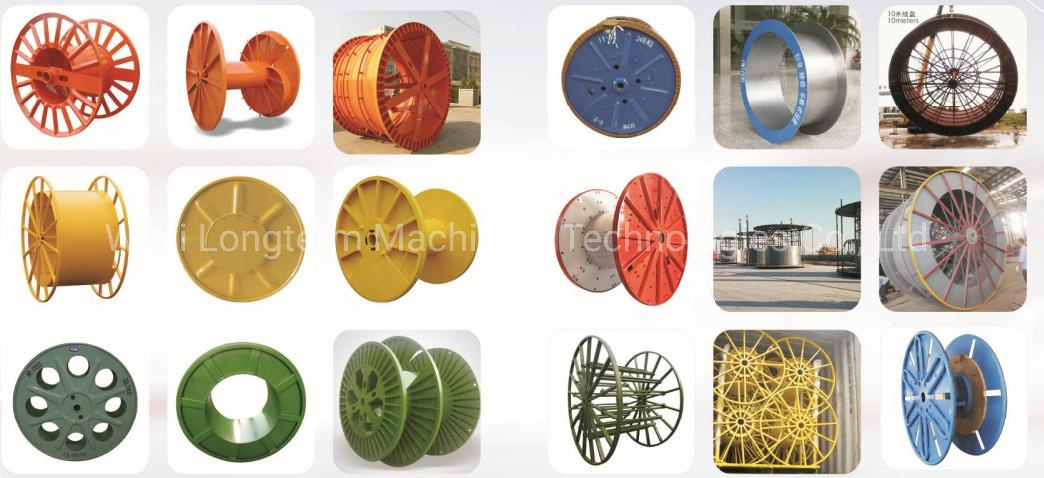

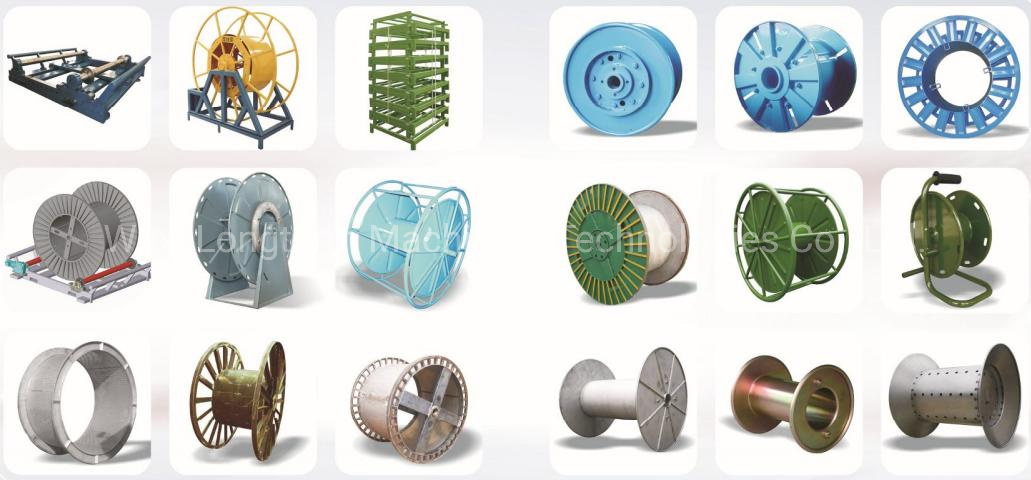

Other relevant bobbins that we can supply, such as double layer high speed bobbin, flat high speed bobbin, PN punching bobbin, PND punching bobbin, Metal flange process bobbin, enhanced type machine bobbin, corrugated bobbin, reinforced corrugated bobbin etc...

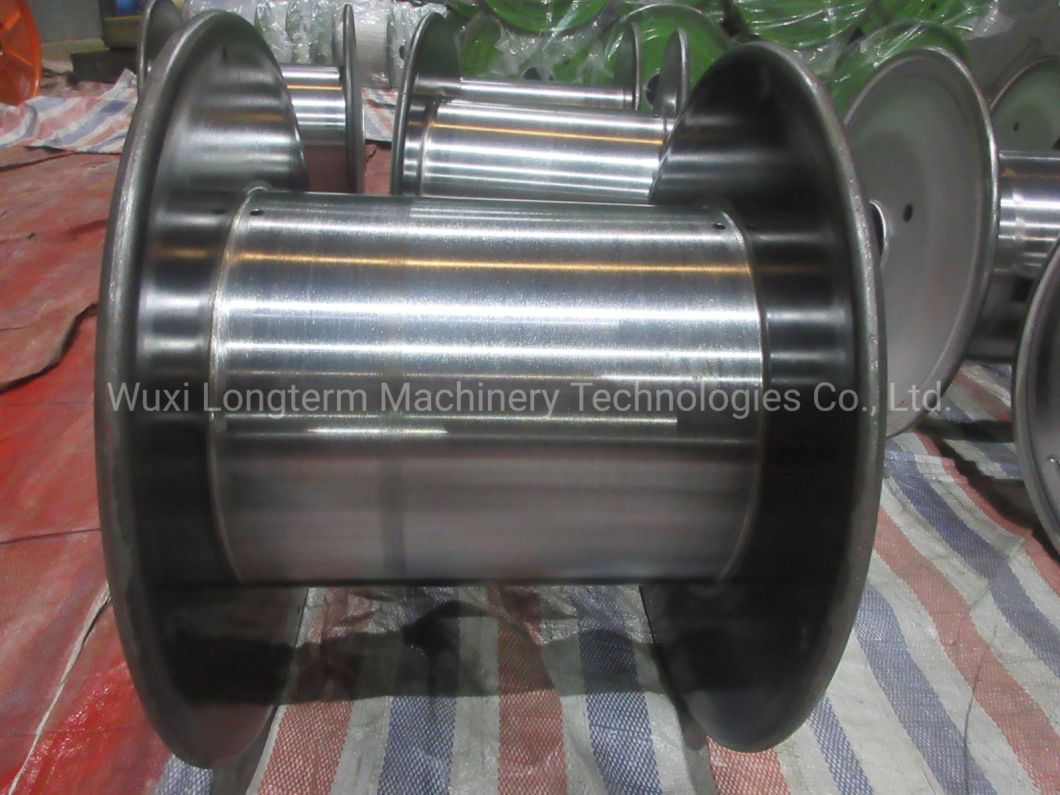

400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

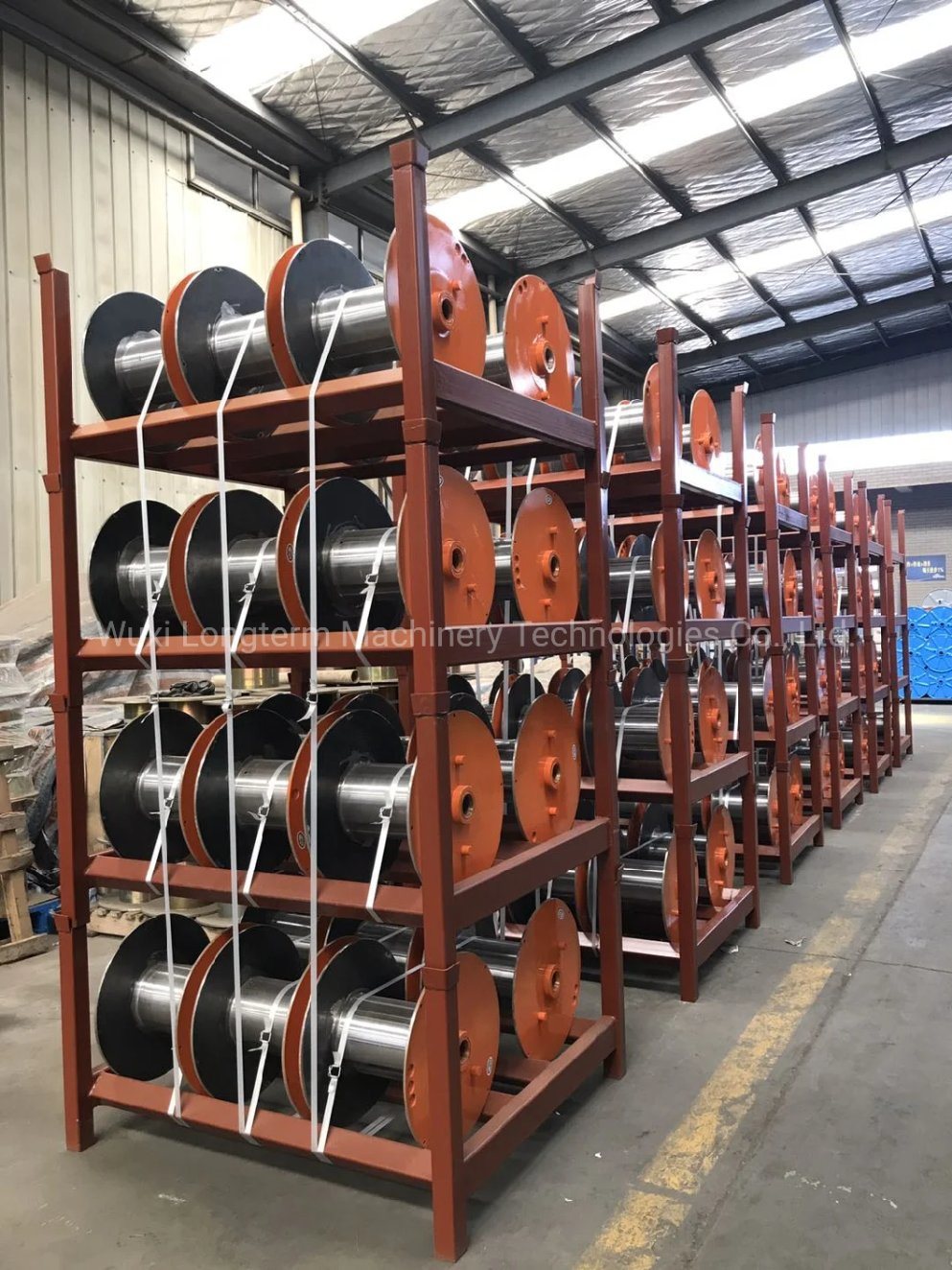

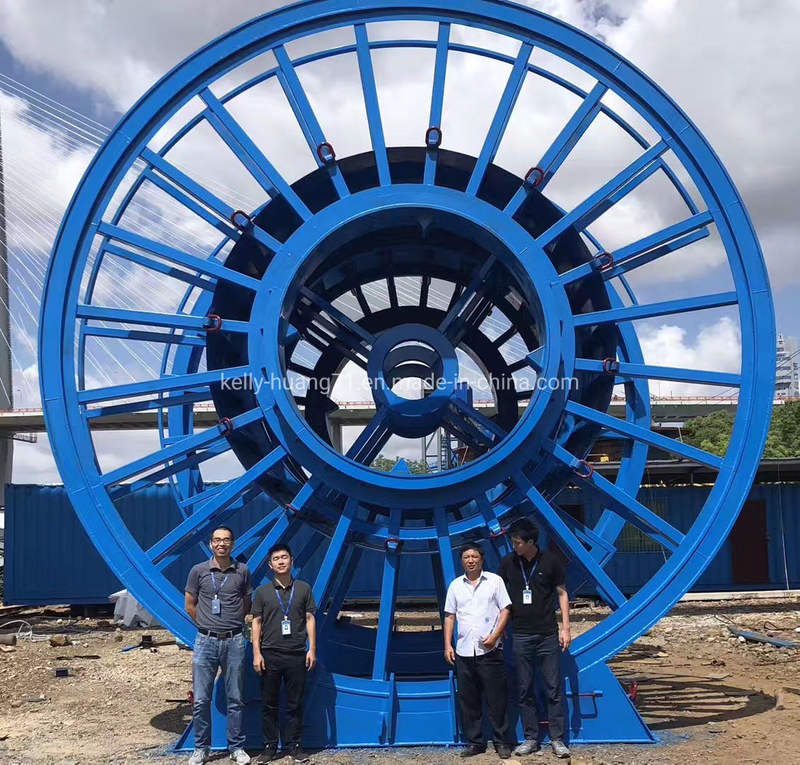

Steel reel/bobbin exported to USA

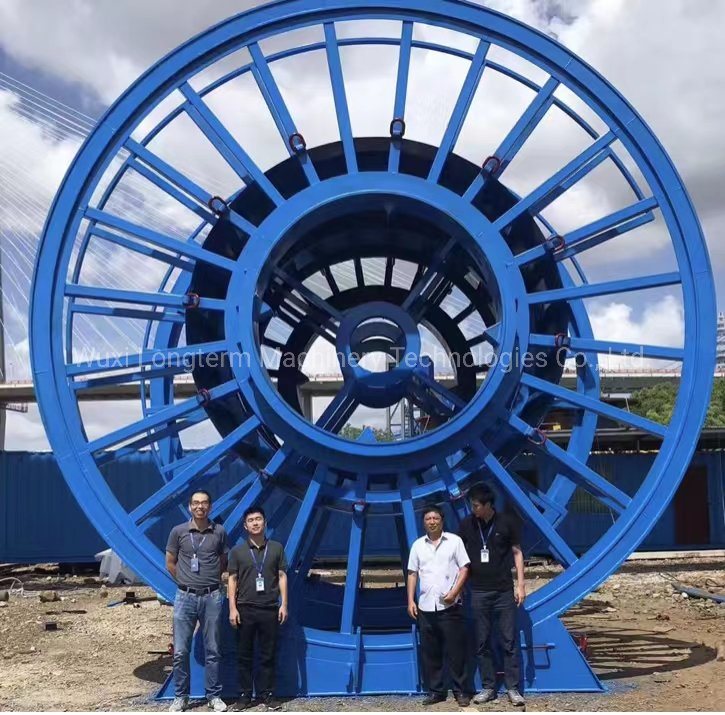

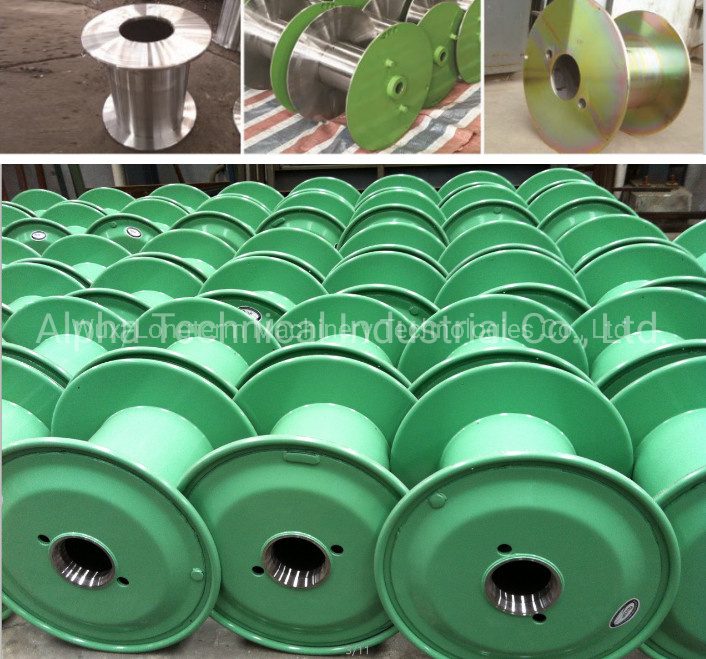

Cable Spool

400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

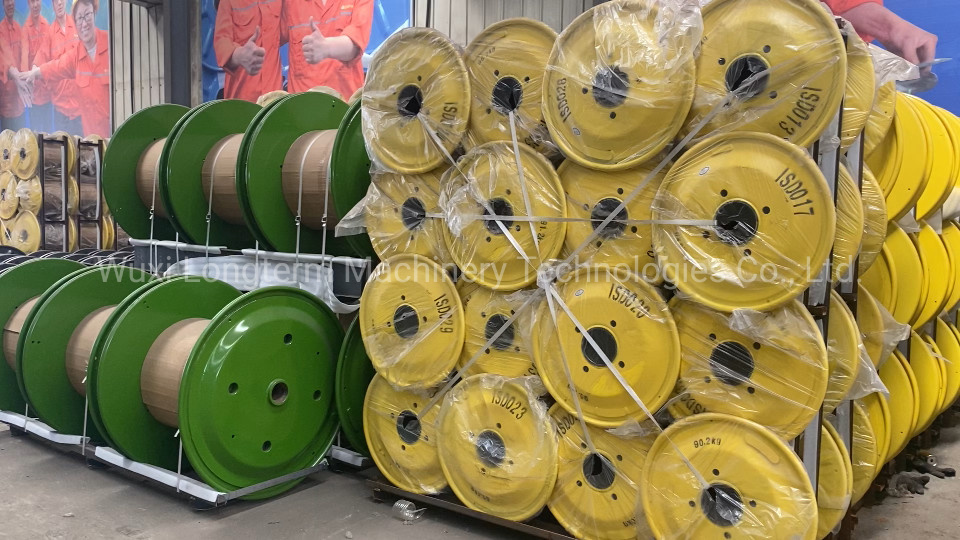

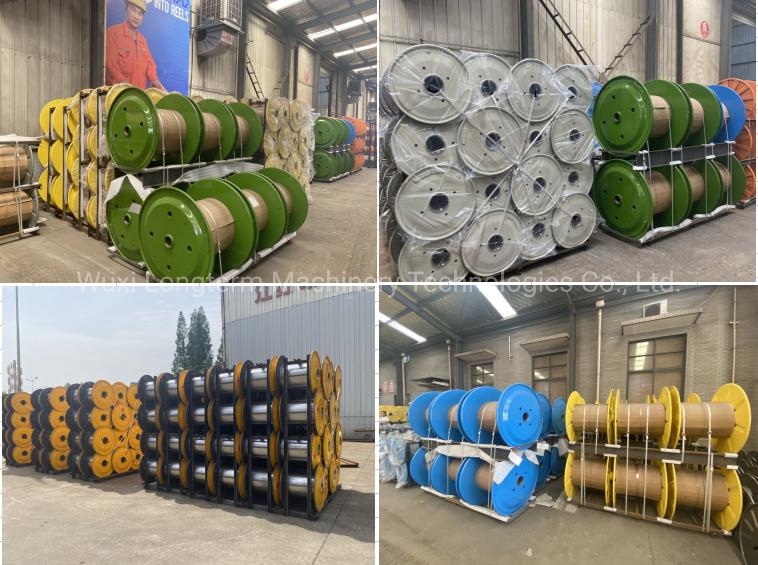

Bobbins Delivery for Australia customer.
400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

Our company & service:

We are professional bobbin manufacturer with more than 25 years experience.Our company has a technical administration team whom engages bobbin/reel industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile,South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand,etc. 400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

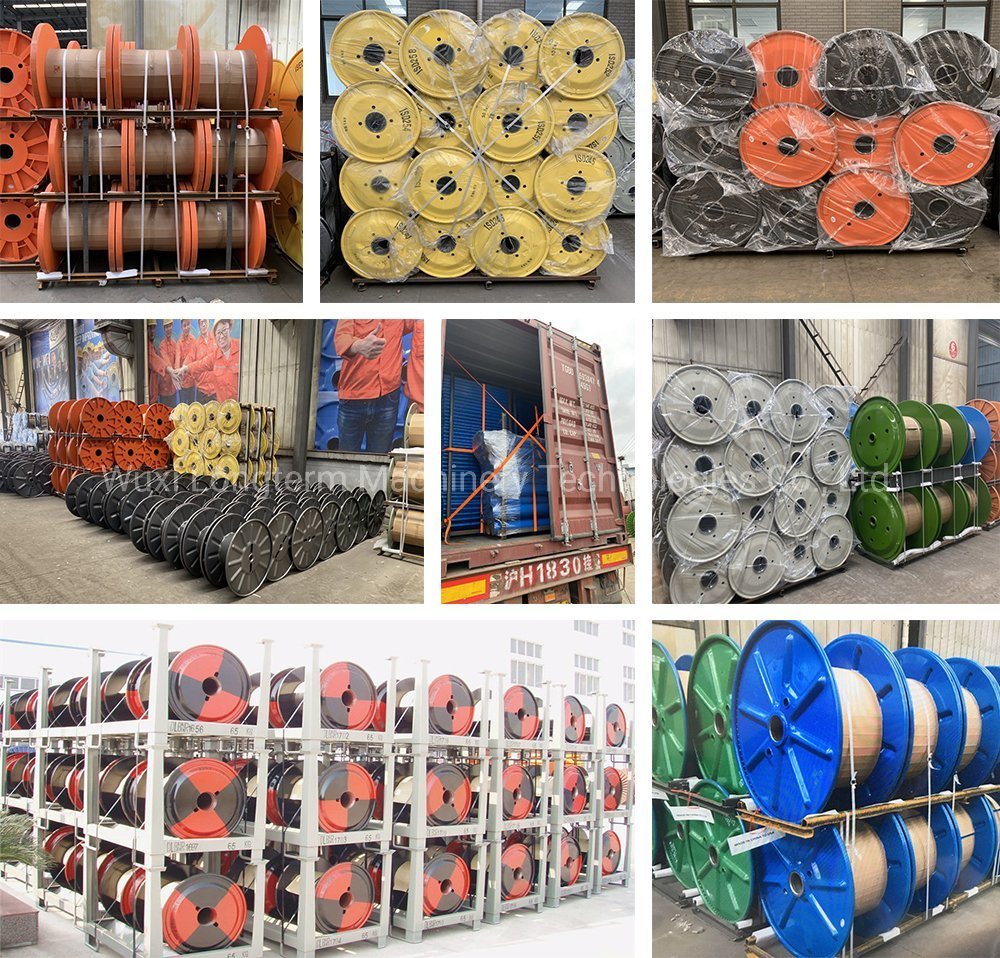

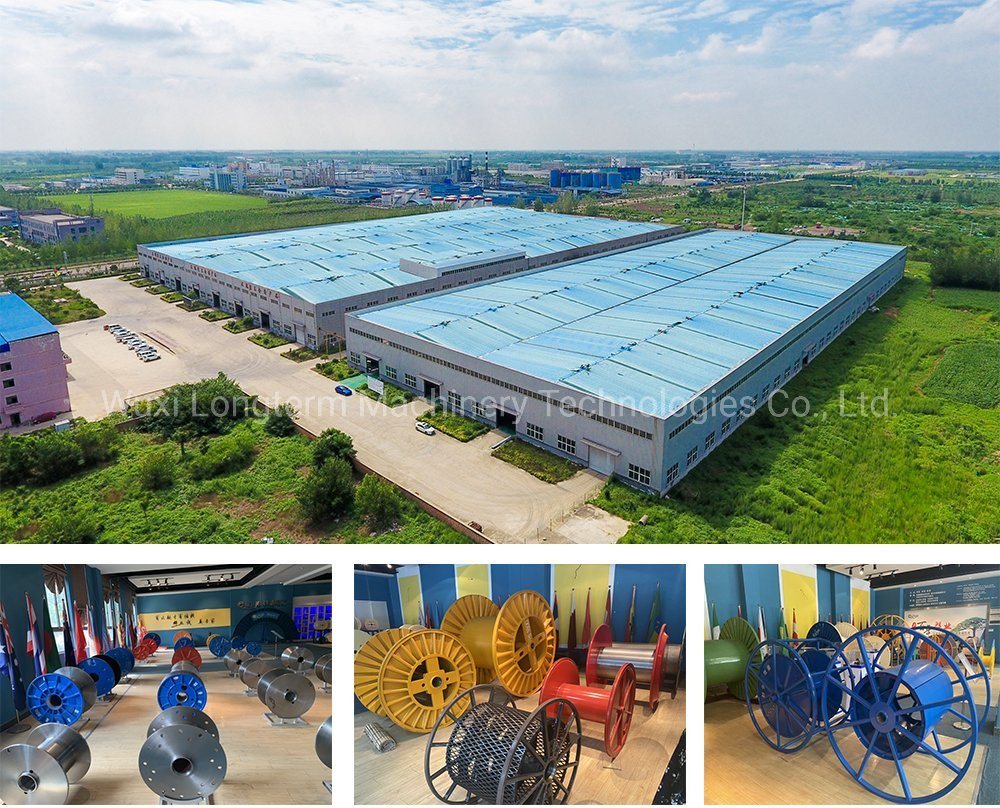

Factory corner
400mm 560mm 630mm 760mm 800 1000 Steel Wire Copper or Aluminum Wire Buncher Single Flange Pressed Steel Reel

FAQ

Q1: Can you accept customization?

A1:Yes.

Q2. What kind of payment do you accept?
A2: Trade assurance, T/T, L/C, Weston Union are all accepted.

Q3. What is normal lead time?
A3: Average 7-25 days for tooling, bulk orders should be depends on quantity.

Q4. What is your standard package?
A4: In general we use ziplock bag or bubble film plus cardboard boxes, wooden pallets or wooden cased will be used if necessary. Special packing method is available if needed.

Q5. What is the working life of the mould?
A5: It depends on the parts we made. Besides, we will maintain or replace the mould by ourselves.

Enable us to make a quotation for you. Pls kindly revert to us for the below information:
1) Technical drawing of the bobbin
2) Material of the bobbin

3) On which machine cab be use for this bobbin?

4) Winding speed
