Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^

Quantity:
  • HLT
  • Cable, Steel Wire, Steel Rope, Copper, Aluminium
  • 30 Days
  • 250-1250mm
  • GB4004-83, Jb/T8997.4-1999, DIN46395
  • Can Be Customized
  • Pressed
  • Available
  • Standard Seaworthy Package
  • ISO9001
  • HLT
  • Jiangsu, China
  • 7326909000
  • 500000PCS Per Year
  • US$ 220/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Factory Price Corrugated Cable Bobbin/Reel/Spool Flat High Speed Bobbin
Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^
Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^
Description

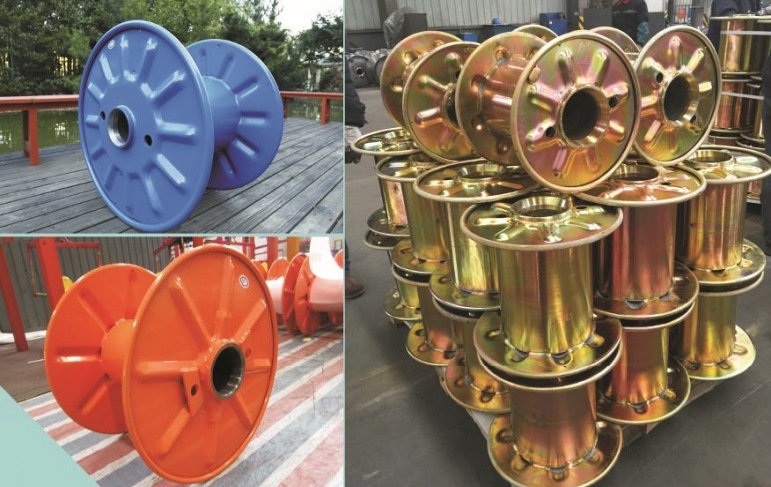

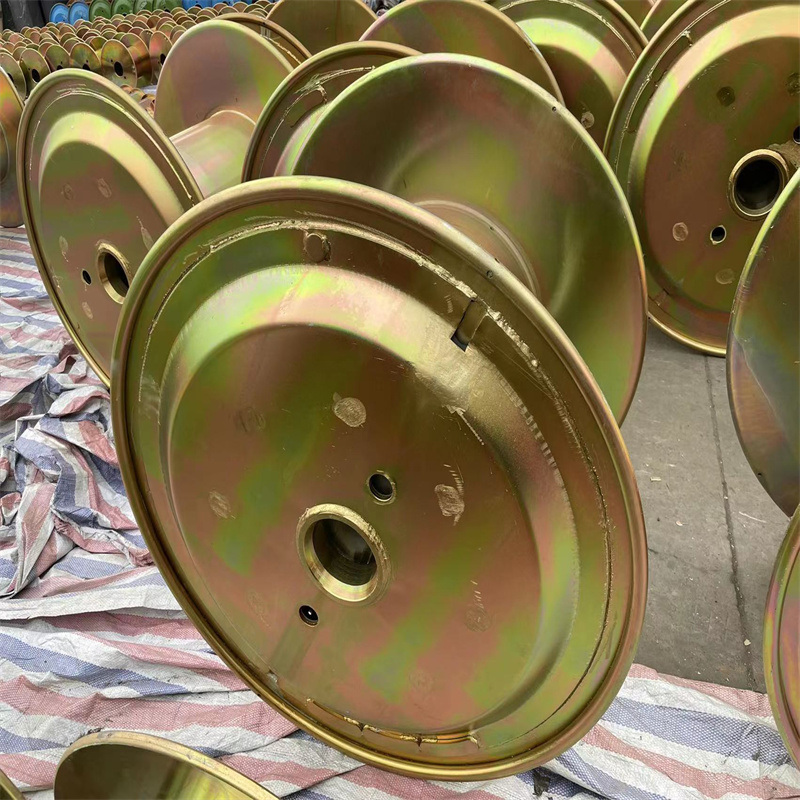

Pressed steel bobbin.
Dimension either according to customer's specifications or
GB4004-83,JB/T8997,4-1999, DIN46395 standard
For cable, steel wire, steel rope, copper, aluminium and welding wire
Process one-way or shipping bobbin.


Type1

Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^
Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^
Type d1 d2 d3 d4 d5 e L1 L2 V1 dm3
200 200 80 36 8-16 40(60) 150 125 3.3
100 125 100 2.35
250 250 100 190 160 6.6
125 150 125 4.6
315 315 125 236 200 13.1
160 190 160 9.2
355 355 140 75/112 56 16-32 71 265 224 18.7
180 215 180 13.2
400 400 160 300 250 26.3
200 236 200 18.8
450 450 180 335 280 37.4
224 265 224 26.8
500 500 200 375 315 51.9
250 300 250 26.3
560 560 224 236 200 18.8
280 335 280 37.4
630 630 250 475 400 105.1
315 375 315 72.5
710 710 355 100/160 80 28-40 160 530 450 133.6
800 800 400 600 500 188.5
900 900 450 670 560 267.2
1000 1000 500 750 630 371.1
1120 1120 560 850 710 524.6
1250 1250 630 950 800 732.4

Type2
Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^
Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^

Application

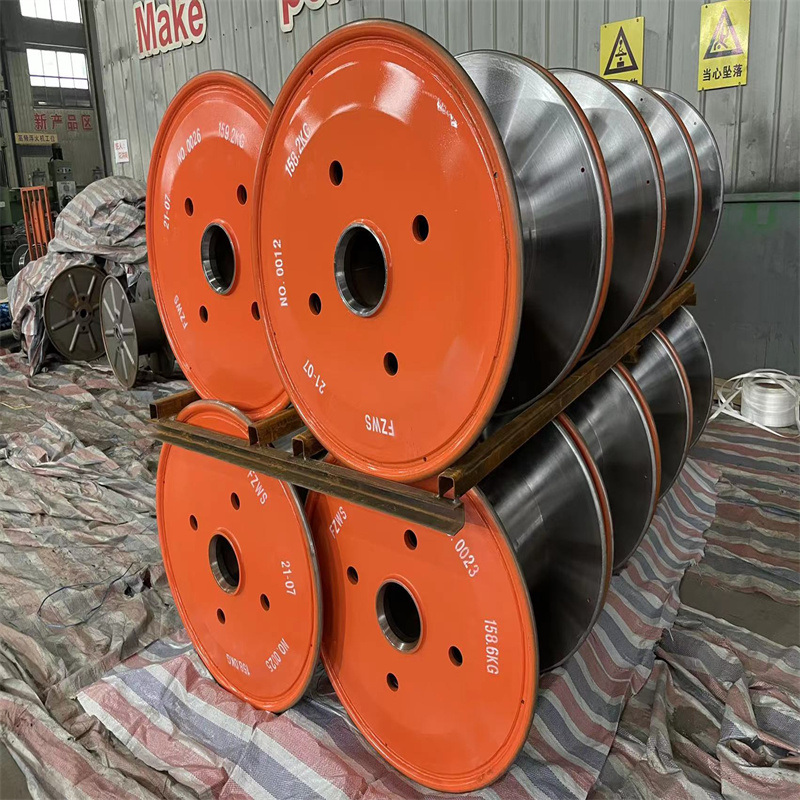

Steel bobbin with massive flanges/barrel/bore and hub.
Dimension either according to customers specification
Dynamically balanced for speed from 25m/s--50m/s
For cable,ferrous and non-ferrous wire.
For drawing, stranding and bunching machines

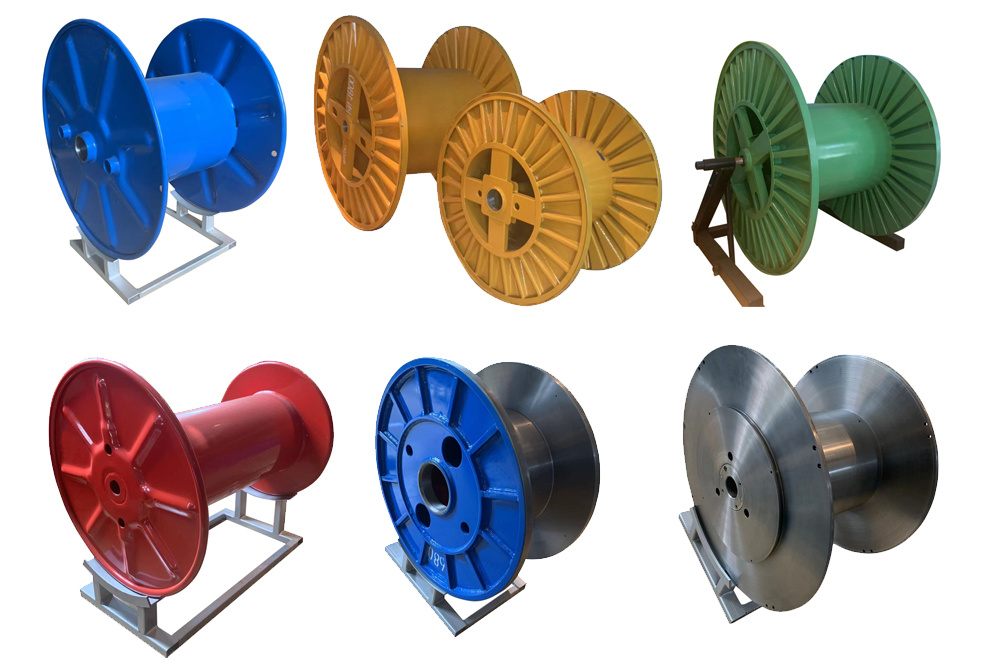

Other relevant bobbins that we can supply, such as double layer high speed bobbin, flat high speed bobbin, PN punching bobbin, PND punching bobbin, Metal flange process bobbin, enhanced type machine bobbin, corrugated bobbin, reinforced corrugated bobbin etc.


Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^

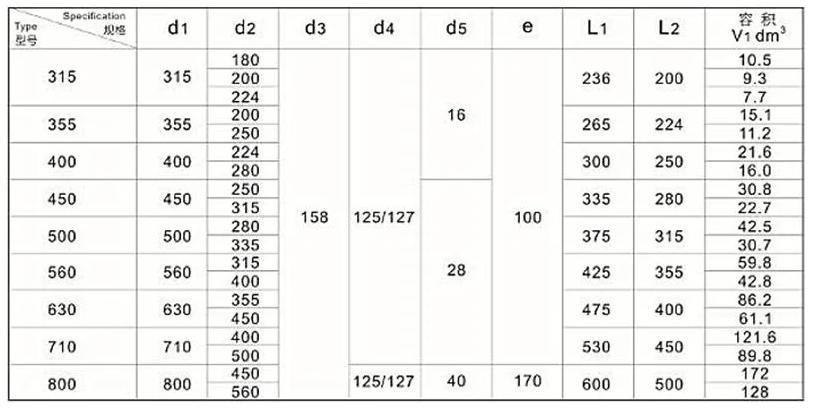

Specification

Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^

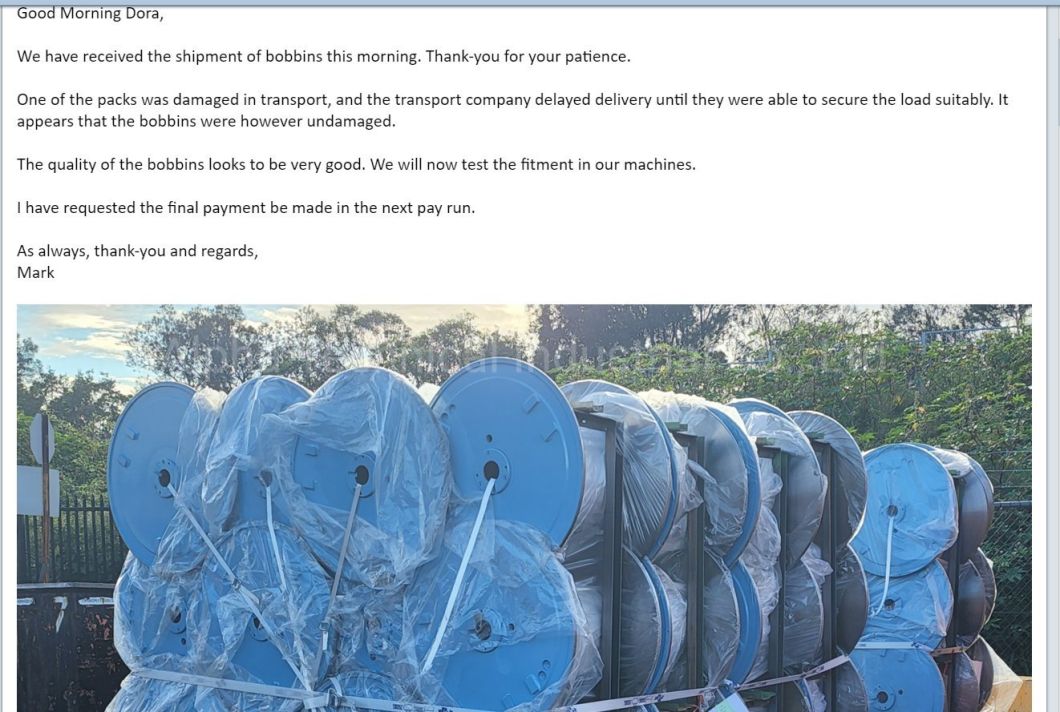

Good comments from Australia client

Factory Price Double-Layer High Speed Wire Corrugated Reel Spool Bobbin Collapsible Drum^

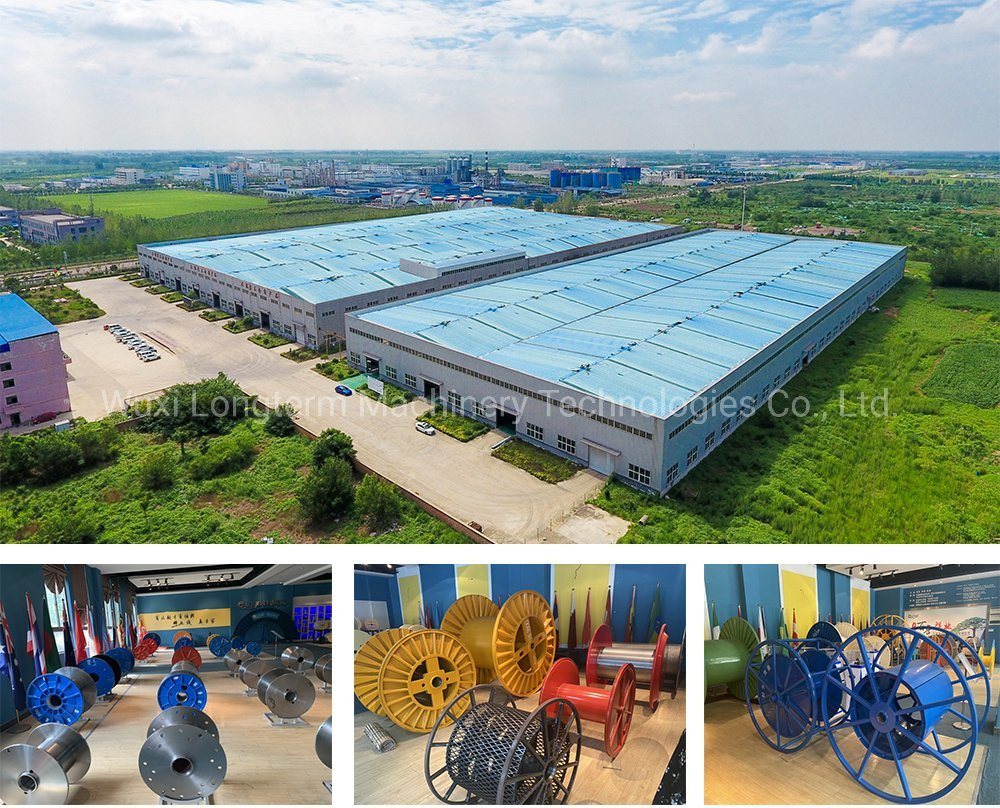

Our company & service
Our company is a specialized spools manufacturer and become Chinese leader for quality and service in few years.

We located in Wuxi city which has long history and full of wonderful sceneries. Our high standard workshops and office, first class equipment lines and complete inspect facilities, advanced management and quality control philosophy to fulfill all customers' requirements.

Our products are widely used in the field of high voltage, middle & low voltage, XLPE, power cables, optical fiber cables, telecommunication cables, steel wires & ropes as well as in the textile industry. Products are sold well in domestic market and have been exported to Europe and the United States, Australia, Southeast Asia, Middle East and win good response from our customers continuously. We hold the idea of "Pursue and Produce Outstanding, Customer First", to provide great service to the customers and lead national reels industry to involve in the reels production worldwide.

We welcome new friendship with open arms and cordially seek to maintain old ties with existing customers. Empty Corrugated Cable Bobbin/Metal Spool/Reel/Cable Drum for Wire and Cable^ - Reply your inquiry in 24 working hours
- Customized design is available
- Exclusive and unique solution can be provided by our well-trained ad professional engineer
- Our company policy: Good products, reasonable prices, sincere services, on-time delivery
FAQ
− Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the filed for more than ten years.

Q: What is the application of our products?
A: For high voltage, middle and low voltage, XLPE, stranding, extrusion, cabling and armoring equipment

− Q: What can we offer our customers?
A: The products we offer are exactly according to GB4004-83, JB/T7600.3-94 and DIN46395, adopting steel plate rammed and welded into shape, with high strength and rigidity, applicable to wiredrawing

− Q: How long is the product warranty?
A: Warranty period of one year.

We need to get the following information, so that we can make the quotation to you:

1.Bobbin/Reel Technical drawings?
2.Quantity you need to purchase?
