Product Description
Application

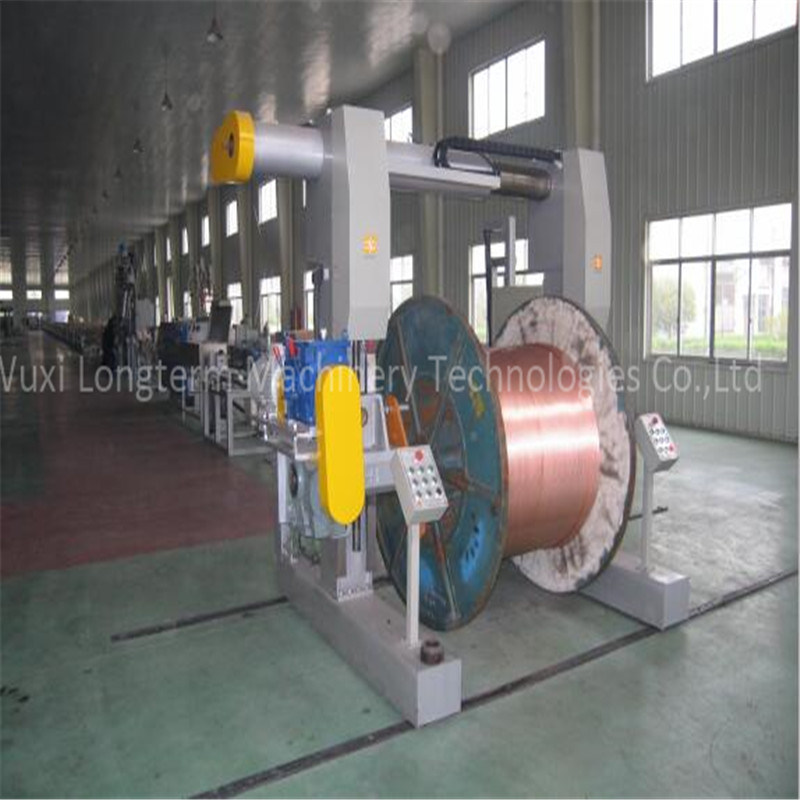

Equipment structure
| Model | ALSP, ALF1250/2500 | ALSP,ALP1600/3150 | ALSP, ALF2000/4200 | ALSP,ALF3150/5000 |
| Applicable wire-coil specification | PN1250-PN2500 | PN1600-PN3150 | PN2000-PN4200 | PN3150-PN5000 |
| Applicable cable outer diameter (mm) | ≤120 | ≤160 | ≤160 | ≤180 |
| Applicable wire-coil diameter (mm) | 1250-2500 | 1600-3150 | 2000-4200 | 3150-5000 |
| Applicable wire-coil width (mm) | 950-1900 | 1180-2300 | 1500-2500 | 2300-2800 |
| Take-up speed (mm/min) | ≤80 | ≤50 | ≤35 | ≤30 |
| Winding precision (%) | 1-2 | 1-2 | 1-2 | 1-2 |
| Loading capacity (T) | 15 | 20 | 30 | 55 |

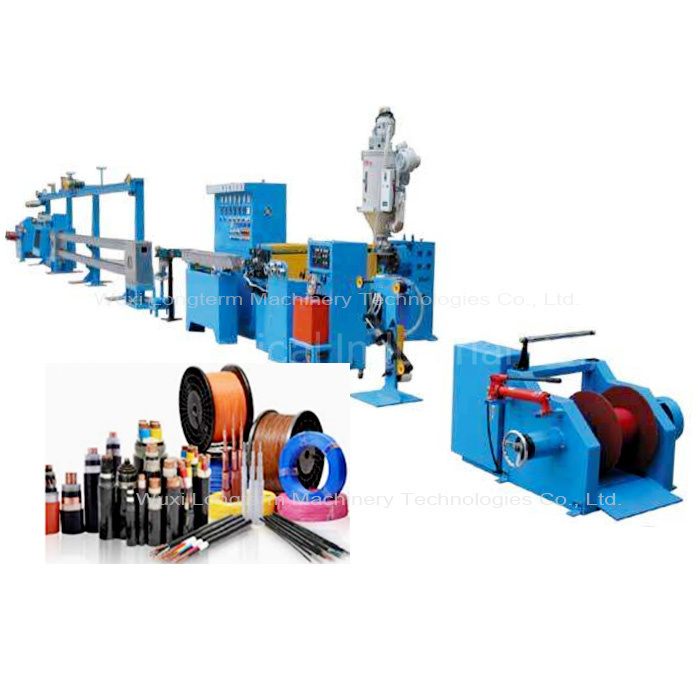

- Cable extrusion machine
| Type & Size | Screw Dia. (mm) | L/D ratio | Screw speed (rpm) | Main motor (kw) | Barrel heating power (kw) | Temp. contr. zones (body/cross head) | Max. output capacity (PVC) (kg/h) |
| SJ30X25 | 20 | 25:1 | 5-150 | 11 | 3.6 | 3/2 | 20 |
| SJ45X25 | 45 | 25:1 | 10-120 | 15 | 9 | 3/2 | 50 |
| SJ65X25 | 65 | 25:1 | 10-100 | 30 | 16 | 4/4 | 120 |
| SJ90X25 | 90 | 25:1 | 10-100 | 90 | 30 | 4/4 | 280 |
| SJ120X25 | 120 | 25:1 | 7-68 | 132 | 54 | 6/4 | 580 |
| SJ150X25 | 150 | 25:1 | 6-60 | 185 | 88 | 6/4 | 880 |
| SJ200X25 | 200 | 25:1 | 4-40 | 250 | 140 | 7/4 | 1100 |
Pre-sales service
- Inquiry and consulting support
- Customized design support
- View our factory
After-sales service
- Training how to install and how to use the machine
- Engineers available to service machinery overseas

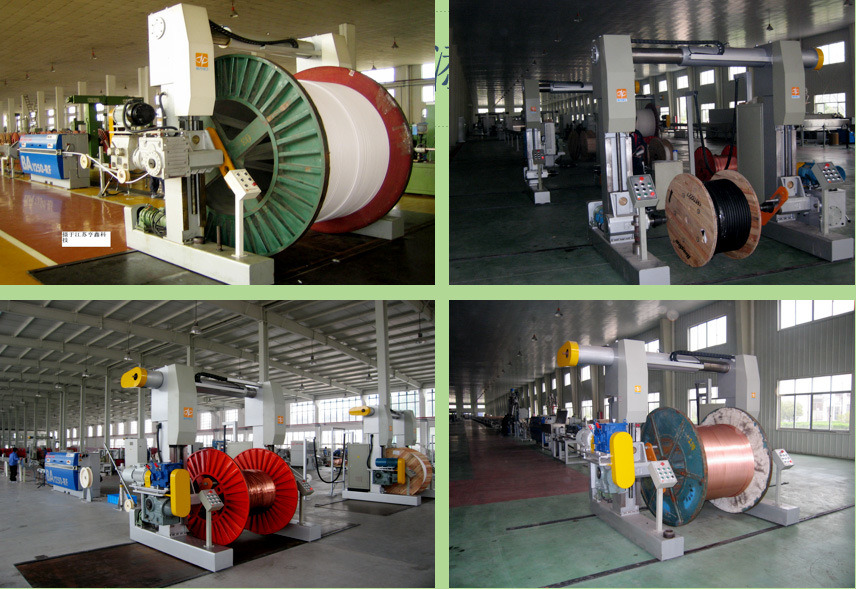

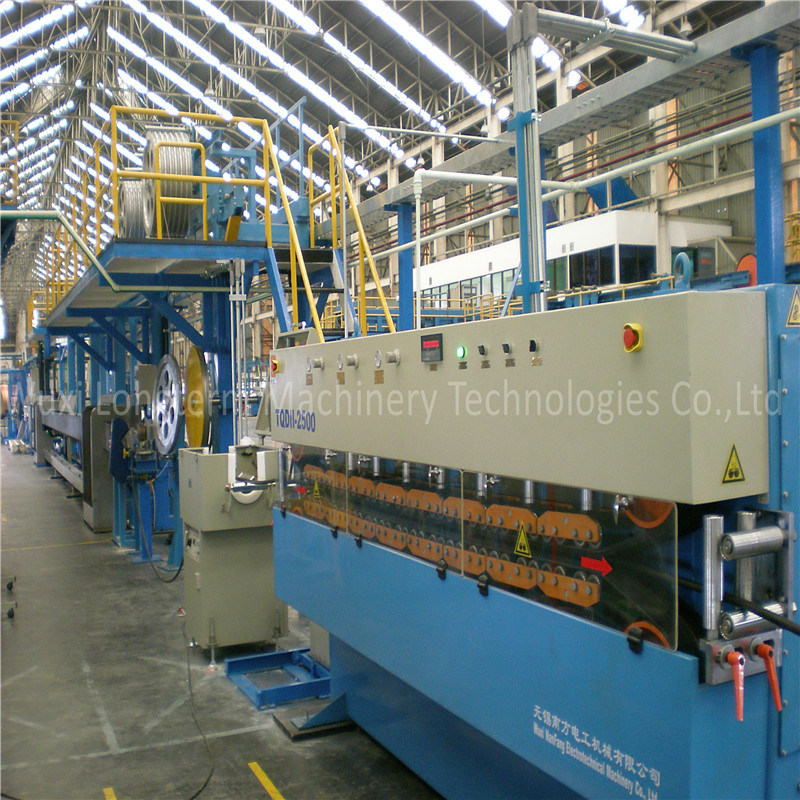

Project show

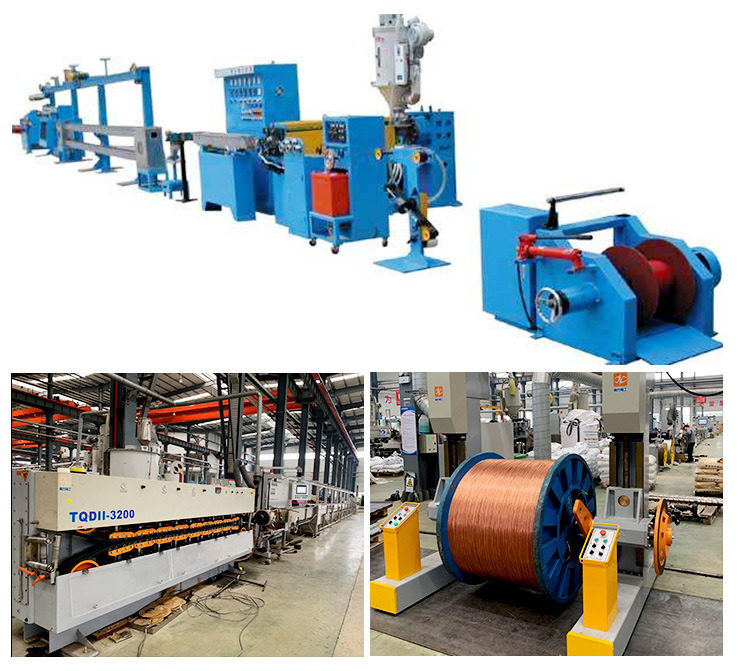

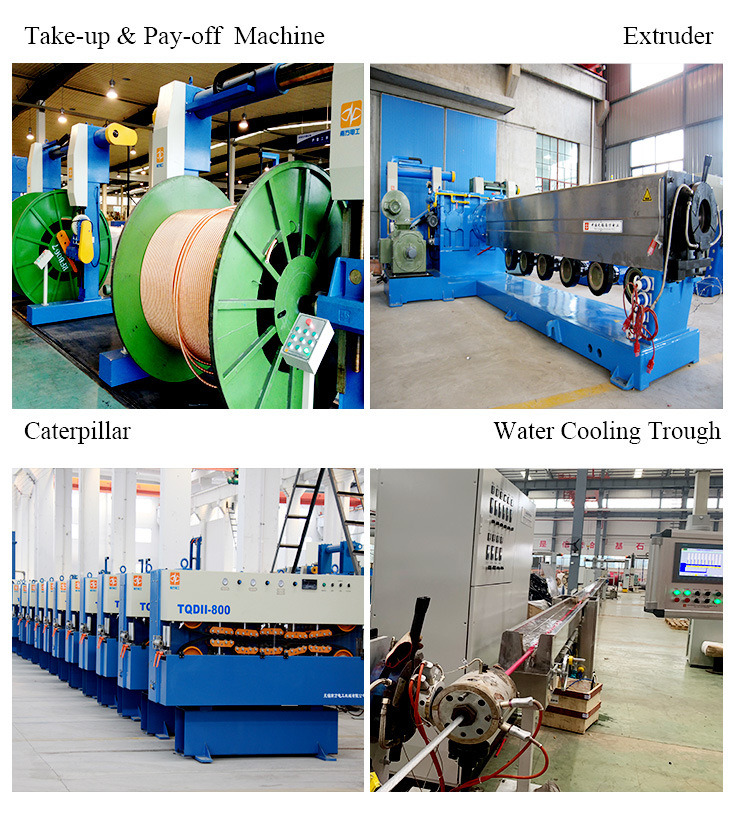

Wuxi Longterm Technologies Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, etc.
− Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than 20 years.
− Q: What is your company's main production?
A: We specialized in all types of cable machine researching and manufacturing. Our products include wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
1) Technical drawing of the reel, on the drawing we can find reel diameter, center hole diameter, and width of the reel
2) Pay off and take up speed
3) loading weight
4) The pay-off and take-up are controlled by torque or speed.
