| Quantity: | |
|---|---|
HLT19-194935
Pn630-Pn2500
0-60mm
60-100mm/Min
1-2%
2-6t
Available
Standard Seaworthy Package
HLT
China, Jiangsu
84772090
500/Year
Available | Customized Request
Product Description

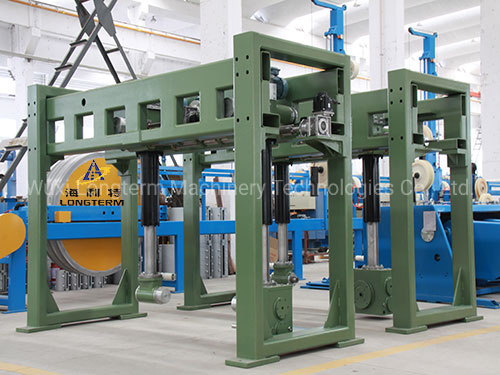

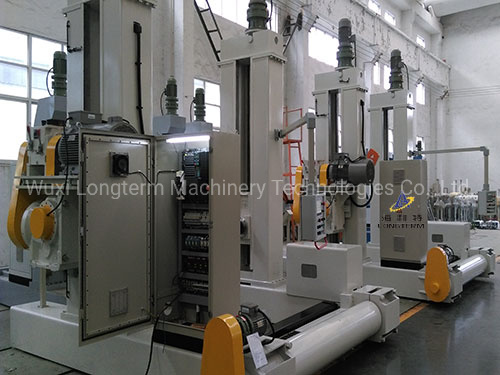

2.Structure Characteristics:
1.The mechanism is made of high-quality rectangular steel pipe and steel plate. The beam adopts two large I-beam interconnection structures, which are beautiful in appearance, good in steel and high in strength.

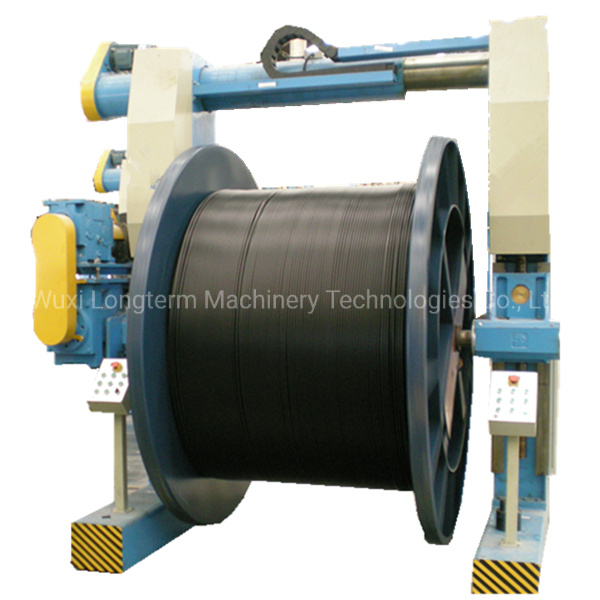

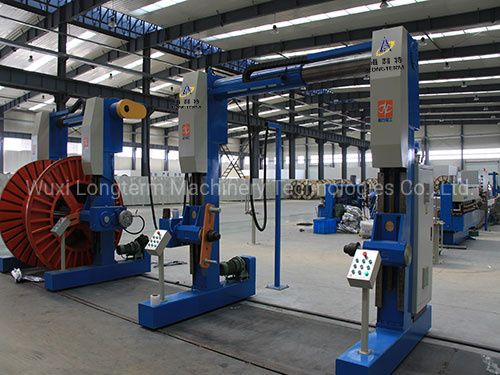

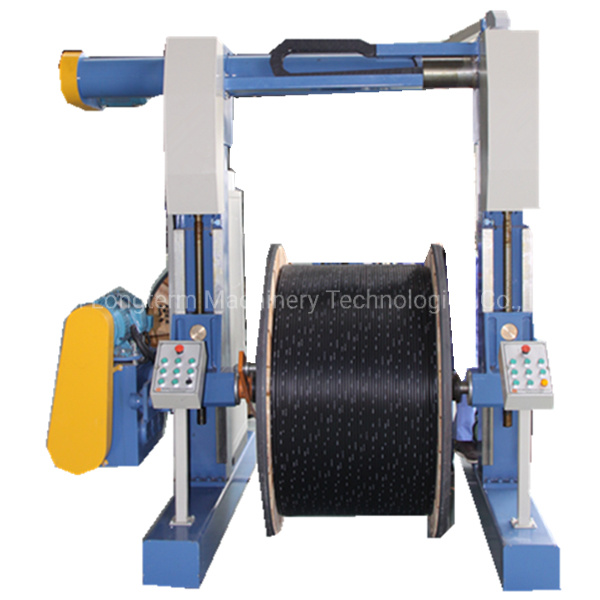

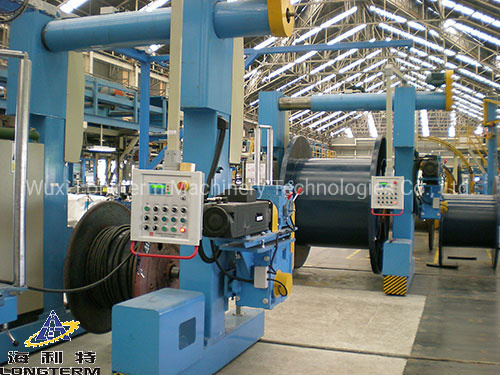

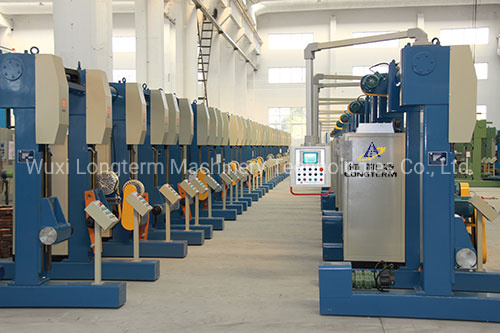

2.Adopts the way of walking beam, the whole cable tray for wiring,implementation of pay-off and take-off.
3.The cable adopts the AC variable frequency motor to adjust the speed line, with high precision and uniform cable.
4.PLC programmable controller can be controlled with various types of hosts.
5.Take-up primary motor
Line the main motor adopts DC motor,controller for European series products.
Line the main motor adopts frequency conversion motor,controller for Siemens or Danfoss products.

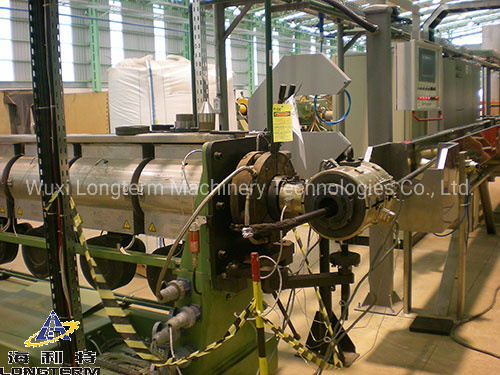

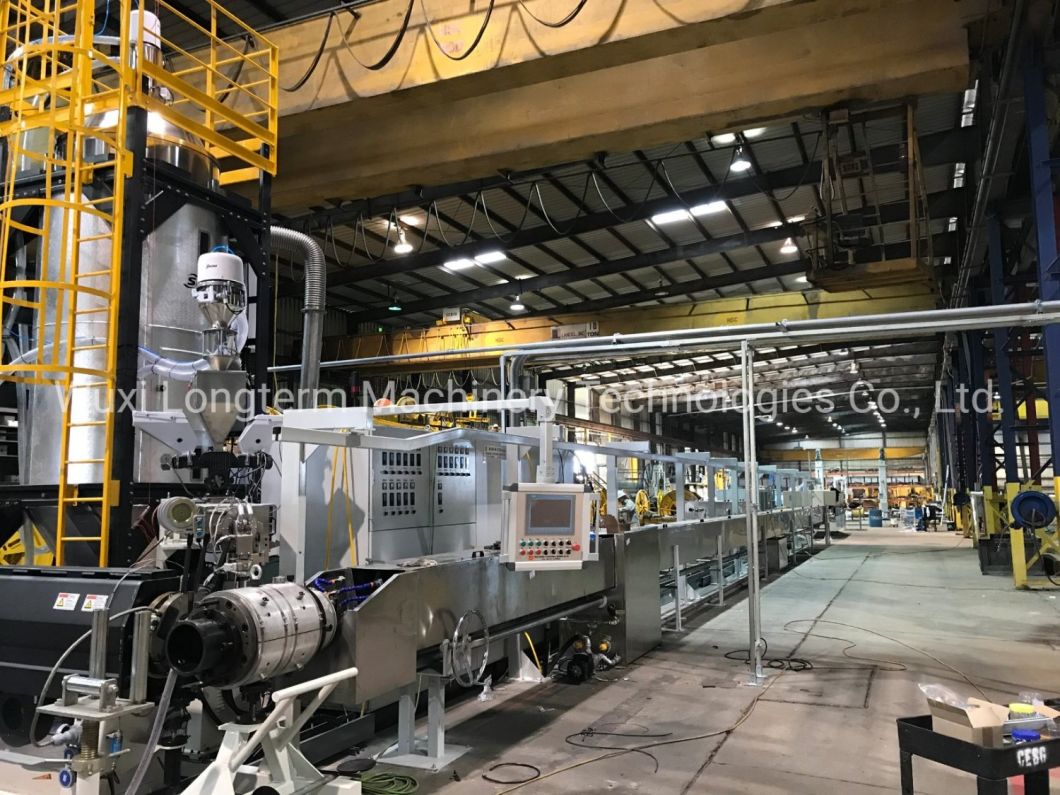

| Type & Size | Screw Dia. (mm) | L/D ratio | Screw speed (rpm) | Main motor (kw) | Barrel heating power (kw) | Temp. contr. zones (body/cross head) | Max. output capacity (PVC) (kg/h) |
| SJ30X25 | 20 | 25:1 | 5-150 | 11 | 3.6 | 3/2 | 20 |
| SJ45X25 | 45 | 25:1 | 10-120 | 15 | 9 | 3/2 | 50 |
| SJ65X25 | 65 | 25:1 | 10-100 | 30 | 16 | 4/4 | 120 |
| SJ90X25 | 90 | 25:1 | 10-100 | 90 | 30 | 4/4 | 280 |
| SJ120X25 | 120 | 25:1 | 7-68 | 132 | 54 | 6/4 | 580 |
| SJ150X25 | 150 | 25:1 | 6-60 | 185 | 88 | 6/4 | 880 |
| SJ200X25 | 200 | 25:1 | 4-40 | 250 | 140 | 7/4 | 1100 |

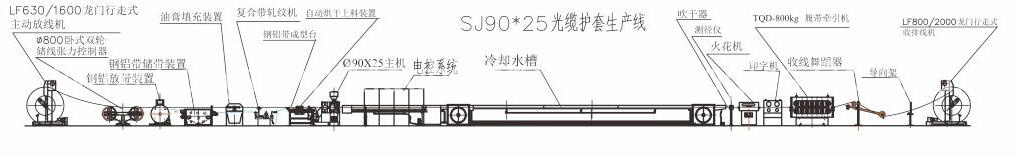

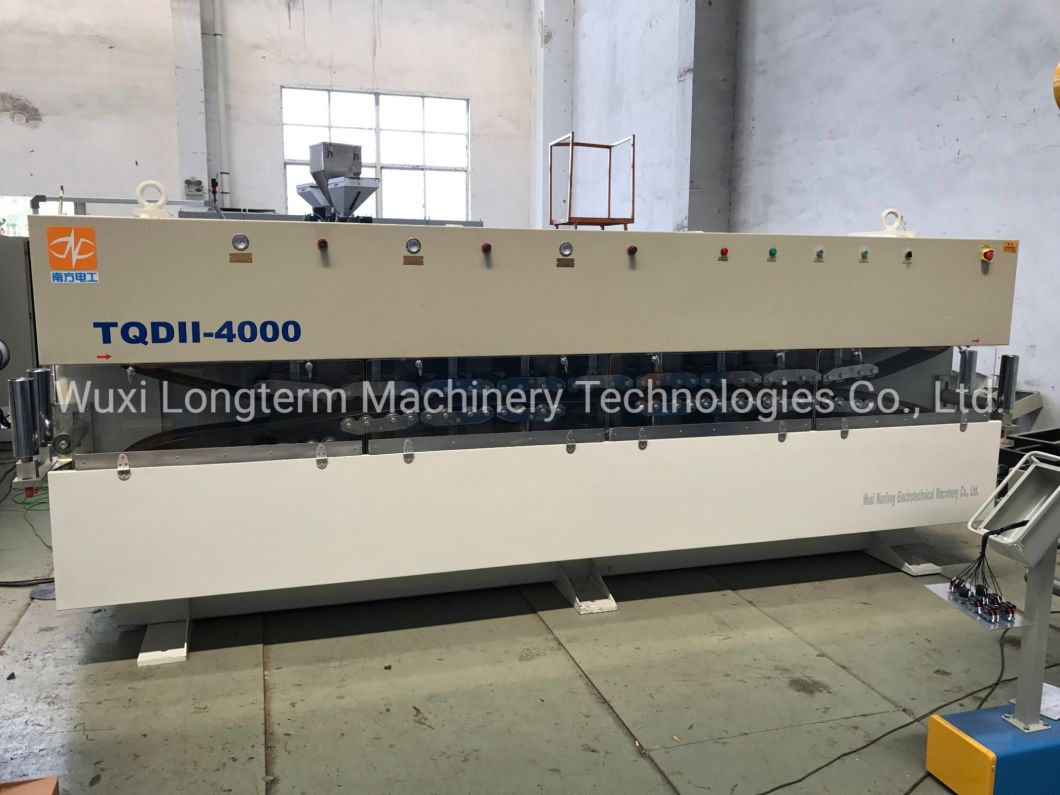

Mainly used for various cable production lines for single machine or front and rear double traction.
1. The whole frame is made of high-quality steel plate after bending and splicing, and the appearance is novel.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of Z4 DC motor or variable-frequency motor for users to choose.
4. With electronic meter, it can display the line speed and meter length in time.
5. It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding production lines.
6. The tension tractor adopts magnetic powder tension control, which is used for the traction of the insulation and sheath extrusion production line. The tension is instantaneously adjustable, preventing the abrasion of the cable in the sink after the extrusion, and effectively solving the synchronization problem. And the effect of uneven tension on the wire diameter.
7. The small tractor has an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improve the repeated service life of the track.
| Model | Type 200 | Type 300 | Type 500 | Type 800 | Type 1250 | Type 1600 | Type 2000 |
| Cable through the outer diameter(mm) | 2~20 | 5~25 | 5~40 | 8~60 | 10~80 | 15~100 | 20~120 |
| Max. traction force(kg) | 200 | 300 | 500 | 800 | 1250 | 1600 | 2000 |
| Speed(m/min) | 150 | 150 | 100 | 100 | 80 | 80 | 60 |
| Track contact length(mm) | 520 | 620 | 750 | 1200 | 1500 | 1900 | 2100 |
| Track width(mm) | 70 | 70 | 80 | 100 | 120 | 120 | 135 |
| Number of cylinder(pair) | 3 | 3 | 3 | 5 | 5 | 6 | 7 |
| Motor power(kw) | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 |
| Motor speed(rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Overall dimension (LxWxH) | 1450x720x1500 | 1500x720x1500 | 1800x1000x1600 | 2500x1150x1650 | 2750x1150x1700 | 3100x1150x1700 | 3450x1200x1750 |
| Model | Type 2500 | Type 3200 | Type 4000 | Type 5000 | Type 6000 | Type 10000 | Type 15000 |
| Cable through the outer diameter(mm) | 20~130 | 25~150 | 30~180 | 50~200 | 60~200 | 80~300 | 80~300 |
| Max. traction force(kg) | 2500 | 3200 | 4000 | 5000 | 6000 | 10000 | 15000 |
| Speed(m/min) | 60 | 45 | 40 | 30 | 25 | 25 | 20 |
| Track contact length(mm) | 2400 | 2700 | 2900 | 3250 | 3600 | 4800 | 5000 |
| Track width(mm) | 140 | 145 | 165 | 165 | 170 | 240 | 180x2articale/90x2articale |
| Number of cylinder(pair) | 8 | 9 | 9 | 10 | 11 | 14 | 14+14 |
| Motor power(kw) | 15 | 15 | 18.5 | 22 | 30 | 37 | 55 |
| Motor speed(rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Overall dimension (LxWxH) | 3800x1200x1750 | 4500x1280x1820 | 4600x1300x1900 | 5000x1350x1950 | 5350x1400x1950 | 7400x1630x2100 | 7500x2800x2200 |
