High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line

Quantity:
  • Winding Various Signal Cable, Optical Cable

  • Hlt

  • 3 Phase 415V, 50 Hz with Neutral Wire

  • 800-1700mm

  • 500-1200mm

  • 26.52rpm (50Hz) 53rpm (100Hz)

  • 15kw 1500rpm Siemens AC Servo Motor

  • Adopt Electro-Hydraulic Lifting Mode

  • 4t

  • 10~60mm

  • Max ~4600 N.M

  • 75\150mm

  • Standard Seaworthy Package

  • customized

  • HLT

  • Jiangsu, China

  • 8477209000

  • 500 Set Per Year

  • Available | Customized Request

Product Description

High Quality Spool Wire Pay Off Machine Cable Wire Feeding Machine

High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line
Application

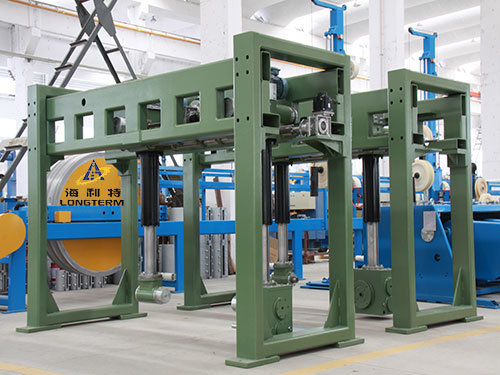

Gantry take-up and pay-off machine is mainly used for winding various signal cable, optical cable

Equipment structure

1.The machine frame adopts high quality rectangular steel tube and steel plate bending welded together. Beam with two large beams connected by structure, perfect appearacne, good rigidity, high strength.

2. Adopt the way of walking beam, the whole cable tray for wiring, implementation of pay-off and take-up.

3. The equipment adopts AC variable frequency motor speed cable, high precision, uniform wiring.

4. PLC programmable controller can be integrated with all kinds of host.

5. Take-up main motor
- Take up main motor adopts DC motor, controller is European series products
- Take up main motor adopts frequency conversion, controller for Siemens
Main technical parameter
Model
630/1250
800/1600
1000/2000
1250/2500
Applicable wire-coil specification
PN630-PN1250
PN800-PN1600
PN1000-PN2000
PN1250-PN2500
Applicable cable outer diameter (mm)
≤25
≤40
≤50
≤60
Applicable wire-coil diameter (mm)
630-1250
800-1600
1000-2000
1250-2500
Applicable wire-coil width (mm)
475-950
600-1180
750-1500
950-1900
Take-up speed (mm/min)
≤100
≤100
≤80
≤60
Winding precision (%)
1-2
1-2
1-2
1-2
Loading capacity (T)
2
3
4.5
6

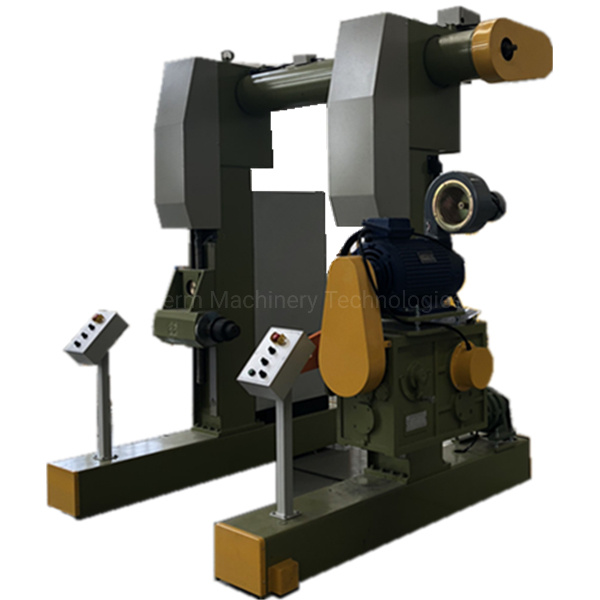

High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line

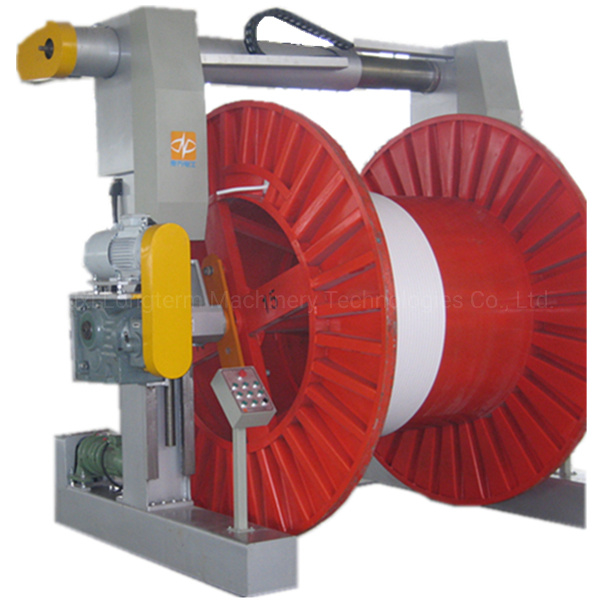

High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line

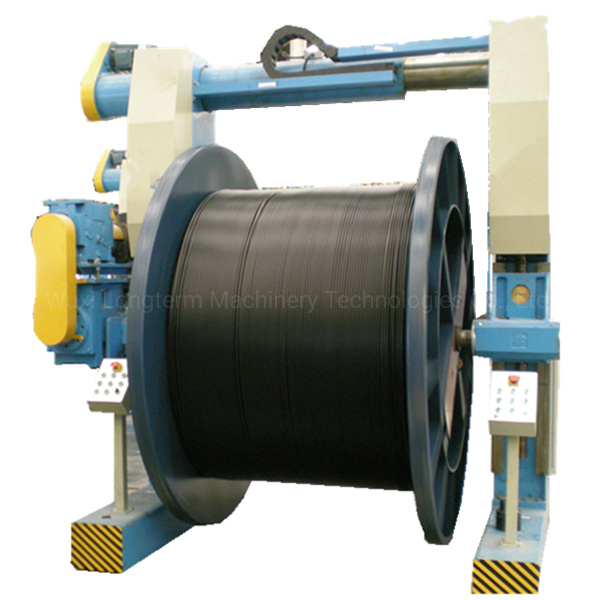

High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line
Main part brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens

Packing & Delivery
High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

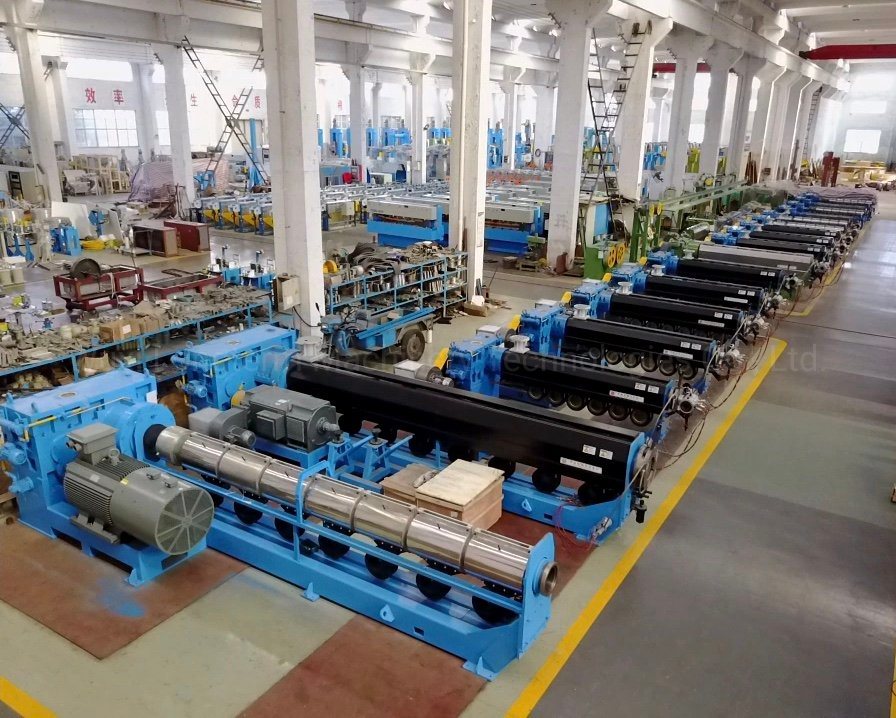

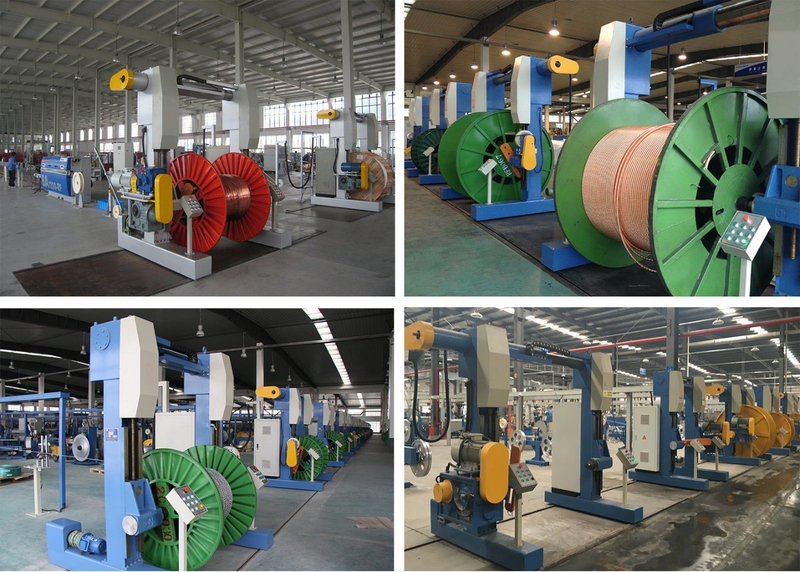

Factory show
Wuxi Longterm Technologies Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt puller, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, etc. High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line

Our service
Pre-sales service
- Inquiry and consulting support
- Customized design support
- View our factory

After-sales service
- Training how to install and how to use the machine
- Engineers available to service machinery overseas

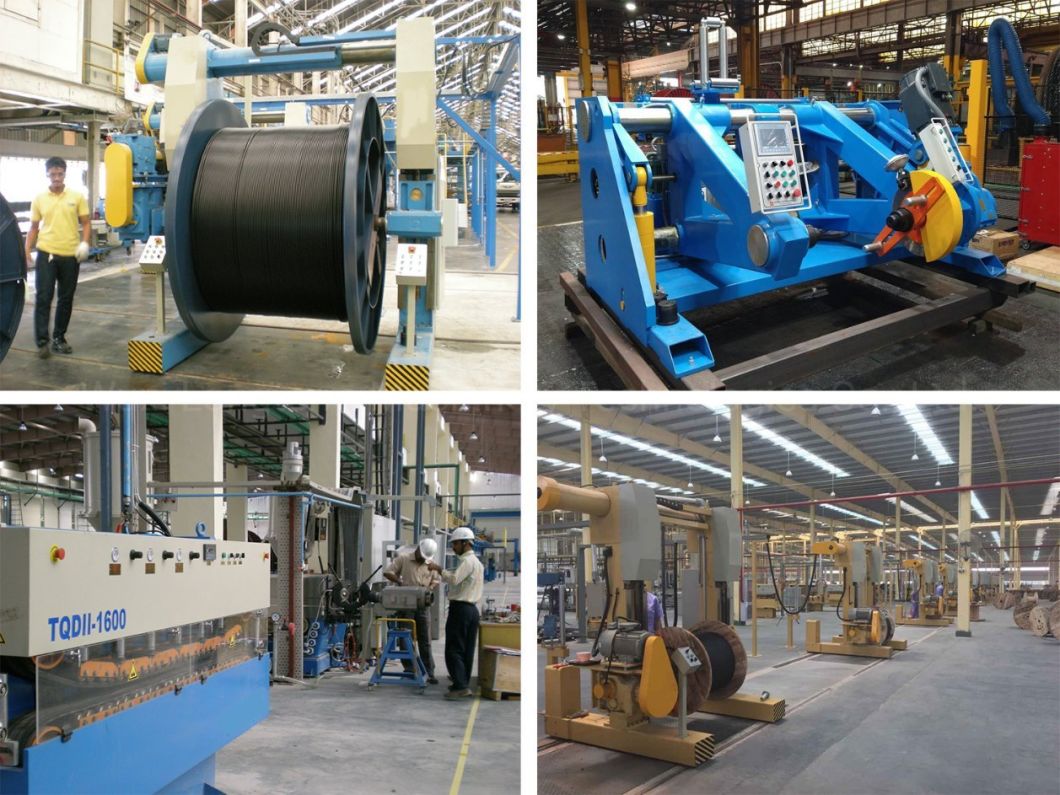

High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line

Relevant machinery

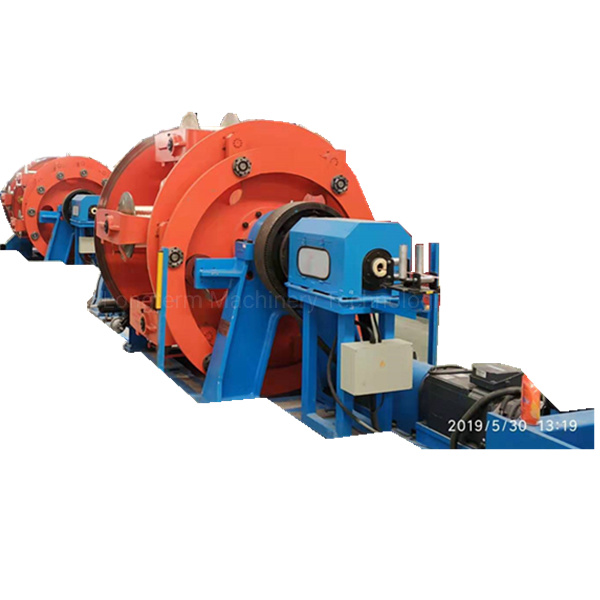

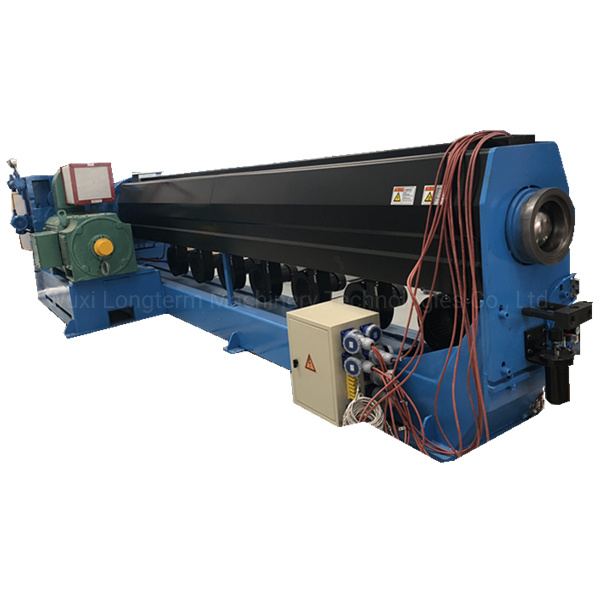

Cable extrusion machine Cable puller Cable strander
High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line
High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line
High Performance Wire Pay off Machine, Take up Machine, Fiber Take up and Pay off Line

FAQ
1. Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

2. Q: What is your company's main production?
A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

3. Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

4. Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

5. Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality,
high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
