Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^

Quantity:
  • Alpha
  • 3 Phase 415V, 50 Hz with Neutral Wire
  • 800-1700mm
  • 500-1200mm
  • 26.52rpm (50Hz) 53rpm (100Hz)
  • 15kw 1500rpm Siemens AC Servo Motor
  • Adopt Electro-Hydraulic Lifting Mode
  • 4t
  • 10~60mm
  • Max ~4600 N.M
  • 75\150mm
  • Standard Seaworthy Package
  • ISO
  • Alpha
  • Jiangsu Wuxi, China
  • 8477209000
  • 500 Set Per Year
  • Available | Customized Request

Product Description

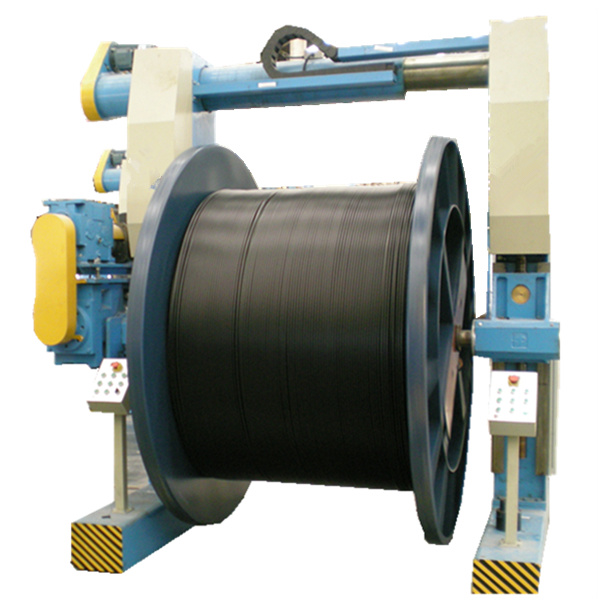

Hydraulic Cantilever Type Take-up With Traverse, Cable Take up & Pay off Unit^

Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^
Application

take-up and pay-off machine is mainly used for winding various signal cable, optical cable
Requirement for Production Line Working Environment:

Main Specification
Temperature :0~45 ºC

Power supply :3 phase 415±10%, 50 Hz with neutral wire.

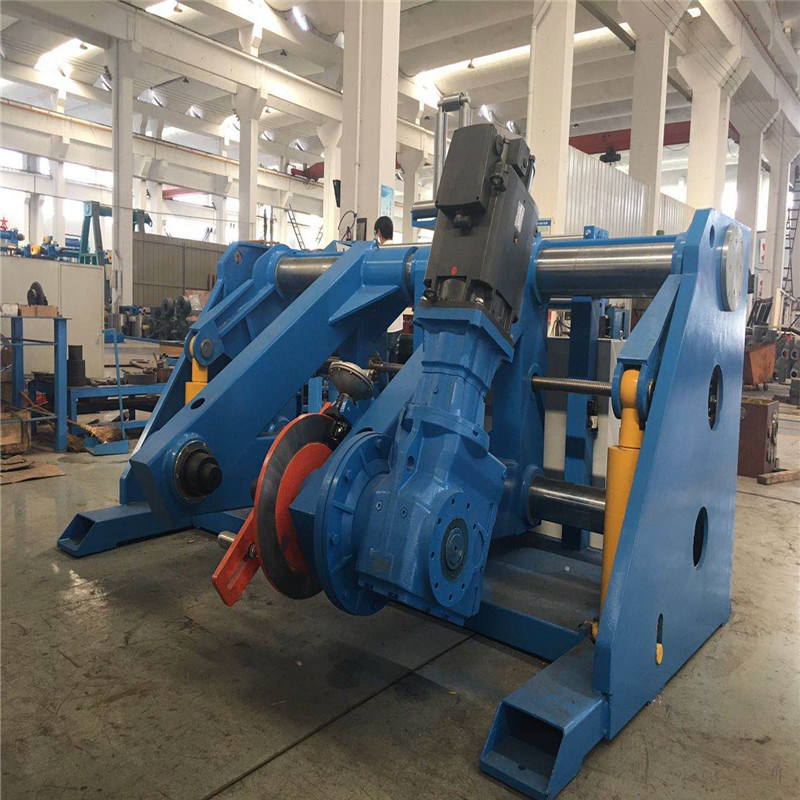

1700 Hydraulic Cantilever Type Take-up with traverse
The machine adopts double sleeve structure to enhance the bearing capacity of the equipment, Cantilever hydraulic lifting, easy to operate. Using ball screw to traverse wire, suitable for different wire diameter with high precision.

  • End shaft type bilateral clamping, cantilever adopts hydraulic electric lifting, bobbin clamping and loosening by motor.
  • Apply bobbin size: φ800-1700mm
  • Bobbin width 500~1200mm
  • Adaptor hole diameter Φ75\150mm
  • Applied cable diameter range: ≤Φ10~60mm
  • Bobbin weight: ≤4t,
  • Line speed: 26.52rpm (50HZ) 53rpm (100HZ)
  • Lifting mode: adopt electro-hydraulic lifting mode
  • Bobbin Clamping mode: 400W deceleration motor clamping
  • Take-up model: 15kw 1500rpm Siemens AC servo motor drive, Speed and tension control can be achieved
  • Take-up torque: Max ~4600 N.m
  • The wire traversing adopts AC servo motor drive, ball screw traversing wire, pitch: 0 ~ 40mm, and sychronization with Take-up.
  • The device contains pneumatic brakes that can be used to brake rapidly during downtime.
  • Siemens S7-1200 PLC control, 7-inch touch screen control wiring traversig, wiring pitch can be set on the touch screen
  • Main parts bearing use NSK
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^

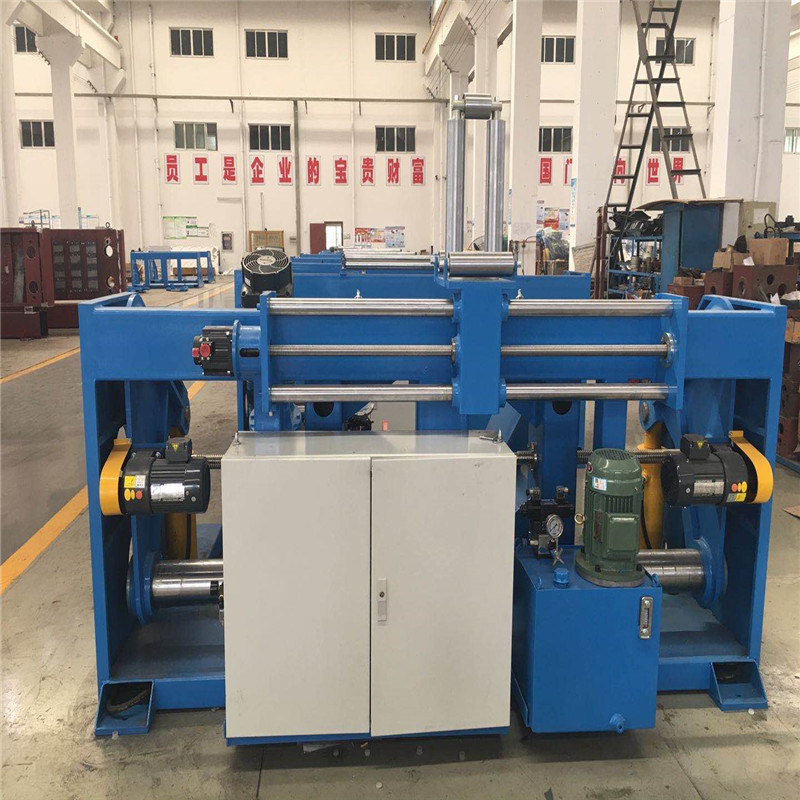

Equipment structure
A.The machine frame adopts high quality rectangular steel tube and steel plate bending welded together. Beam with two large beams connected by structure, perfect appearacne, good rigidity, high strength.

B. Adopt the way of walking beam, the whole cable tray for wiring, implementation of pay-off and take-up.

C. The equipment adopts AC variable frequency motor speed cable, high precision, uniform wiring.

D. PLC programmable controller can be integrated with all kinds of host.

E. Take-up main motor
- Take up main motor adopts DC motor, controller is European series products
- Take up main motor adopts frequency conversion, controller for Siemens or Danfoss products

Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^
Main technical parameter
Model 630/1250 800/1600 1000/2000 1250/2500
Applicable wire-coil specification PN630-PN1250 PN800-PN1600 PN1000-PN2000 PN1250-PN2500
Applicable cable outer diameter (mm) ≤25 ≤40 ≤50 ≤60
Applicable wire-coil diameter (mm) 630-1250 800-1600 1000-2000 1250-2500
Applicable wire-coil width (mm) 475-950 600-1180 750-1500 950-1900
Take-up speed (mm/min) ≤100 ≤100 ≤80 ≤60
Winding precision (%) 1-2 1-2 1-2 1-2
Loading capacity (T) 2 3 4.5 6

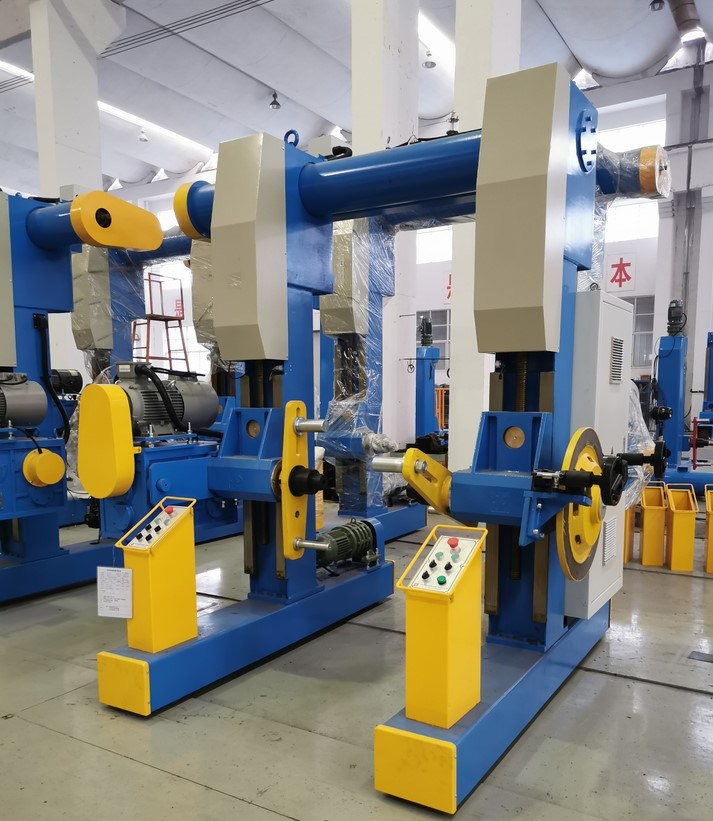

Gantry Take-up and Pay-off
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^

Machine package

Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^
Main part brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens

Our service
Pre-sales service
- Inquiry and consulting support
- Customized design support
- View our factory


After-sales service
- Training how to install and how to use the machine
- Engineers available to service machinery overseas


Project show

Philippine
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^

Malaysia
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^

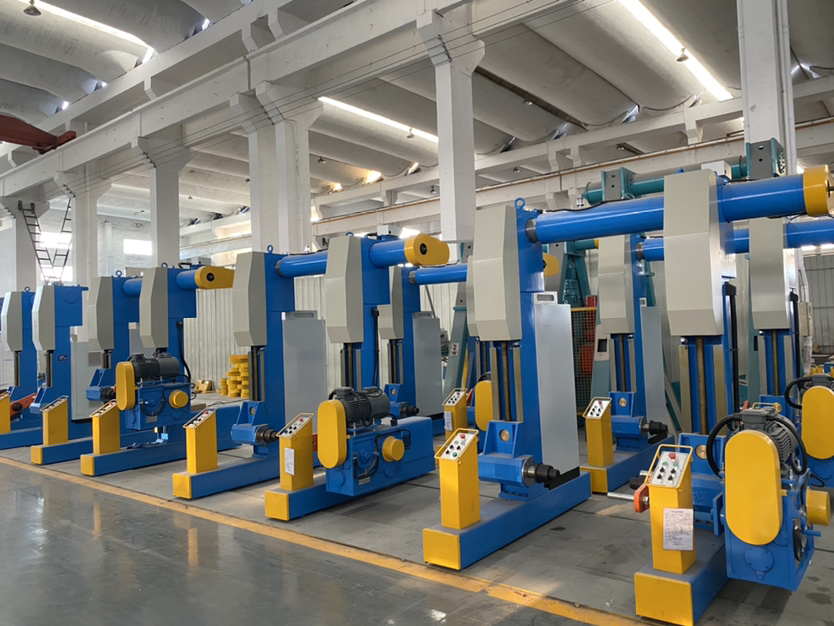

Factory show
Alpha Technical Industrial Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, etc...
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^
Our team

Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^

Relevant machinery

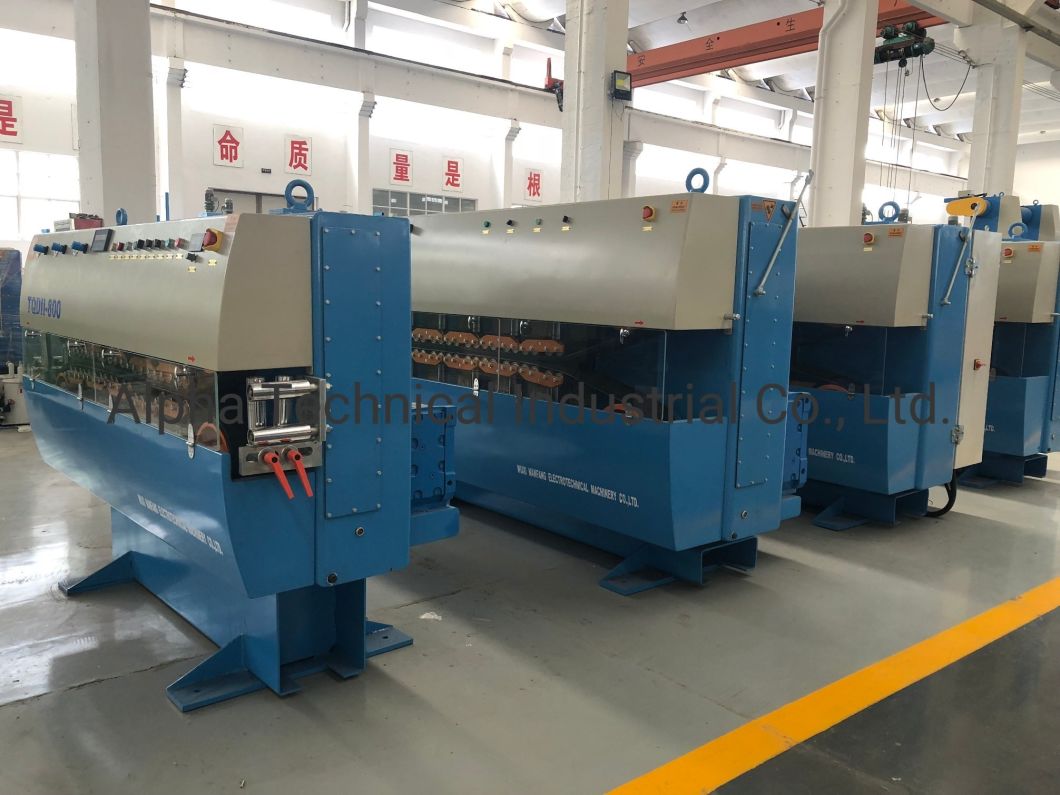

- Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter
Type & Size Screw Dia. (mm) L/D ratio Screw speed (rpm) Main motor (kw) Barrel heating power (kw) Temp. contr. zones (body/cross head) Max. output capacity (PVC) (kg/h)
SJ30X25 20 25:1 5-150 11 3.6 3/2 20
SJ45X25 45 25:1 10-120 15 9 3/2 50
SJ65X25 65 25:1 10-100 30 16 4/4 120
SJ90X25 90 25:1 10-100 90 30 4/4 280
SJ120X25 120 25:1 7-68 132 54 6/4 580
SJ150X25 150 25:1 6-60 185 88 6/4 880
SJ200X25 200 25:1 4-40 250 140 7/4 1100
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^


-Cable puller / caterpillar
Mainly used for various cable production lines for single machine or front and rear double traction.
Machine details
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^

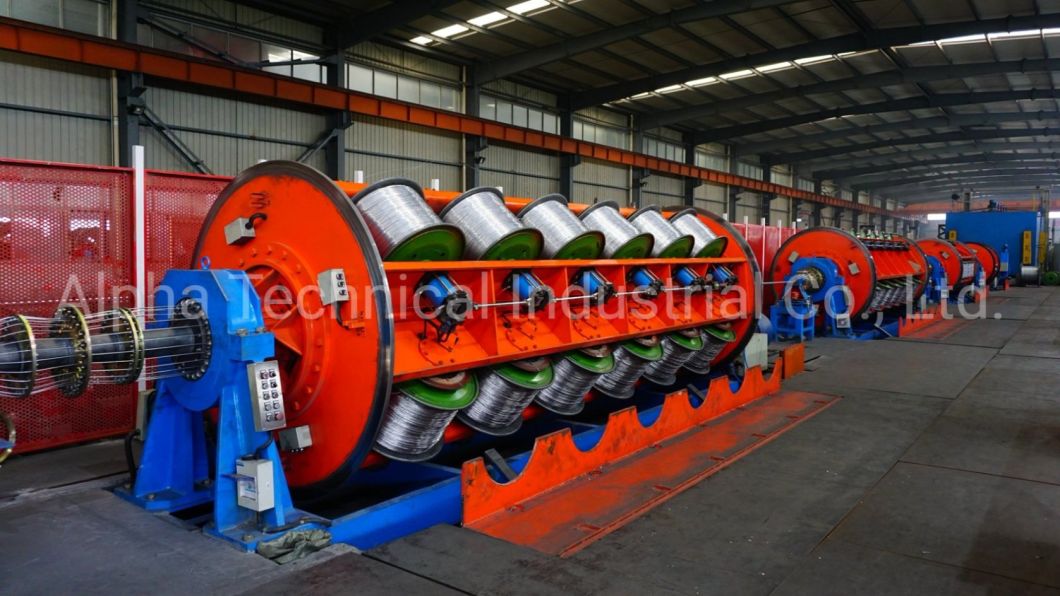

- Cable strander
Hydraulic Cantilever Type Take-up with Traverse, Cable Take up & Pay off Unit^
FAQ

− Q: Are you the manufacturer or trading company?

A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

Q: What is your company's main production?

A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

Q: What can we offer our customers?

A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

We have an experienced team of skilled workers and engineers.

We can support overseas training engineers.

We can customize the design, to accept the customer's sample design.

We can provide customers with after-sales service.
