Fiber Optic or Wire Cable Pay off Take up Cable Machine

Quantity:



Inquire Add to Basket

Model NO.:
1250~2500mm
Application:
Winding Various Signal Cable, Optical Cable
Model No.:
Hlt
Power Supply:
3 Phase 415V, 50 Hz with Neutral Wire
Apply Bobbin Size:
800-1700mm
Bobbin Width:
500-1200mm
Line Speed:
26.52rpm (50Hz) 53rpm (100Hz)
Take up Model:
15kw 1500rpm Siemens AC Servo Motor
Lifting Mode:
Adopt Electro-Hydraulic Lifting Mode
Bobbin Weight:
4t
Applied Cable Diameter Range:
10~60mm
Take-up Torque:
Max ~4600 N.M
Adaptor Hole Diameter:
75\150mm
Transport Package:
Standard Seaworthy Package
Specification:
customized
Trademark:
HLT
Origin:
Jiangsu, China
HS Code:
8477209000
Production Capacity:
500 Set Per Year
Customization:
Available | Customized Request

Product Description

Product Description

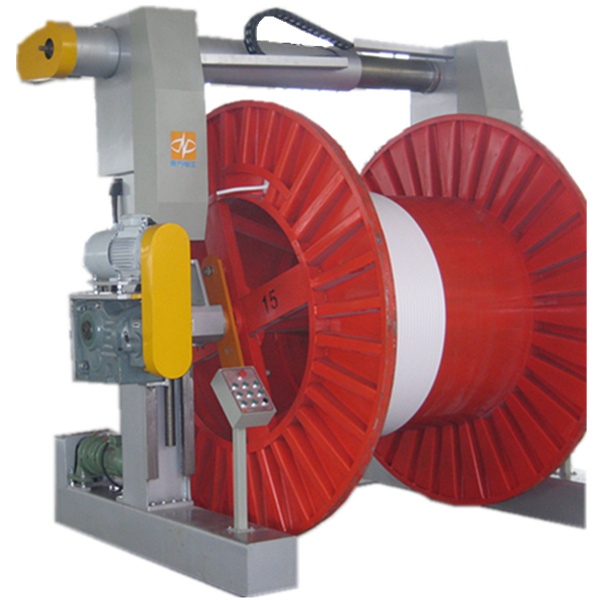

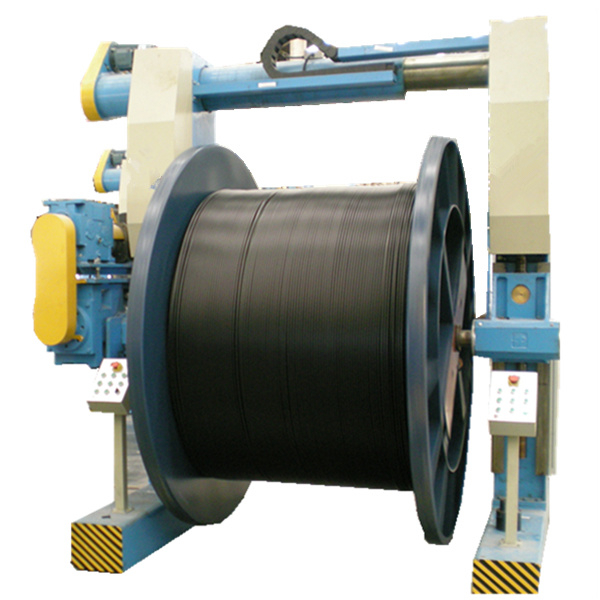

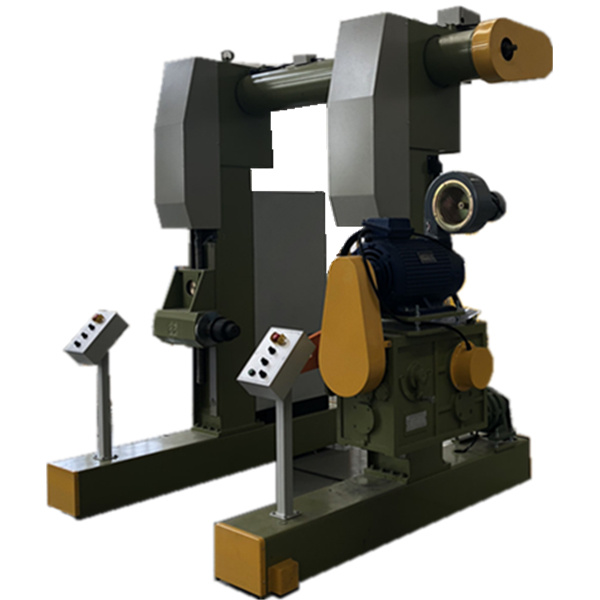

Best Sale Fiber optic or cable- pay off take up cable machine

Application

Gantry take-up and pay-off machine is mainly used for winding various signal cable, optical cable

Equipment structure

1.The machine frame adopts high quality rectangular steel tube and steel plate bending welded together. Beam with two large beams connected by structure, perfect appearacne, good rigidity, high strength.

2. Adopt the way of walking beam, the whole cable tray for wiring, implementation of pay-off and take-up.

3. The equipment adopts AC variable frequency motor speed cable, high precision, uniform wiring.

4. PLC programmable controller can be integrated with all kinds of host.

5. Take-up main motor
- Take up main motor adopts DC motor, controller is European series products
- Take up main motor adopts frequency conversion, controller for Siemens or Danfoss products

Main technical parameter
Model	630/1250	800/1600	1000/2000	1250/2500
Applicable wire-coil specification	PN630-PN1250	PN800-PN1600	PN1000-PN2000	PN1250-PN2500
Applicable cable outer diameter (mm)	≤25	≤40	≤50	≤60
Applicable wire-coil diameter (mm)	630-1250	800-1600	1000-2000	1250-2500
Applicable wire-coil width (mm)	475-950	600-1180	750-1500	950-1900
Take-up speed (mm/min)	≤100	≤100	≤80	≤60
Winding precision (%)	1-2	1-2	1-2	1-2
Loading capacity (T)	2	3	4.5	6

Main part brand

1.Motor: Siemens

2.Frequency converter: Yaskawa

3.Bearing: NSK (Japan brand)

4.Electrical component: Siemens or Omron

5.PLC controller: Siemens

Our service
Pre-sales service
- Inquiry and consulting support
- Customized design support
- View our factory

After-sales service
- Training how to install and how to use the machine
- Engineers available to service machinery overseas

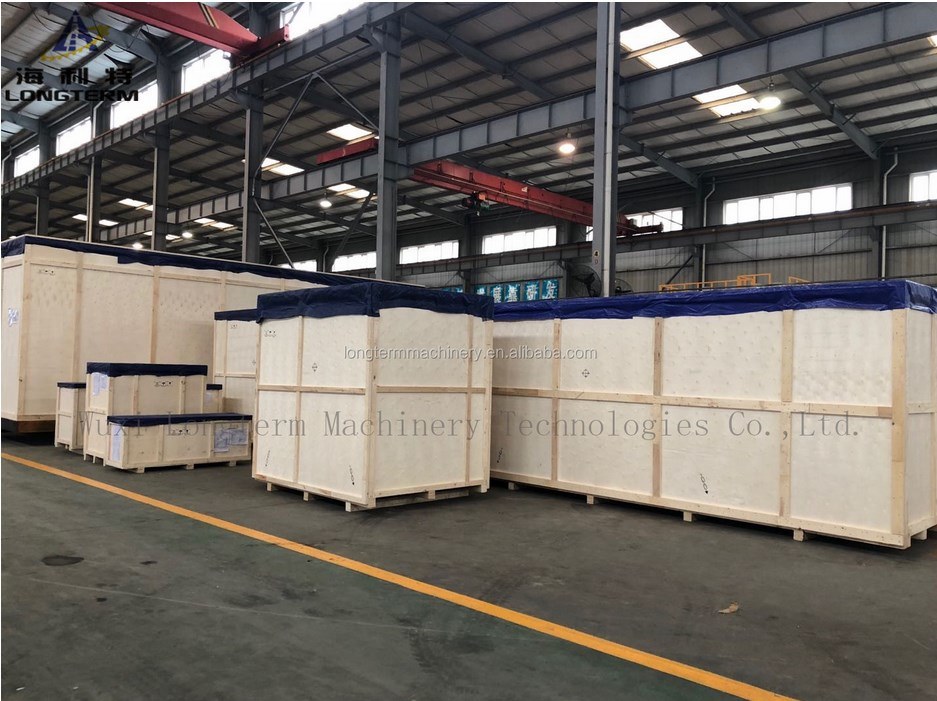

Packing & Delivery
