Medical Seamless Steel Oxygen Gas Cylinder Forming Machine

Quantity:
  • 89-180

  • 34CrMo4

  • Acceptable

  • Standard Seaworthy Package

  • T/T

  • Standard Seaworthy Packages

  • 13000 x 8000mm

  • HLT

  • Jiangsu, Wuxi

  • 8479300000

  • 100 Sets

  • Available | Customized Request

Product Description

Medical Seamless Steel Oxygen Gas Cylinder Forming Machine
Medical Seamless Steel Oxygen Gas Cylinder Forming Machine
D180 Hot Spinning Machine Technical Parameters
A.Parameters for Cylinder
1-1, Cylinder Material: 34CrMo4 (35 CrMo),37Mn,30 CrMo
1-2, Specification of Cylinder:
  1. Diameter:φ89-180mm
  2. Length: 400--1050mm
  3. Thickness: 5--12mm
  4. Weight: <80kg
B. Performance for Hot Spinning Machine
  1. 2.1, Production rate: <80s/bottle(including the time of input and output material)
    2.2, Equipment total power: around 60KW
    Main motor: 30KW--6P
    2.3, Flap rotation torque: 20KN.m
    2.4, Hydraulic system nominal operating pressure:5--8Mpa (Low pressure), 6-15Mpa (High pressure)
    2.5, Speed of Mainshaft: 400~450 R/M
    2.6, Two optional types for auxiliary heating: Automatic or Manual
C. Structure of Hot Spinning Machine
  1. 3.1, Hot spinning machine main engine includes main engine chassis, main shaft, jack catch clamping device, grip cylinder, oil dispenser.
    3.2, Panel turnover mechanism includes turning plate, turning plate oil cylinder, turning plate bearing(single-boom) and adjusting mechanism, turning plate centre lower than 20mm of main shaft centre, cushion block.

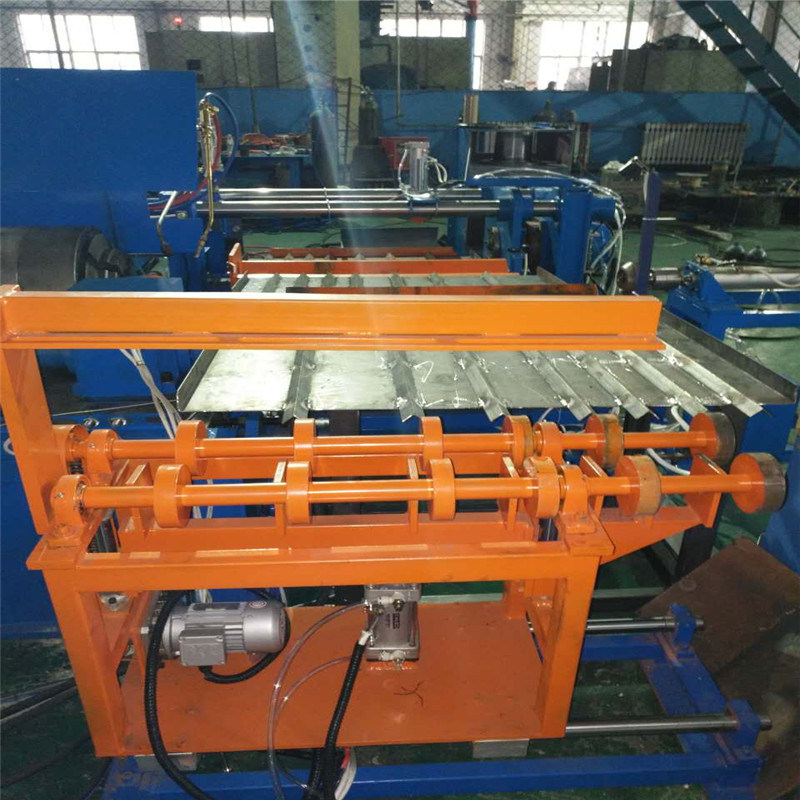

    3.3, Equipment includes feeding mechanism, discharge mechanism, air cylinder, removable and adjustable feed frame.
    3.4, Steel pipe positioning mode: prelocalization
    3.5, Hydraulic system includes high-low pressure pump, control valve and connecting pipeline.
    3.6, One set electric control cabinet, one set electric control box.
    3.7, Two types for Mould lifting device: Automatic or Manual
D. Component and File Provided
4.1, Jack catch:φ89,φ140,φ180(each diameter one pair)
4.2, Closed bottom die:φ180(one pair)
4.3, Manufacture Certificate, Operation Instruction, Electrical Principle Chart, Hydraulic Principle Chart, Main Component Chart, The Installation Plan, Equipmen
Shipping List.

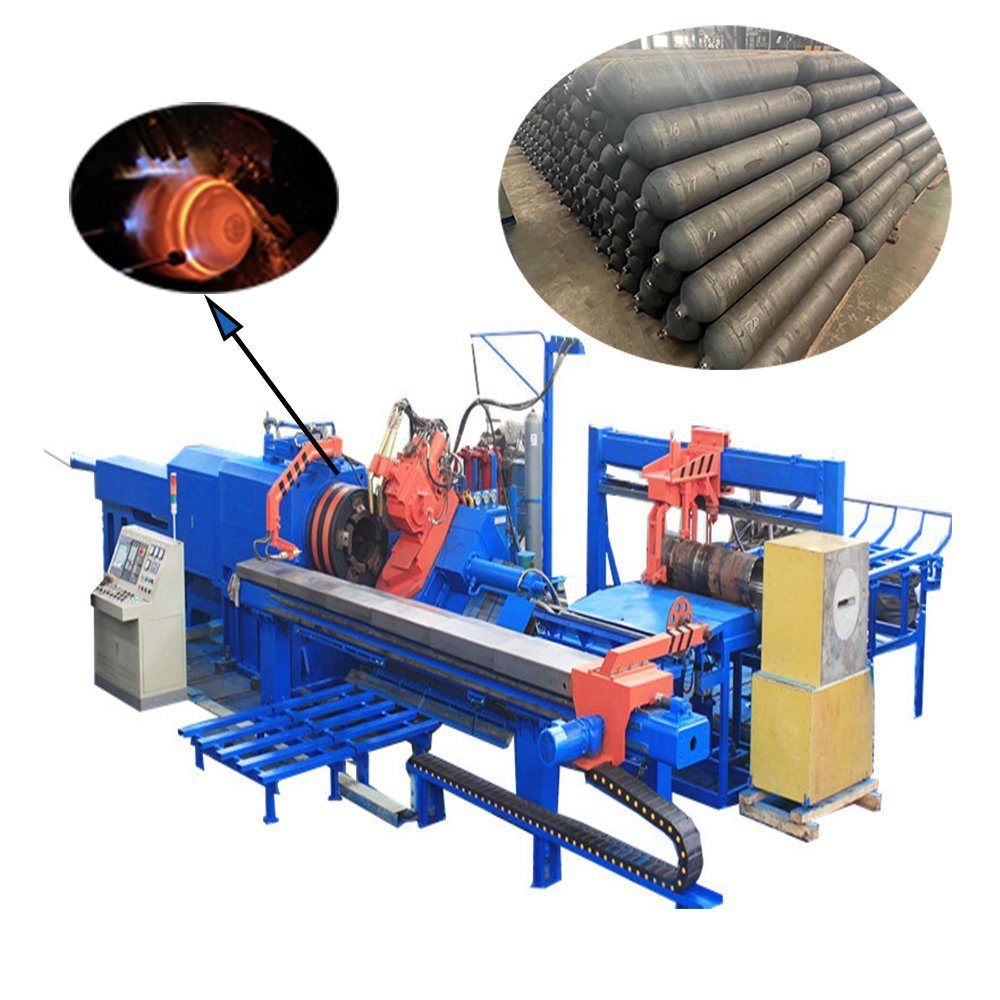

HFD180 Hot Spinning Machine include: Intermediate Frequency Heating Equipment, Hot Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 2000Kw, installation area is 13000 x 8000mm, specific parameter as following:
Intermediate Frequency Heating Equipment Model D180-110Kw
Technical Parameters
A.Main Technical Parameter:
Rated Power(KW) Rated Frequency(Hz) Power Frequency Voltage(V)
110 2500 3-380
B.Equipment Performance and Technical Requirement
1.KGPS-B Thyristor Intermediate Frequency Inverter
1-1, Main Technical Parameter:


Forming

Medical Seamless Steel Oxygen Gas Cylinder Forming Machine


Forming type
Roller forming Scrapper forming
Medical Seamless Steel Oxygen Gas Cylinder Forming Machine
Machines
Medical Seamless Steel Oxygen Gas Cylinder Forming Machine

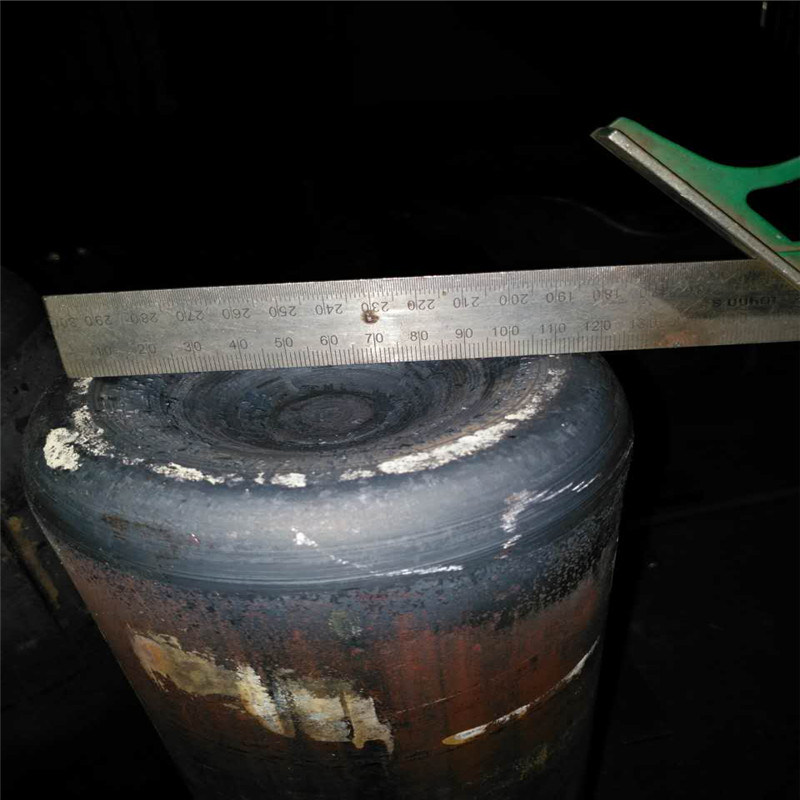

Products show
Medical Seamless Steel Oxygen Gas Cylinder Forming Machine
Installtion&Commisioning

Medical Seamless Steel Oxygen Gas Cylinder Forming Machine
Shipping∇ivery

Medical Seamless Steel Oxygen Gas Cylinder Forming Machine
Related machine


CNC screw threading machine
Medical Seamless Steel Oxygen Gas Cylinder Forming Machine

Automatic printing machine
Medical Seamless Steel Oxygen Gas Cylinder Forming Machine

Medical Seamless Steel Oxygen Gas Cylinder Forming Machine
FAQ For hot spinning machine

Q: What size of seamless cylinder your machine can produce?
A: 108-189,232-406 and other size according customers' requirement.

Q: Can you design machines according technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, please tell me following details:
1.Technical Drawing of the cylinders you want to make?
2.Are you new in this area or you already have some machines in the workshop?
3.Capacity you require, i.e. how many pieces and sizes you want to make per day?
