| Quantity: | |
|---|---|
HLT
Hydraulic Pressure
High Precision
GS, CE, RoHS, ISO 9001
New
LPG Gas Cylinder Decoiler, Straightening and Blank
Punching, Blending
Save Mold Maintenance Cost
110-600ton
High Rigidity Ensures Long-Term Stabilit
High Security, High Affinity, Multifunctional Elec
Can Be Used with Various Types of Automation Perip
Can Be Used with Various Types of Automation Perip
Customized
Customized
Sea Worthy Package
ISO
HLT
Wuxi, Jiangsu, China(Mainland)
100 Sets/Month
US$ 2/Piece 1 Piece(Min.Order) | Request Sample
Product Description

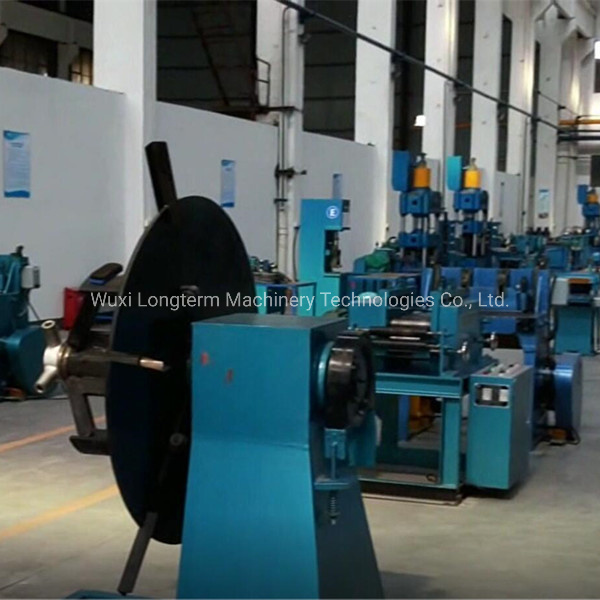

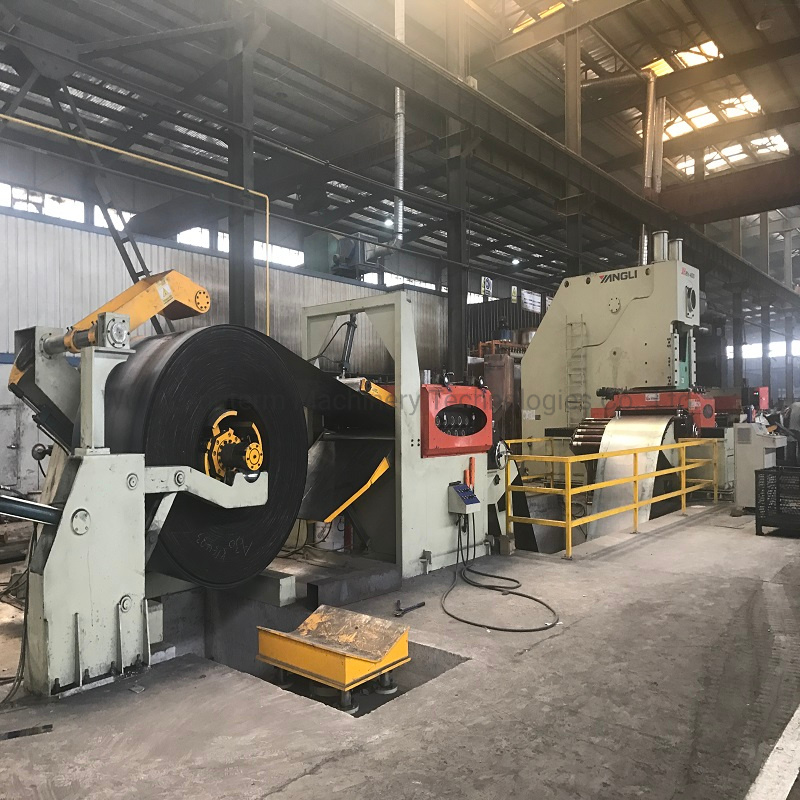

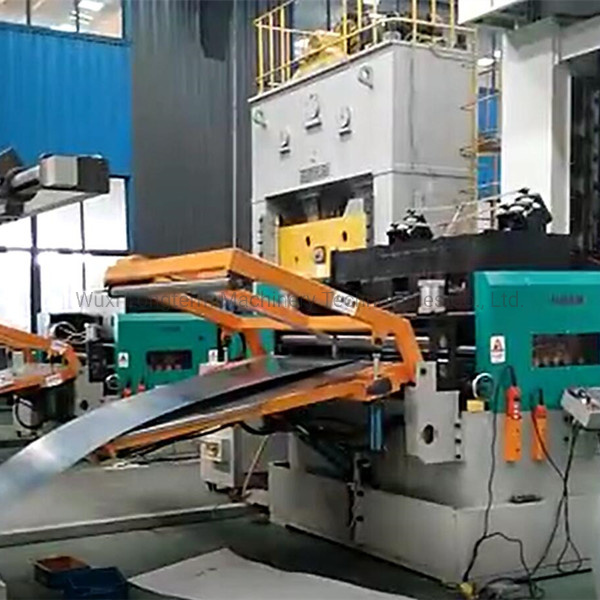

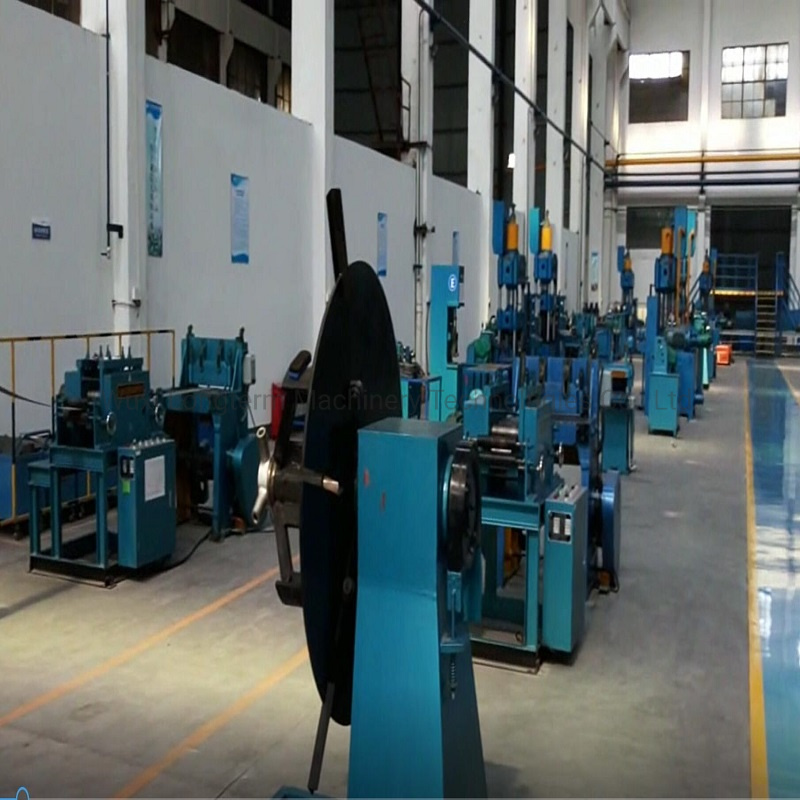

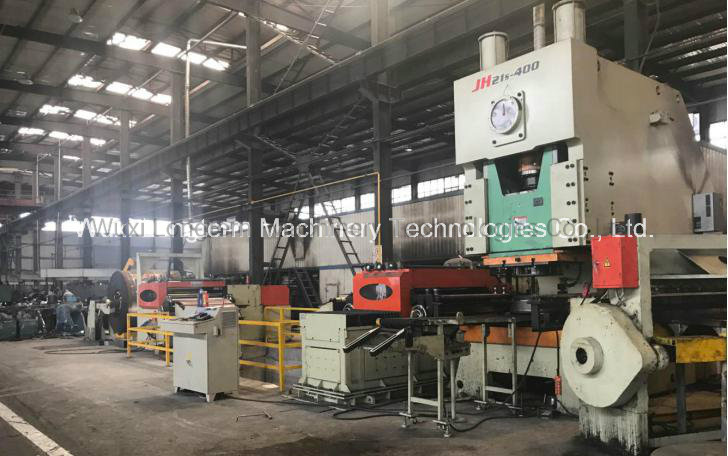

LPG Gas Cylinder Decoiler, Straightening and Blanking Line
Description of machine
1. Motor power: 46KW
2. Nominal force: 6300KN
3. Max working pressure: 25Mpa
4. Speed of slide to go down: 120mm/s
Speed of slide to press: 6-8mm/s
Speed of slide to go up: 55mm/s
5.Table size(left and right): 1500mm
6.Table size(front and rear): 2500mm
7.Weight of hydraulic press is 23ton, of de-coiler is 12ton.
8.Working power for 15kg cylinder is 300ton.

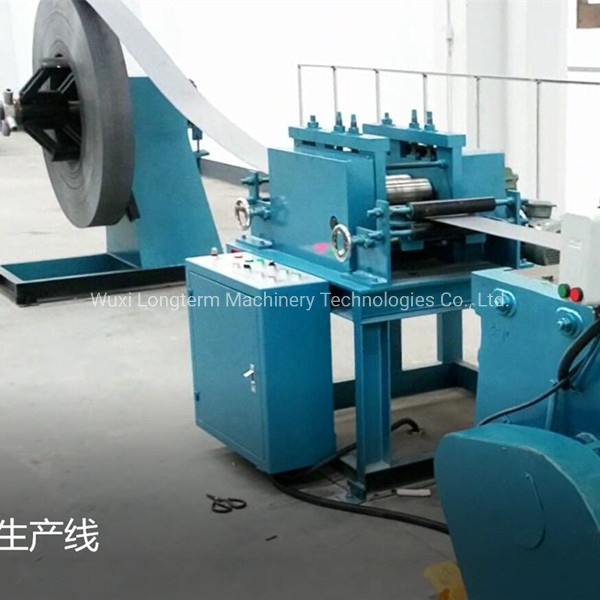

Straightening roller: ¢90(Up 5 low 4), with one set support roller
Material conveyor: ¢115*1 set, with one set support roller
Coil weight: Max. 15Ton
Feeding direction and height can be adjustable.
Straightening adjust: servo driven, digital show.
Rack motor: 7.5KW, servo motor: 7.5KW
Feeding trolley working table size: 1250*800mm
Feeding trolley lifting distance: 350mm(suitable for 1000-1500mmOD coil)
Raw material specification
Main electric components brand:
| No. | Description | Brand |
| 1 | Photo electricity material arc control system | Taiwan Yangming |
| 2 | Coil rack converter | Taiwan Shilin |
| 3 | Main release air cylinder | Airtac |
| 4 | Pneumatic electromagnetic valve | Airtac |
| 5 | Straightening bear | Japan NSK |
| 6 | Servo driver | Japan YASKAWA |
| 7 | Servo motor | Japan YASKAWA |
| 8 | Touch screen - 7 inch | MCGS |
| 9 | PLC program controller - FX | Mitsubishi |
| 10 | Breaker | Zhejiang Zhengtai |
| 11 | Contactor | Schneider |
| 12 | Control button | Schneider |
| 13 | Relay | Omron |
