Product Description

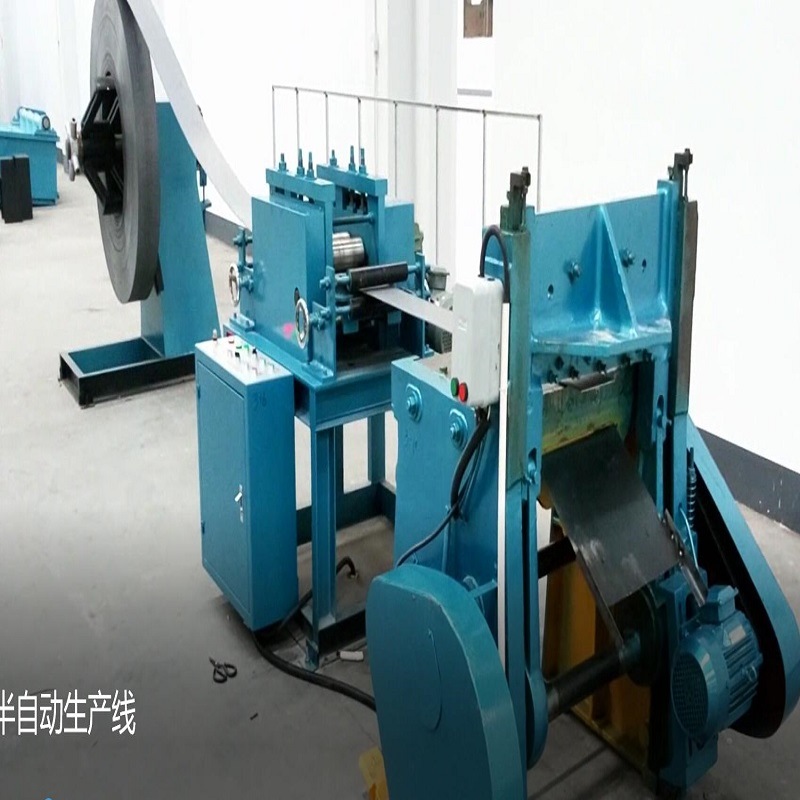

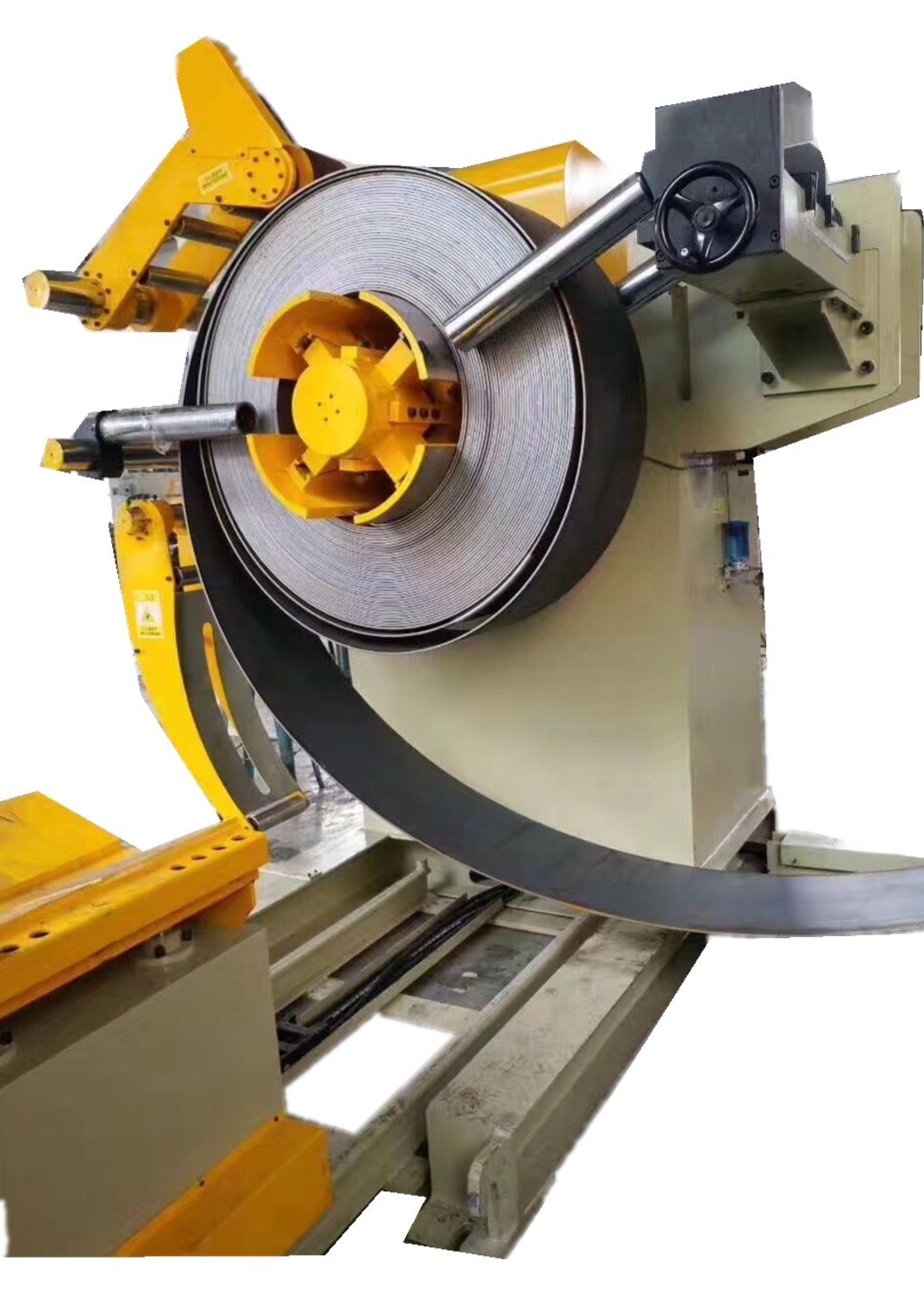

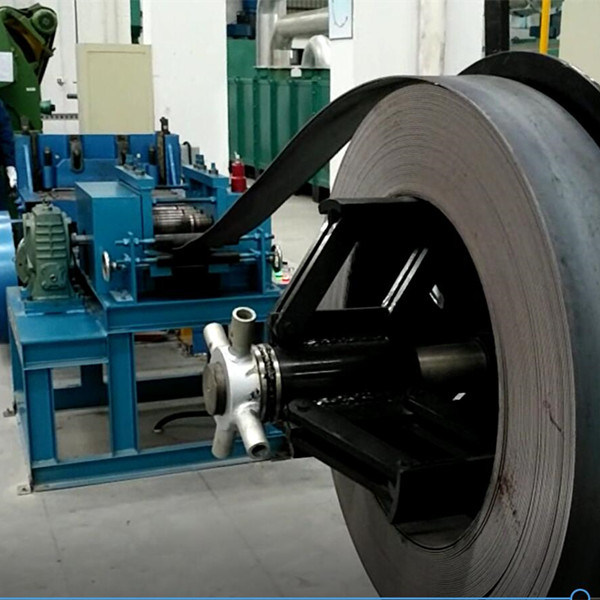

LPG Gas Cylinder Automatic Decoiler and Blanking Line, Hydraulic Steel Coil Decoiler for LPG Cylinder Manufacture Line
Description of machine
1. Motor power: 46KW
2. Nominal force: 6300KN
3. Max working pressure: 25Mpa
4. Speed of slide to go down: 120mm/s
Speed of slide to press: 6-8mm/s
Speed of slide to go up: 55mm/s
5.Table size(left and right): 1500mm
6.Table size(front and rear): 2500mm
7.Weight of hydraulic press is 23ton, of de-coiler is 12ton.
8.Working power for 15kg cylinder is 300ton.
Straightening roller: ¢90(Up 5 low 4), with one set support roller
Material conveyor: ¢115*1 set, with one set support roller
Coil weight: Max. 15Ton
Feeding direction and height can be adjustable.
Straightening adjust: servo driven, digital show.
Rack motor: 7.5KW, servo motor: 7.5KW
Feeding trolley working table size: 1250*800mm
Feeding trolley lifting distance: 350mm(suitable for 1000-1500mmOD coil)
Raw material specification
Main electric components brand:
| No. | Description | Brand |
| 1 | Photo electricity material arc control system | Taiwan Yangming |
| 2 | Coil rack converter | Taiwan Shilin |
| 3 | Main release air cylinder | Airtac |
| 4 | Pneumatic electromagnetic valve | Airtac |
| 5 | Straightening bear | Japan NSK |
| 6 | Servo driver | Japan YASKAWA |
| 7 | Servo motor | Japan YASKAWA |
| 8 | Touch screen - 7 inch | MCGS |
| 9 | PLC program controller - FX | Mitsubishi |
| 10 | Breaker | Zhejiang Zhengtai |
| 11 | Contactor | Schneider |
| 12 | Control button | Schneider |
| 13 | Relay | Omron |
