LPG Gas Cylinder Decoiler Straightening and Blanking Machine

Quantity:
  • HLT
  • Hydraulic Pressure
  • High Precision
  • GS, CE, RoHS, ISO 9001
  • New
  • LPG Gas Cylinder Decoiler, Straightening and Blank
  • Punching, Blending
  • Save Mold Maintenance Cost
  • 110-600ton
  • High Rigidity Ensures Long-Term Stabilit
  • High Security, High Affinity, Multifunctional Elec
  • Can Be Used with Various Types of Automation Perip
  • Can Be Used with Various Types of Automation Perip
  • Customized
  • Customized
  • Sea Worthy Package
  • ISO
  • HLT
  • Wuxi, Jiangsu, China(Mainland)
  • 100 Sets/Month
  • US$ 2/Piece 1 Piece(Min.Order) | Request Sample

Product Description

LPG Gas Cylinder Decoiler Straightening and Blanking Machine

LPG Gas Cylinder Decoiler Straightening and Blanking Machine
Description of machine
1. Motor power: 46KW
2. Nominal force: 6300KN
3. Max working pressure: 25Mpa
4. Speed of slide to go down: 120mm/s
Speed of slide to press: 6-8mm/s
Speed of slide to go up: 55mm/s
5.Table size(left and right): 1500mm
6.Table size(front and rear): 2500mm
7.Weight of hydraulic press is 23ton, of de-coiler is 12ton.
8.Working power for 15kg cylinder is 300ton.

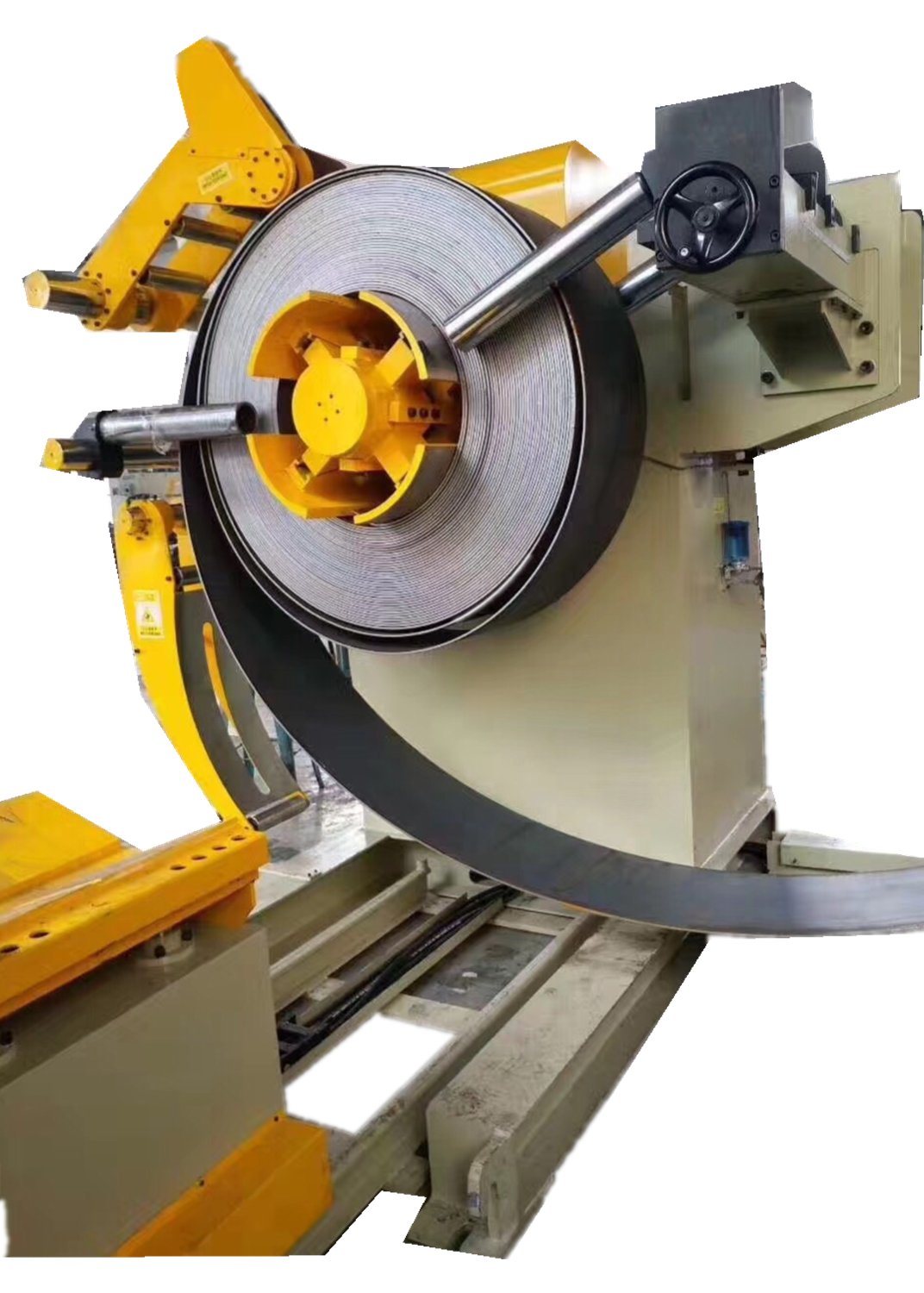

LPG Gas Cylinder Decoiler Straightening and Blanking Machine

Straightening roller: ¢90(Up 5 low 4), with one set support roller

Material conveyor: ¢115*1 set, with one set support roller

Coil weight: Max. 15Ton

Feeding direction and height can be adjustable.

Straightening adjust: servo driven, digital show.

Rack motor: 7.5KW, servo motor: 7.5KW

Feeding trolley working table size: 1250*800mm

Feeding trolley lifting distance: 350mm(suitable for 1000-1500mmOD coil)
LPG Gas Cylinder Decoiler Straightening and Blanking Machine

Raw material specification

  1. Thickness 2-4mm
  2. Width : ≤1170mm. Can be designed according to customers' requirement.
  3. Inside Diameter of steel coil: 450-800mm
  4. Outside diameter of steel coil: ≤1800mm
  5. Weight of steel coil: ≤25ton

Main electric components brand:

No.

Description

Brand

1

Photo electricity material arc control system

Taiwan Yangming

2

Coil rack converter

Taiwan Shilin

3

Main release air cylinder

Airtac

4

Pneumatic electromagnetic valve

Airtac

5

Straightening bear

Japan NSK

6

Servo driver

Japan YASKAWA

7

Servo motor

Japan YASKAWA

8

Touch screen - 7 inch

MCGS

9

PLC program controller - FX

Mitsubishi

10

Breaker

Zhejiang Zhengtai

11

Contactor

Schneider

12

Control button

Schneider

13

Relay

Omron


LPG Gas Cylinder Decoiler Straightening and Blanking Machine

Packing & Delivery
LPG Gas Cylinder Decoiler Straightening and Blanking Machine

Our Customers
LPG Gas Cylinder Decoiler Straightening and Blanking Machine LPG Gas Cylinder Decoiler Straightening and Blanking Machine

Company Introduction

Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-punching equipment and automatic welding system integration, as well as related equipment. Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.
LPG Gas Cylinder Decoiler Straightening and Blanking Machine

FAQ
In order to recommend you the proper machine, we'd like to get the below from you:


- What's the size of Steel Round piece you are using?
- It's better to provide the cylinder drawing or handle drawing.
- What's the daily capacity you want to attain?
