Good Perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China@

Share to:

Good Perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China@

Quantity:



Inquire Add to Basket

Model NO.:
hlt-10
Power Source:
Hydraulic Pressure
Precision:
High Precision
Certification:
GS, CE, RoHS, ISO 9001
Condition:
New
Product Name:
Good Perforance LPG Gas Cylinder Decoiler, Straigh
Application:
Punching, Blending
Features:
Save Mold Maintenance Cost
Press Capacity:
110-600ton
Advantages:
High Rigidity Ensures Long-Term Stabilit
Characteristics:
High Security, High Affinity, Multifunctional Elec
Trait:
Can Be Used with Various Types of Automation Perip
Peculiarity:
Can Be Used with Various Types of Automation Perip
Color:
Customized
Weight:
Customized
Transport Package:
Sea Worthy Package
Specification:
ISO
Trademark:
HLT
Origin:
Wuxi, Jiangsu, China(Mainland)
Production Capacity:
100 Sets/Month
Samples:
US$ 2/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

Good perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line made in China

Description of machine
1. Motor power: 46KW
2. Nominal force: 6300KN
3. Max working pressure: 25Mpa
4. Speed of slide to go down: 120mm/s
Speed of slide to press: 6-8mm/s
Speed of slide to go up: 55mm/s
5.Table size(left and right): 1500mm
6.Table size(front and rear): 2500mm
7.Weight of hydraulic press is 23ton, of de-coiler is 12ton.
8.Working power for 15kg cylinder is 300ton.
Good Perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China@

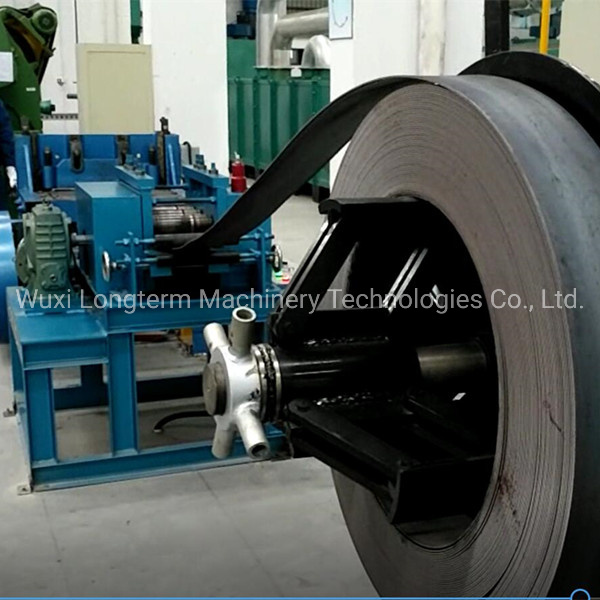

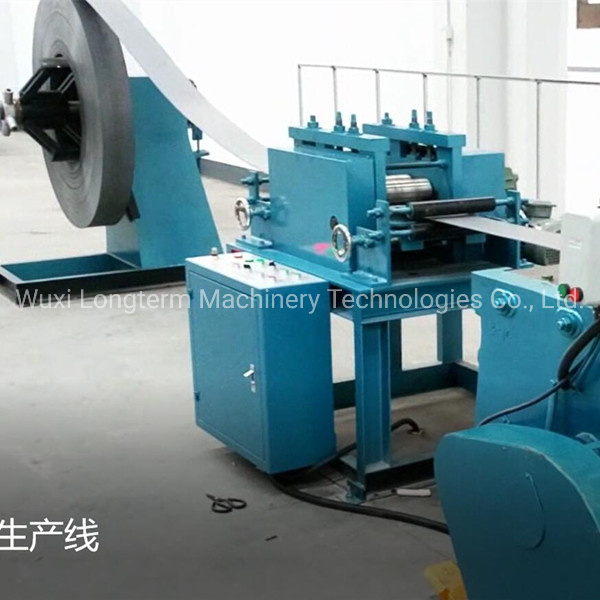

Straightening roller: ¢90(Up 5 low 4), with one set support roller

Material conveyor: ¢115*1 set, with one set support roller

Coil weight: Max. 15Ton

Feeding direction and height can be adjustable.

Straightening adjust: servo driven, digital show.

Rack motor: 7.5KW, servo motor: 7.5KW

Feeding trolley working table size: 1250*800mm

Feeding trolley lifting distance: 350mm(suitable for 1000-1500mmOD coil)
Good Perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China@

Raw material specification

Thickness 2-4mm
Width : ≤1170mm. Can be designed according to customers' requirement.
Inside Diameter of steel coil: 450-800mm
Outside diameter of steel coil: ≤1800mm
Weight of steel coil: ≤25ton

Main electric components brand:

No.	Description	Brand
1	Photo electricity material arc control system	Taiwan Yangming
2	Coil rack converter	Taiwan Shilin
3	Main release air cylinder	Airtac
4	Pneumatic electromagnetic valve	Airtac
5	Straightening bear	Japan NSK
6	Servo driver	Japan YASKAWA
7	Servo motor	Japan YASKAWA
8	Touch screen - 7 inch	MCGS
9	PLC program controller - FX	Mitsubishi
10	Breaker	Zhejiang Zhengtai
11	Contactor	Schneider
12	Control button	Schneider
13	Relay	Omron

Packing & Delivery
Good Perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China@

Our Customers
Good Perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China@

Company Introduction

Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-punching equipment and automatic welding system integration, as well as related equipment. Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.
Good Perforance LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China@

FAQ
In order to recommend you the proper machine, we'd like to get the below from you:

- What's the size of Steel Round piece you are using?
- It's better to provide the cylinder drawing or handle drawing.
- What's the daily capacity you want to attain?
