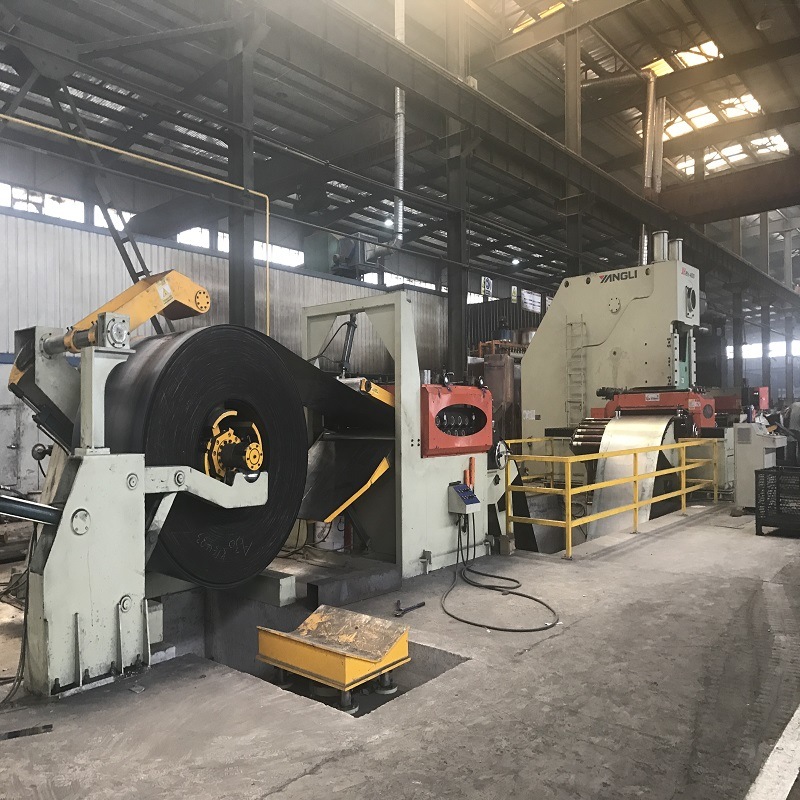

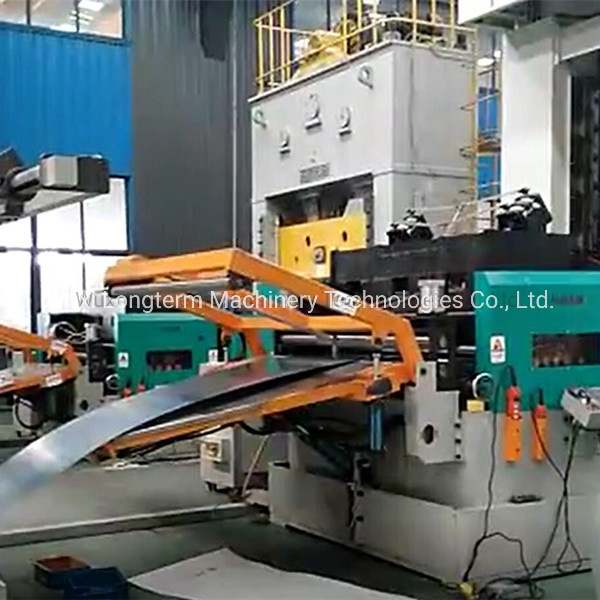

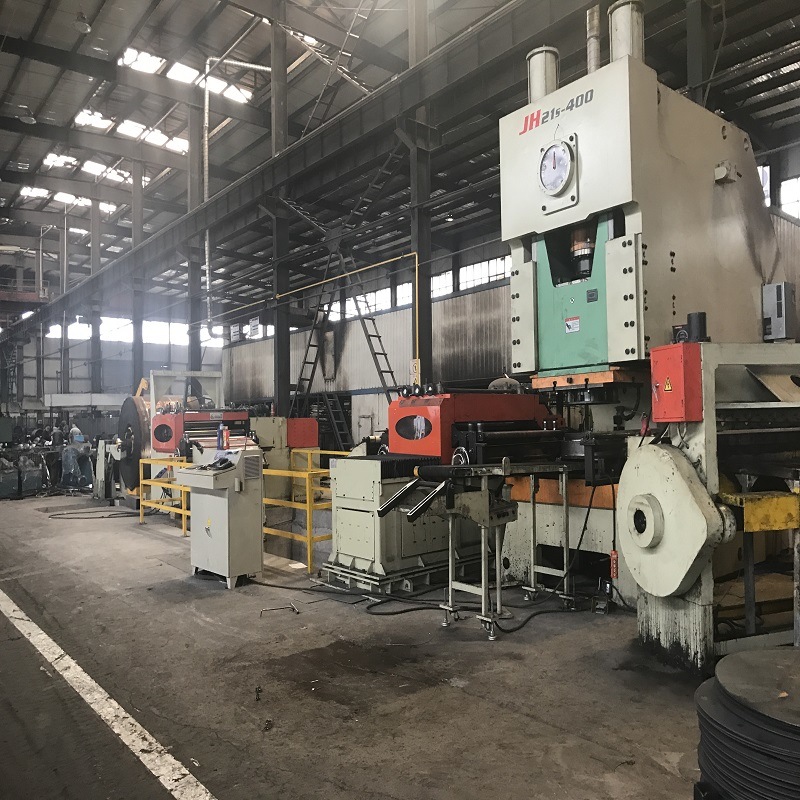

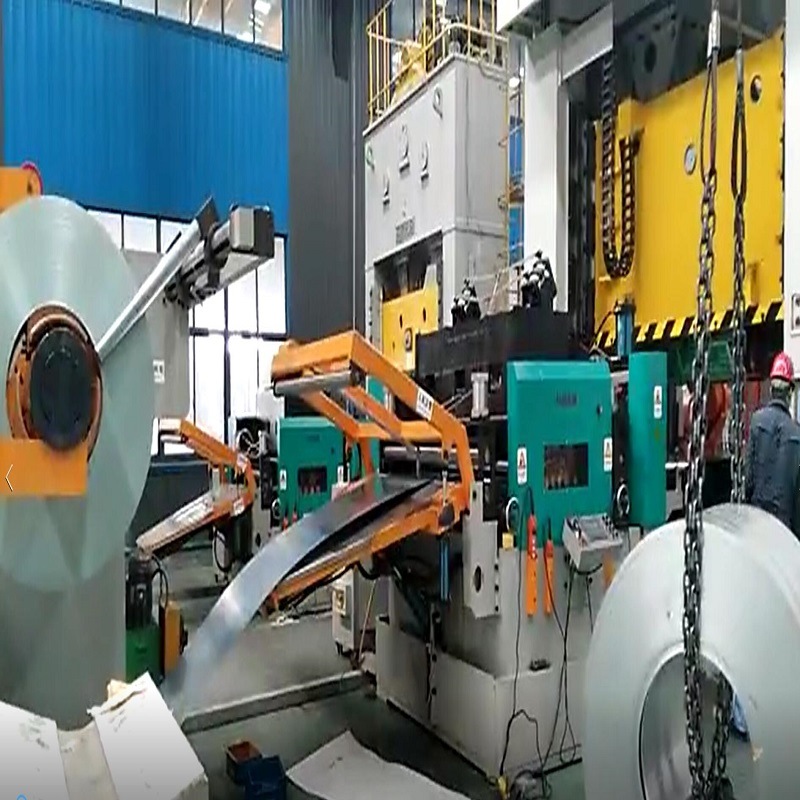

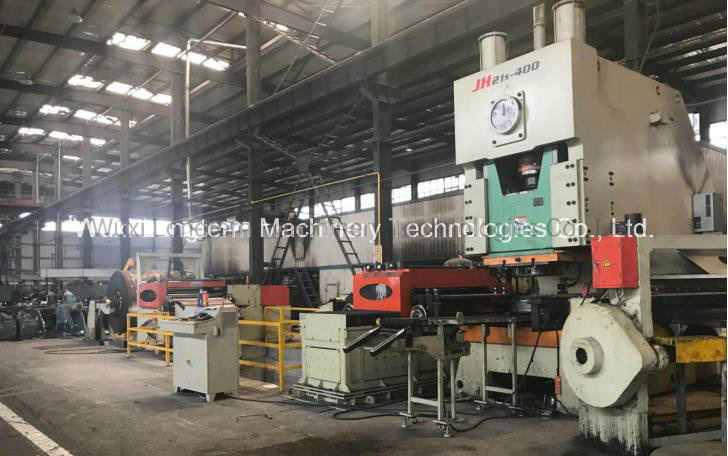

LPG Gas Cylinder Decoiler, Straightening and Blanking Line Made in China

LPG Gas Cylinder Decoiler, Straightening and Blanking Line made in china

made

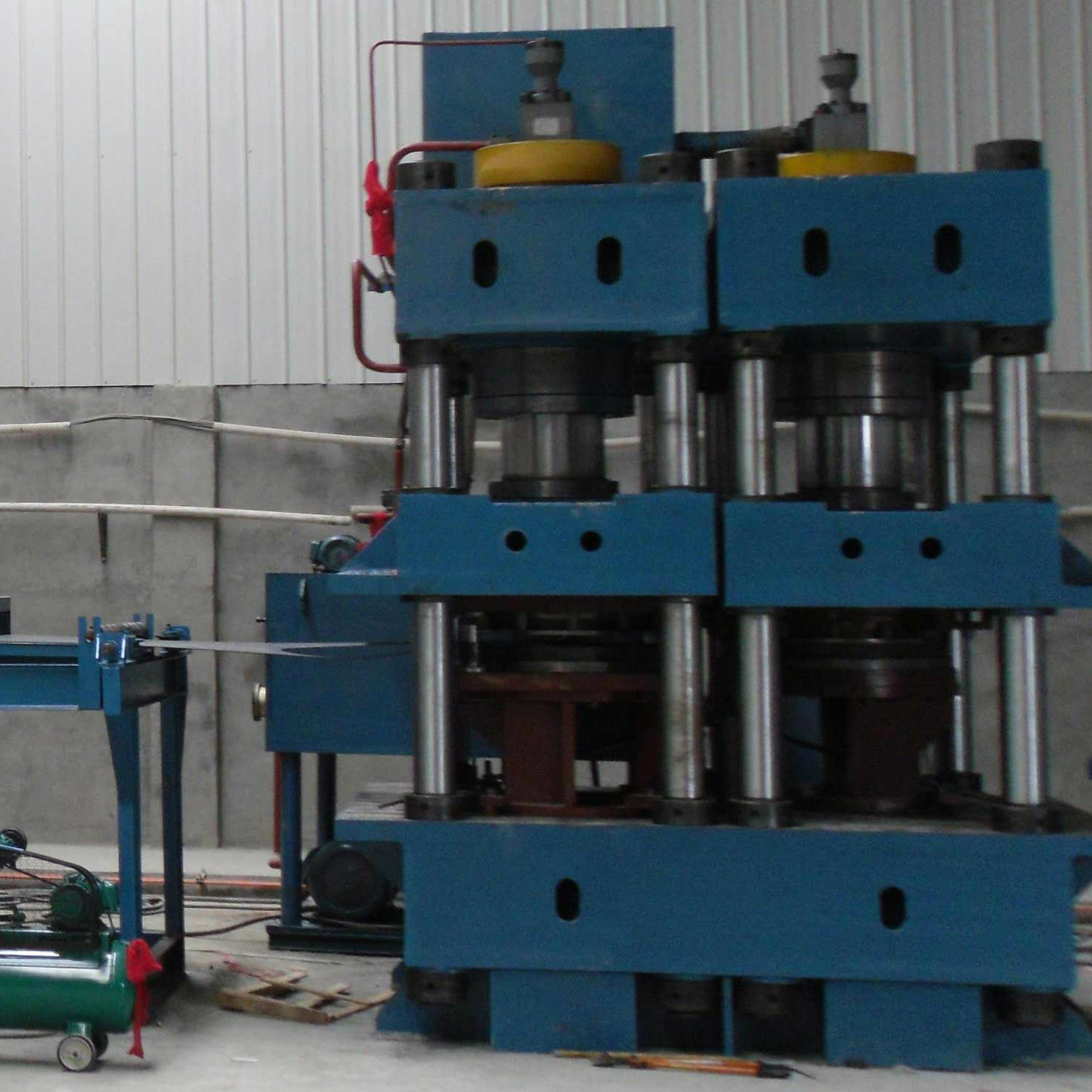

Description of machine
1. Motor power: 46KW
2. Nominal force: 6300KN
3. Max working pressure: 25Mpa
4. Speed of slide to go down: 120mm/s
Speed of slide to press: 6-8mm/s
Speed of slide to go up: 55mm/s
5.Table size(left and right): 1500mm
6.Table size(front and rear): 2500mm
7.Weight of hydraulic press is 23ton, of de-coiler is 12ton.
8.Working power for 15kg cylinder is 300ton.

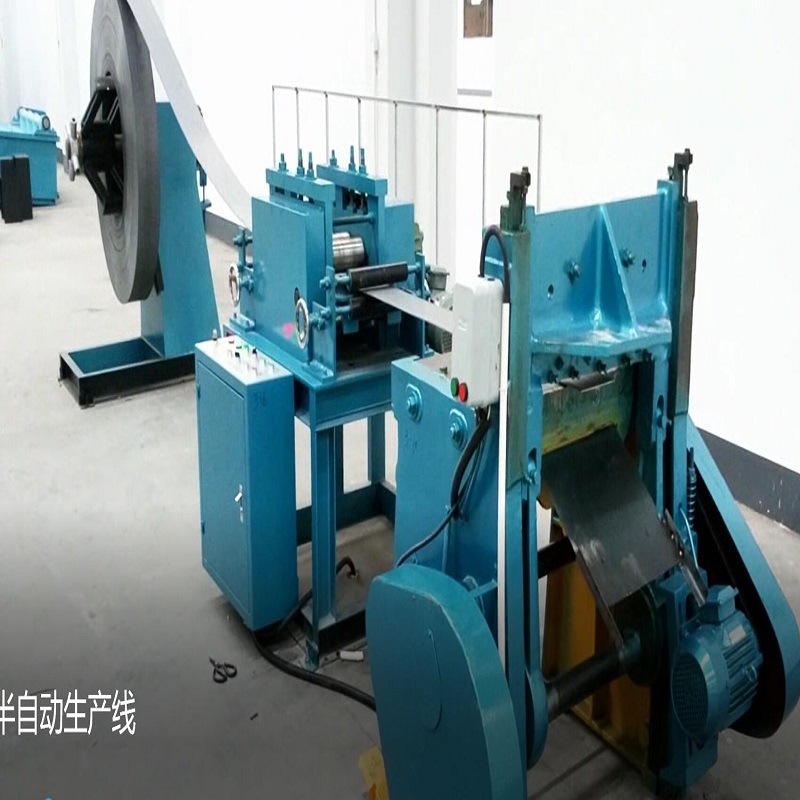

Straightening roller: ¢90(Up 5 low 4), with one set support roller

Material conveyor: ¢115*1 set, with one set support roller

Coil weight: Max. 15Ton

Feeding direction and height can be adjustable.

Straightening adjust: servo driven, digital show.

Rack motor: 7.5KW, servo motor: 7.5KW

Feeding trolley working table size: 1250*800mm

Feeding trolley lifting distance: 350mm(suitable for 1000-1500mmOD coil)


Raw material specification

1. Thickness 2-4mm
2. Width : ≤1170mm. Can be designed according to customers' requirement.
3. Inside Diameter of steel coil: 450-800mm
4. Outside diameter of steel coil: ≤1800mm
5. Weight of steel coil: ≤25ton

Main electric components brand:

Packing & Delivery


Our Customers


Company Introduction

Wuxi Longterm Machinery Technologies Co.,Ltd is the professional manufacturer of auto-punching equipment and automatic welding system integration, as well as related equipment. Due to highly automatic, simple operation, welding strength and service life with the same stainless steel and plate, is widely used in aerospace, chemical industry, machinery, pressure vessels, fire extinguishers, water heater, enamel water tank, stainless steel products and other industries.


FAQ
In order to recommend you the proper machine, we'd like to get the below from you:

- What's the size of Steel Round piece you are using?
- It's better to provide the cylinder drawing or handle drawing.
- What's the daily capacity you want to attain?
