Hot Tube Spinning Machine for Production of CNG Cylinders, Industrial Gas Cylinders and Pressure Vessels

Share to:

Hot Tube Spinning Machine for Production of CNG Cylinders, Industrial Gas Cylinders and Pressure Vessels

Quantity:



Inquire Add to Basket

Metal Material:
Iron
Riveting Principle:
Radial Models(JM Series)
Spinning Deformation Condition:
Hot Spinning
Spinning Belt Wheel Type:
Rolling V Type Belt Wheel
Spinning Wheel Number:
Double
Finished Product:
Pipe
Finished Product Shape:
Cylinder Shape
Product Name:
Hot Spinning Machine
Application:
Heating
Usage:
Forming
After-Sales Service Provided:
Engineers Are Available
Raw Material:
CNG Cylinder
Prodcution Rate:
<80s/Bottle
Process Thickness:
5-12mm
Rated Frequency:
2500
Process Length:
400-1050mm
Power:
110
Transport Package:
Customized
Specification:
1000kg
Trademark:
HLT
Origin:
China
HS Code:
8462919000
Production Capacity:
500sets Per Year
Customization:
Available | Customized Request

Product Description

Product Description

High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine

Product Description
Hot Tube Spinning Machine for Production of CNG Cylinders, Industrial Gas Cylinders and Pressure Vessels

Item	value
Place of Origin	China Jiangsu
Brand Name	HS
Condition	New
Machine Type	Induction Heating Machine
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Gearbox, Motor
Warranty	1 Year
Key Selling Points	High Productivity
Applicable Industries	Machinery Repair Shops, Manufacturing Plant
Showroom Location	Algeria, Egypt, Turkey
Product name	hot spinning machine
Application	Heating
Usage	Forming
After-sales Service Provided	Engineers are available
Raw material	CNG cylinder
Power	110
Prodcution rate	<80s/bottle
Process thickness	5-12mm
Rated frequency	2500
Process length	400-1050mm

Specification

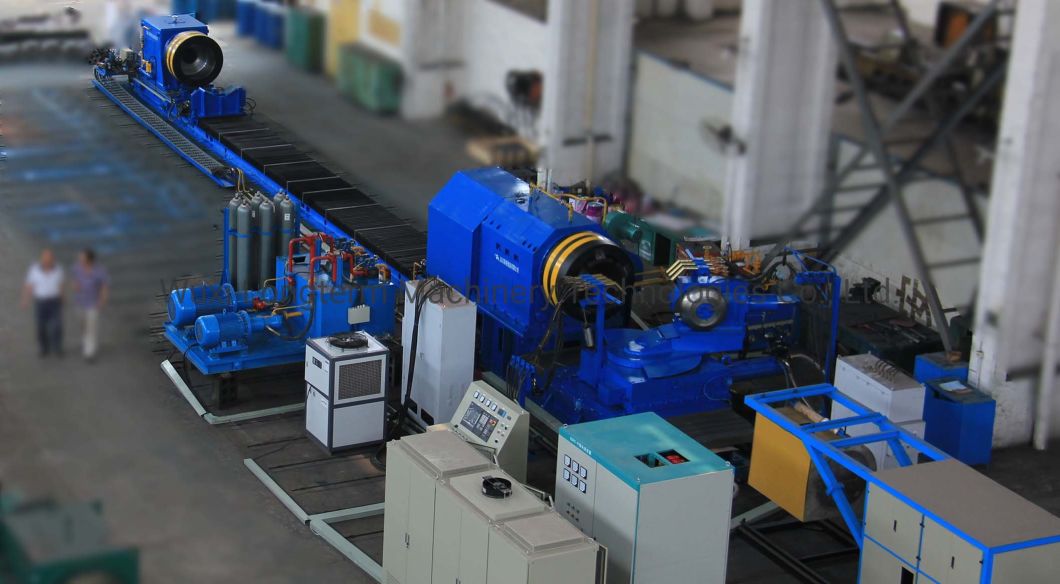

HFD180 Thermal-Spinning Machine

HFD180 Thermal-Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom
Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm

1. Mold of bottom closed(one piece)
2. Mold of head closed(one piece)
3. Head closed spinning wheel(one piece)
4. Slag pouring machine(one set)
5. Intermediate frequency burner(two sets: one set for Ø80- Ø140, one set for Ø140-Ø180)
6. Clamping jaw pad(one set: Ø140)
7. V type frame(two pieces)

1. KGPS-B Thyristor Intermediate Frequency Inverter 1-1, Main Technical Parameter:
Rated Power(KW) Max Power(KW) Rated Frequency(Hz) Power Frequency Voltage(V) Output Voltage(V) 110 250 2500 3N-380 750
1-2, Master Control Broad:
Master Control Broad uses imported integrated circuit. Rectifier triggers do not need any adjustment, it has phase sequence to adaptive electric circuit with high reliability. Inverter adapts sweeping-frequency and zero pressure start-up, it has the function of heavy load starting. Frequency tracking circuit using the average sampling programs to improve anti-jamming capability of the inverter. Inverter circuit also added inverter angle regulating circuit, which can automatically adjust load impedance matching.
1-3, Protection and Control:
Master Control Broad internal function includes: Rectifier phase shifting trigger, Phase self-adaption, Inverter trigger, Reverse lead angle lock, Inverter repeat start, Over-current protection, Over-voltage projection, Open-phase protection, Hydraulic under-voltage protection, Control panel under-voltage protection,etc.
1-4, The Standard of Frequency Converter:
ZBK46001-87 Semiconductor Frequency Converter for Induction Heating JB/DQ6367-88 Semiconductor Frequency Converter for Intermediate Frequency Induction Heating, Product Quality Analysis and so on JB4086.85
Technical Condition of Electric Control Equipment for Intermediate Frequency Induction Heating JB/T4280-93 Intermediate Frequency Coreless Induction Furnace
1-5, Water Tank:
Frequency Converter and Capacitor all adopt open return system, it's better for observation. Cabinet body with water pressure protection device.
1-6, External Power Cord:
External Frequency Power Cord enter from the top of Intermediate frequency power supply cabinet.
1-7, Power Regulating:
There is Power Regulating Knob on the panel of Intermediate Frequency Power Supply Cabinet, the output power of frequency converter is adjustable.
1-8, Main Circuit Connection:
Main circuits of the power supply cabinet are made by copper.
1-9, Color of Cabinet:
Computer spray gray. C. Cooling Water System(Equipped by user) 3-1, Technique Data: Cooling water inlet temperature: 5-35ºC Cooling water outlet temperature:≤55ºC Cooling water pressure:0.3-0.4Mpa Water supply: 0.02835P(P is rated power) (M³/h) Gradient of water return pipe:I-0.01 3-2, Quality Demand of Cooling Water: PH:7-8.5 Total hardness: ≤10 degree Available capacity of cooling water pond cannot less than 2~3 times of supplying water.

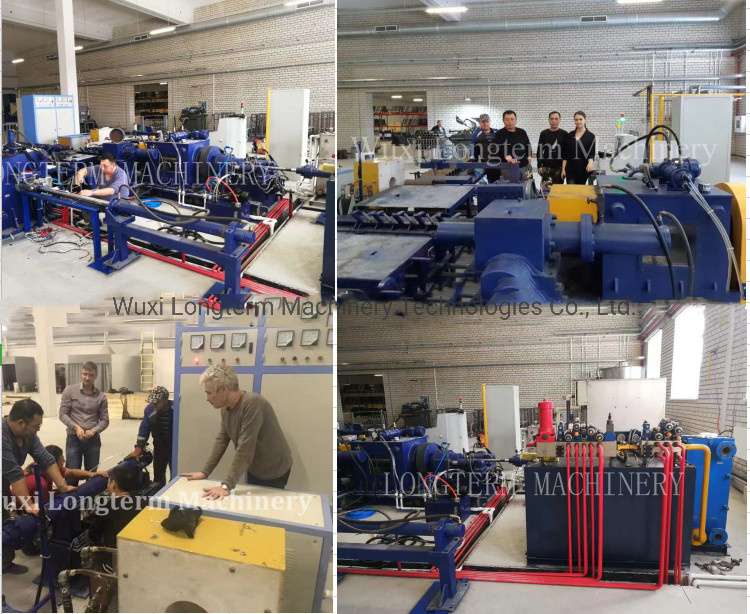

Details Images

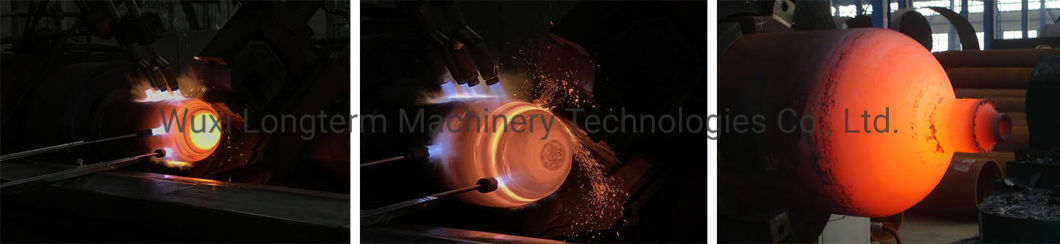

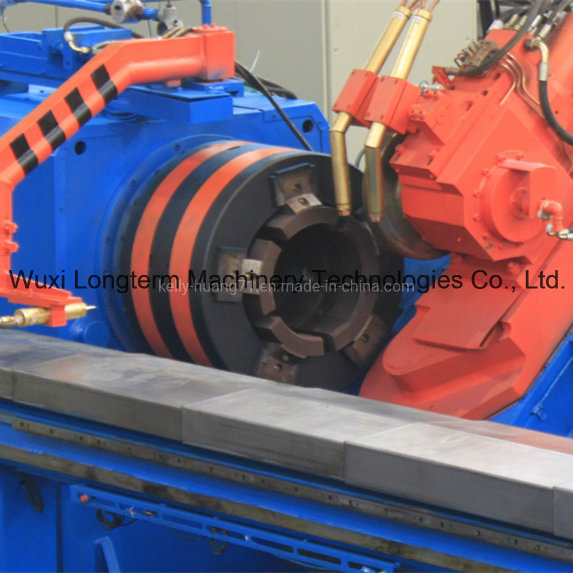

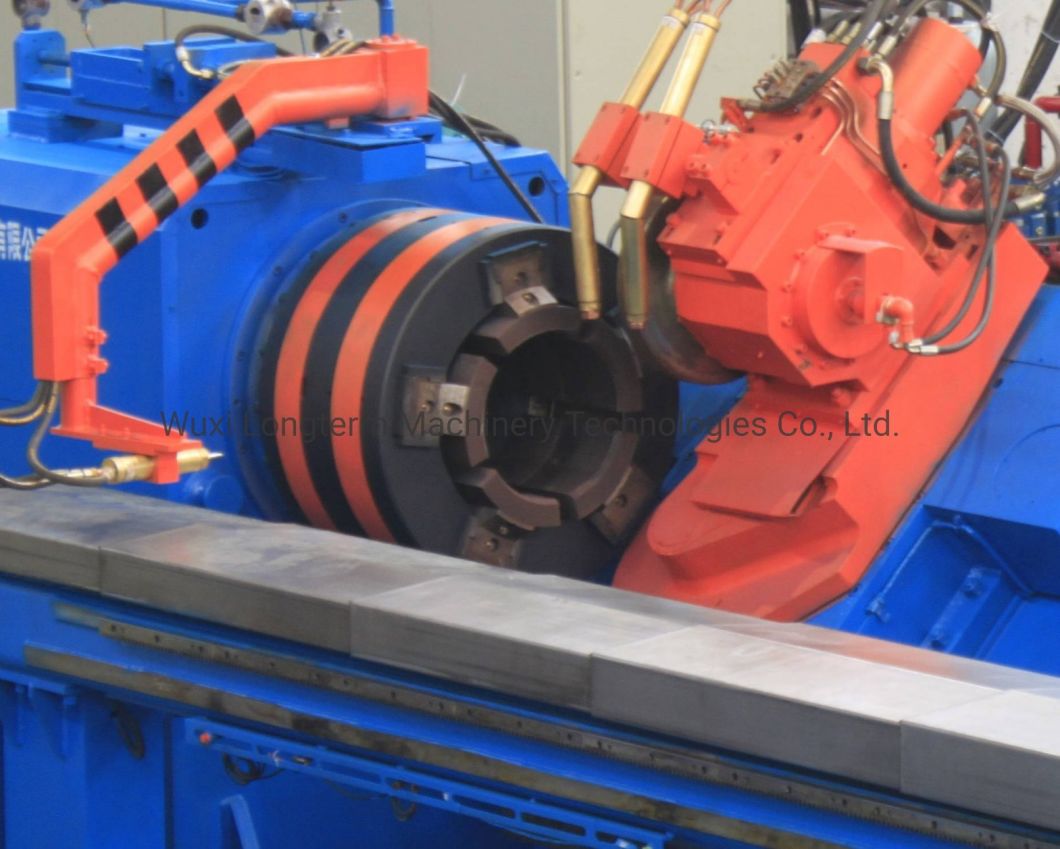

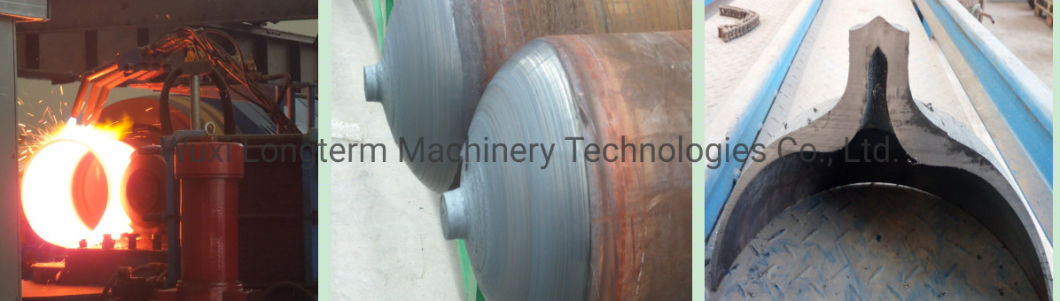

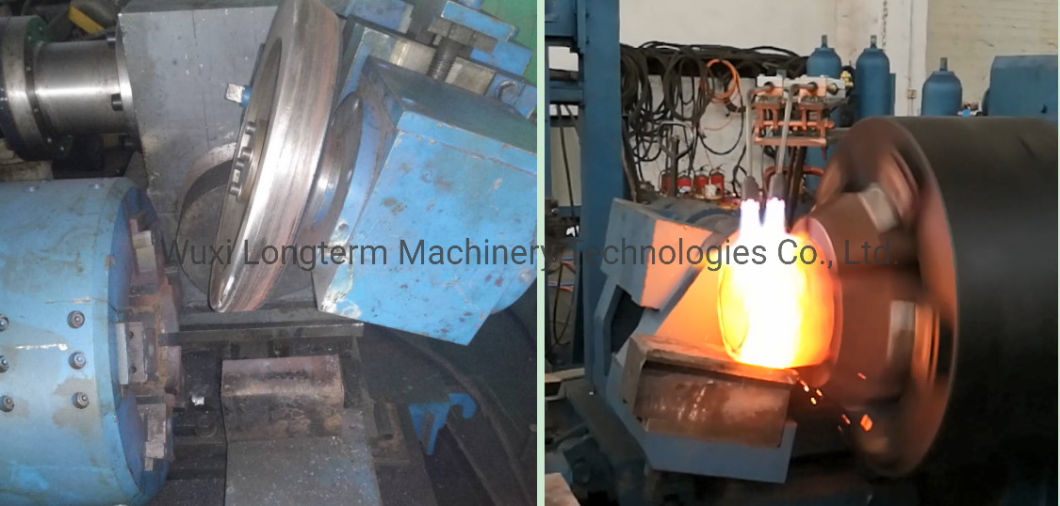

Roller forming Scrapper forming

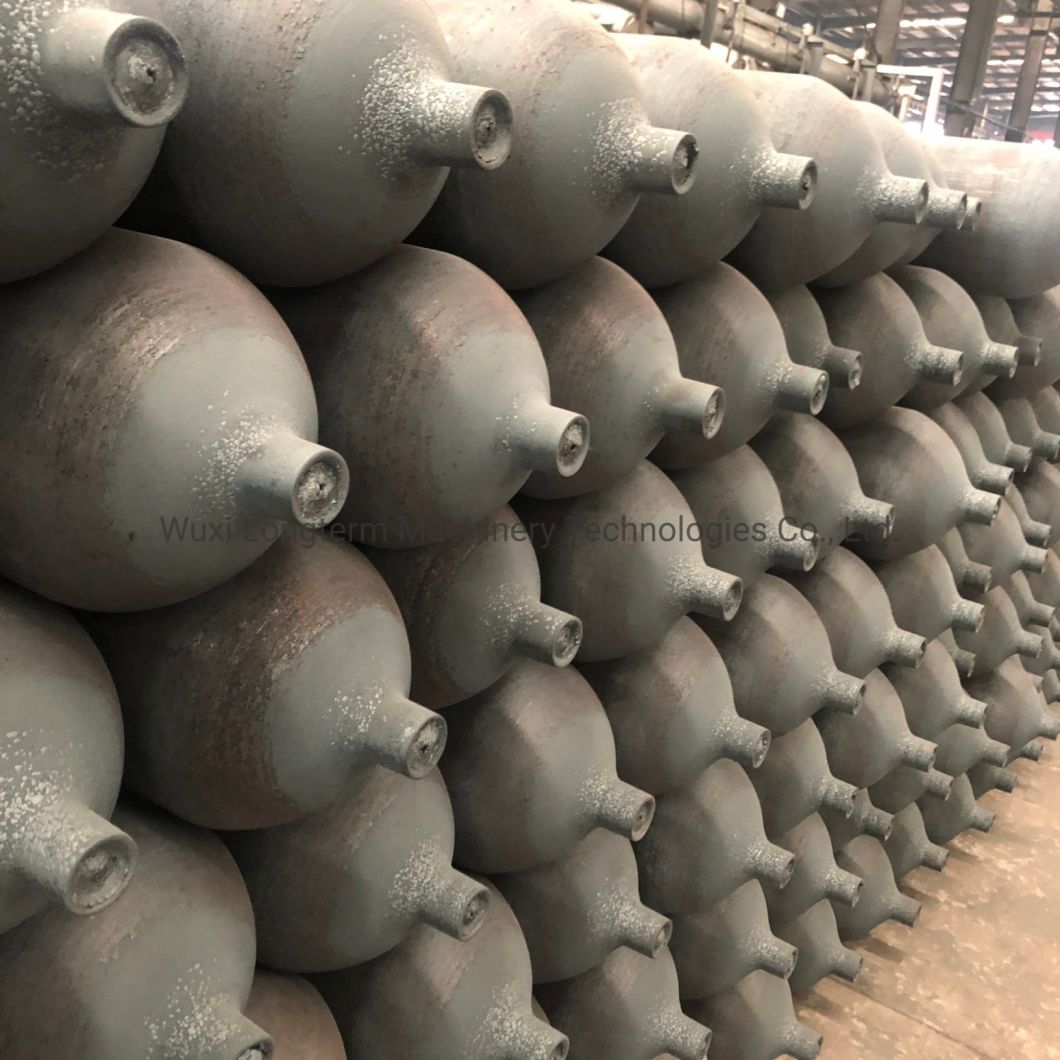

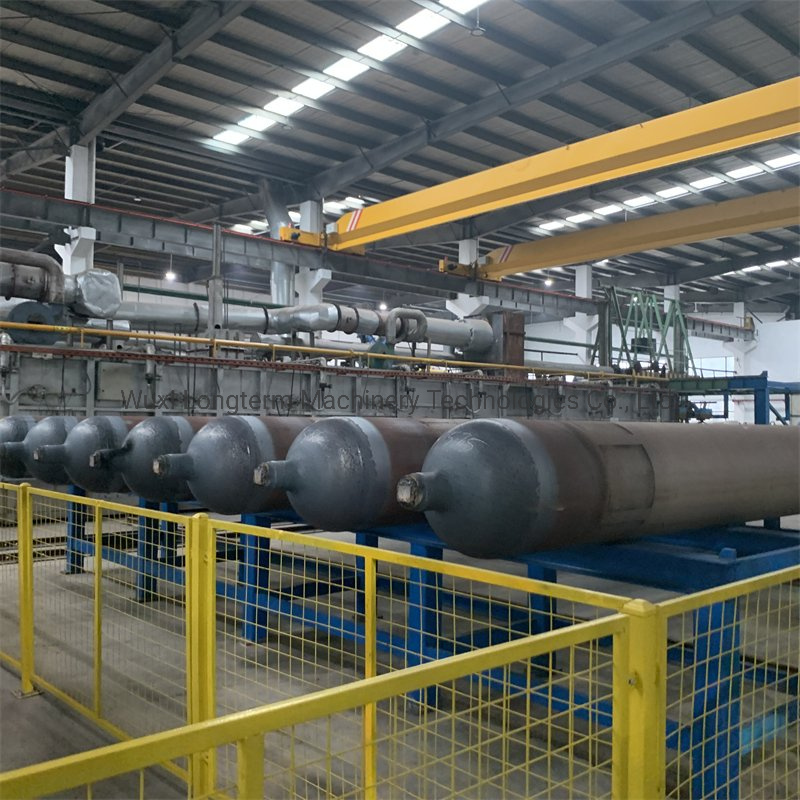

Finished product
Hot Tube Spinning Machine for Production of CNG Cylinders, Industrial Gas Cylinders and Pressure Vessels

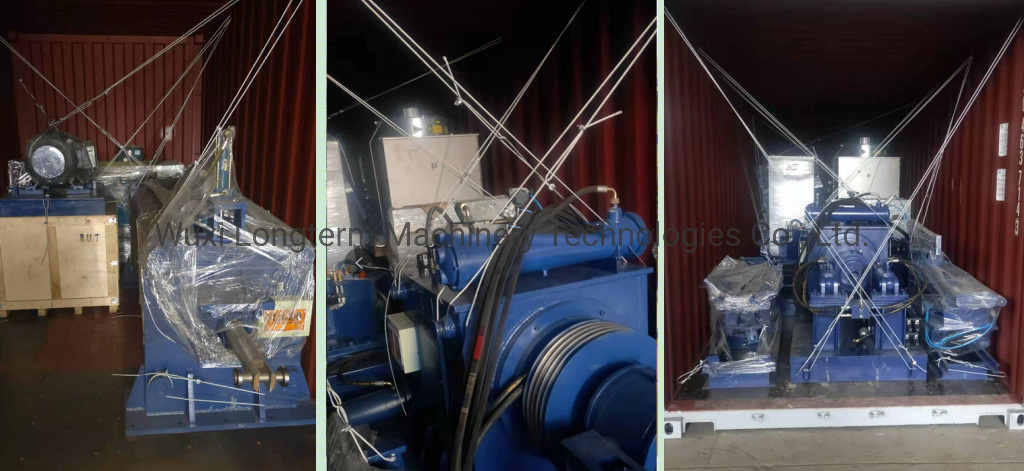

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Our Service

Related machines

CNG Gas Cylinder Threaded Screw Machine

1.The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as
well as threading, which are realized by NC programming.
2.Single station device is adopted for input and output materials(semi-automatic); 3.The work piece clamping adopts the front top
bowl positioning.

CNG Gas Cylinder Stamping Machine

Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons
(excluding hydraulic system and loading and unloading systems).

Company Profile

We are professional manufacturer of CNG/LPG/LNG cylinders manufacturing machine for over 30 years. our machines have been exported to Russia, Ukraine, USA, UK, Turkey, Australia, Kenya, Egypt, India etc...

FAQ

Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;

Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.

Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team

Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...

We need to know the following information to make the quotation to you:1. The technical drawing of the cylinder.
2. Daily capacity.
