Hot Spinning Machine for Seamless Cylinder CNG Gas Tank

Quantity:
  • HLT2017

  • 34CrMo4

  • Acceptable

  • Standard Seaworthy Package

  • T/T

  • Standard Seaworthy Packages

  • 13000 x 8000mm

  • HLT

  • Jiangsu, Wuxi

  • 8479300000

  • 100 Sets

  • Available | Customized Request

Product Description

Hot Spinning Machine for Seamless Cylinder CNG Gas Tank
hot spinning machine for seamless cylinder CNG gas tank


Paramete
Double Roller Series CNC Playback General Spinning flow forming machine
Model Max.Rough Diameter
(mm)
Height from Spindle
to Tailstock
(mm)
Longitudinal Trust
(KN)
Radia Trust
(KN)
350PCNC 690 1100 24 24
450PCNC 890 1250 65 65
800PCNC 1590 1250 65 65
700PCNC 1400 2300 150 150
900PCNC 1800 2500 200 200
1200PCNC 2400 2500 300 300
1500PCNC 3000 3500 400 400
Name Unit QX63-10CNC QX63-20CNC QX63-30CNC
Max.Rough Diameter mm 400 600 700
Min.Rough Diameter mm 60 60 100
Max.Length of workpiece
(Positive rotation)
mm 1200 2000 2500
Max.Length of workpiece
(Contrarotation)
mm 2200 3000 4000
Double center distance mm 4700 6000 6500
Spindle speed rpm 30-600 30-600 30-500
Main engine power KW 37/40 100/110 120
Tail force KN 50 75 150
Spinning roller base longitudinal stroke mm 1500 2000/2500 2500/3000
Spinning roller base longitudinal thrust KN 170 250/300 400/450
Spinning roller base horizontal stroke mm 170 270 300
Spinning roller base horizontal thrust KN 3*100 3*200 3*300

Picture of machine
Hot Spinning Machine for Seamless Cylinder CNG Gas Tank

Picture of factory
Hot Spinning Machine for Seamless Cylinder CNG Gas Tank


Picture of customer
Hot Spinning Machine for Seamless Cylinder CNG Gas Tank

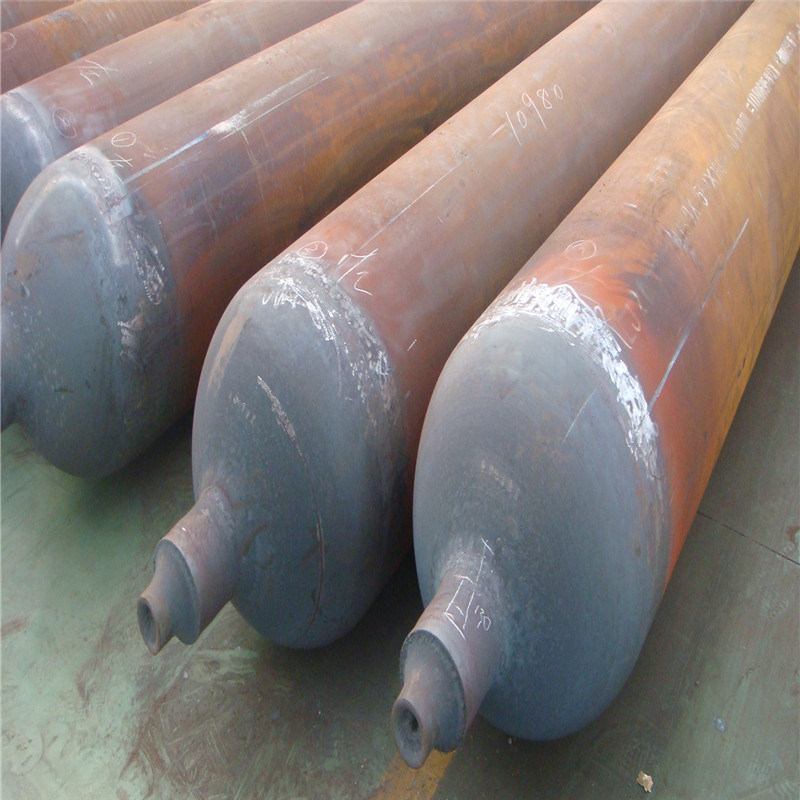

Picture of cylinder
Hot Spinning Machine for Seamless Cylinder CNG Gas Tank

Hot Spinning Machine for Seamless Cylinder CNG Gas Tank
