Hot Spinning Machine for Fire Extinguisher Machine

Quantity:
  • HLT

  • Hot Spinning

  • Combined Belt Wheel

  • Triple

  • Cylinder

  • Cylinder Shape

  • Gas Cylinder Hot Spinning Machine

  • Thg622, Thg660, Thg720, Thg920

  • 406-920mm

  • 5500-12500mm

  • 10-30mm

  • 1300mm

  • 200-355kw

  • 90°

  • CNC

  • 23000*3200*2300mm

  • Standard Seaworthy or Air Package

  • SGS

  • HLT

  • China, Jiangsu

  • 730799000

  • 50000000m/Year

  • US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

D180 Hot Spinning Machine Technical Parameters
Hot Spinning Machine for Fire Extinguisher Machine

A. Parameters for Cylinder
1-1, Cylinder Material: 34CrMo4 (35 CrMo),37Mn,30 CrMo
1-2, Specification of Cylinder:
Diameter:φ89-180mm
Length: 400--1050mm
Thickness: 5--12mm
Weight: <80kg
B. Performance for Hot Spinning Machine
2.1, Production rate: <80s/bottle(including the time of input and output material)
2.2, Equipment total power: around 60KW
Main motor: 30KW--6P
2.3, Flap rotation torque: 20KN.m
2.4, Hydraulic system nominal operating pressure:5--8Mpa (Low pressure), 6-15Mpa (High pressure)
2.5, Speed of Mainshaft: 400~450 R/M
2.6, Two optional types for auxiliary heating: Automatic or Manual

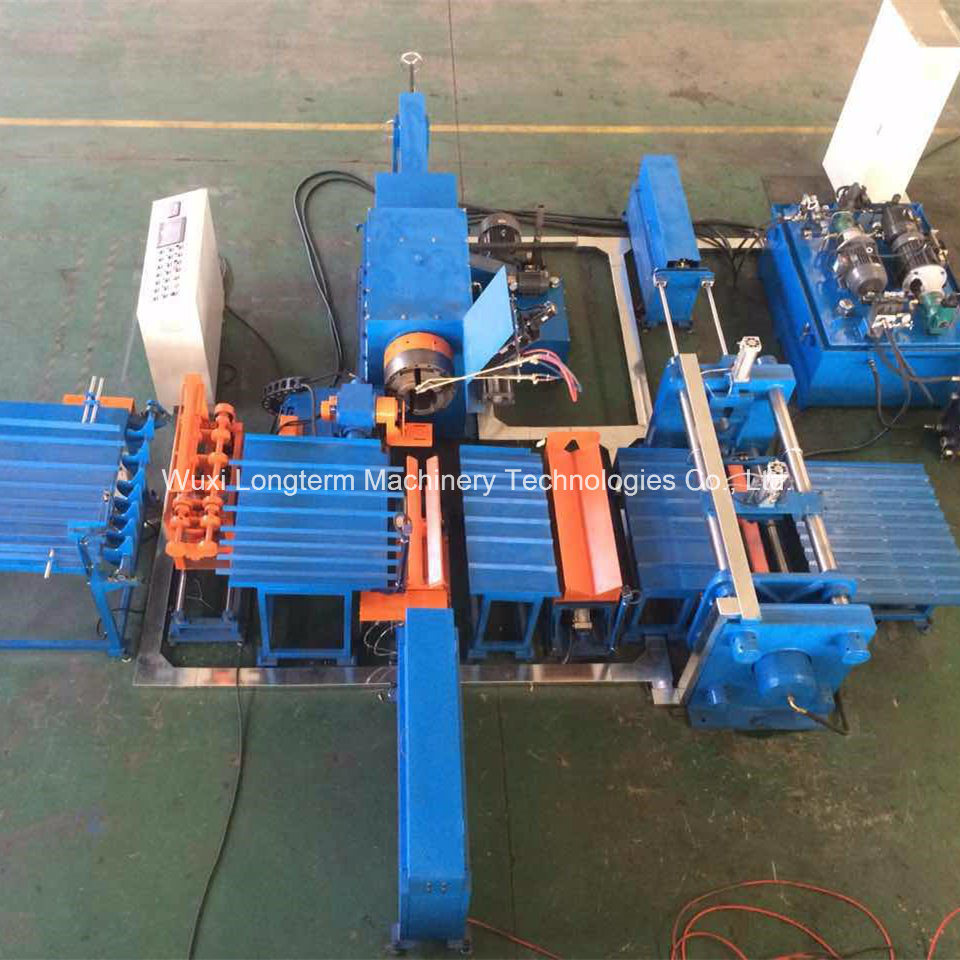

C. Structure of Hot Spinning Machine
3.1, Hot spinning machine main engine includes main engine chassis, main shaft, jack catch clamping device, grip cylinder, oil dispenser.
3.2, Panel turnover mechanism includes turning plate, turning plate oil cylinder, turning plate bearing(single-boom) and adjusting mechanism, turning plate centre lower than 20mm of main shaft centre, cushion block.

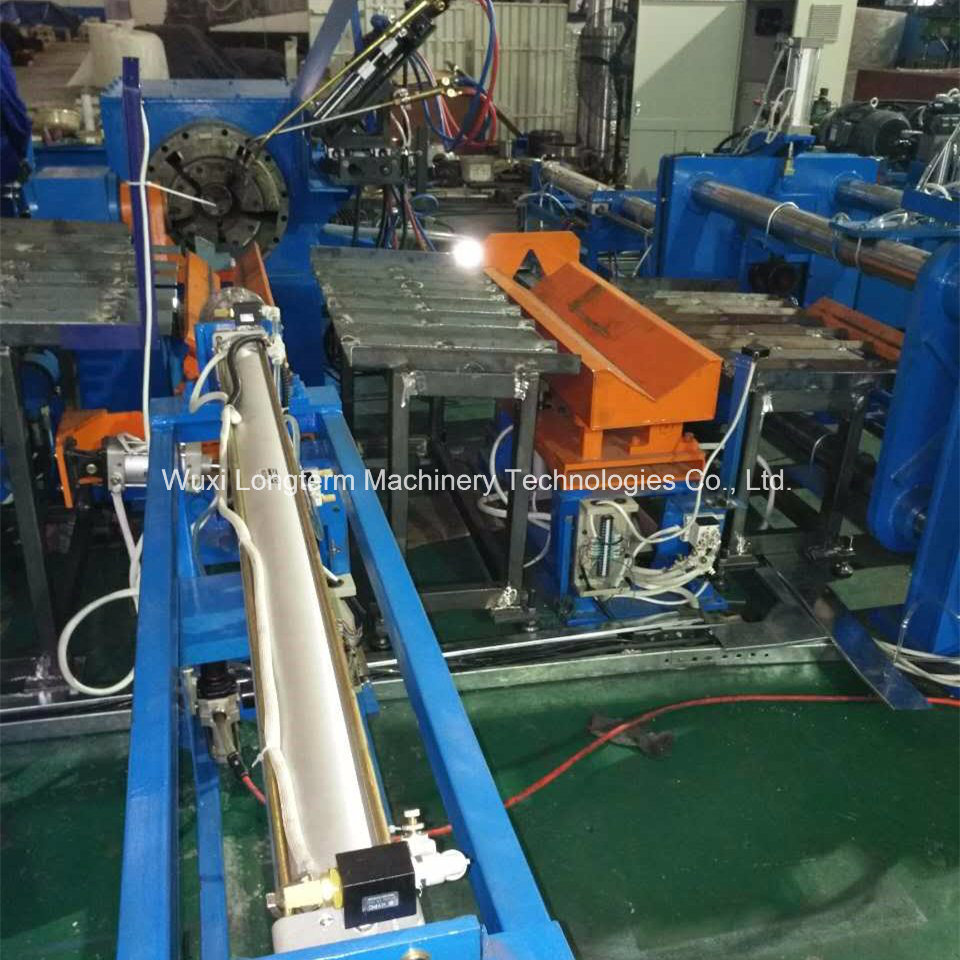

3.3, Equipment includes feeding mechanism, discharge mechanism, air cylinder, removable and adjustable feed frame.
3.4, Steel pipe positioning mode: prelocalization

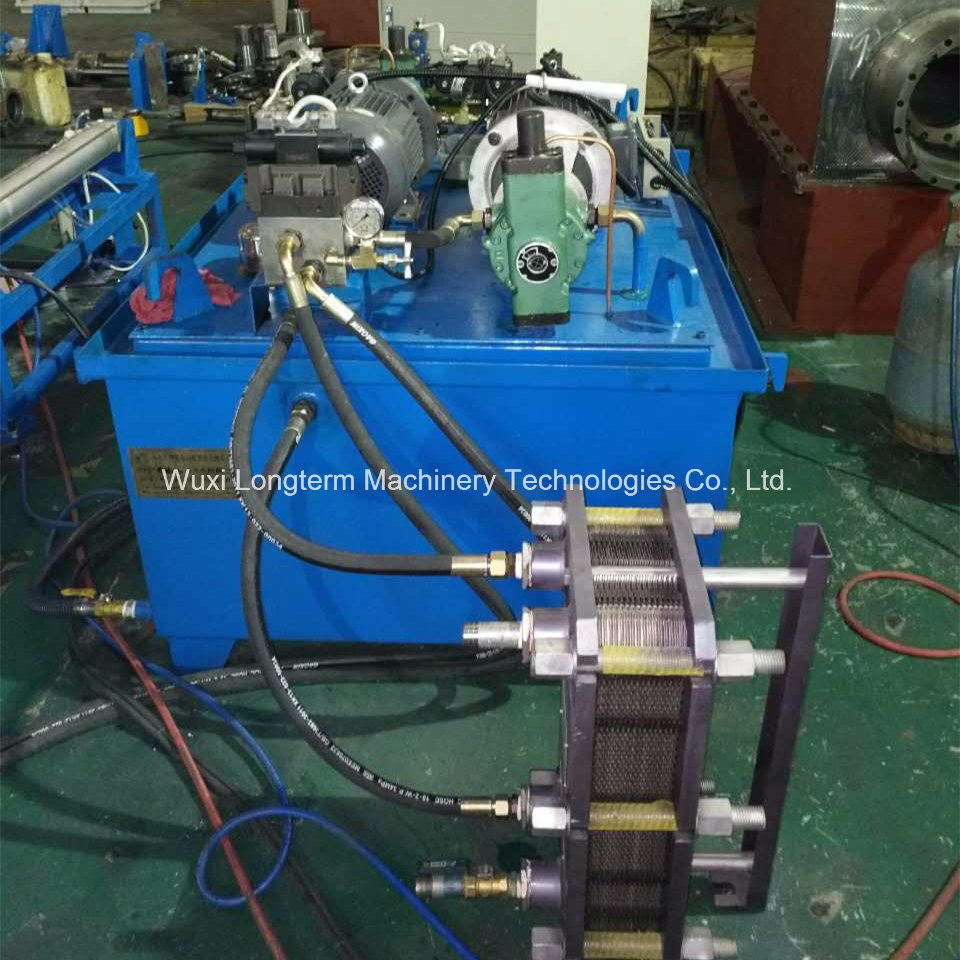

3.5, Hydraulic system includes high-low pressure pump, control valve and connecting pipeline.
3.6, One set electric control cabinet, one set electric control box.
3.7, Two types for Mould lifting device: Automatic or Manual
Main components for electric control box:
Name Manufacturer
Main bearing of the spindle Luoyang Bearing Factroy(China)
PLC Mitsubishi(Japan)
Motor control ac contactor Schneider(Electric Company)
Air switch, circuit breaker Schneider(Electric Company)
Button switch Schneider(Electric Company)
Intermediate relay Omron
Programming controller Mitsubishi(Japan)
Touch Screen TAIDA
Encoder Koyo

B. End products
Hot Spinning Machine for Fire Extinguisher Machine

Hot Spinning Machine for Fire Extinguisher Machine
