Hot Spinning Machine Set for Fire Extinguisher Cylinder

Quantity:



Inquire Add to Basket

Model NO.:
LTM
Spinning Deformation Condition:
Hot Spinning
Spinning Belt Wheel Type:
Combined Belt Wheel
Spinning Wheel Number:
Triple
Finished Product:
Cylinder
Finished Product Shape:
Cylinder Shape
Product Name:
Gas Cylinder Hot Spinning Machine
Model:
Thg622, Thg660, Thg720, Thg920
Diameter:
406-920mm
Length:
5500-12500mm
Thickness:
10-30mm
Height:
1300mm
Power:
200-355kw
Moving Angle:
90°
Control:
CNC
Dimension:
23000*3200*2300mm
Transport Package:
Standard Seaworthy or Air Package
Specification:
SGS
Trademark:
HLT
Origin:
China, Jiangsu
HS Code:
730799000
Production Capacity:
50000000m/Year
Samples:
US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

D180 Hot Spinning Machine Technical Parameters

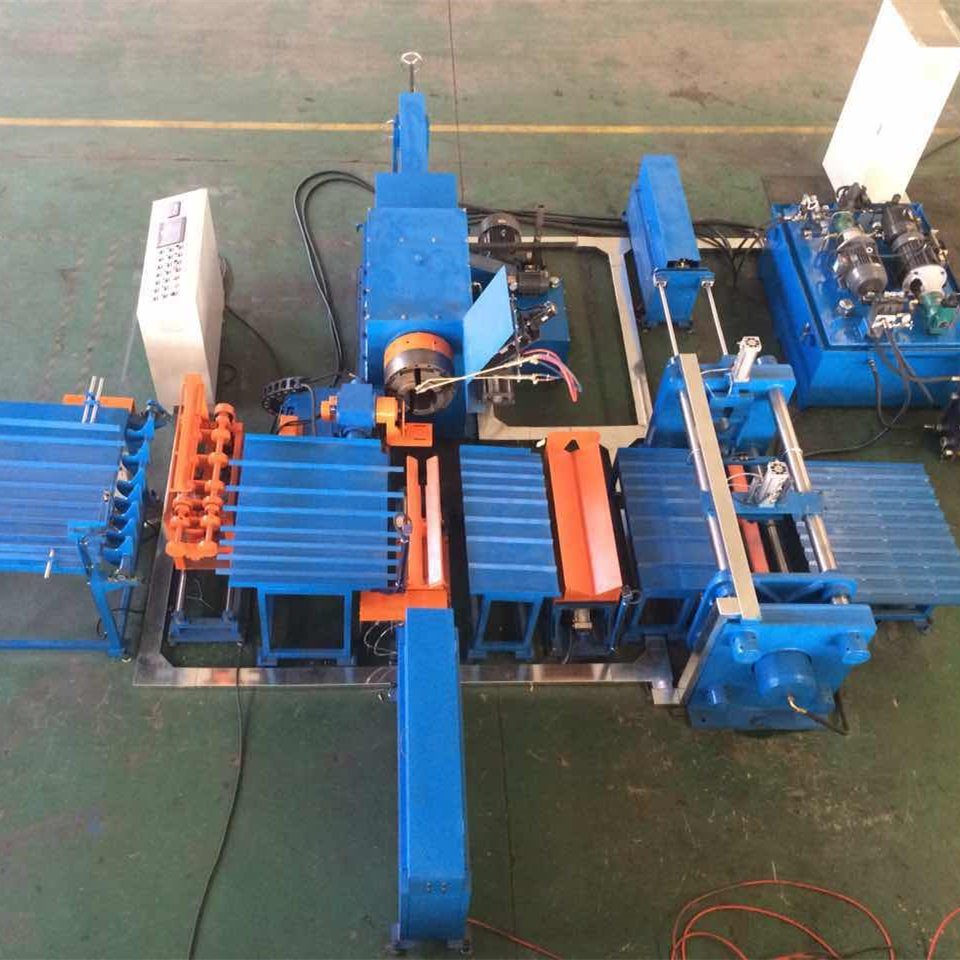

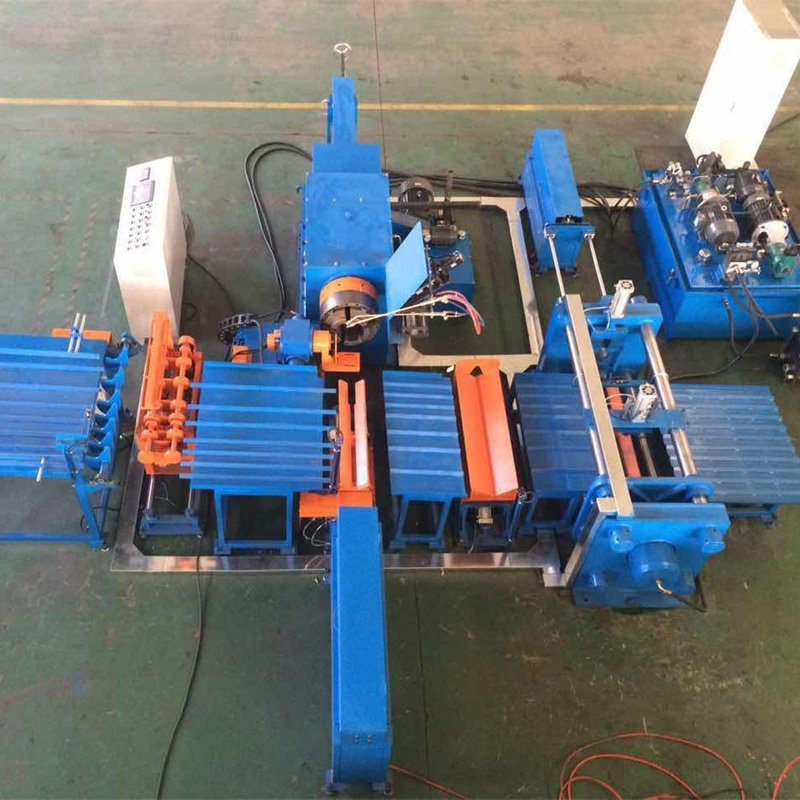

Hot Spinning Machine Set for Fire Extinguisher Cylinder

A. Parameters for Cylinder
1-1, Cylinder Material: 34CrMo4 (35 CrMo),37Mn,30 CrMo
1-2, Specification of Cylinder:
Diameter:φ89-180mm
Length: 400--1050mm
Thickness: 5--12mm
Weight: <80kg
B. Performance for Hot Spinning Machine
2.1, Production rate: <80s/bottle(including the time of input and output material)
2.2, Equipment total power: around 60KW
Main motor: 30KW--6P
2.3, Flap rotation torque: 20KN.m
2.4, Hydraulic system nominal operating pressure:5--8Mpa (Low pressure), 6-15Mpa (High pressure)
2.5, Speed of Mainshaft: 400~450 R/M
2.6, Two optional types for auxiliary heating: Automatic or Manual
C. Structure of Hot Spinning Machine
3.1, Hot spinning machine main engine includes main engine chassis, main shaft, jack catch clamping device, grip cylinder, oil dispenser.
3.2, Panel turnover mechanism includes turning plate, turning plate oil cylinder, turning plate bearing(single-boom) and adjusting mechanism, turning plate centre lower than 20mm of main shaft centre, cushion block.
3.3, Equipment includes feeding mechanism, discharge mechanism, air cylinder, removable and adjustable feed frame.
3.4, Steel pipe positioning mode: prelocalization
3.5, Hydraulic system includes high-low pressure pump, control valve and connecting pipeline.
3.6, One set electric control cabinet, one set electric control box.
3.7, Two types for Mould lifting device: Automatic or Manual
Main components for electric control box:

Name	Manufacturer
Main bearing of the spindle	Luoyang Bearing Factroy(China)
PLC	Mitsubishi(Japan)
Motor control ac contactor	Schneider(Electric Company)
Air switch, circuit breaker	Schneider(Electric Company)
Button switch	Schneider(Electric Company)
Intermediate relay	Omron
Programming controller	Mitsubishi(Japan)
Touch Screen	TAIDA
Encoder	Koyo
