High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine

Quantity:
  • HLT

  • Iron

  • Radial Models(JM Series)

  • Hot Spinning

  • Rolling V Type Belt Wheel

  • Double

  • Pipe

  • Cylinder Shape

  • Hot Spinning Machine

  • Heating

  • Forming

  • Engineers Are Available

  • CNG Cylinder

  • <80s/Bottle

  • 5-12mm

  • 2500

  • 400-1050mm

  • 110

  • Customized

  • 1000kg

  • HLT

  • China

  • 8462919000

  • 500sets Per Year

  • Available | Customized Request

Product Description

High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine

Product Description
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
Item
value
Place of Origin
China Jiangsu
Brand Name
HS
Condition
New
Machine Type
Induction Heating Machine
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Gearbox, Motor
Warranty
1 Year
Key Selling Points
High Productivity
Applicable Industries
Machinery Repair Shops, Manufacturing Plant
Showroom Location
Algeria, Egypt, Turkey
Product name
hot spinning machine
Application
Heating
Usage
Forming
After-sales Service Provided
Engineers are available
Raw material
CNG cylinder
Power
110
Prodcution rate
<80s/bottle
Process thickness
5-12mm
Rated frequency
2500
Process length
400-1050mm
Specification

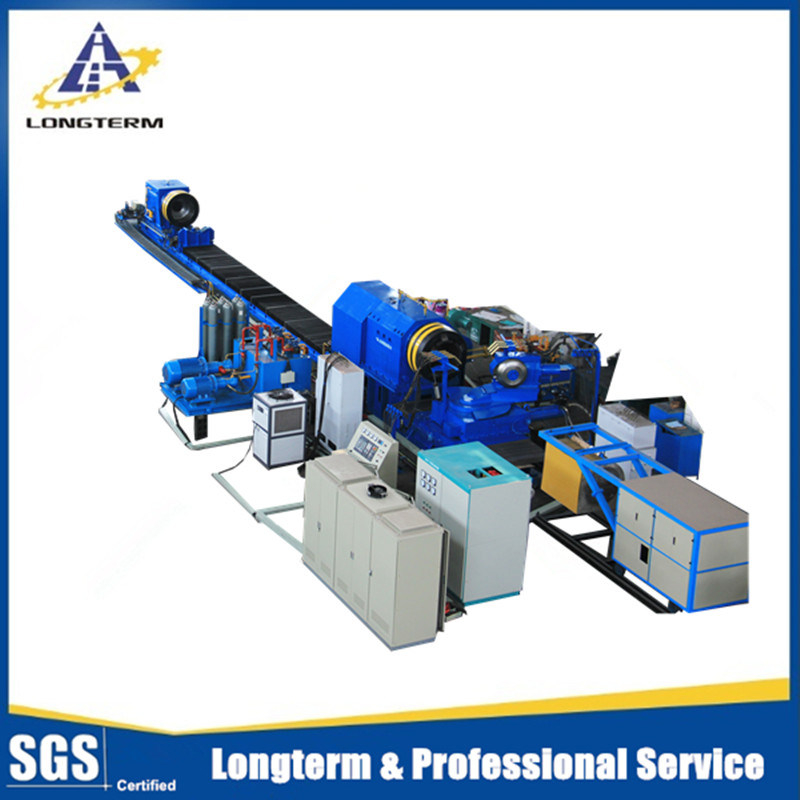

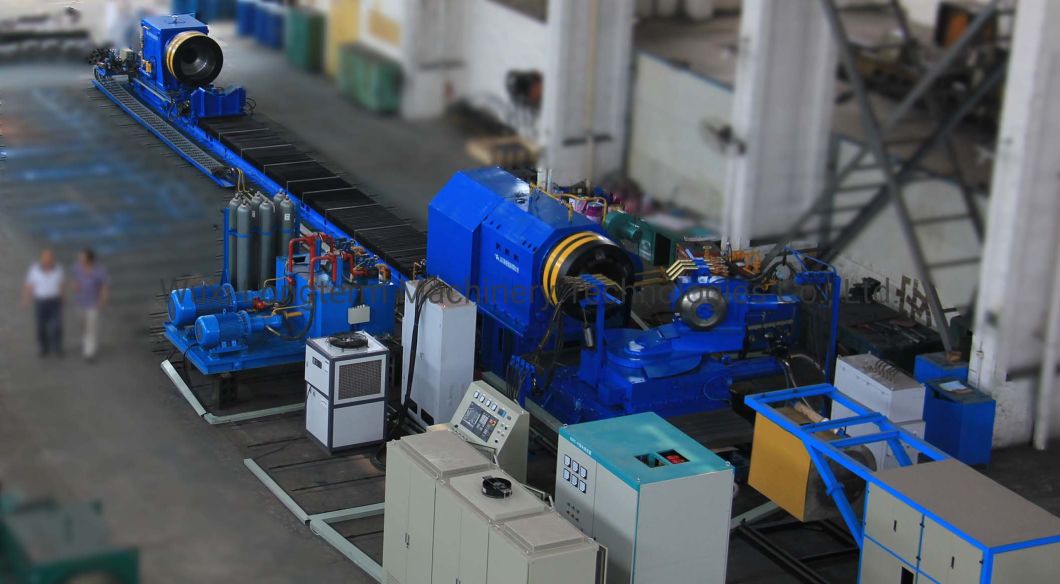

HFD180 Thermal-Spinning Machine

HFD180 Thermal-Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom
Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
1. Mold of bottom closed(one piece)
2. Mold of head closed(one piece)
3. Head closed spinning wheel(one piece)
4. Slag pouring machine(one set)
5. Intermediate frequency burner(two sets: one set for Ø80- Ø140, one set for Ø140-Ø180)
6. Clamping jaw pad(one set: Ø140)
7. V type frame(two pieces)
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
1. KGPS-B Thyristor Intermediate Frequency Inverter 1-1, Main Technical Parameter:

Rated Power(KW) Max Power(KW) Rated Frequency(Hz) Power Frequency Voltage(V) Output Voltage(V) 110 250 2500 3N-380 750
1-2, Master Control Broad:
Master Control Broad uses imported integrated circuit. Rectifier triggers do not need any adjustment, it has phase sequence to adaptive electric circuit with high reliability. Inverter adapts sweeping-frequency and zero pressure start-up, it has the function of heavy load starting. Frequency tracking circuit using the average sampling programs to improve anti-jamming capability of the inverter. Inverter circuit also added inverter angle regulating circuit, which can automatically adjust load impedance matching.
1-3, Protection and Control:
Master Control Broad internal function includes: Rectifier phase shifting trigger, Phase self-adaption, Inverter trigger, Reverse lead angle lock, Inverter repeat start, Over-current protection, Over-voltage projection, Open-phase protection, Hydraulic under-voltage protection, Control panel under-voltage protection,etc.
1-4, The Standard of Frequency Converter:
ZBK46001-87 Semiconductor Frequency Converter for Induction Heating JB/DQ6367-88 Semiconductor Frequency Converter for Intermediate Frequency Induction Heating, Product Quality Analysis and so on JB4086.85
Technical Condition of Electric Control Equipment for Intermediate Frequency Induction Heating JB/T4280-93 Intermediate Frequency Coreless Induction Furnace
1-5, Water Tank:
Frequency Converter and Capacitor all adopt open return system, it's better for observation. Cabinet body with water pressure protection device.
1-6, External Power Cord:
External Frequency Power Cord enter from the top of Intermediate frequency power supply cabinet.
1-7, Power Regulating:
There is Power Regulating Knob on the panel of Intermediate Frequency Power Supply Cabinet, the output power of frequency converter is adjustable.
1-8, Main Circuit Connection:
Main circuits of the power supply cabinet are made by copper.
1-9, Color of Cabinet:
Computer spray gray. C. Cooling Water System(Equipped by user) 3-1, Technique Data: Cooling water inlet temperature: 5-35ºC Cooling water outlet temperature:≤55ºC Cooling water pressure:0.3-0.4Mpa Water supply: 0.02835P(P is rated power) (M³/h) Gradient of water return pipe:I-0.01 3-2, Quality Demand of Cooling Water: PH:7-8.5 Total hardness: ≤10 degree Available capacity of cooling water pond cannot less than 2~3 times of supplying water.
Details Images
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine

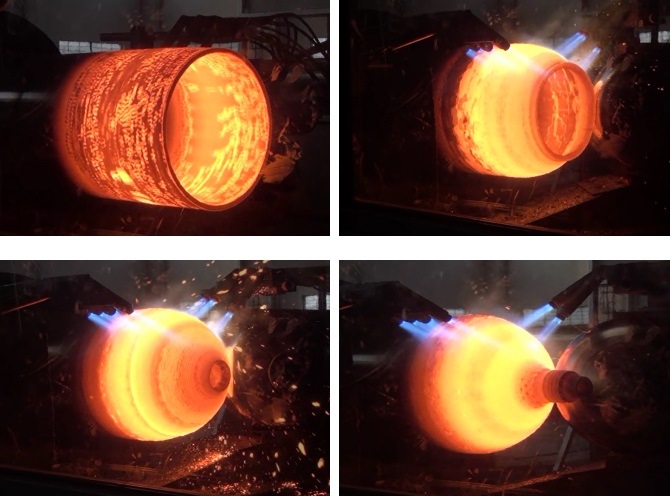

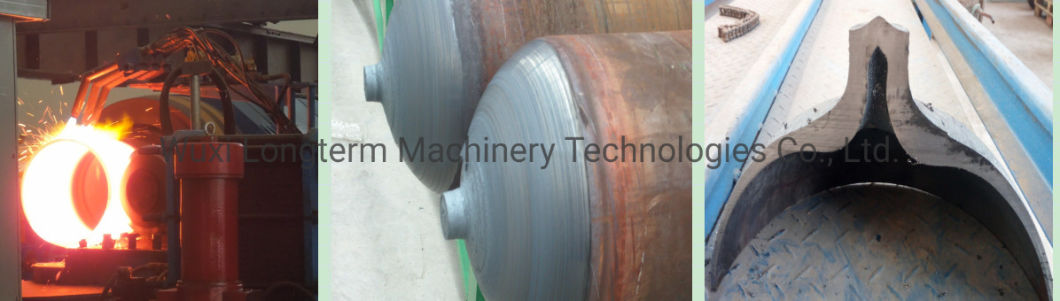

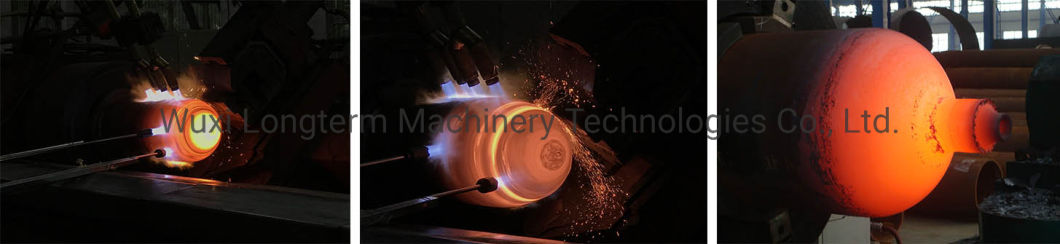

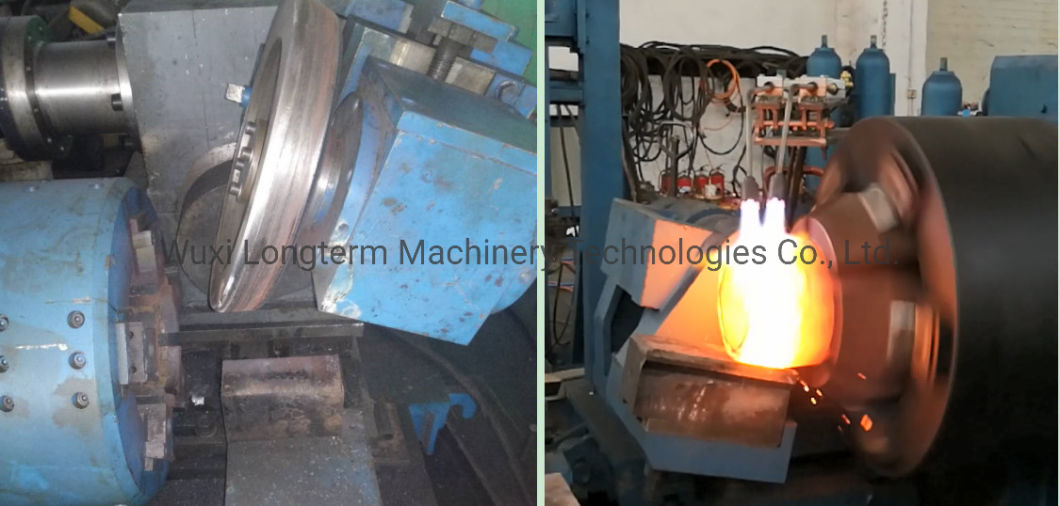

Roller forming Scrapper forming

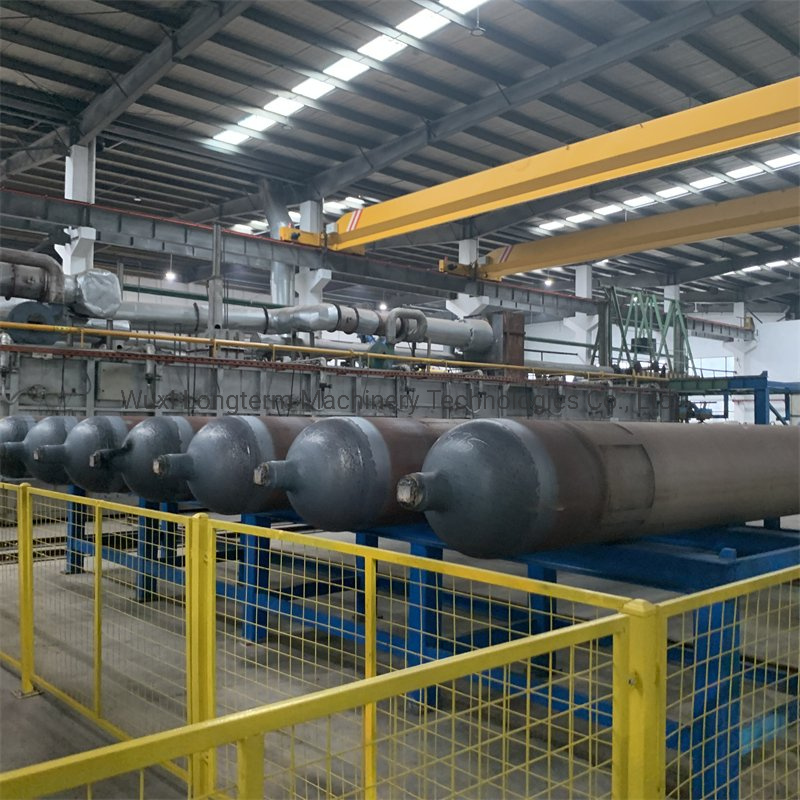

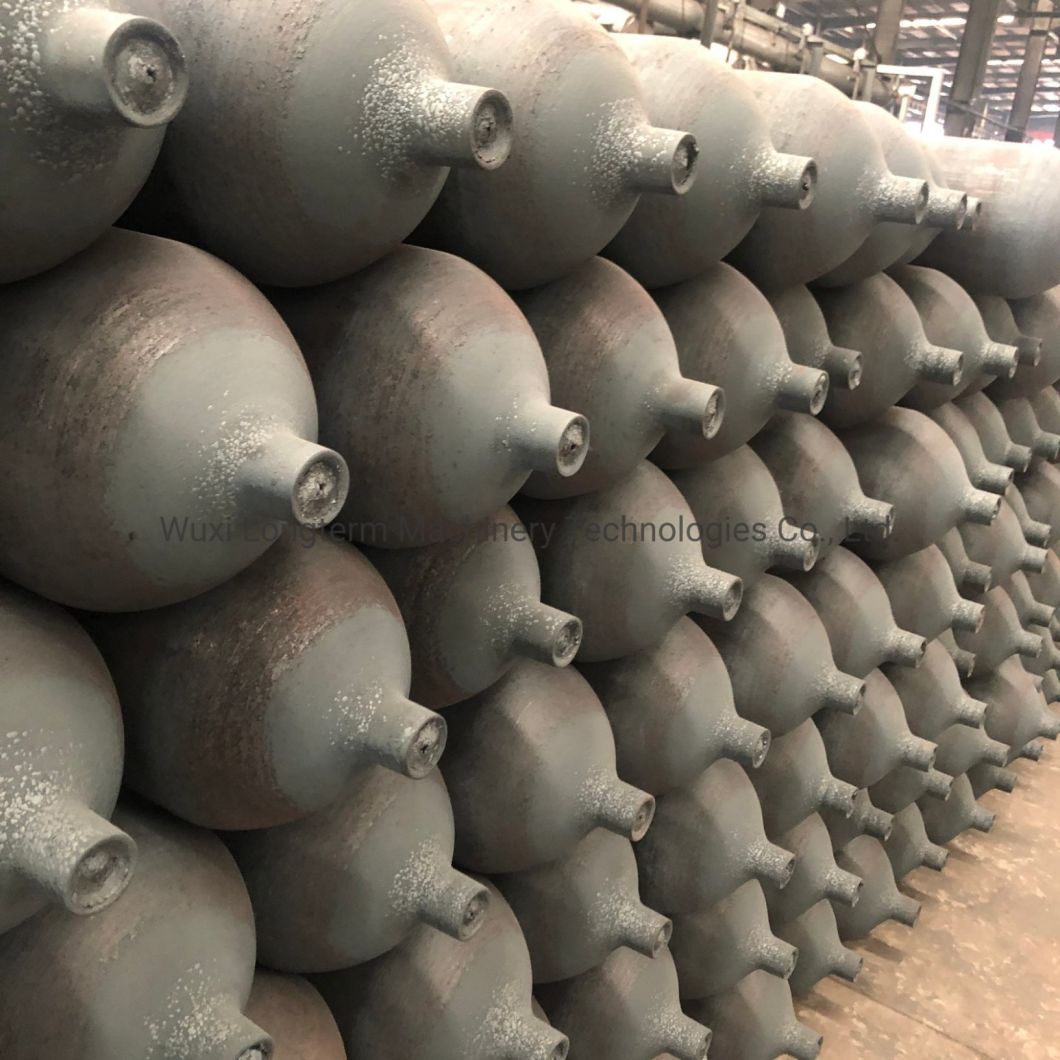

Finished product
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine

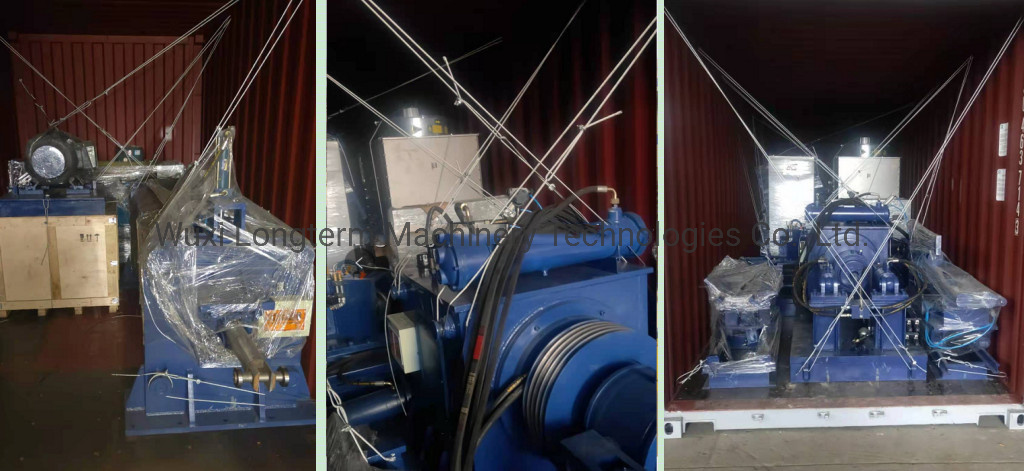

Packing & Delivery
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine

Related machines

High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
CNG Gas Cylinder Threaded Screw Machine

1.The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as
well as threading, which are realized by NC programming.
2.Single station device is adopted for input and output materials(semi-automatic); 3.The work piece clamping adopts the front top
bowl positioning.
CNG Gas Cylinder Stamping Machine
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons
(excluding hydraulic system and loading and unloading systems).
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
Company Profile
High Pressure Steel CNG Cylinder/ Long Tube Forming/ Closing Machine
We are professional manufacturer of CNG/LPG/LNG cylinders manufacturing machine for over 30 years. our machines have been exported to Russia, Ukraine, USA, UK, Turkey, Australia, Kenya, Egypt, India etc...
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;

Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.

Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team

Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...


We need to know the following information to make the quotation to you:1. The technical drawing of the cylinder.
2. Daily capacity.
