Hfd180 Necking-in Machine Fire Extinguisher Making Machine

  • HLT

  • Standard Seaworthy Packaging

  • 20" Container

  • HLT

  • Wuxi

  • 8504330000

  • 5000sets/Year

  • Available | Customized Request

Product Description

Hfd180 Necking-in Machine Fire Extinguisher Making Machine

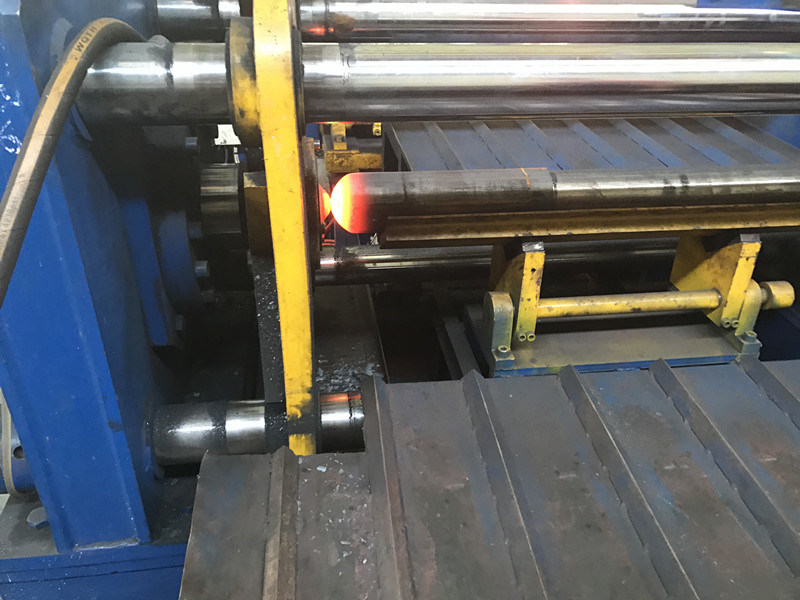

Pictures of hot spinning machine:
Hfd180 Necking-in Machine Fire Extinguisher Making Machine
Hfd180 Necking-in Machine Fire Extinguisher Making Machine

HFD180 Thermal-Spinning Machine Technology Specification
HFD180 Thermal-Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 2000Kw, installation area is 13000 x 8000mm, specific parameter as followin:
A.Main Technical Parameter:
Rated Power(KW) Rated Frequency(Hz) Power Frequency Voltage(V)
110 2500 3-380

B.Equipment Performance and Technical Requirement
Main Technical Parameter:
Rated Power
Max Power
Rated Frequency
Power Frequency
Output Voltage(V) Matching Transformer
110 250 2500 3N-380 750 200

C. Cooling Water System(Equipped by user)
3-1, Technique Data:
Cooling water inlet temperature: 5-35ºC
Cooling water outlet temperature:≤55ºC
Cooling water pressure:0.3-0.4Mpa
Water supply: 0.02835P(P is rated power) (M³/h)
Gradient of water return pipe:I-0.01

D. Supply Scope of Complete Equipment
4-1, Frequency Converter 1 set
4-2,φ180 Heater 1 set
4-3, Worktable 1 set
4-4, Closed Cooling Tower 1 set

D180 Hot Spinning Machine Technical Parameters
A.Parameters for Cylinder
1-1, Cylinder Material: 34CrMo4 (35 CrMo),37Mn,30 CrMo
1-2, Specification of Cylinder: Diameter:φ108-180mmLength: 400--1050mmThickness: 5--12mmWeight: <80kgB. Performance for Hot Spinning Machine
2.1, Production rate: <80s/bottle(including the time of input and output material)
2.2, Equipment total power: around 60KW
Main motor: 30KW--6P
2.3, Flap rotation torque: 20KN.m
2.4, Hydraulic system nominal operating pressure:5--8Mpa (Low pressure), 6-15Mpa (High pressure)
2.5, Speed of Mainshaft: 400~450 R/M
2.6, Two optional types for auxiliary heating: Automatic or Manual
C. Structure of Hot Spinning Machine
3.1, Hot spinning machine main engine includes main engine chassis, main shaft, jack catch clamping device, grip cylinder, oil dispenser.
3.2, Panel turnover mechanism includes turning plate, turning plate oil cylinder, turning plate bearing(single-boom) and adjusting mechanism, turning plate centre lower than 20mm of main shaft centre, cushion block.
3.3, Equipment includes feeding mechanism, discharge mechanism, air cylinder, removable and adjustable feed frame.
3.4, Steel pipe positioning mode: prelocalization
3.5, Hydraulic system includes high-low pressure pump, control valve and connecting pipeline.
3.6, One set electric control cabinet, one set electric control box.
3.7, Two types for Mould lifting device: Automatic or Manual

Main components for electric control box:
Name Manufacturer
Main bearing of the spindle Luoyang Bearing Factroy(China)
PLC Mitsubishi(Japan)
Motor control ac contactor Schneider(Electric Company)
Air switch, circuit breaker Schneider(Electric Company)
Button switch Schneider(Electric Company)
Intermediate relay Omron
Programming controller Mitsubishi(Japan)
Touch Screen TAIDA
Encoder Koyo

Technical Parameter for Bottom Pushing Machine
Equipment Model: D100 Bottom Pushing MachineParameter for cylinder:1.1, Material for cylinder: 34CrMo4 (35 CrMo), 37Mn, 30 CrMo
1.2, Specification of cylinder:
b.Length: 400--1050mm
c.Thickness: 5--12mm
d.Weight: <80kg
B. Performance for Bottom Pushing Machine
2.1, Production rate: <80s/bottle(including the time of input and output material)
2.2, Equipment total power: around 30KW
C. Structure of Bottom Pushing Machine
3.1, Bottom Pushing Machine consists of main engine, hydraulic system, feeding and discharging mechanism.
3.2, Two types for Bottom Pushing Device: Automatic or Manual
3.3, A set of Deslagging Device
D. Components and Files Provided
4.1, Bottom pushing die:φ89,φ140,φ180(each diameter one pair)
4.2, Hydraulic Principle Chart, Main Component Chart, The Installation Plan and Equipment Shipping List.
