Fire extinguisher hot spinning machine / fire extinguisher making machine
Parameter
Our equipemtn for different size
CNC ROLLER TYPR SPINNING MACHINE
| Machine Model | THG622 | THG660 | THG720 | THG920 |
| Processing Dia. (mm) | 406~622 | 406~660 | 559~720 | 559~920 |
| Processing Length (mm) | 5500-12500 | 5500-12500 | 5500-12500 | 5500-12500 |
| Processing Thickness (mm) | 10-30 | 10-30 | 10-30 | 10-30 |
| Central Height (mm) | 1300 | 1300 | 1300 | 1300 |
| Main Engine Power (KW) | 200 | 250 | 280 | 355 |
| Rolling wheel swing angle | 90° | 90° | 90° | 90° |
| Control Methods | CNC | CNC | CNC | CNC |
| Machine Model | THG325 | THG406 |
| Processing Dia. (mm) | 219~325 | 325~406 |
| Processing Length (mm) | 800-2000 | 800-2000 |
| Processing Thickness (mm) | 5-18 | 5-18 |
| Central Height (mm) | 1100 | 1200 |
| Main Engine Power (KW) | 90 | 144 |
| Rolling wheel swing angle | 100° | 100° |
| Control Methods | CNC | CNC |
CNC Template TYPR SPINNING MACHINE | Machine Model | THM232 | THM325 | THM406 |
| Processing Dia. (mm) | 200~232 | 219~325 | 325~406 |
| Processing Length (mm) | 700-1700 | 800-2000 | 800-2000 |
| Processing Thickness (mm) | 3-15 | 5-15 | 5-18 |
| Central Height (mm) | 1000 | 1100 | 1200 |
| Main Engine Power (KW) | 37 | 90 | 110 |
| Rolling wheel swing angle | 90° | 90° | 90° |
| Control Methods | PLC | PLC | PLC |

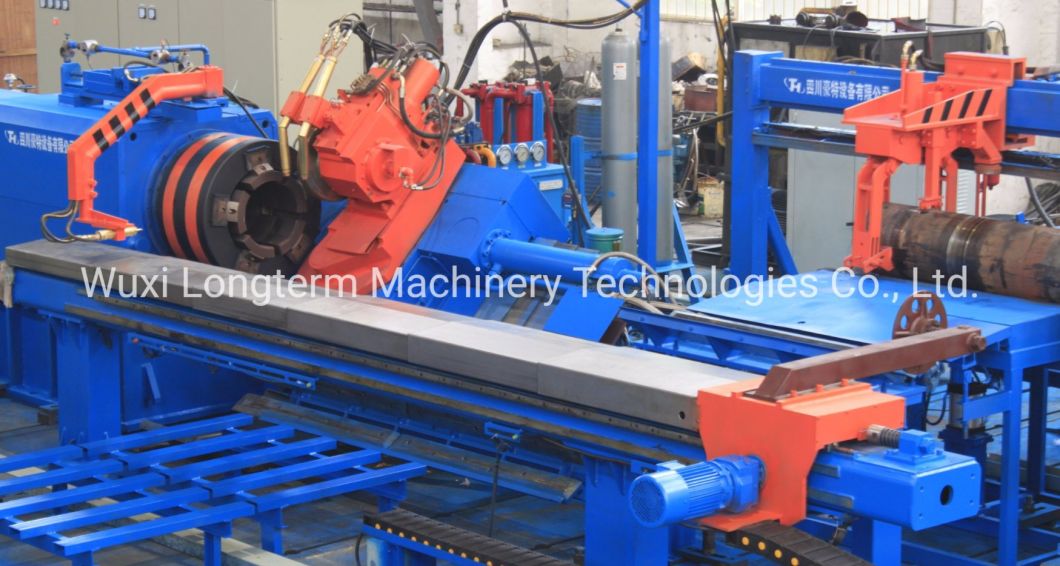

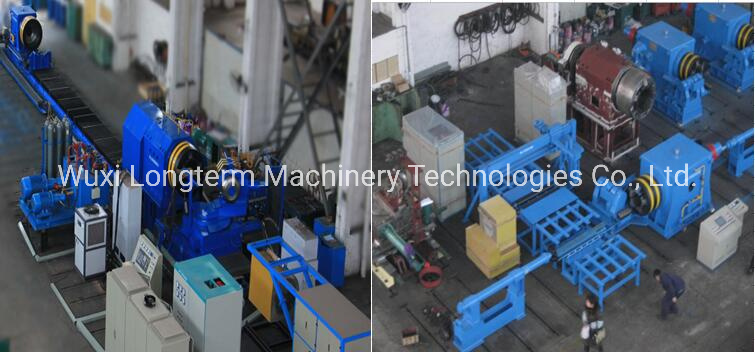

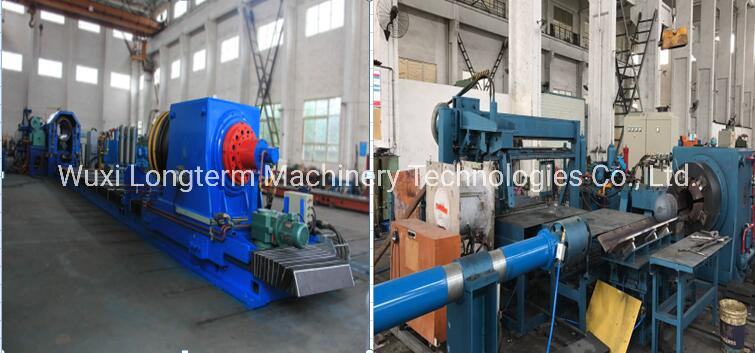

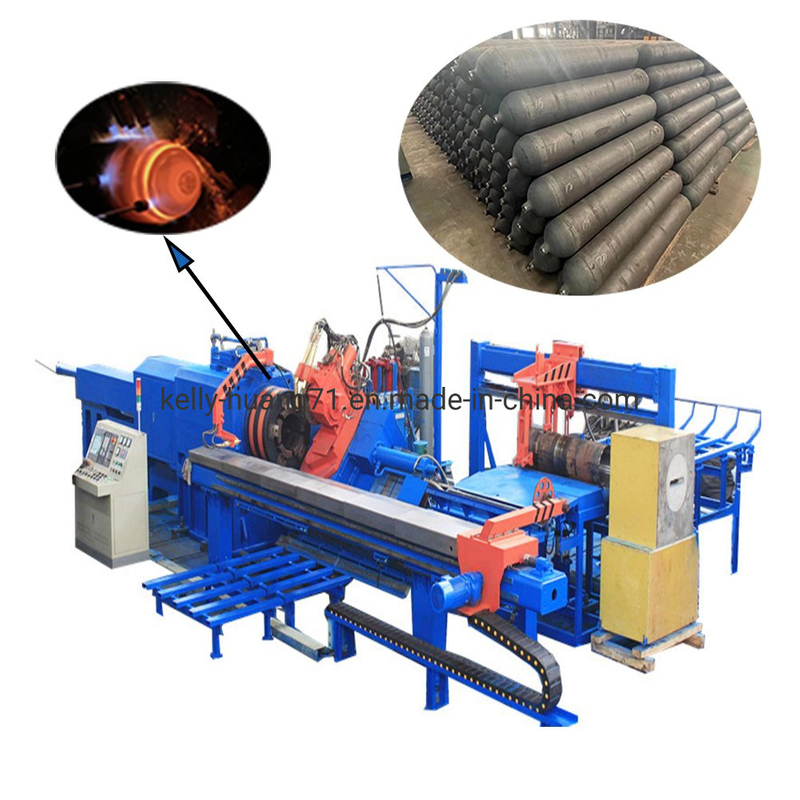

Picture of machine

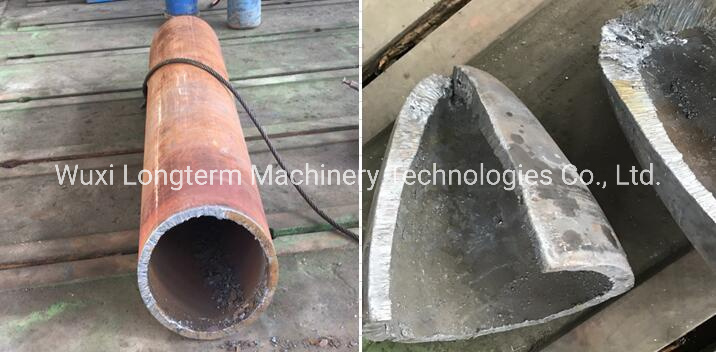

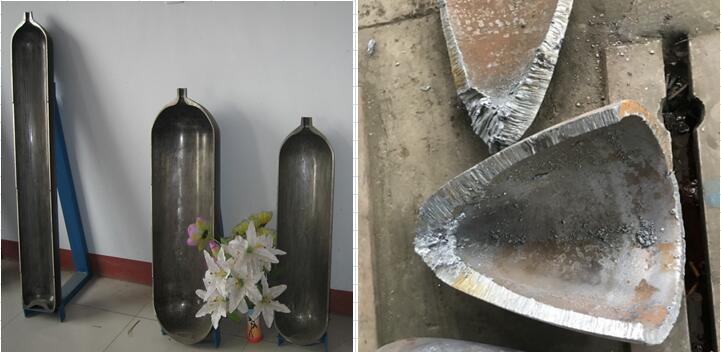

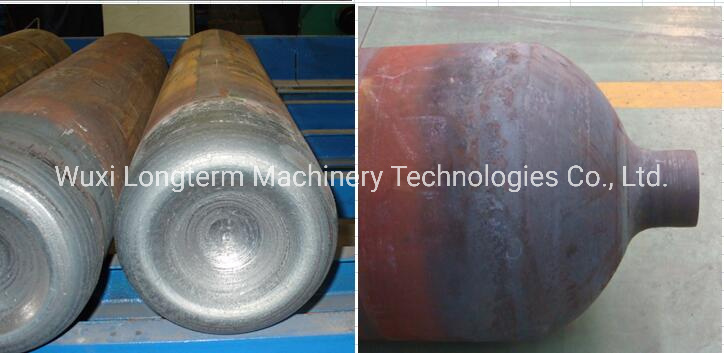

Picture of cylinder

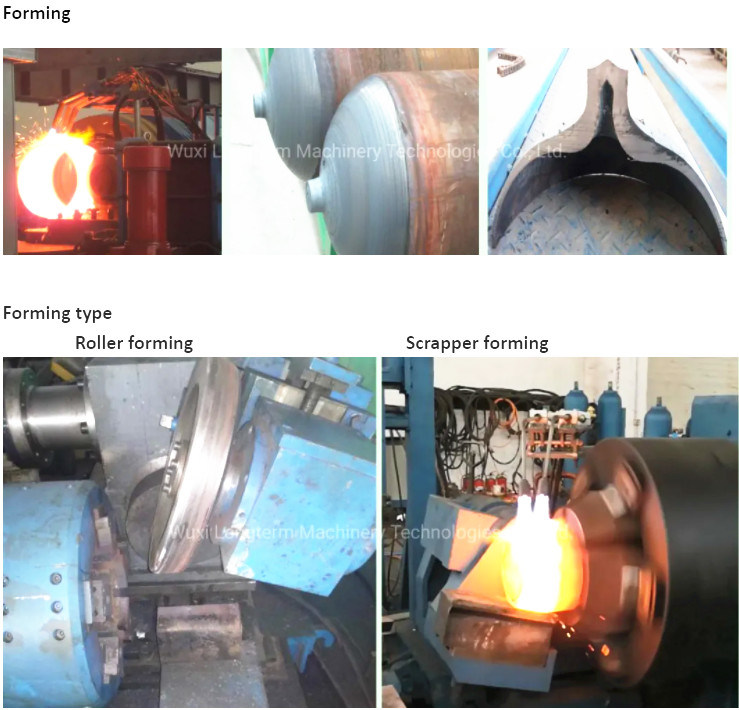

Picture of details
Package and Delivery Company Wuxi Longterm Machinery Technologies is a professional manufacturer of solar water tank manufacturing line, LPG gas cylinder line,fire extinguisher manufacturing line, steel drum welding machine with more than 30years of history.
We are improving technologies all the time and developing welding machinery market. We provide customers with valued solutions including deep drawing, blanking, longitudinal seam welding, circumferential seam welding, nozzle welding, powder coating, hydro testing, shot blasting equipment, etc..Due to highly automatic, simple operation and reliable quality welding equipment, they arepopular and well accepted in many industries: pressure cylinders, fire extinguishers, solar water tank, enamel water tank, stainless steel tanks, etc..Our machineries have been exported to many countries, such as Russia, US, Australia, Turkey, Vietnam, India, Ukraine, Mexico, etc..
Service
FAQ Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.
Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG machinery with more than 25 years of experience and a strong professional R & D team
Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...
We need to know the following information to make the quotation to you:
1. The technical drawing of the cylinder.
2. Daily capacity.
