Fire Extinguisher Cylinder Hot Spinning Machine Exported to Russia

  • Hot Spinning

  • Rolling V Type Belt Wheel

  • Triple

  • Cylinder

  • Cylinder Shape

  • 90 Degree

  • 1300 mm

  • 23000 * 3200 * 2300 mm

  • 406~920 mm

  • 5500~12500 mm

  • Automatic CNC Hot Spinning Machine for Gas Bottle

  • Available

  • 1 Year

  • Full Automatic

  • 3 Months

  • Standard Seaworthy & Strong Package

  • ISO9001

  • Comflex

  • Wuxi, Jiangsu, China(Mainland)

  • 830710000

  • as Requested

  • Available | Customized Request

Product Description

Fire extinguisher cylinder making machine exported to Russia
Fire Extinguisher Cylinder Hot Spinning Machine Exported to Russia

I. Technical specification
This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.
Spinning diameter Max. 406mm
Spinning diameter Min. 325mm
Spinning length Max. 2000mm
Spinning length Min. 800mm
Starting wall thickness Max. 18mm
Starting wall thickness Min. 5mm
Spinning cycle (incl. load/unloading/necking-in) Max. 2.5min
Equipment centre height 900mm
Main spindle drive 90KW
Axial stroke of sliding block 65mm
Radial stroke of sliding block 17mm
Radial clamping force 200KN
Main spindle speed (Variable) 0-320 rpm
Mould axial stroke 321KN
Max. mould axial feed-in speed 30°/s
Mould rotating angle 0-91°
Hydraulic motor 22KW
Proportional speed regulated reversing valve Italy ATOS
Control Siemens
Connected electrical load 3*380V, 50Hz
Heating power of the pipe end 500KW/1000Hz
Connected pneumatic load 6 bar

II. Manufacturing process

III. Machinery testing

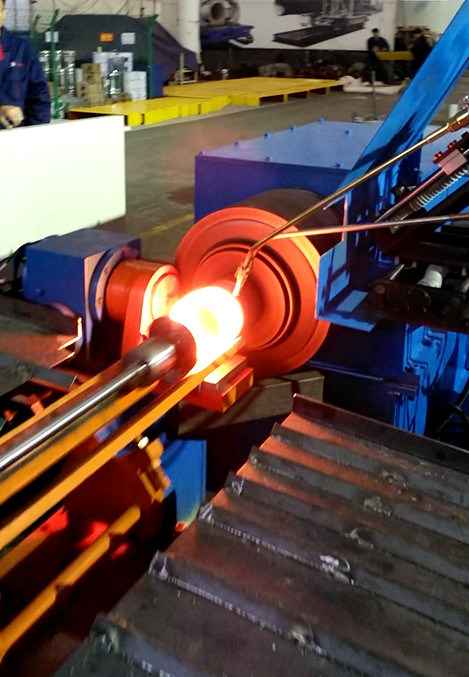

Mouth closing
Bottom pressing

IV. Accessories machine - CNC threading machine

V. Our equipemtn for different size
Machine Model THG622 THG660 THG720 THG920
Processing Dia. (mm) 406~622 406~660 559~720 559~920
Processing Length (mm) 5500-12500 5500-12500 5500-12500 5500-12500
Processing Thickness (mm) 10-30 10-30 10-30 10-30
Central Height (mm) 1300 1300 1300 1300
Main Engine Power (KW) 200 250 280 355
Rolling wheel swing angle 90° 90° 90° 90°
Control Methods CNC CNC CNC CNC
Machine Model THG325 THG406
Processing Dia. (mm) 219~325 325~406
Processing Length (mm) 800-2000 800-2000
Processing Thickness (mm) 5-18 5-18
Central Height (mm) 1100 1200
Main Engine Power (KW) 90 144
Rolling wheel swing angle 100° 100°
Control Methods CNC CNC

Machine Model THM232 THM325 THM406
Processing Dia. (mm) 200~232 219~325 325~406
Processing Length (mm) 700-1700 800-2000 800-2000
Processing Thickness (mm) 3-15 5-15 5-18
Central Height (mm) 1000 1100 1200
Main Engine Power (KW) 37 90 110
Rolling wheel swing angle 90° 90° 90°
Control Methods PLC PLC PLC
Automatic CNG cylinder hot spinning machine
Seamless gas cylinder/fire extinguisher hot spinning machine
