Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder

Quantity:



Inquire Add to Basket

Model NO.:
HLT
Metal Material:
Steel
Riveting Principle:
Radial Models(JM Series)
Spinning Deformation Condition:
Hot Spinning
Spinning Belt Wheel Type:
Combined Belt Wheel
Spinning Wheel Number:
Triple
Finished Product:
Cylinder
Finished Product Shape:
Cylinder Shape
Product Name:
Gas Cylinder Hot Spinning Machine
Model:
Thg622, Thg660, Thg720, Thg920
Diameter:
406-920mm
Length:
5500-12500mm
Thickness:
10-30mm
Height:
1300mm
Power:
200-355kw
Moving Angle:
90°
Control:
CNC
Dimension:
23000*3200*2300mm
Transport Package:
Standard Seaworthy or Air Package
Specification:
SGS
Trademark:
LTM
Origin:
China, Jiangsu
HS Code:
730799000
Production Capacity:
20sets/Year
Samples:
US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Product Description

Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder

Machine Model	THG622	THG660	THG720	THG920
Processing Diameter	Φ406-Φ622mm	Φ406-Φ660mm	Φ559-Φ720mm	Φ559-Φ920mm
Processing Length	5500-12500mm	5500-12500mm	5500-12500mm	5500-12500mm
Processing Thickness	10-30mm	10-30mm	10-30mm	10-30mm
Machine Central Height	1300mm	1300mm	1300mm	1300mm
Main Engine Power	200KW	250KW	280KW	355KW
Template Rotroflexion Angle	90°	90°	90°	90°
Control Type	CNC	CNC	CNC	CNC
Machine Dimension(MM)	2300032002300	2300032002300	3100032002500	3100032003300

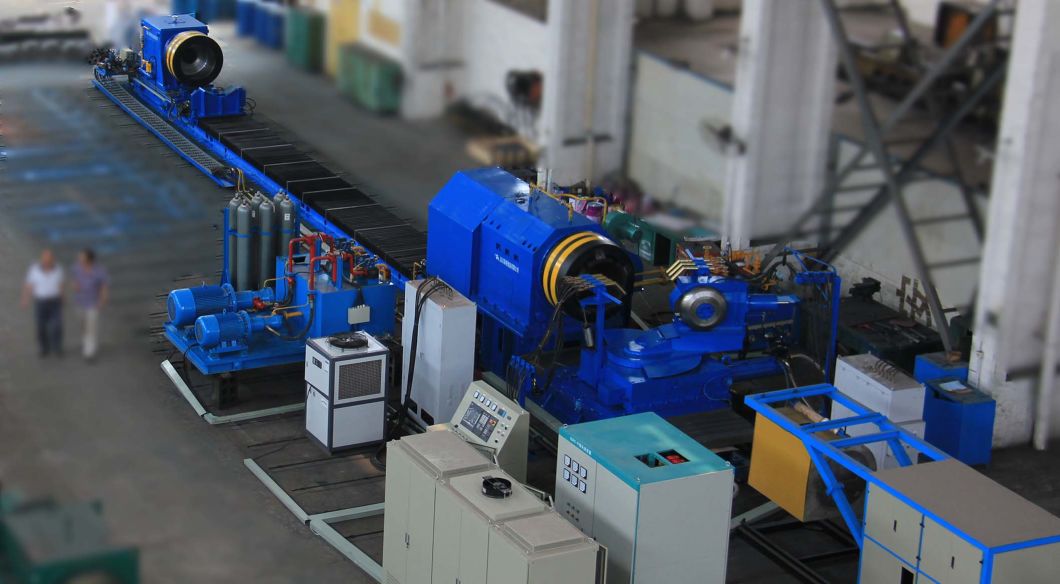

Machine details as below:

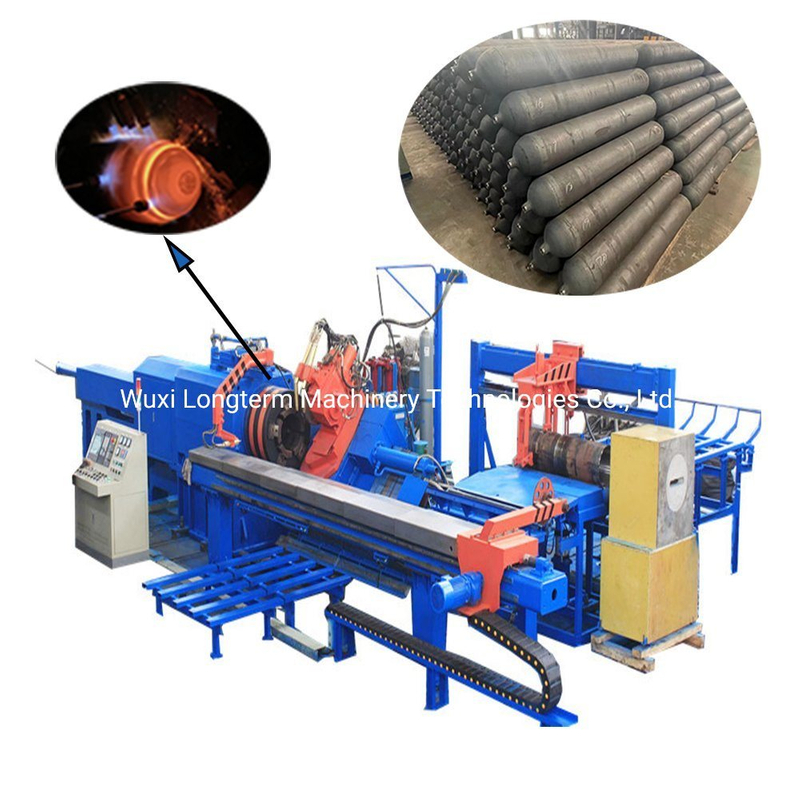

Chinese Brand New Famous CNG Cylinder Production Line, Hot Spinning Machine for CNG Cylinder

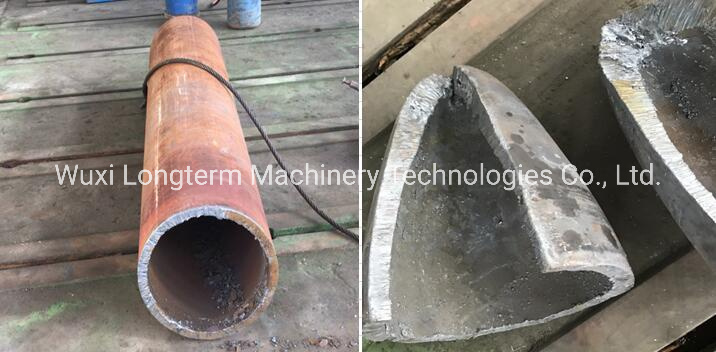

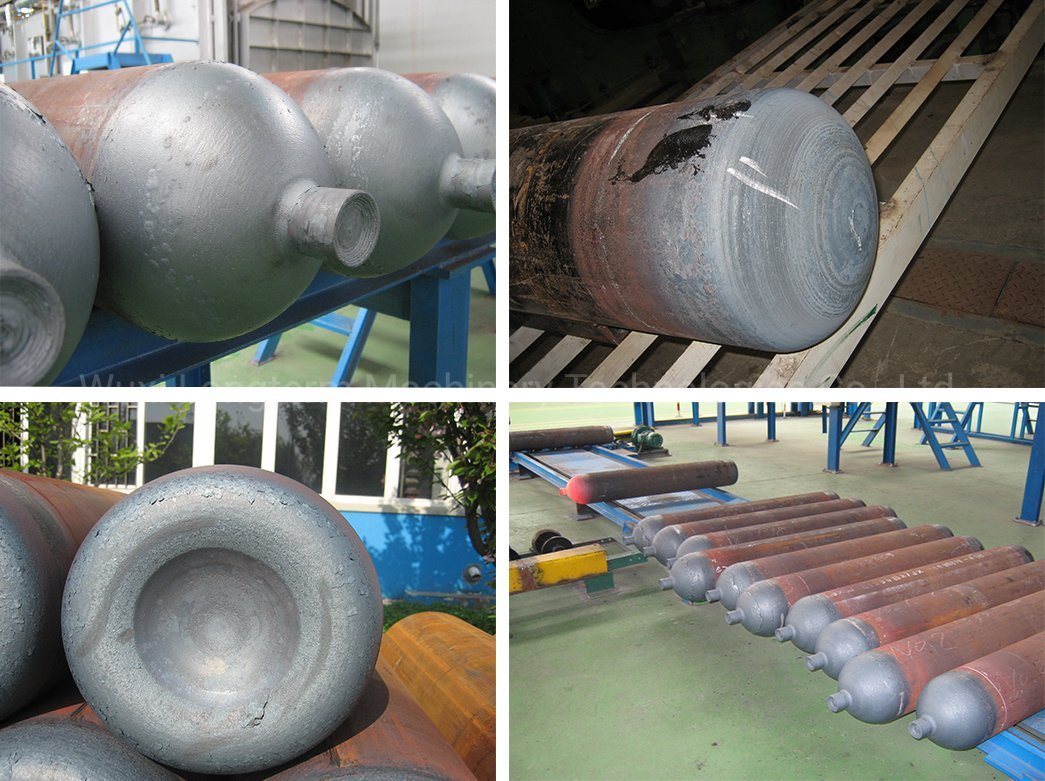

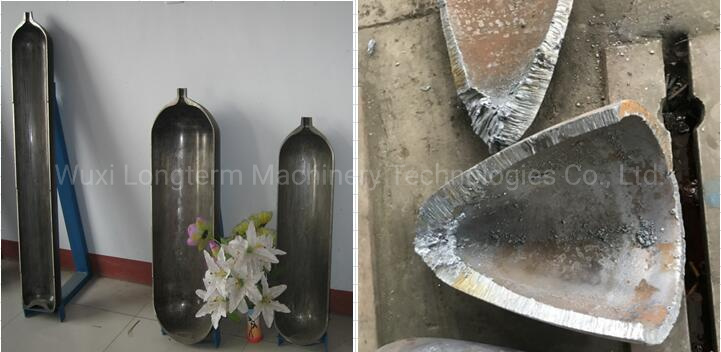

Picture of cylinder

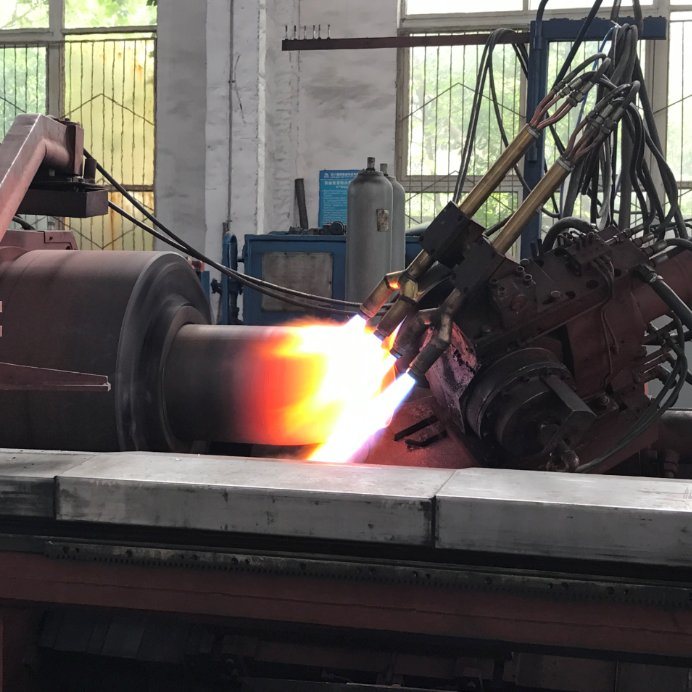

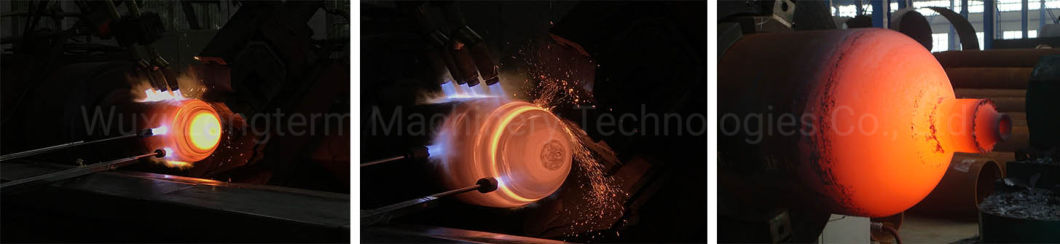

Picture of details

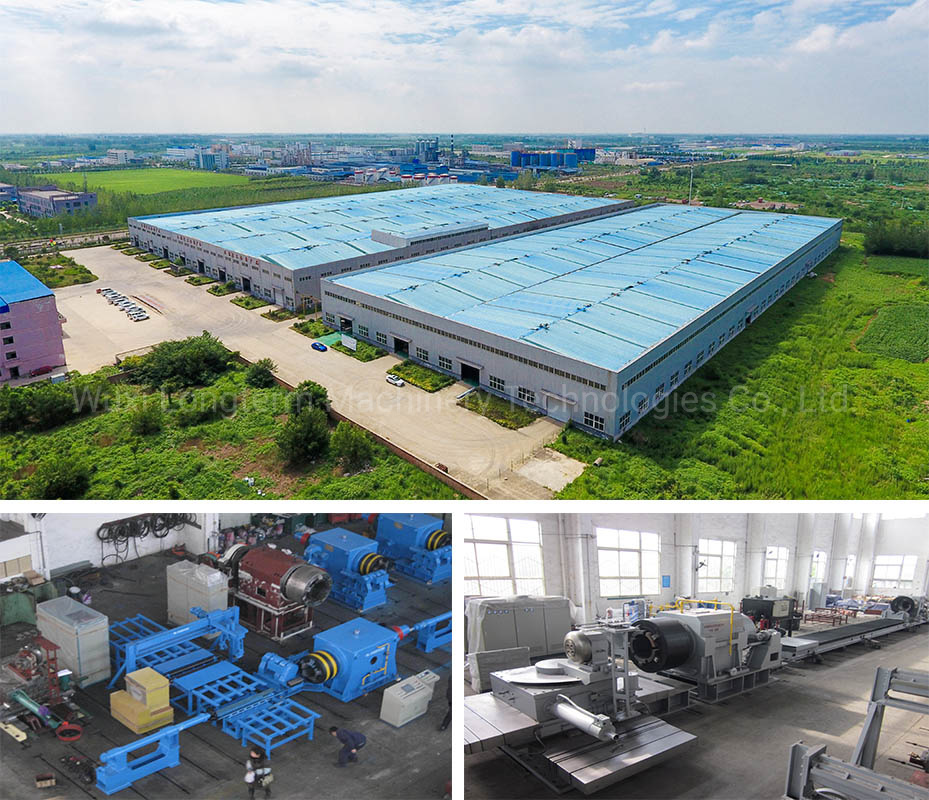

Factory

FAQ

We need to know the following information to deal with the proposal for you:
1. Could you pls tell us the cylinder diameter ≤ngth?
2. Do you have a technical drawing so that our engineer will know the specification.
3. Which type do you need? Template type of roller type?
