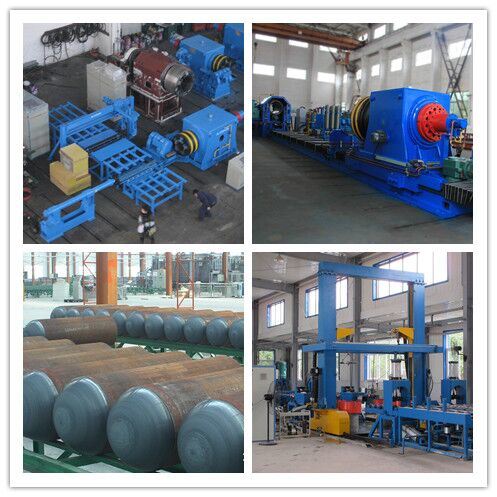

CNG Storage Cascade Cylinder Making Machine

Quantity:
  • HLT

  • 3 Months

  • Hot Spinning

  • 5500~12500 mm

  • Triple

  • Full Automatic

  • 90 Degrees

  • Seamless Cylinder

  • 1 Year

  • Available

  • Standard Seaworthy Packaging

  • 20" Container

  • HLT

  • Wuxi

  • 8504330000

  • 5000sets/Year

  • Available | Customized Request

Product Description

CNG Storage Cascade Cylinder Making Machine


I. Technical specification
This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC .
Spinning diameter Max. 406mm
Spinning diameter Min. 325mm
Spinning length Max. 2000mm
Spinning length Min. 800mm
Starting wall thickness Max. 18mm
Starting wall thickness Min. 5mm
Spinning cycle (incl. load/unloading/necking-in) Max. 2.5min
Equipment centre height 900mm
Main spindle drive 90KW
Axial stroke of sliding block 65mm
Radial stroke of sliding block 17mm
Radial clamping force 200KN
Main spindle speed (Variable) 0-320 rpm
Mould axial stroke 321KN
Max. mould axial feed-in speed 30°/s
Mould rotating angle 0-91°
Hydraulic motor 22KW
Proportional speed regulated reversing valve Italy ATOS
Control Siemens
Connected electrical load 3*380V, 50Hz
Heating power of the pipe end 500KW/1000Hz
Connected pneumatic load 6 bar


Automotive CNG Cylinder Making Machine

II. Manufacturing process

Automotive CNG Cylinder Making Machine

III. Machinery testing

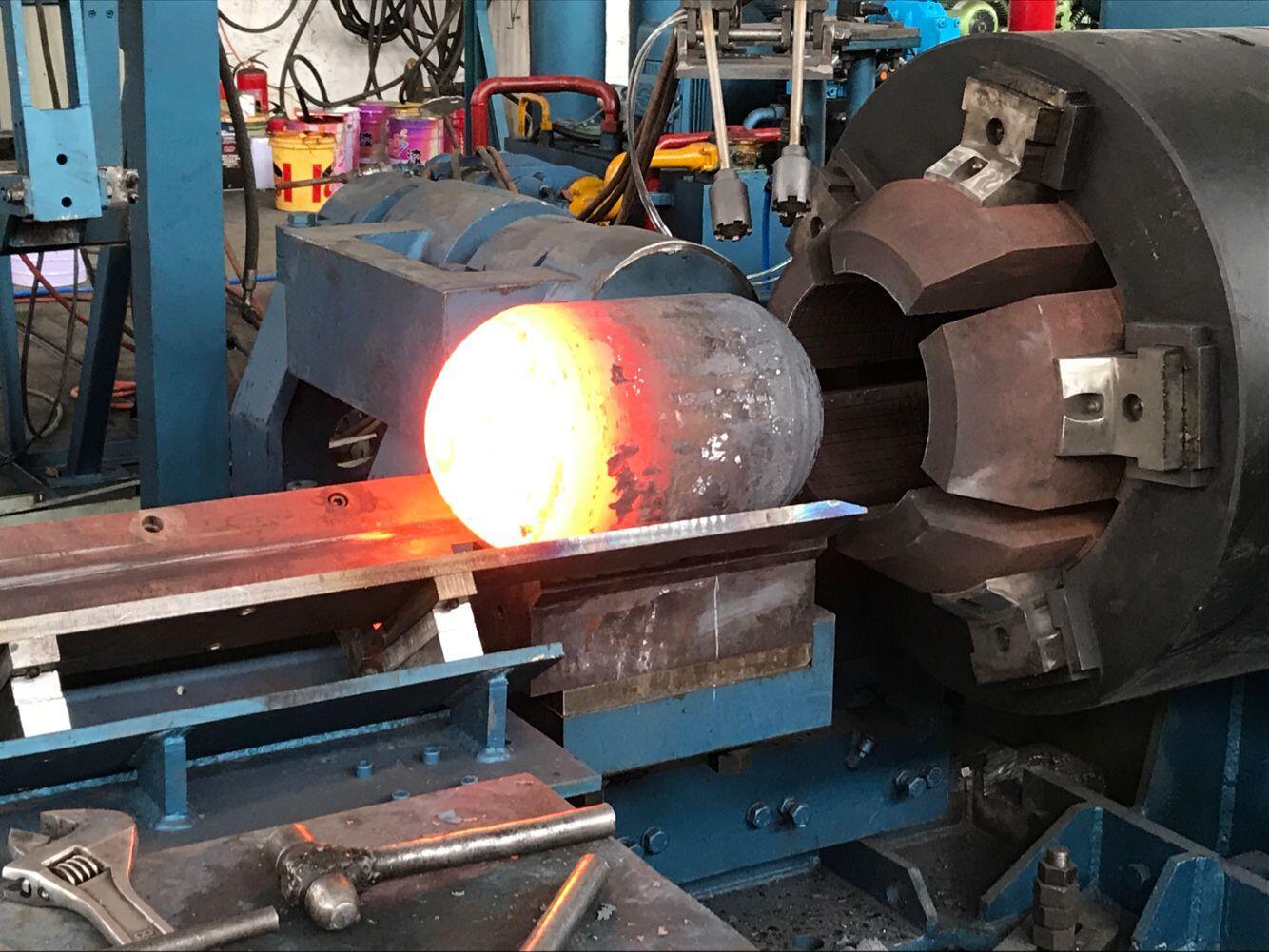

Mouth closing

Automotive CNG Cylinder Making Machine

Bottom pressing

Automotive CNG Cylinder Making Machine

IV. Accessories machine - CNC threading machine

Automotive CNG Cylinder Making Machine

Automotive CNG Cylinder Making Machine

V. Our equipemtn for different size

CNC ROLLER TYPR SPINNING MACHINE

Machine Model THG622 THG660 THG720 THG920
Processing Dia. (mm) 406~622 406~660 559~720 559~920
Processing Length (mm) 5500-12500 5500-12500 5500-12500 5500-12500
Processing Thickness (mm) 10-30 10-30 10-30 10-30
Central Height (mm) 1300 1300 1300 1300
Main Engine Power (KW) 200 250 280 355
Rolling wheel swing angle 90° 90° 90° 90°
Control Methods CNC CNC CNC CNC
Machine Model THG325 THG406
Processing Dia. (mm) 219~325 325~406
Processing Length (mm) 800-2000 800-2000
Processing Thickness (mm) 5-18 5-18
Central Height (mm) 1100 1200
Main Engine Power (KW) 90 144
Rolling wheel swing angle 100° 100°
Control Methods CNC CNC

CNC Template TYPR SPINNING MACHINE
Machine Model THM232 THM325 THM406
Processing Dia. (mm) 200~232 219~325 325~406
Processing Length (mm) 700-1700 800-2000 800-2000
Processing Thickness (mm) 3-15 5-15 5-18
Central Height (mm) 1000 1100 1200
Main Engine Power (KW) 37 90 110
Rolling wheel swing angle 90° 90° 90°
Control Methods PLC PLC PLC
