CNG Seamless Cylinder Bottom Pushing Machine

Quantity:



Inquire Add to Basket

Model NO.:
longterm machinery
Equipment Total Power:
Around 30kw
Customized:
Acceptable
Structure:
Main Engine, Hydraulic System, Feeding
Bottom Pushing Device:
Automatic or Manual
Transport Package:
Standard Seaworthy Package
Specification:
ISO9001
Trademark:
LONGTERM
Origin:
China
HS Code:
84819010
Production Capacity:
50/Year
Customization:
Available | Customized Request

Product Description

Product Description

CNG Seamless Cylinder Bottom Pushing Machine

Product description
CNG Seamless Cylinder Bottom Pushing Machine

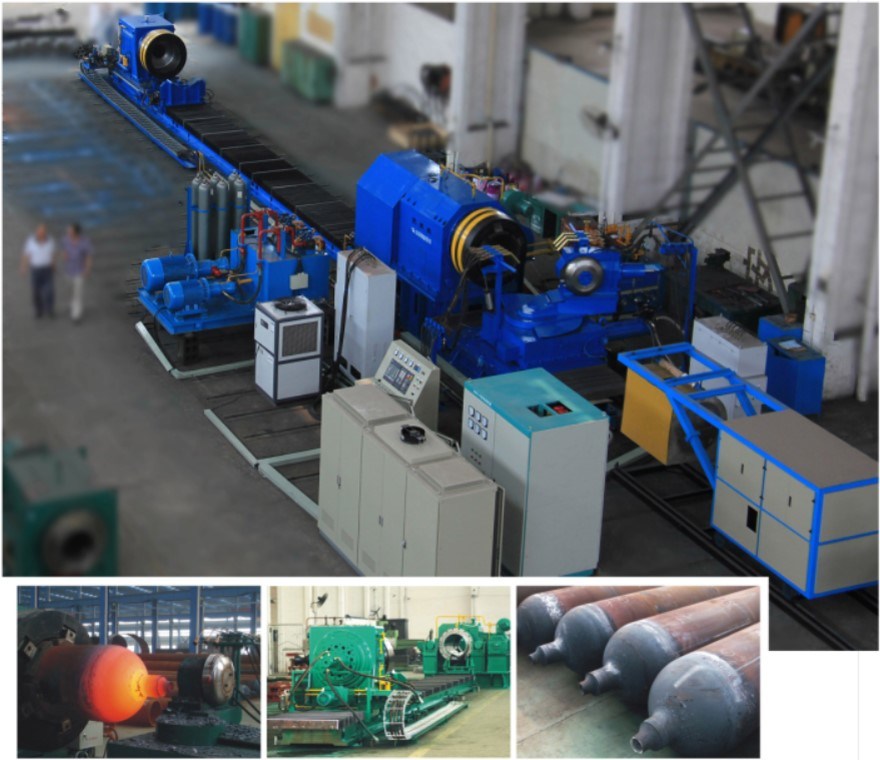

CNC Roller type Spinning Machine
Processing Diameter: 406~920mm

Machine Model	THG622	THG660	THG720	THG920
Processing Diamater	406-622mm	406-660mm	559-720mm	559-920mm
Processing Length	5500-12500mm	5500-12500mm	5500-12500mm	5500-12500mm
Processing Thickness	10-30mm	10-30mm	10-30mm	10-30mm
Ctentral Heigh	1300mm	1300mm	1300mm	1300mm
Main Engine Power	200Kw	250Kw	280Kw	355Kw
Rolling Wheel Swing Angle	90 degree	90 degree	90 degree	90 degree
Control Methods	CNC	CNC	CNC	CNC
Machine Dimension LWH	2300032002300mm	2300032002300mm	3100032002500mm	3100032003300mm

CNC Roller type Spinning Machine
Processing Diameter: 219~406mm

Machine Model	THG325	THG406-IV
Processing Diamater	219-325mm	325mm-406mm
Processing Length	800-2000mm	800-2000mm
Processing Thickness	5-15mm	5-18mm
Central Height	1100mm	1200mm
Main Engine Power	90Kw	144Kw
Rolling Wheel Swing Angle	100 degree	100 degree
Spindle Speed	700rpm	700rpm
Control Methods	CNC	CNC
Machine Dimension LWH	1600020001420mm	1800020001600mm

Template type Spinning Machine
Processing Diameter: 200~406mm

Machine Model	THM232	THM325	THM406
Processing Diamater	200-232mm	219-325mm	325-406mm
Processing Length	700-1700mm	800-2000mm	800-2000mm
Processing Thickness	3-15mm	5-15mm	5-18mm
Central Height	1000mm	1100mm	1200mm
Main Engine Power	37Kw	90Kw	110Kw
Template Retroflexion Angle	90 degree	90 degree	90 degree
Template Center Height Adjust	+-20mm	+-30mm	+-30mm
Control Method	PLC	PLC	PLC
Machine Dimension LWH	1600020001300mm	1600020001420mm	1800020001600mm

Double Roller Series CNC Playback General Spinning Flow Forming Machine
Processing Diameter: 690~3000mm

Model	Max Rough Diamater(mm)	Height from Spindle to Tailstock(mm)	Longitudinal Thrust(KN)	Radial Trust(KN)
350PCNC	690	1100	24	24
450PCNC	890	1250	65	65
800PCNC	1590	1250	65	65
700PCNC	1400	2300	150	150
900PCNC	1800	2500	200	200
1200PCNC	2400	2500	300	300
1500PCNC	3000	3500	400	400

Triple Roller Type CNC Power Spinning Flow Forming Machine

Name	Unit	QX63-10CNC	QX63-20CNC	QX63-30CNC
Max Rough Diameter	mm	400	600	700
Min Rough Diameter	mm	60	60	100
Max length of work piece(positive rotation)	mm	1200	2000	2500
Max length of work piece(contrarotation)	mm	2200	3000	4000
Double center distance	mm	4700	6000	6500
Spindle Speed	rpm	30-600	30-600	30-500
Main engine power	Kw	37/40	100/110	120
Tail force	KN	50	75	150
Spinning roller base longitudinal stroke	mm	1500	2000/2500	2500/3000
Spinning roller base longitudinal thrust	KN	170	250/300	400/450
Spinning roller base horizontal stroke	mm	170	270	300
Spinning roller base horizontal thrust	KN	3*100	3*200	3*300

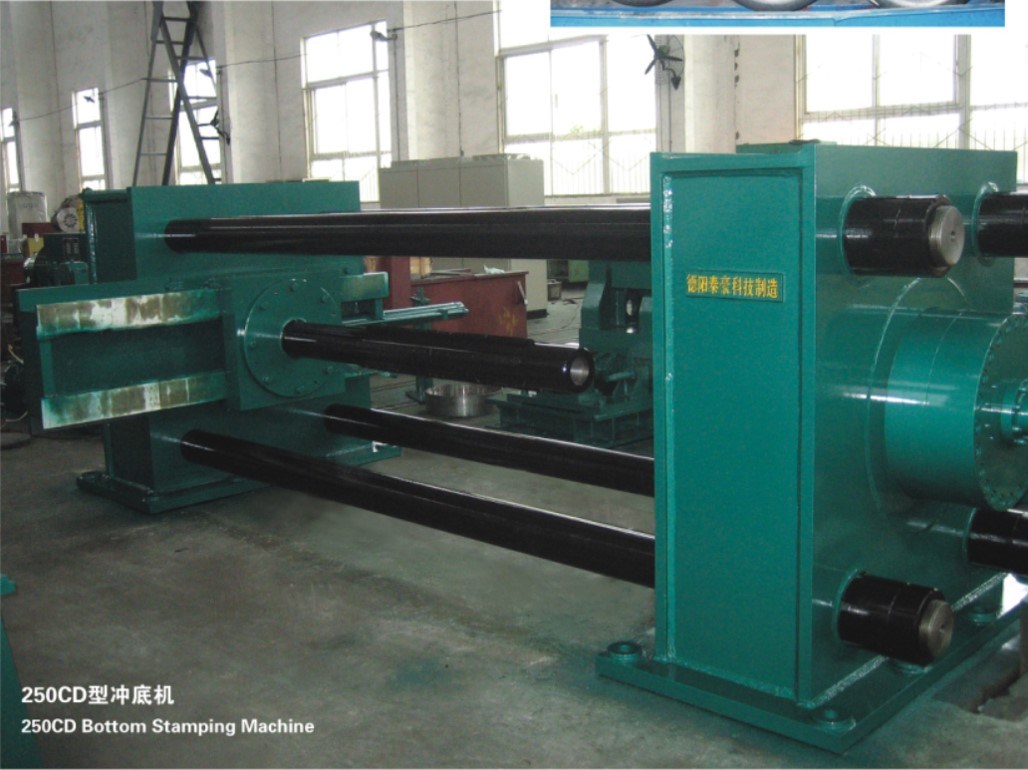

Concave Bottom Stamping Machine

Machine Model	250CD	400CD	500CD
Forming Force	2500KN	4000KN	5000KN
Processing Diameter	219-232mm	219-406mm	219-406mm
Processing Length	1700mm	2000mm	2000mm
Processing Thickness	18mm	18mm	18mm
Central Height	650mm	800mm	800mm
Control Methods	PLC	PLC	PLC

F&Q
We are professional manufacturer of lpg tank production line. We need to know following information to quote you correct machineries:
Q: What size of LNG cylinder your machine can produce?
A: 15kgs and 50kgs LNG cylinder and other size according customers' requirement.
Q: Can you design machines according LNG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

To enable me give you correct proposal for correct machines, pls tell me following details:
1.Can you send me the technical drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(15kg, 50kg)
3.What kind of gas will be used inside cylinder? Nitrogen, Oxygen, etc..?
4. What temperature?
5.What diameter and thickness of the cylinder you want to make?
6.What length and material of cylinder you want to make,stainless steel or carbon steel?
7.Are you new in this area or you already have some machines in the workshop?
8.Capacity you require, i.e. how many pieces and sizes you want to make per day?
