HLT
Hot Spinning
Rolling V Type Belt Wheel
Triple
Cylinder
Cylinder Shape
90 Degree
1300 mm
23000 * 3200 * 2300 mm
406~920 mm
5500~12500 mm

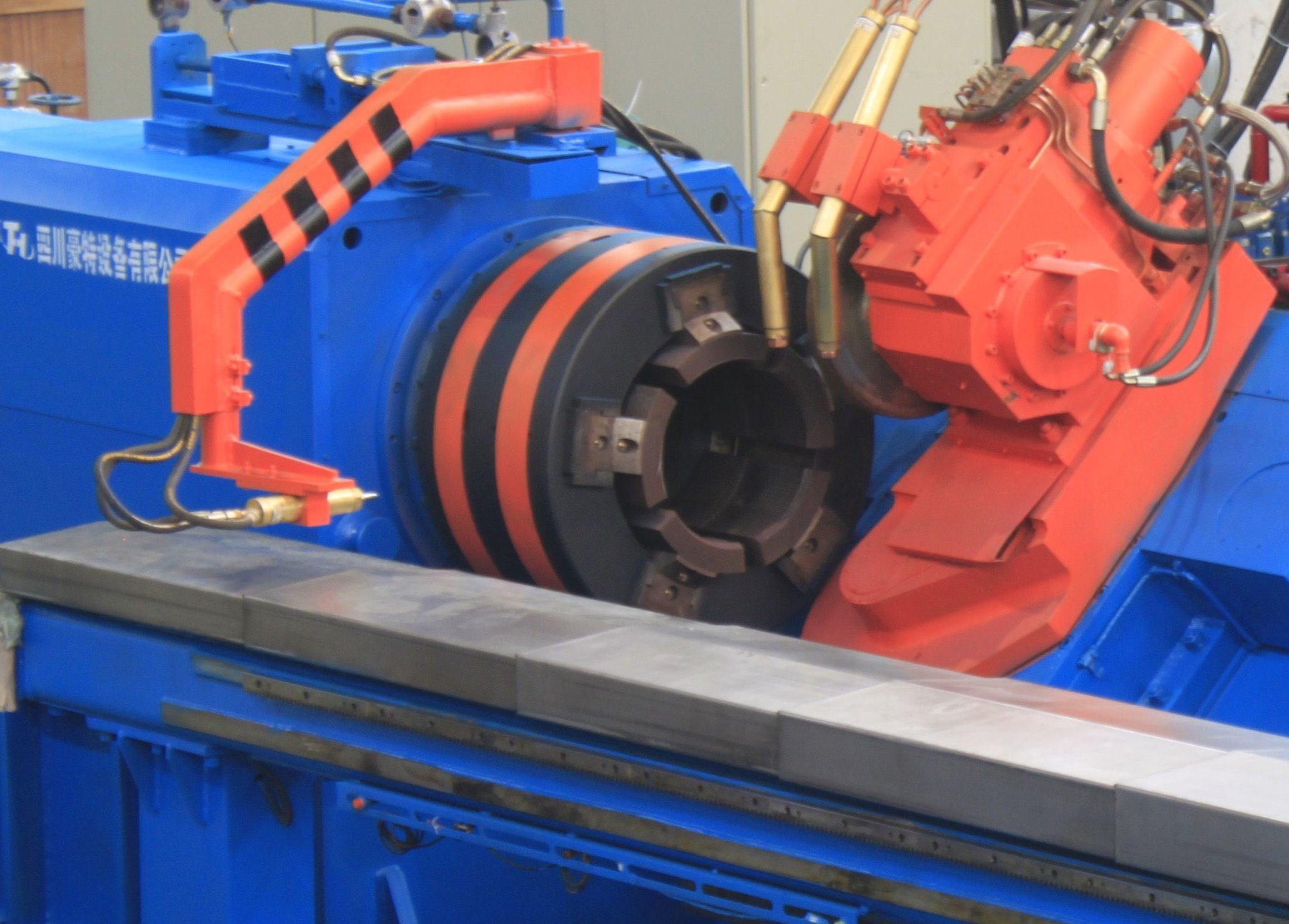

CNC High Pressure Cylinder Hot Spinning Machine
Available
1 Year
Full Automatic
3 Months
Standard Seaworthy & Strong Package
ISO9001
Comflex
Wuxi, Jiangsu, China(Mainland)
830710000
as Requested
Available | Customized Request
Product Description
This machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.
Spinning diameter | Max. 406mm |
Spinning diameter | Min. 325mm |
Spinning length | Max. 2000mm |
Spinning length | Min. 800mm |
Starting wall thickness | Max. 18mm |
Starting wall thickness | Min. 5mm |
Spinning cycle (incl. load/unloading/necking-in) | Max. 2.5min |
Equipment centre height | 900mm |
Main spindle drive | 90KW |
Axial stroke of sliding block | 65mm |
Radial stroke of sliding block | 17mm |
Radial clamping force | 200KN |
Main spindle speed (Variable) | 0-320 rpm |
Mould axial stroke | 321KN |
Max. mould axial feed-in speed | 30°/s |
Mould rotating angle | 0-91° |
Hydraulic motor | 22KW |
Proportional speed regulated reversing valve | Italy ATOS |
Control | Siemens |
Connected electrical load | 3*380V, 50Hz |
Heating power of the pipe end | 500KW/1000Hz |
Connected pneumatic load | 6 bar |
II. Manufacturing process
III. Machinery testing
Mouth closing
Bottom pressing
IV. Accessories machine - CNC threading machine
V. Our equipemtn for different size
CNC ROLLER TYPR SPINNING MACHINE
Machine Model | THG622 | THG660 | THG720 | THG920 |
Processing Dia. (mm) | 406~622 | 406~660 | 559~720 | 559~920 |
Processing Length (mm) | 5500-12500 | 5500-12500 | 5500-12500 | 5500-12500 |
Processing Thickness (mm) | 10-30 | 10-30 | 10-30 | 10-30 |
Central Height (mm) | 1300 | 1300 | 1300 | 1300 |
Main Engine Power (KW) | 200 | 250 | 280 | 355 |
Rolling wheel swing angle | 90° | 90° | 90° | 90° |
Control Methods | CNC | CNC | CNC | CNC |
Machine Model | THG325 | THG406 |
Processing Dia. (mm) | 219~325 | 325~406 |
Processing Length (mm) | 800-2000 | 800-2000 |
Processing Thickness (mm) | 5-18 | 5-18 |
Central Height (mm) | 1100 | 1200 |
Main Engine Power (KW) | 90 | 144 |
Rolling wheel swing angle | 100° | 100° |
Control Methods | CNC | CNC |
Machine Model | THM232 | THM325 | THM406 |
Processing Dia. (mm) | 200~232 | 219~325 | 325~406 |
Processing Length (mm) | 700-1700 | 800-2000 | 800-2000 |
Processing Thickness (mm) | 3-15 | 5-15 | 5-18 |
Central Height (mm) | 1000 | 1100 | 1200 |
Main Engine Power (KW) | 37 | 90 | 110 |
Rolling wheel swing angle | 90° | 90° | 90° |
Control Methods | PLC | PLC | PLC |
