Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

Quantity:
  • HLT
  • Available
  • 800-120000kg
  • 1
  • 29-130kw
  • Standarsd Seaworthy Package
  • can be customized
  • HLT
  • Jiangsu China
  • 500set One Month
  • US$ 1000/Set 1 Set(Min.Order) | Request Sample

Product Description

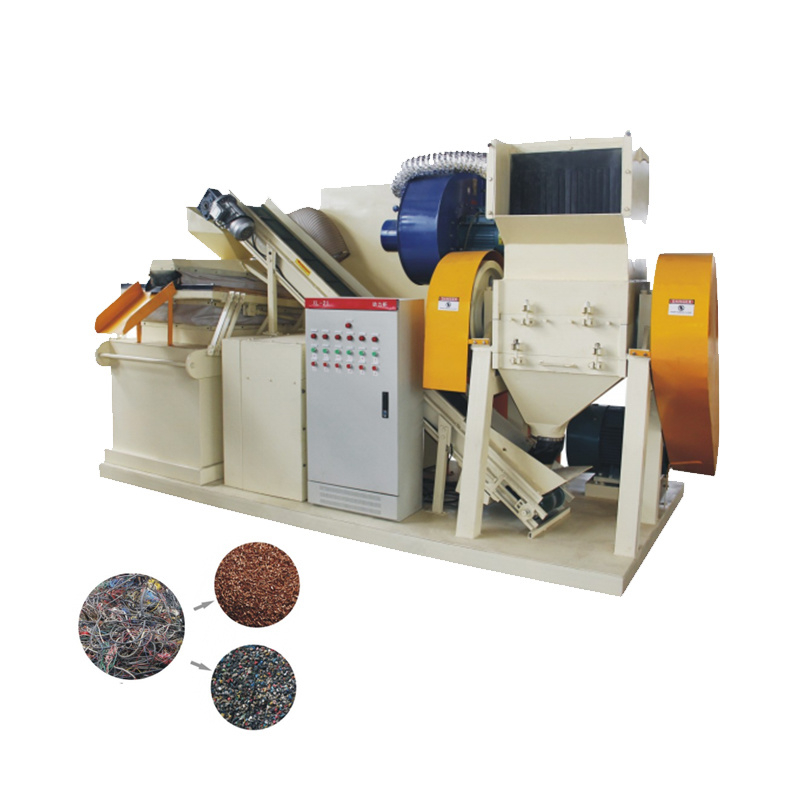

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator And Cutting Recycling

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting RecyclingWire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling
Description

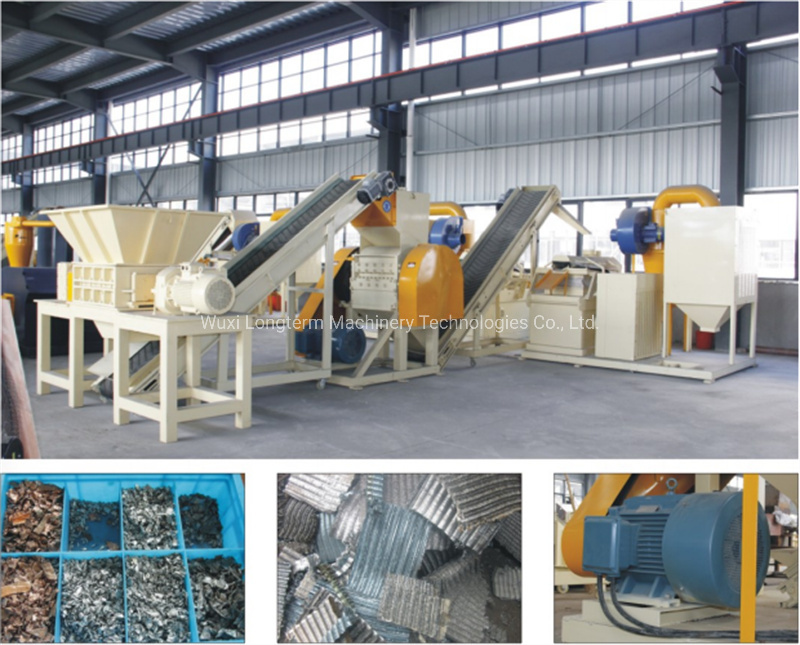

Copper wire granulator has much complicated processing process. It is made up of a copper wire dual shaft pre-shredder, two conveying machines, a second copper wire crusher, copper separation system, dust collecting system etc.. At first, the pre-shredder will cut the materials into 10-15 mm pieces. Then in the second crusher will crush the materials into 3-5 mm before further separation. The whole material feeding process relies on the conveyors and you can change their conveying speed according to your production. So it will be much more convenient. Dust collection system will be much more environmental protection. One to two people to operate it, benefit is better, space is more province
MODEL POWER VOLTAGE ANGLE BLADES OUTPUT SIZE WEIGHT
400S01 11.92KW 380V 0.5-20mm 10-2 80-120KG/H 145*133*210cm 900kg
400S02 11.92KW 380V 0.5-20mm - 60-100KG/H 1.23*1.17M*1.8M 850kg
400M01 22,76KW 380V 0.5-20mm 10+2 150-200KG/H 2.7M.9*2.3M 1600kg
600A 46.87KW 380V 0.5-20mm 10+4 200-300KG/H 4*1.95*2.3M 3400kg
600B 46.87KW 380V 0.5-20mm 10+4 200-300KG/H 4.3*1.95 *2.4M 3400kg
800 73.26KW 380V 1-40mm 40+14 500-600KG/H 5*6*2.8M 8T
1200 129.36KW 380V 0.5-40mm 10+4 800-1200KG/H 16M*10M*3M 12000kg

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

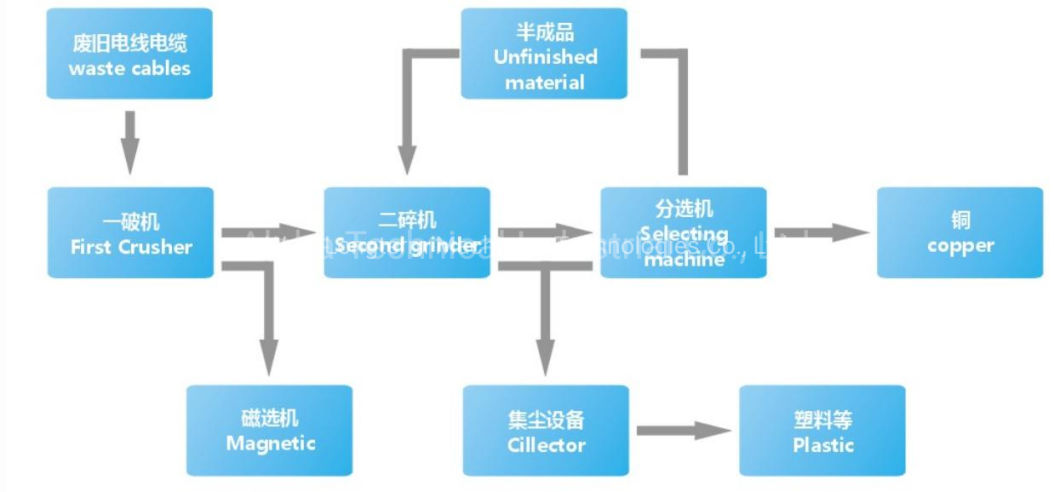

Manufacturing process
Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

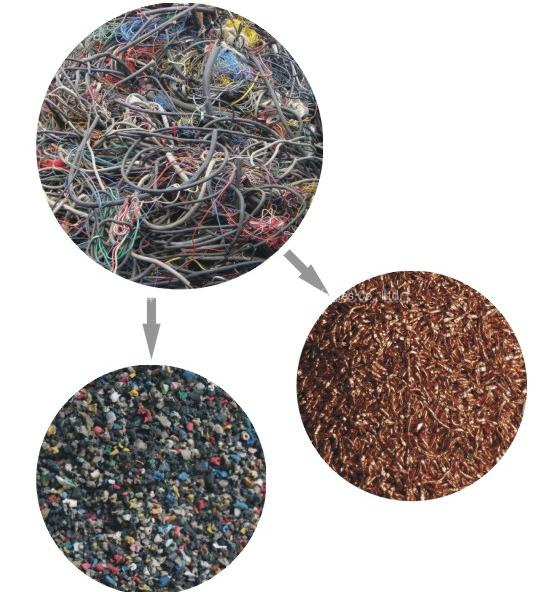

Application
Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

Different type of machine

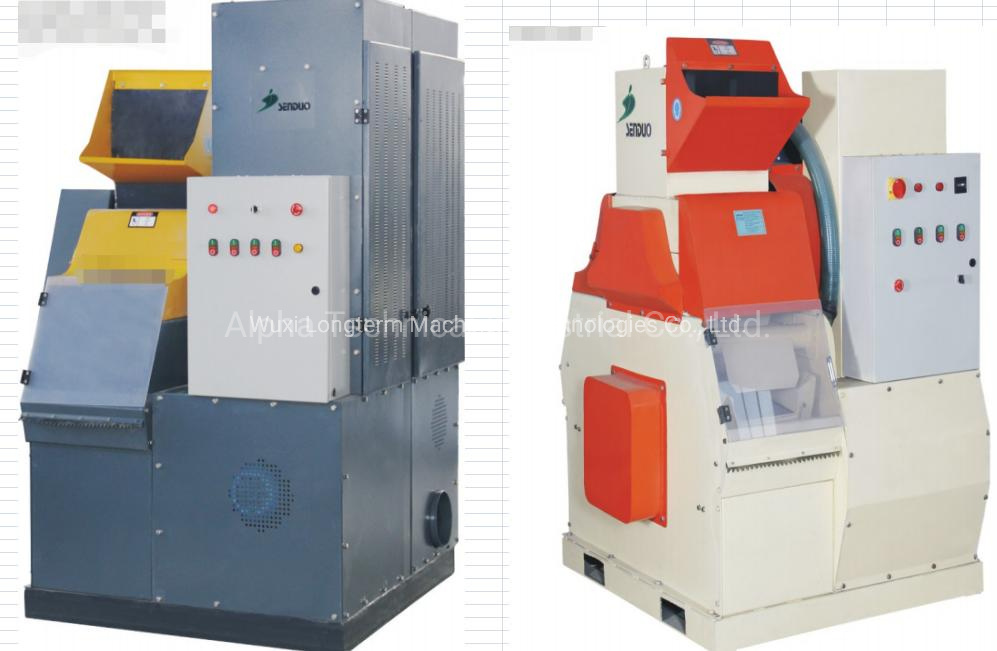

QJ-400M QJ-600A

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

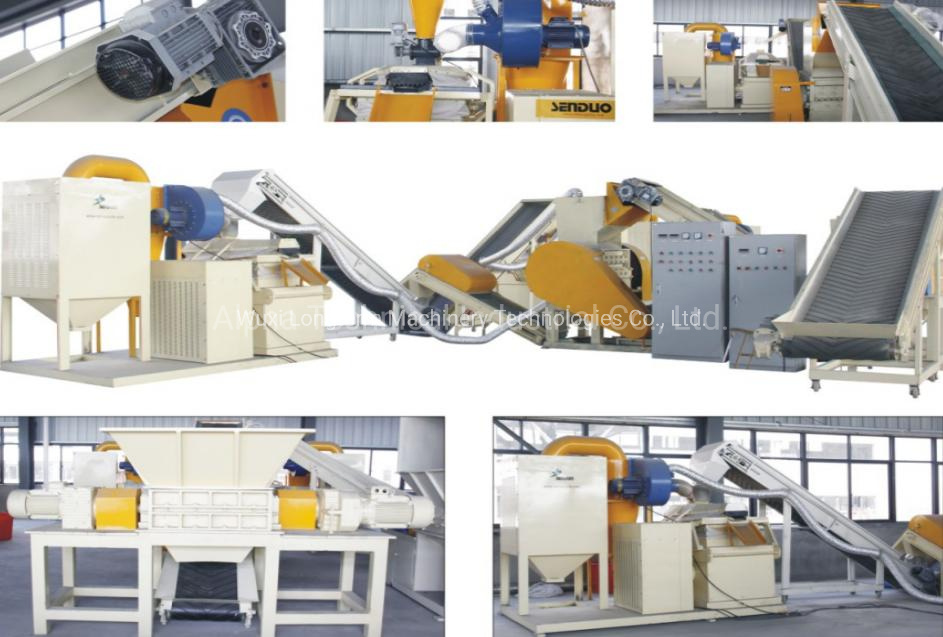

QJ-600B QJ-800

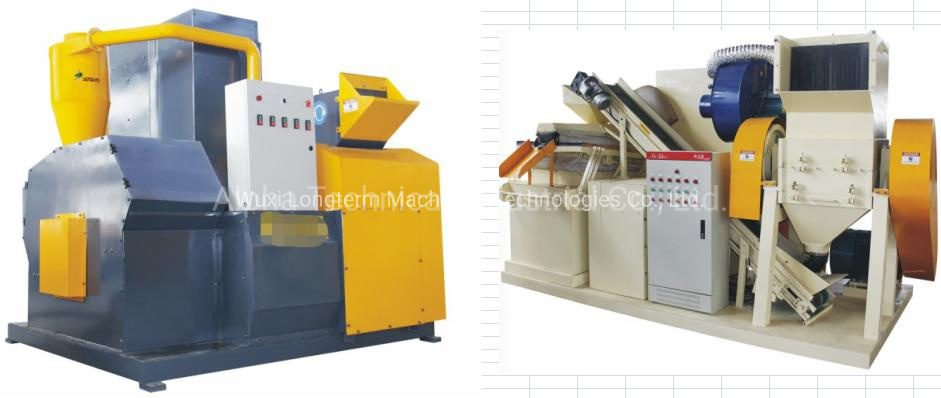

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting RecyclingQJ-400S01 QJ-400S02

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

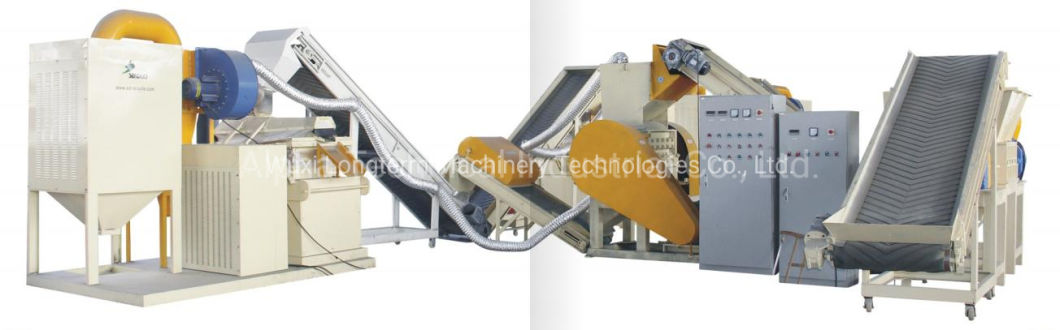

QJ-1200

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

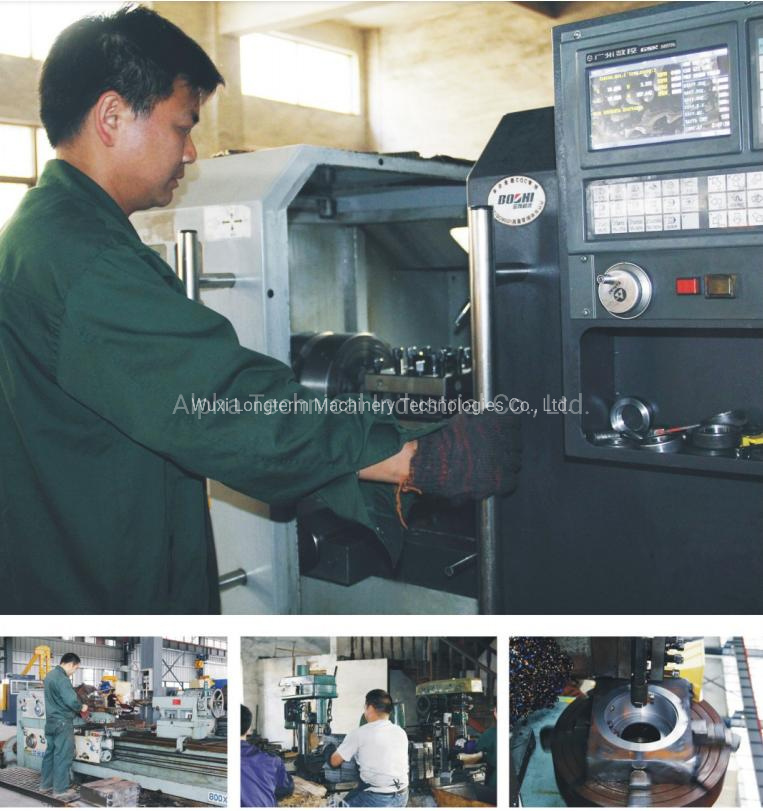

Manufacturing site

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

Related products

Wire Cable Separator Machine Copper Recycling Machine Recycle Copper Granulator and Cutting Recycling

FAQ for cable copper wire recycling machine

1) How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO, TUV.
c. Agents in RU, US, UKR, MYS, PH; Users around the world.
d. Welcome to inspect anytime.
2) How about the test running & installation?
Before delivery, we finish the test over 3 days. If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
3) Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
4) Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
