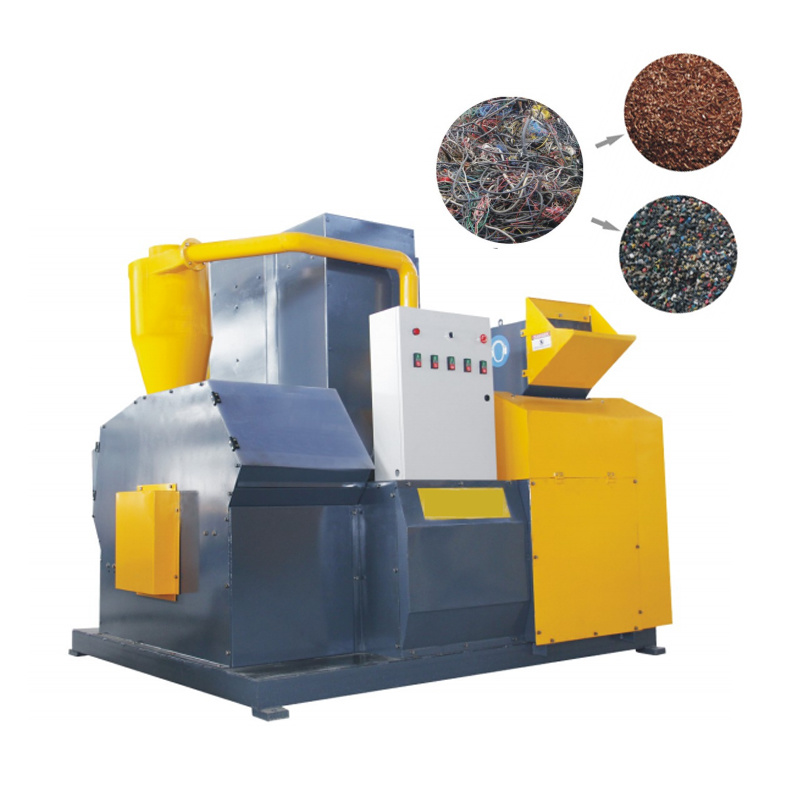

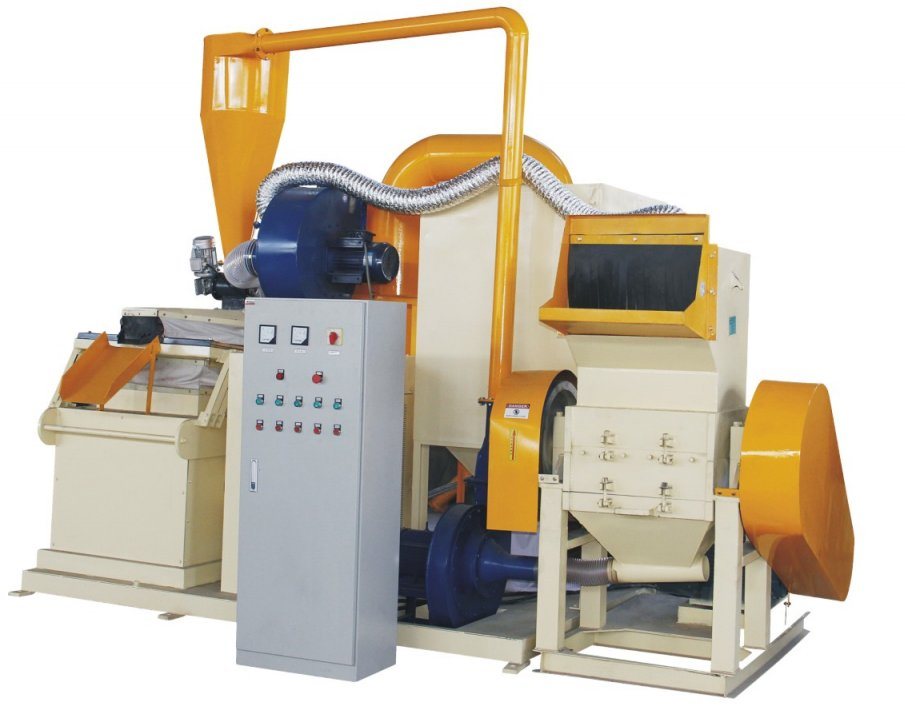

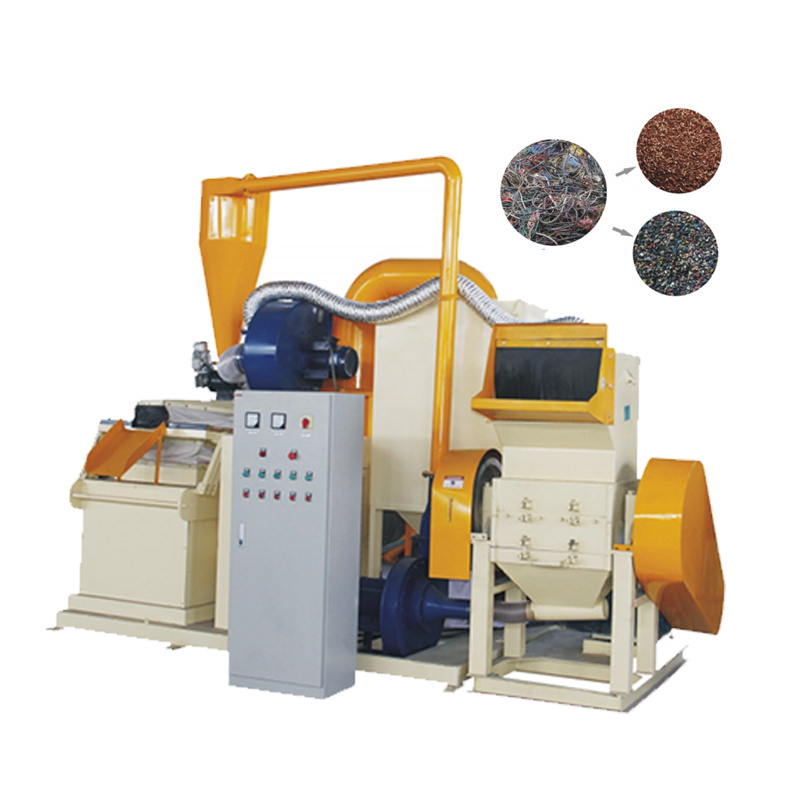

Scrap Cable Granulator Electric Wire Car Copper Wire Recycling Machine

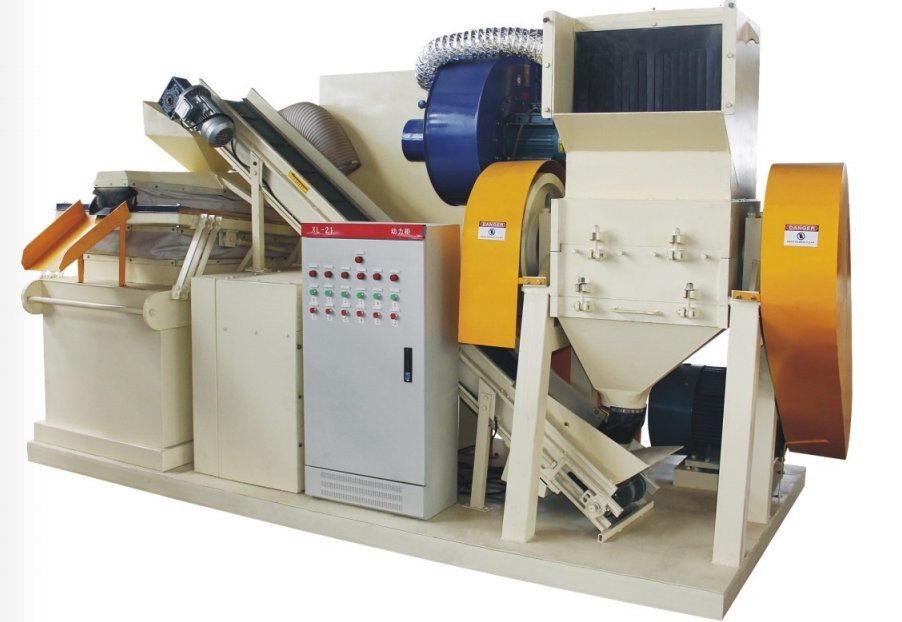

Description Copper wire granulator has much complicated processing process. It is made up of a copper wire dual shaft pre-shredder, two conveying machines, a second copper wire crusher, copper separation system, dust collecting system etc.. At first, the pre-shredder will cut the materials into 10-15 mm pieces. Then in the second crusher will crush the materials into 3-5 mm before further separation. The whole material feeding process relies on the conveyors and you can change their conveying speed according to your production. So it will be much more convenient. Dust collection system will be much more environmental protection. One to two people to operate it, benefit is better, space is more province | MODEL | POWER | VOLTAGE | ANGLE | BLADES | OUTPUT | SIZE | WEIGHT |
| 400S01 | 11.92KW | 380V | 0.5-20mm | 10-2 | 80-120KG/H | 145*133*210cm | 900kg |
| 400S02 | 11.92KW | 380V | 0.5-20mm | - | 60-100KG/H | 1.23*1.17M*1.8M | 850kg |
| 400M01 | 22,76KW | 380V | 0.5-20mm | 10+2 | 150-200KG/H | 2.7M.9*2.3M | 1600kg |
| 600A | 46.87KW | 380V | 0.5-20mm | 10+4 | 200-300KG/H | 4*1.95*2.3M | 3400kg |
| 600B | 46.87KW | 380V | 0.5-20mm | 10+4 | 200-300KG/H | 4.3*1.95 *2.4M | 3400kg |
| 800 | 73.26KW | 380V | 1-40mm | 40+14 | 500-600KG/H | 5*6*2.8M | 8T |
| 1200 | 129.36KW | 380V | 0.5-40mm | 10+4 | 800-1200KG/H | 16M*10M*3M | 12000kg |

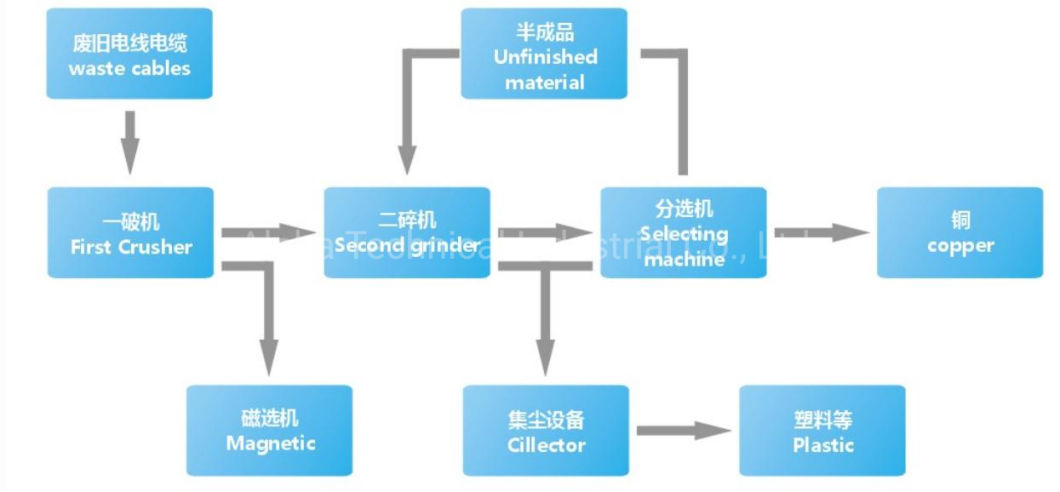

Manufacturing process
Application
Different type of machine
QJ-400M QJ-600A
QJ-600B QJ-800

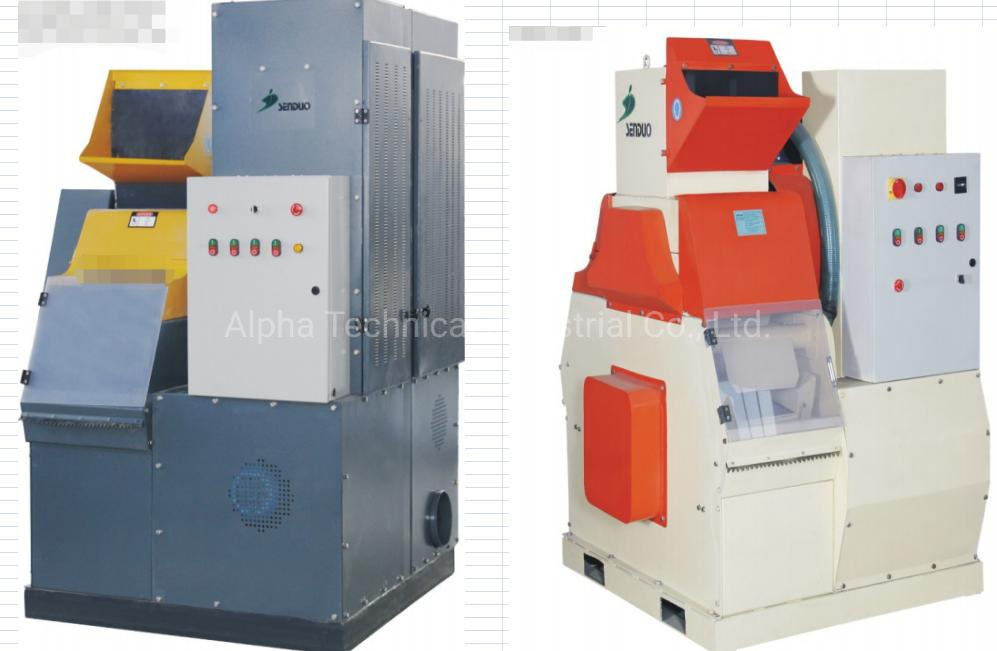

QJ-400S01 QJ-400S02

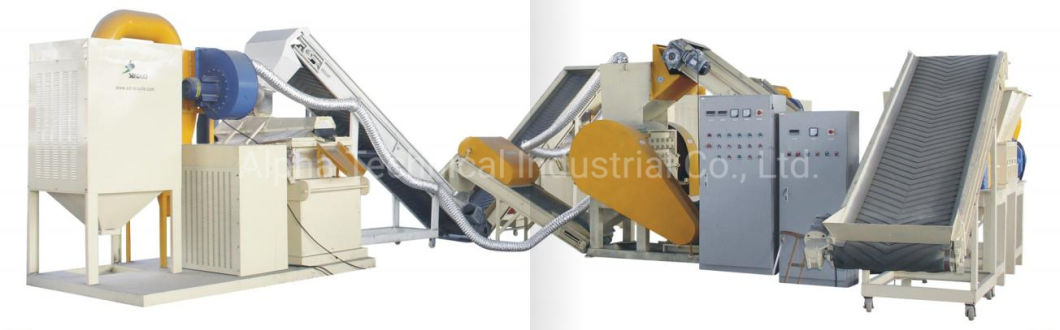

QJ-1200

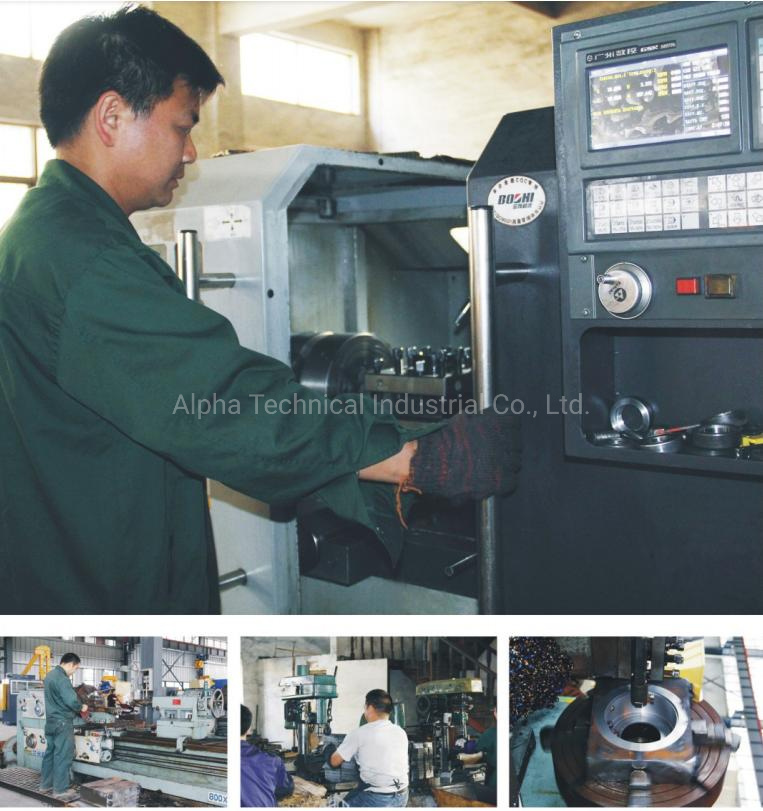

Manufacturing site

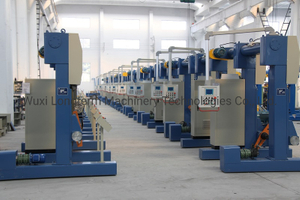

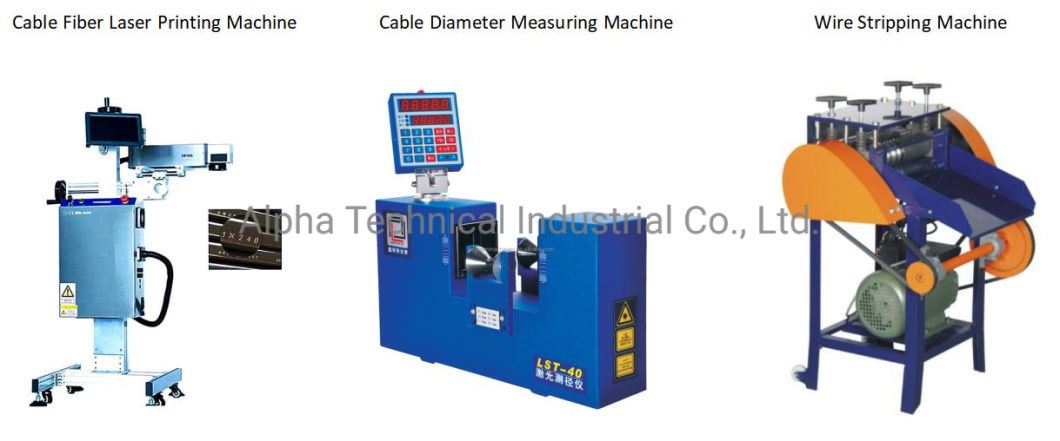

Related products
FAQ for cable copper wire recycling machine
1) How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest
cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO, TUV.
c. Agents in RU, US, UKR, MYS, PH; Users around the world.
d. Welcome to inspect anytime.
2) How about the test running & installation?
Before delivery, we finish the test over 3 days. If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
3) Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
4) Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
