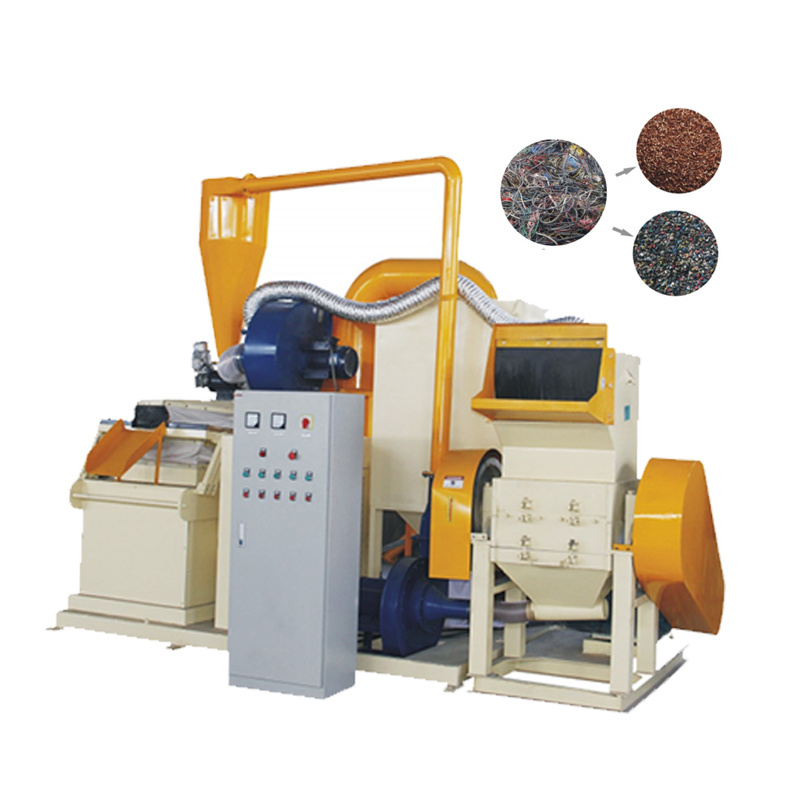

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine

Quantity:
  • Available
  • 800-120000kg
  • 1
  • 29-130kw
  • Standarsd Seaworthy Package
  • can be customized
  • HLT
  • Jiangsu China
  • 500set One Month
  • US$ 1000/Set 1 Set(Min.Order) | Request Sample

Product Description

Waste Metal Scrap Shredder Radiator Copper And Aluminum Recycling Machine Wire Copper Recycling Machine

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling MachineDescription

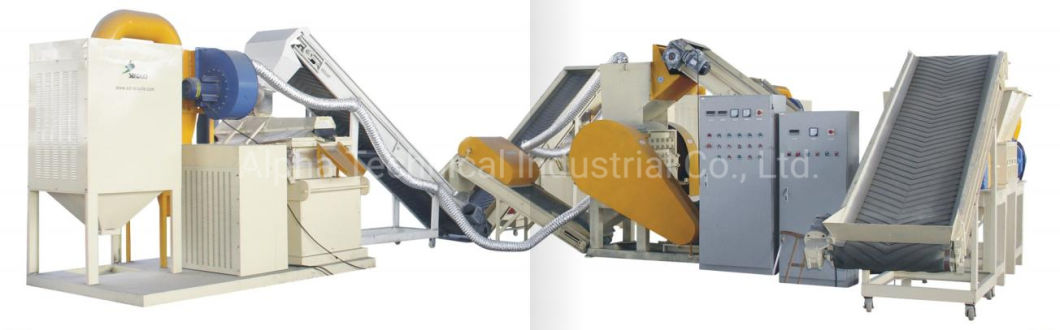

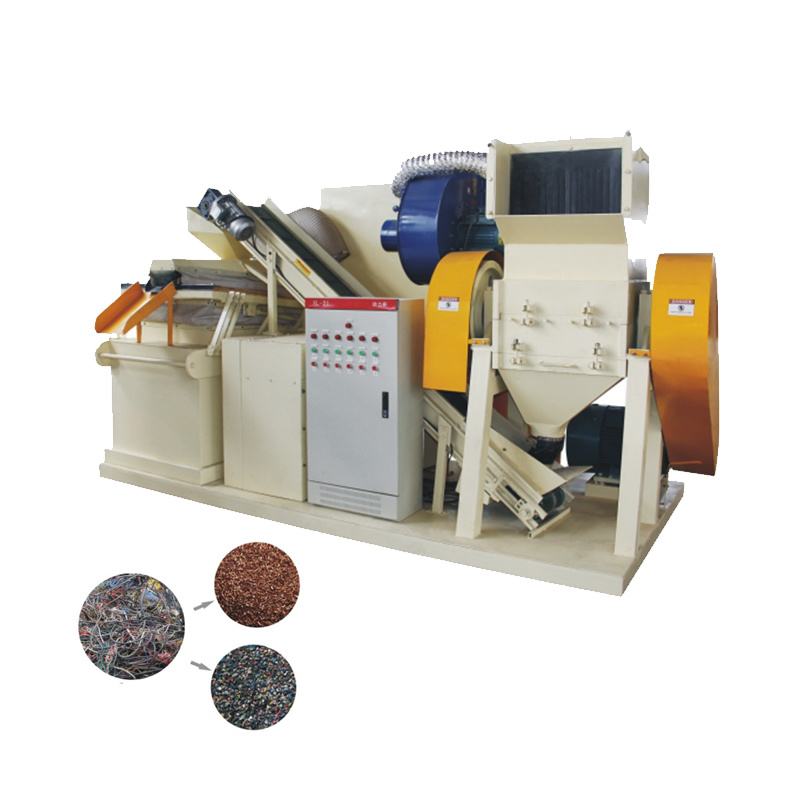

Copper wire granulator has much complicated processing process. It is made up of a copper wire dual shaft pre-shredder, two conveying machines, a second copper wire crusher, copper separation system, dust collecting system etc.. At first, the pre-shredder will cut the materials into 10-15 mm pieces. Then in the second crusher will crush the materials into 3-5 mm before further separation. The whole material feeding process relies on the conveyors and you can change their conveying speed according to your production. So it will be much more convenient. Dust collection system will be much more environmental protection. One to two people to operate it, benefit is better, space is more province
MODEL POWER VOLTAGE ANGLE BLADES OUTPUT SIZE WEIGHT
400S01 11.92KW 380V 0.5-20mm 10-2 80-120KG/H 145*133*210cm 900kg
400S02 11.92KW 380V 0.5-20mm - 60-100KG/H 1.23*1.17M*1.8M 850kg
400M01 22,76KW 380V 0.5-20mm 10+2 150-200KG/H 2.7M.9*2.3M 1600kg
600A 46.87KW 380V 0.5-20mm 10+4 200-300KG/H 4*1.95*2.3M 3400kg
600B 46.87KW 380V 0.5-20mm 10+4 200-300KG/H 4.3*1.95 *2.4M 3400kg
800 73.26KW 380V 1-40mm 40+14 500-600KG/H 5*6*2.8M 8T
1200 129.36KW 380V 0.5-40mm 10+4 800-1200KG/H 16M*10M*3M 12000kg

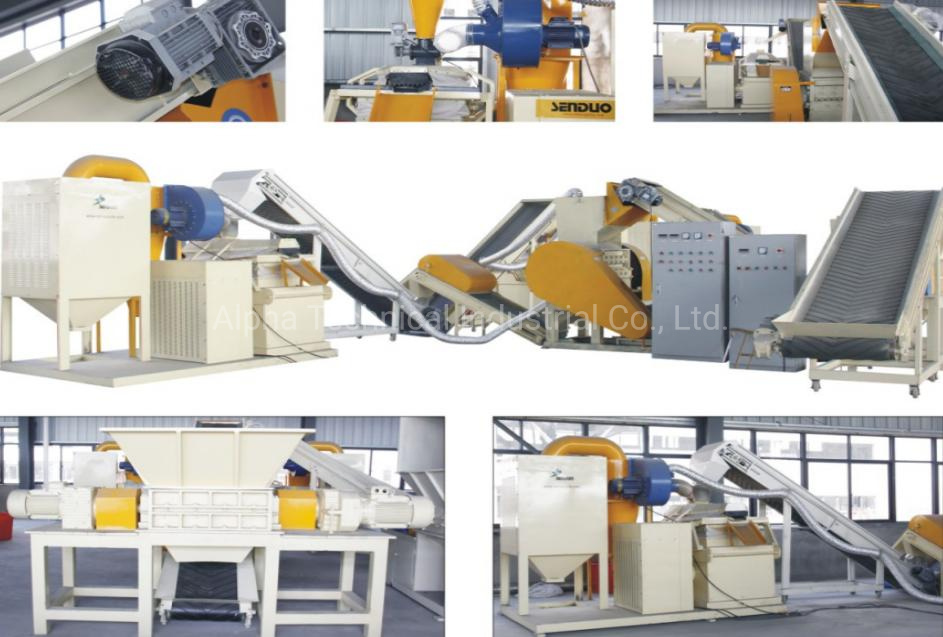

Manufacturing process
Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine



Application
Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine

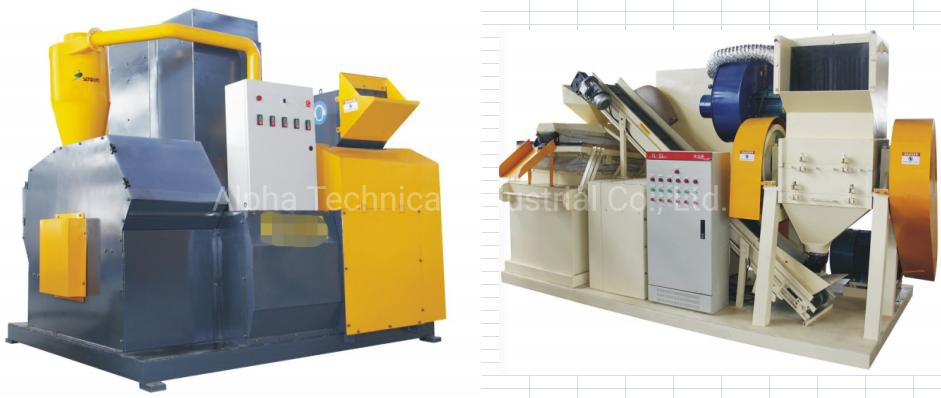

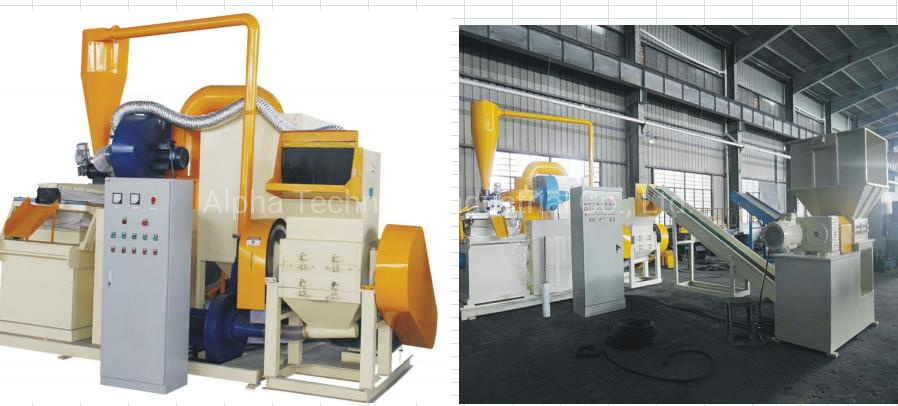

Different type of machine
QJ-400M QJ-600A

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine

QJ-600B QJ-800

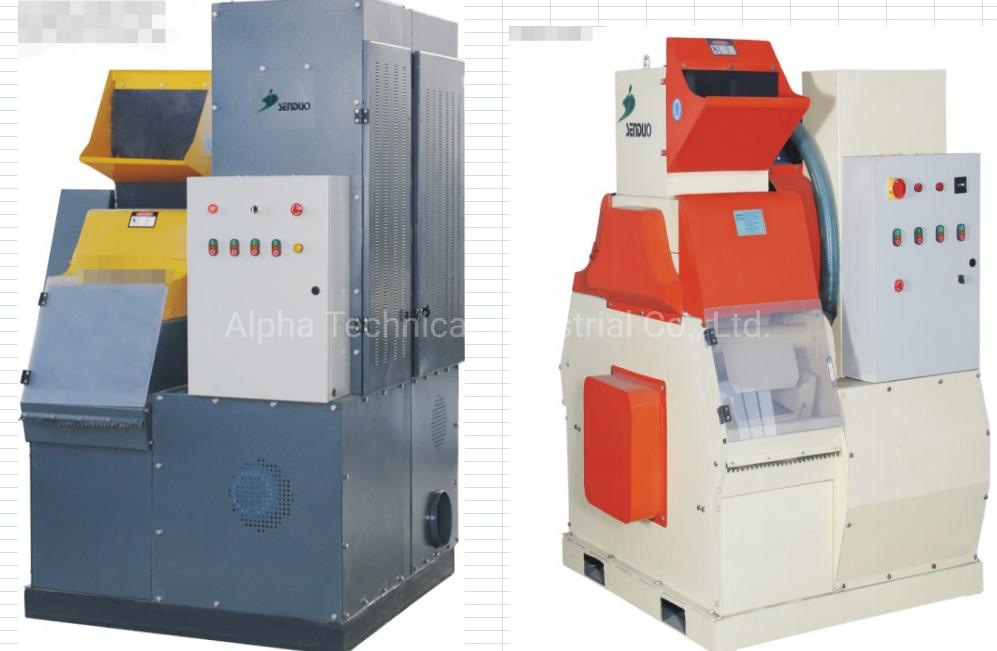

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling MachineQJ-400S01 QJ-400S02

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine
QJ-1200

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine

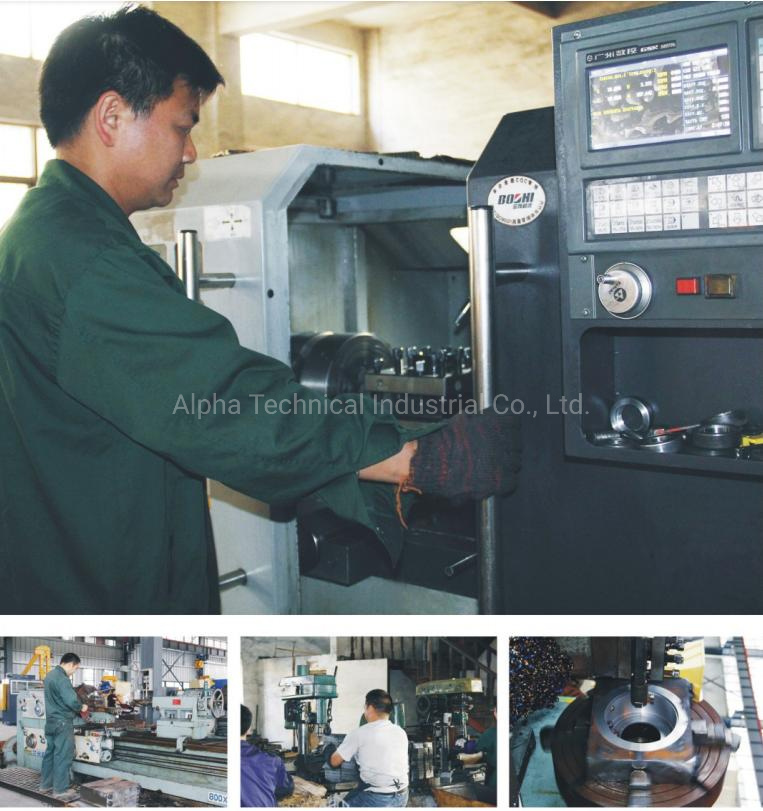

Manufacturing site

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine

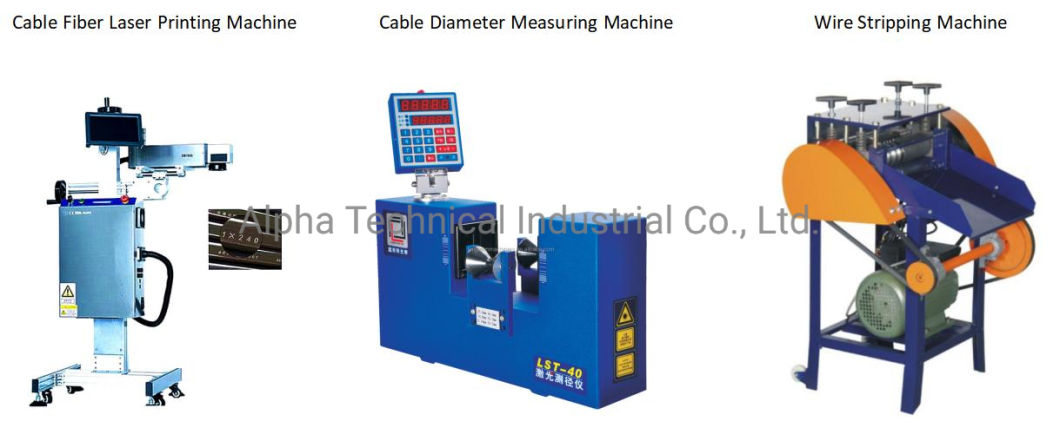

Related products

Waste Metal Scrap Shredder Radiator Copper and Aluminum Recycling Machine Wire Copper Recycling Machine
FAQ for cable copper wire recycling machine

1) How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest
cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO, TUV.
c. Agents in RU, US, UKR, MYS, PH; Users around the world.
d. Welcome to inspect anytime.
2) How about the test running & installation?
Before delivery, we finish the test over 3 days. If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
3) Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
4) Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
