High Accurate Belt Type Meter Counter for Steel Rope&Cable Length Measuring^

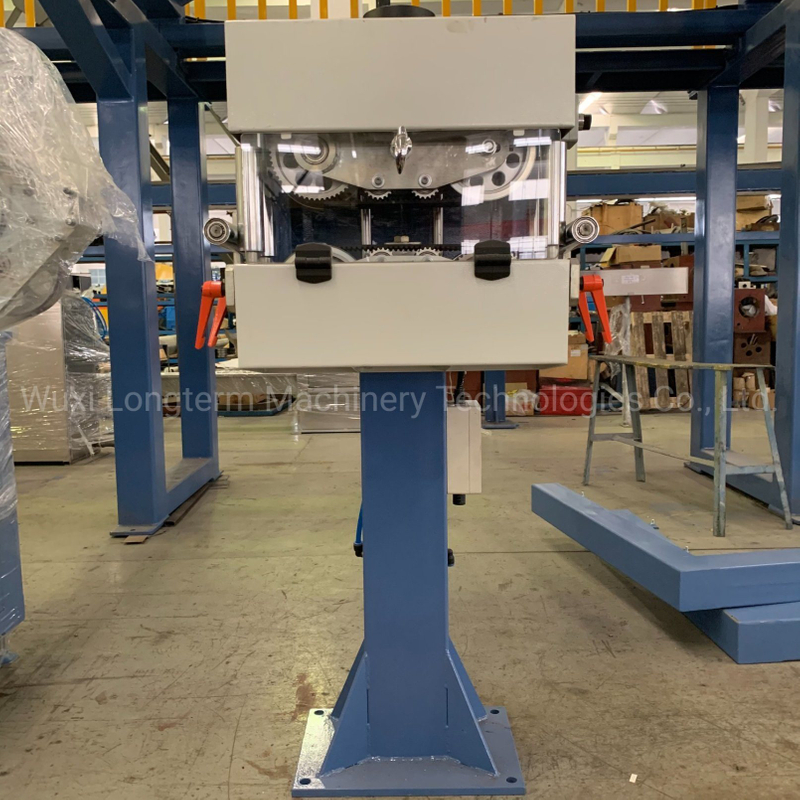

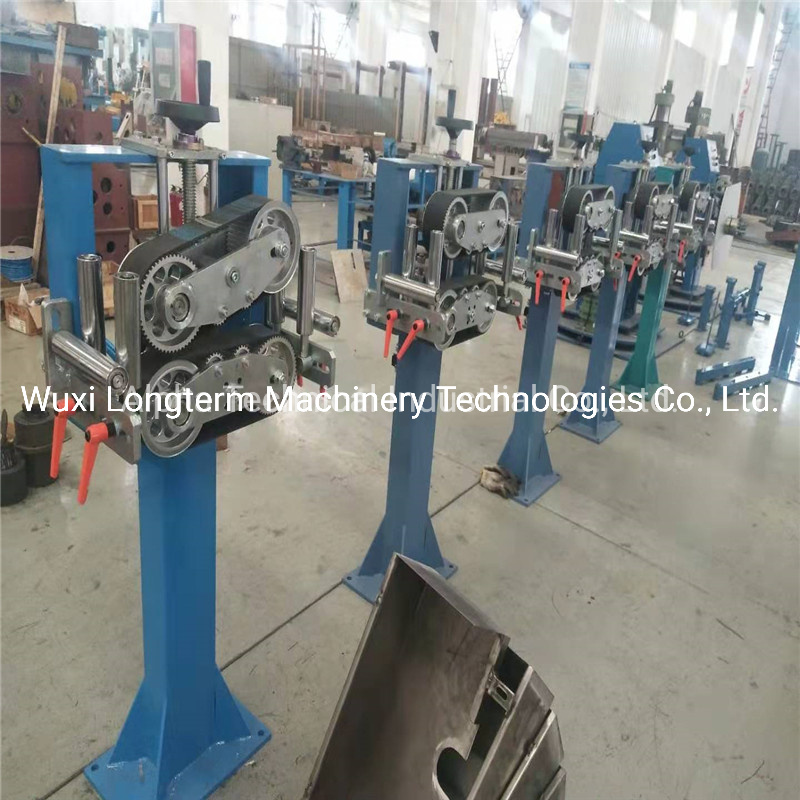

Belt type high precision meter counter is a special equipment used to measure the length of cables and other media. The tracked meter counter is dragged together after the measuring medium is clamped by the upper and lower tracks. The length of the crawler is the length of the measured medium. The length of the crawler track is the length of the pitch line that the crawler wheel turns, that is, the product of the crawler wheel pitch and the number of teeth. The encoder installed on the active crawler shaft measures the number of turns the crawler has turned. After conversion, the length of the medium can be obtained and recorded. The upper crawler is lifted up and down by the hand wheel and the screw rod, and the lower crawler is lifted up and down by the air cylinder. The lifting distance is determined by the outer diameter of the medium being measured.

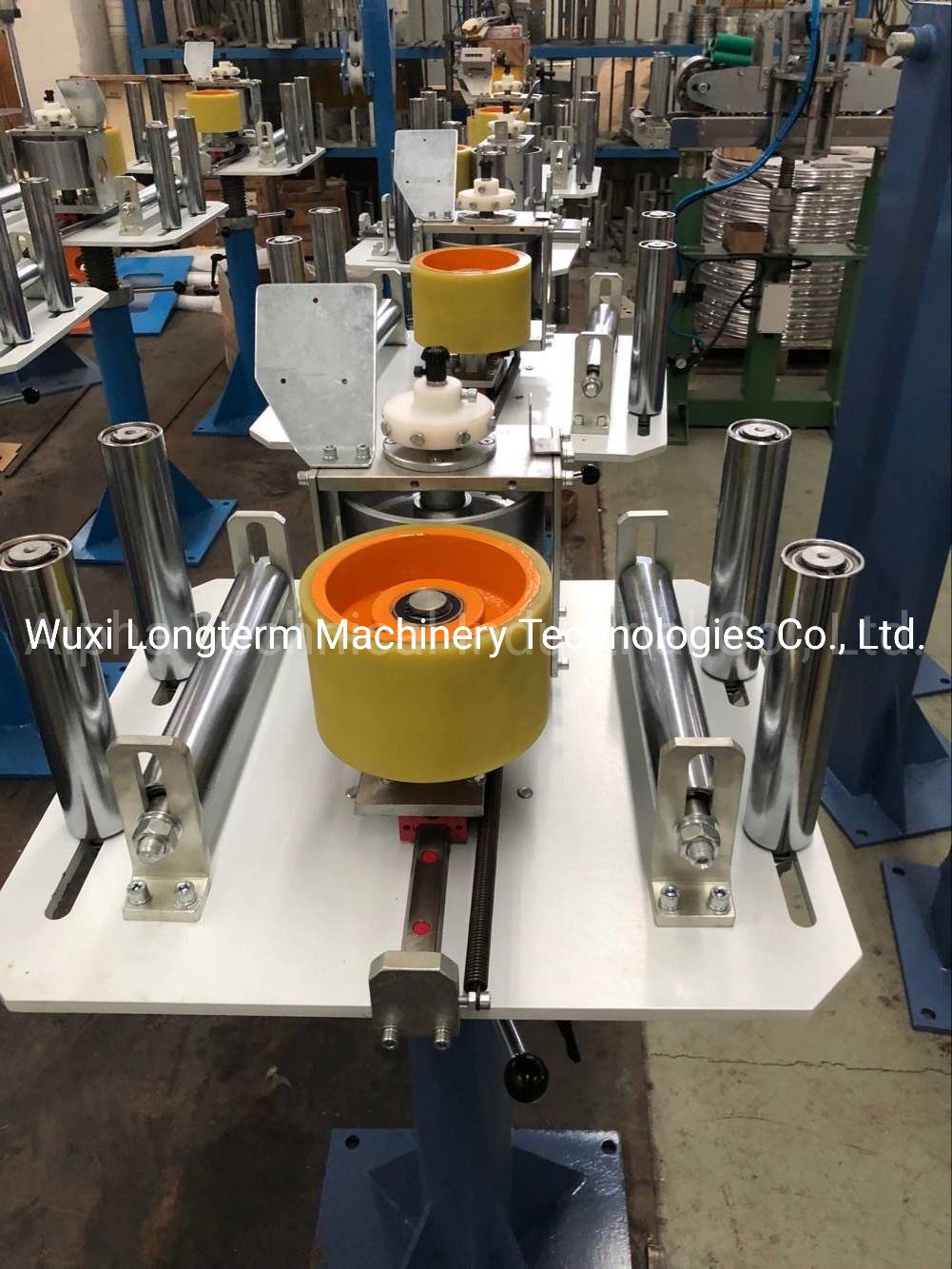

II.Main parameters Two horizontal guide wheels are used, the meter wheel is plated with hard chrome, and the compression wheel is covered with polyurethane to increase the friction. The compression is controlled by the cylinder and controlled by the SMC pressure regulating valve. The meter is mechanically counted, with encoder output, which can be connected to customers PLC as an electronic meter signal Diameter of meter wheel: 159.15 Wire diameter: Φ30~150 Speed:10m/min The number of meters is displayed on the electronic meter counter Meter counting accuracy: ±0.1% Machine detail Relevant machinery - Cable extrusion machine A.Description

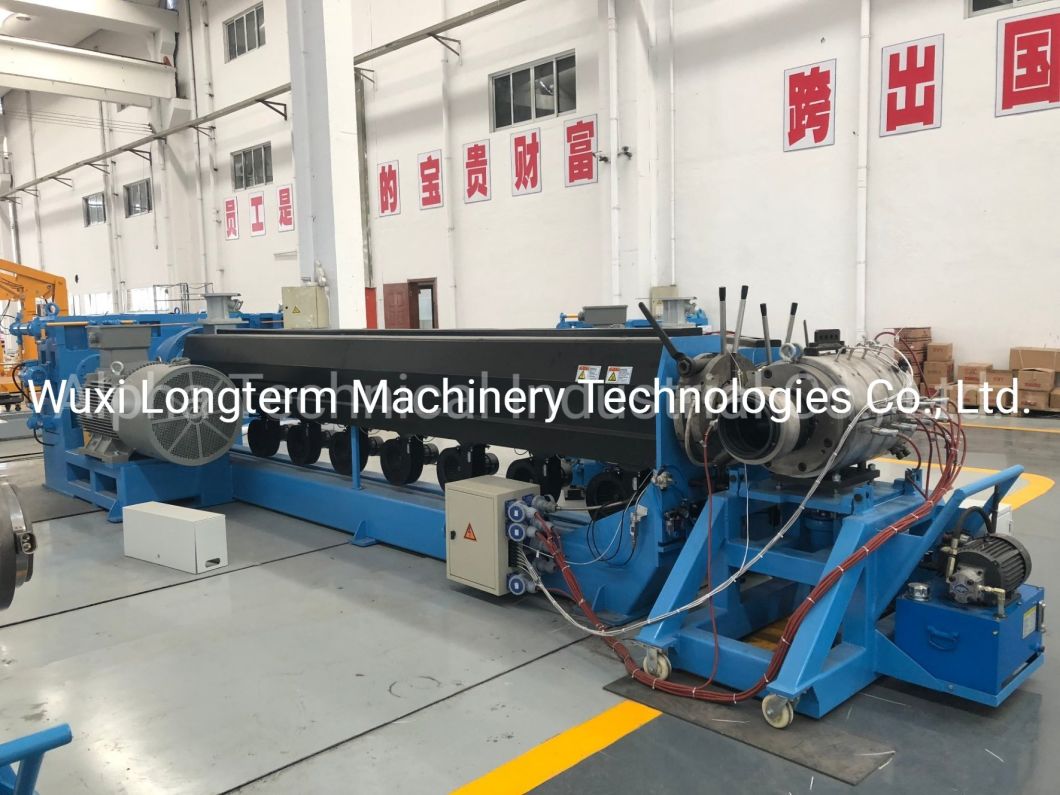

The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter
| Type & Size | Screw Dia. (mm) | L/D ratio | Screw speed (rpm) | Main motor (kw) | Barrel heating power (kw) | Temp. contr. zones (body/cross head) | Max. output capacity (PVC) (kg/h) |
| SJ30X25 | 20 | 25:1 | 5-150 | 11 | 3.6 | 3/2 | 20 |
| SJ45X25 | 45 | 25:1 | 10-120 | 15 | 9 | 3/2 | 50 |
| SJ65X25 | 65 | 25:1 | 10-100 | 30 | 16 | 4/4 | 120 |
| SJ90X25 | 90 | 25:1 | 10-100 | 90 | 30 | 4/4 | 280 |
| SJ120X25 | 120 | 25:1 | 7-68 | 132 | 54 | 6/4 | 580 |
| SJ150X25 | 150 | 25:1 | 6-60 | 185 | 88 | 6/4 | 880 |
| SJ200X25 | 200 | 25:1 | 4-40 | 250 | 140 | 7/4 | 1100 |

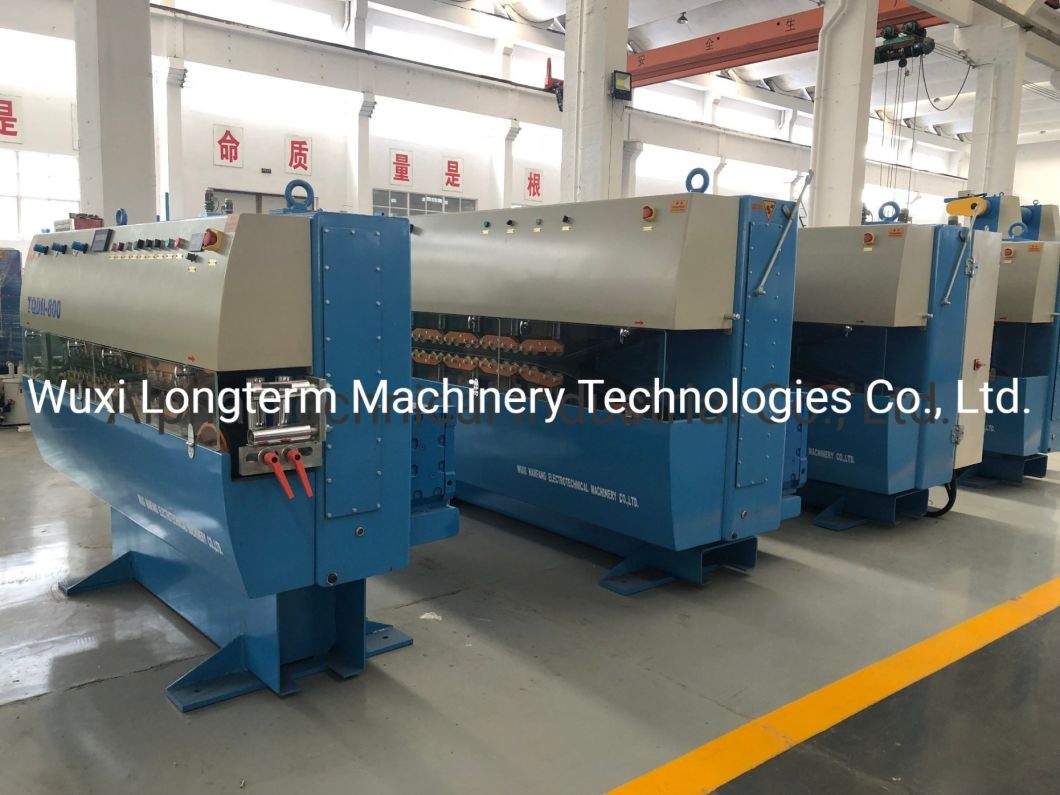

-Cable puller/caterpillar Mainly used for various cable production lines for single machine or front and rear double traction.

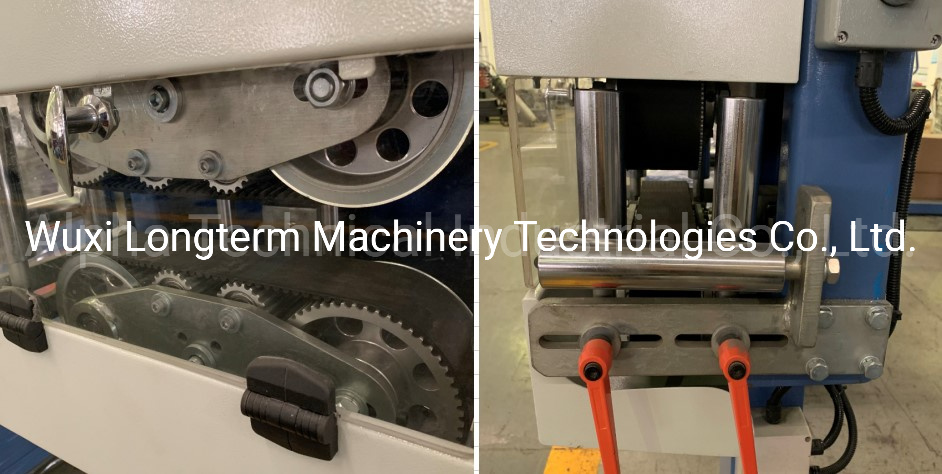

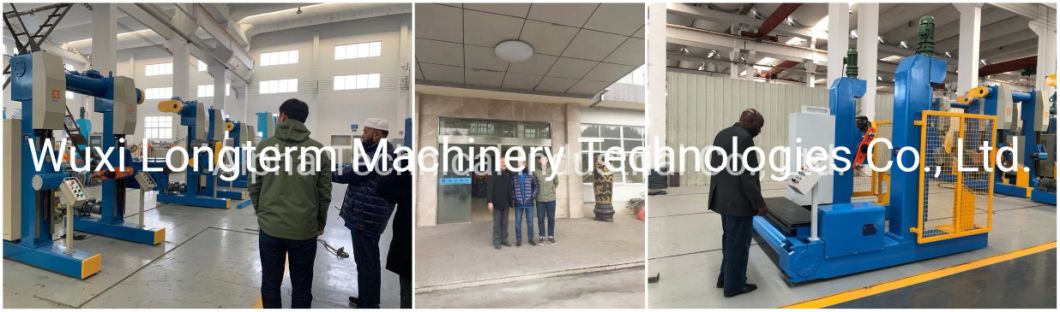

Machine details Clients Visiting

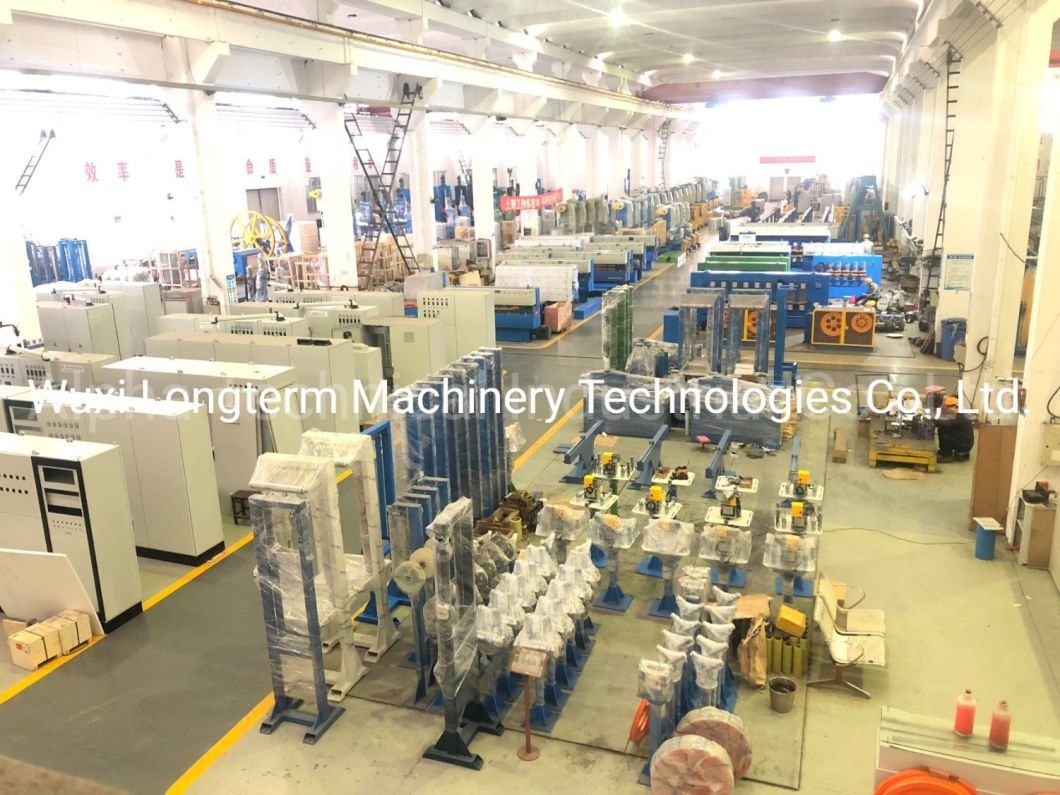

Factory show Alpha Technical Industrial Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
